Welcome to SUNFLOWERVDP professional video intercom system unit /Access control system factory store. All video door phone intercom systems and access control systems come from our factory! We have strong technic and engineer supporting!

• ​We have the video showing or connection wires about the products works and the installs, if you need it, kindly leave message to us! And the video in aliexpress only for your reference!
• ​Add our aliexpress store in your wish list before place the order to us, become our VIP buyer, some special or new products you will enjoy more discount automatic based on on line price

Product name:  Fingerprint/ IC cards/Code unlock outdoor unit + Color 7" indoor monitor for Aprtments/offices/home, etc.

This video intercom fignerprint door bell system integates functions for access control such as fingerprint sensor, password, IC card, remote unlocking from indoor extension, etc. It is easy to use with its safe, stable and relaible performance, which is stuitable for home, villa, school,bank, hospital, office and other places.

• Brushed aluminum alloy panel, acrylic touch keyboard and blue backlight for touch keys, Good looking and durable.
• Four ways to access control (fingerprint, password, IC card, remote unlocking of indoor extension).
• Video intercom and access control through indoor extension.
• Infrared night vision and waterproof function ( The waterproofing process in the front side of the product has been done, It is recommended to seal the gap between the product and the wall during installation with glass glue for further treatment).
• Anti-demolition alarm function. When someone forcibly dismantles the outdoor station, the outdoor station will sound an alarm and the indoor extension will be notified at the same time

• UI interface menu (maximum support 32G TF memory card, photo fixed storage 1024 cycles, the remaining memory space to save video
• Function: Video intercom/monitor outside/ take photos/video recording/remote unlock the door lock etc

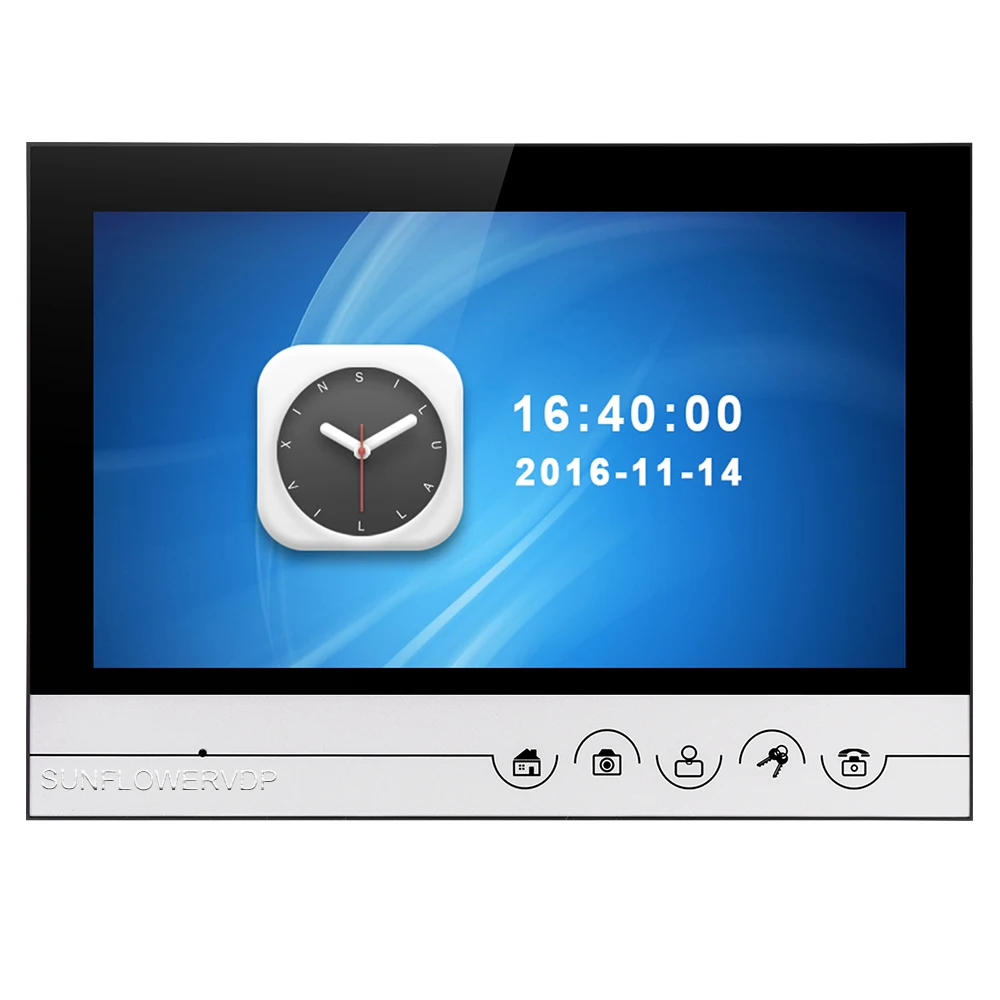

• Display: Digital color 9 inch TFT LCD (16:9 display)
• With micro-processing technology, auto-remote control, excellent performance and high reliability
• Touch button TFT color screen with low power consumption, no radiation and high definition
• Hands-free intercommunication
• Intercommunication is available between indoor and outdoor unit.
• Intercommunication is available between indoor monitor and indoor monitor (this function only support one button works with more monitors)
• Resolution: 800 x 480
• 25-chord melody rings for option
• Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
• Adapter Output voltage current: DC15V 1500mA
• Material:  Acrylic panel/ABS  Plastic
• Installation: Surface mounting
• Dimensions: 230mmx165mmx20mm (W x H x T )
• Net  Weight: 0.85kg
• Operation temperature: -20 to +60
• Support 120 to 180 meters
• Max support: 12v48

The wiring diagram for 1 outdoor unit with (1/2/3/4) indoor monitor: (1V1/1v2/1v3/1v4)

Installation: Installation is simple and easy, use 4-core wires/5-core wires, support max 100 meters-150 meters distance

This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

• It controls electric lock directly.
• Can reduce the load of access controller, save wiring to reduce the hidden trouble
• Based delay control circuit, lock time can be in 0-15 seconds
• Automatic protection function, unexpected situations such as when the power supply
• short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
• Operative device: E/M Lock, Access Controller, Exit Push Button.

Electronic control lock and accessories:

Lock operation:
Without power being applied, the lock operates as a standard mechanical lock, It can be opened from the outside using the key,  or from the inside by pressing the button release
When 12V DC is applied briefly, or the button release pressed, or the external key is turned, a small catch is released inside the lock
Releasing the internal catch allows the release roller to push open the door latch, So to test operation of the lock, It is necessary to press in the release roller.
Voltage: DV9-12V,1.5A
Power: >12W
Operating mode: No (open when powered)
Dimensions (strike): Approx. 36(W)*102(H)*51(D)mm; Approx, 1-3/8" (W)*4"(H)*(D)inch
Dimensions (main body): Approx, 123(W)*105(H)*35(D)mm; Approx, 4-3/4"(W)*4-1/8"(H)*1-3/8"(D)inch

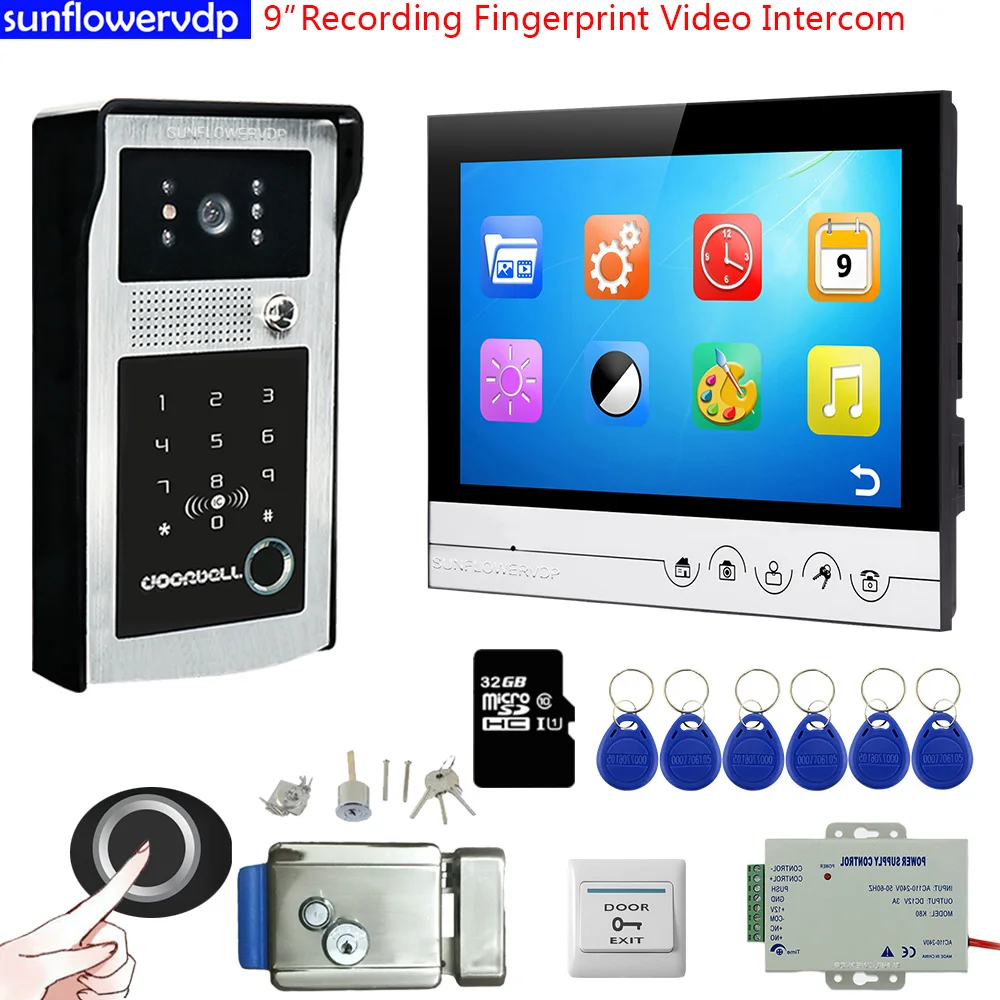

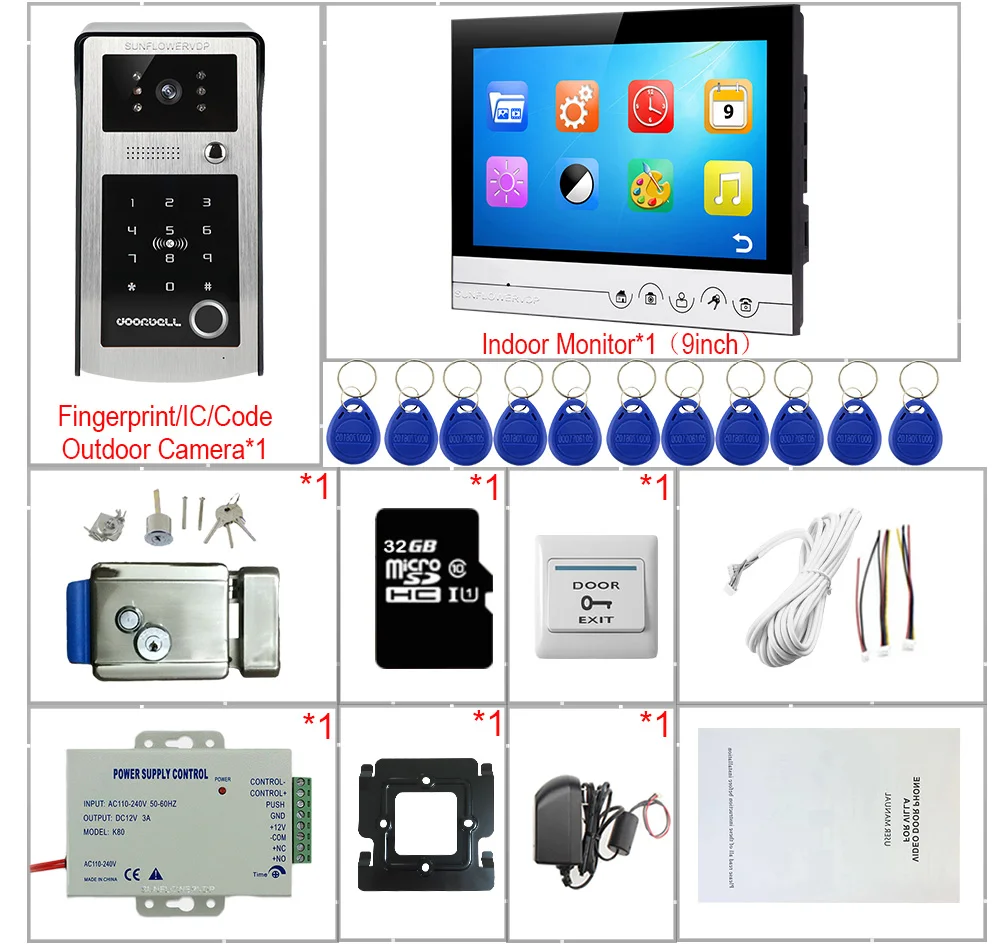

Package Content: This package only for  (SF-ICF--V7O9RM-1V1),  For other different apartments choose, Kindly reference other packages details.

• 1 x video recording TFT-lcd 9 inches Indoor monitor (silver color with video recording function)
• 1 x 32GB SD card
• 1 x Indoor unit wall carry
• 1 x Power supply for indoor unit
• 1 x Infrared night vision/HD outdoor camera (Fingerprint/ ic cards/code unlock one call button)
• 1 x 12V access control power supply for outdoor unit
• 1 x Electronic door lock
• 15 x IC cards
• 1 x Door exit
• 1 x Testing cable
• 1 x English user manual/Warranty card
• Standards screws and expansion bolts for the installation
