Модуль GNSS IOT Quectel LC86L LC86LICMD L96 L96-M33 L80 L80-M39 L86 L86-M33 L89 L89-S90 L80-R L80RE-M37 L89HA-S90 включен.

1. Quectel L96 L96-M33 L80 L80-M39 LC86L LC86LIBMD L86 L86-M33 L89 L89-S90 L80-R L80RE-M37 GNSS Module Quectel LC86L LC86LIBMD LC86LCMD L96 L96-M33 L80 L80-M39 L86 L86-M33 L89 L89-S90 L80-R L80RE-M37 GNSS Module

We can also supply L70 L70-R L76-L etc GPS modules.Please contact us if you need.

GNSS LC86L

LC86L is an ultra-compact GNSS module with an integrated patch antenna on top and a GNSS chipset engine (AG3331) that achieves the perfect performance to support two GNSS constellations (either GPS + GLONASS or GPS + BeiDou) and QZSS. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels.

Designed to be compatible with Quectel GPS L80 and L86 module in the compact and unified form factor, it provides the easiest flexible and scalable platform for migrating from GPS into GNSS.

Combining advanced AGNSS as well as EASY™ (Embedded Assist System) and LOCUS feature, LC86L achieves the highest performance and fully meets the industrial standard. EASY™ technology allows LC86L to calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so LC86L can fix position quickly even at lower signal levels with low power consumption. Additional feature of embedded logger function called LOCUS allows LC86L to log position information to internal flash memory at default intervals of 15 seconds and provide typically more than 16 hours log capacity without adding any cost.

LC86L supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process. Due to its compact design, high precision and high sensitivity, LC86L is perfectly suitable for a broad range of M2M applications such as portable devices, automotive, personal tracking, security and industrial PDA. It is especially suitable for special applications, like GNSS mouse and OBD.

Key Benefits

● Extremely compact footprint: 16.0 mm × 16.0 mm × 6.95 mm

● Multi-GNSS engine for GPS, GLONASS, BeiDou (optional) and QZSS

● Automatic antenna switching function

● Support antenna detection and antenna short-circuit protection functions

● Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

● Support AGNSS

● Integrated LNA available for better sensitivity

● Support EASY™, an advanced AGNSS technology without the demand of any external memory

● Support SDK commands developed by Quectel

GNSS L96

L96 is a concurrent multi-GNSS receiver module with embedded chip antenna. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, L96 supports concurrent reception of up to three GNSS systems (GPS+GLONASS+Galileo). The built-in LNA provides the module with better performance under weak signal areas. The embedded chip antenna reduces the total size of customers’ applications. To meet varied application demands, L96 also provides an external antenna interface.

Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, especially when driving in rough urban environments.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L96 fully meets the industrial standard and provides greatly reduced TTFF and ultra-low power consumption. EASY™ technology allows L96 to calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal flash memory, so the module can fix position quickly even at low signal levels and provide low power consumption. With AlwaysLocate™ technology, L96 can adaptively adjust the ON/OFF time to achieve balance between positioning accuracy and power consumption according to the environmental and motional conditions.

Its super performance makes L96 ideal for automotive, industrial and consumer applications. Extremely low power consumption makes it easier to be applied to power sensitive devices, especially portable applications.


Key Benefits
●   Ultra-compact size: 14.0mm × 9.6mm × 2.0mm
●   Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo (RLM supported) and QZSS
●   Embedded, omnidirectional and wideband antenna
●   Built-in LNA for better sensitivity
●   Dual SAW filters for better noise cancellation
●   Support EASY™ and EPO advanced AGPS technologies without the need of any external memory
●   AlwaysLocate™, an intelligent algorithm for power saving
●   Ultra low tracking power consumption: 20mA
●   LOCUS, embedded log saving function without the need of host or any external flash
●   Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN)
●   Great anti-jamming performance due to multi-tone active interference canceller
●   Balloon mode, for high altitude up to 80km
●   PPS VS. NMEA can be used in time service
●   GLP/geo-fence/jamming detection/odometer functions
●   Support SDK command for customized settings

L80 is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80 the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80 has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L80 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, L80 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.

L80 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.

The Fitness Low Power (FLP) feature provides low power GPS solution for fitness application. It is an optimized solution for wearable, fitness and tracking devices and only costs about 50% power consumption of normal mode.

With its compact design, high precision and sensitivity, L80 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.

GPS L80

Key Benefits

●Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm

●Extremely compact size: 16.0mm × 16.0mm × 6.45mm

●Automatic antenna switching function

●Support short circuit protection and antenna detection

●Built-in LNA for better sensitivity

●EASY™, an advanced AGPS technology without external memory

●Ultra low power consumption in tracking mode, 20mA

●AlwaysLocate™, an intelligent controller of periodic mode

●LOCUS, an embedded logger solution with no need of host and external flash

●High sensitivity, -165dBm @Tracking, -148dBm @Acquisition

●66 acquisition channels, 22 tracking channels

●FLP mode, about 50% power consumption of normal mode

●Balloon mode, for high altitude up to 80km

●Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

●Anti-Jamming, Multi-tone Active Interference Canceller

●PPS VS. NMEA can be used for time service

●Support SDK command developed by Quectel

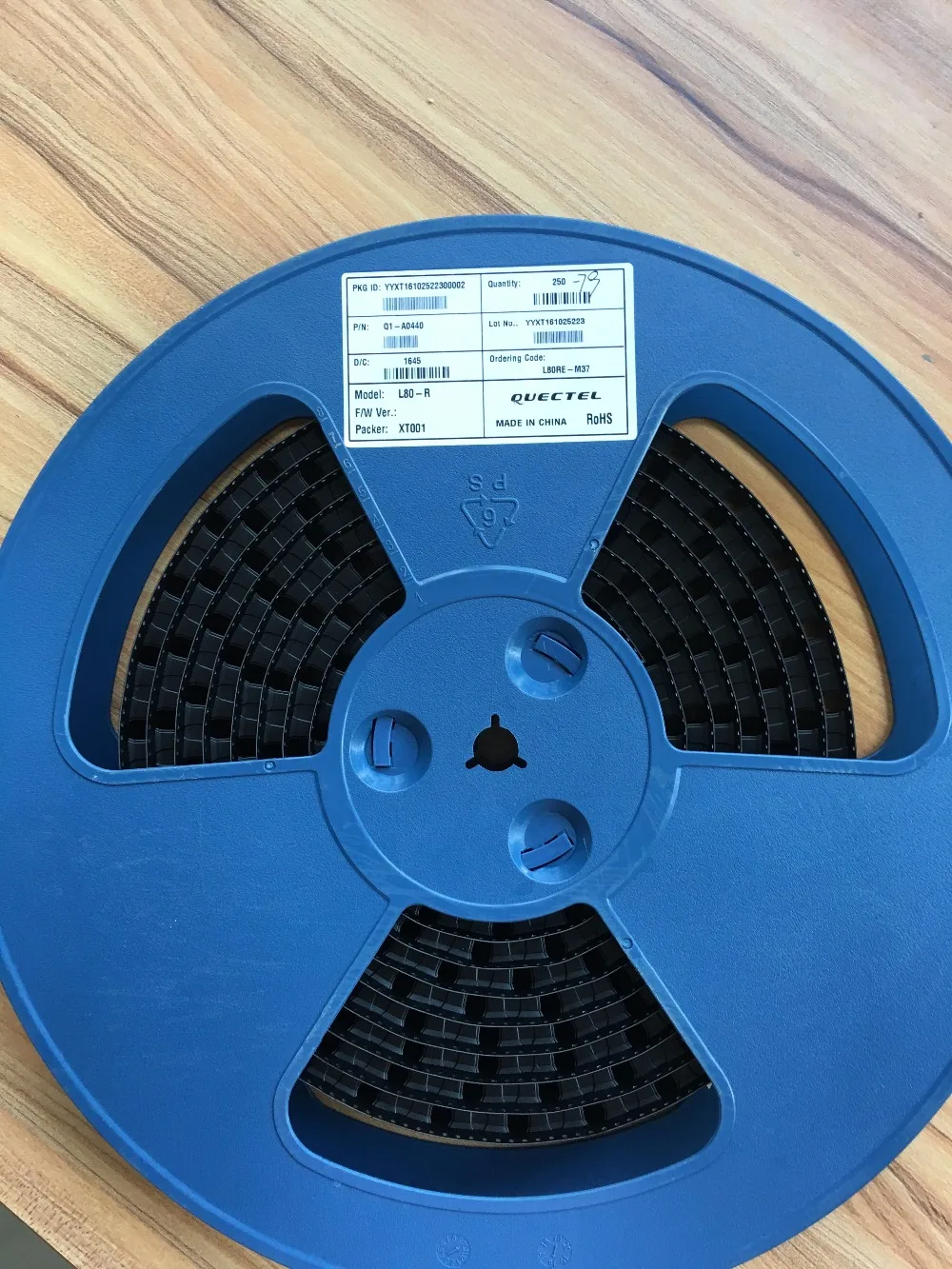

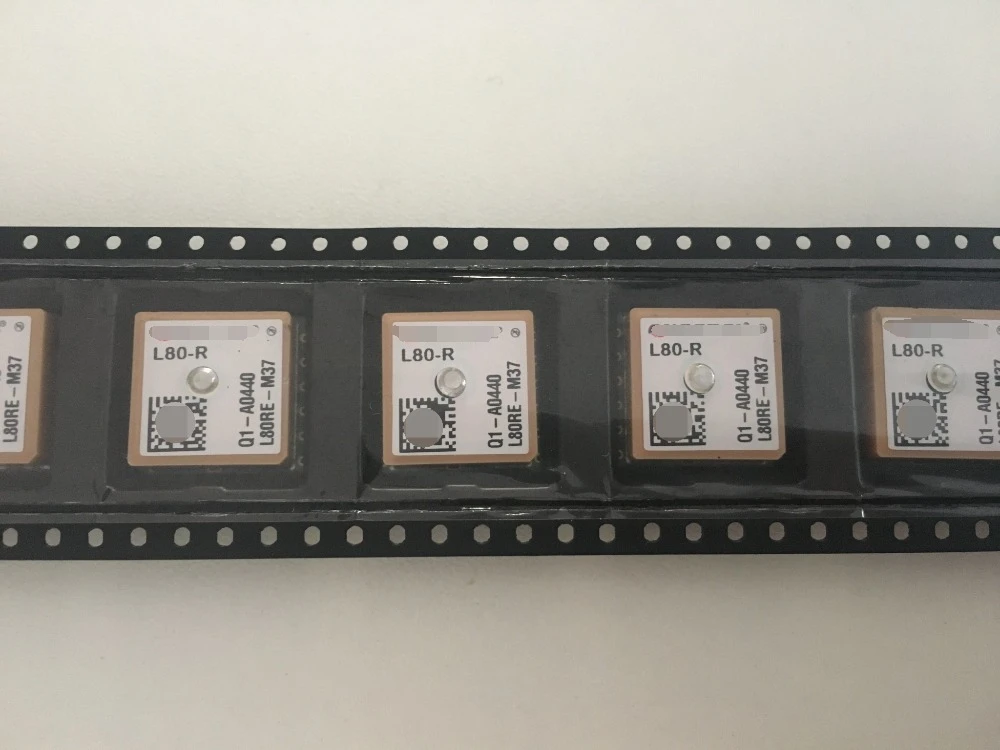

GPS L80-R

L80-R is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80-R the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80-R has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) technology, L80-R achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80-R can fix position quickly even at indoor signal levels with low power consumption.

With its compact design, high precision and sensitivity, L80-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.

Key Benefits

●   Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm
●   Extremely compact size: 16.0mm x 16.0mm x 6.45mm
●   Cost efficient for ROM-based version
●   Built-in LNA for better sensitivity
●   EASY™, advanced AGPS technology without external memory
●   Ultra low power consumption in tracking mode, 20mA
●   High sensitivity: 165dBm @Tracking, -148dBm @Acquisition
●   66 acquisition channels, 22 tracking channels
●   Support QZSS
●   Balloon mode, for high altitude up to 80km
●   PPS VS. NMEA can be used in time service
●   Anti-Jamming, Multi-tone Active Interference Canceller

L86 is an ultra-compact GNSS POT (Patch on Top) module with an embedded 18.4mm × 18.4mm × 4.0mm patch antenna and utilizes the MediaTek new generation GNSS chipset MT3333 that achieves the perfect performance. Designed to be compatible with Quectel GPS L80 module in the compact and unified form factor, it provides a flexible and scalable platform for migrating from GPS to GNSS. This space-saving design makes L86 a perfect module for miniature devices. Adopting LCC package and integrating patch antenna, L86 has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L86 achieves the highest performance and fully meets the industrial standard. EASY™ technology allows L86 to calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L86 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, L86 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.

L86 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.

Due to its compact design, high precision and sensitivity, L86 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA. It is especially suitable for special applications, like GPS mouse and OBD.

GNSS L86

Key Benefits

●Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS

●Embedded patch antenna: 18.4mm × 18.4mm × 4.0mm

●Extremely compact footprint: 16.0mm × 16.0mm × 6.45mm

●Automatic antenna switching function

●Support short circuit protection and antenna detection

●Built-in LNA for better sensitivity

●EASY™, an advanced AGPS technology without external memory

●Ultra low power consumption in tracking mode, 26mA

●AlwaysLocate™, an intelligent controller of periodic mode

●LOCUS, an embedded logger function without the need of host and external flash

●High sensitivity: -167dBm @Tracking, -149dBm @Acquisition

●99 acquisition channels, 33 tracking channels

●Balloon mode, for high altitude up to 80km

●Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

●Great anti-jamming performance due to multi-tone active interference canceller

●PPS VS. NMEA can be used for time service

●Support SDK command developed by Quectel

GNSS L89

L89 is a high performance IRNSS-enabled GNSS module, capable of acquiring and tracking GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS signals. With two embedded antennas, the module can work at L1 and L5 bands simultaneously.

Compared with the GNSS module working at L1 band only, L89 can make use of GPS, Galileo and IRNSS signals to increase the number of visible satellites, reduce TTFF and enhance positioning accuracy, especially when it is used in rough urban environments.

L89 can achieve exceptional performance both in acquisition and tracking, and fully meet the industrial standard. With two embedded LNAs, dual antennas and antenna switch function, it is an ideal product for automotive, consumer and industrial tracking applications.

Key Benefits
●   Support IRNSS L5 band
●   Embedded patch antenna and chip antenna
●   Multi-GNSS engines for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
●   Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
●   Integrated LNAs for better sensitivity
●   Great anti-jamming performance due to multi-tone active interference canceller
●   Support SDK command*developed by Quectel
