RS485 Low Pressure 1000pa Air Differential Transducer Sensor Tube Micro Boiler Coal Wind Gas Differential Pressure Transmitter

Notes:

What we can make:

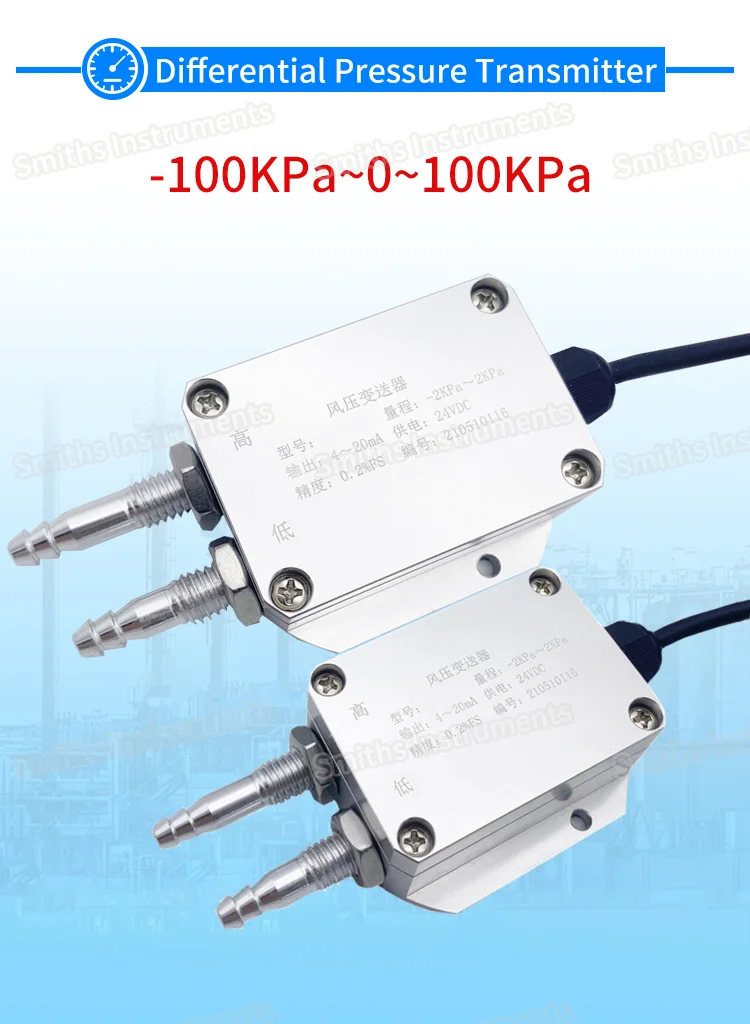

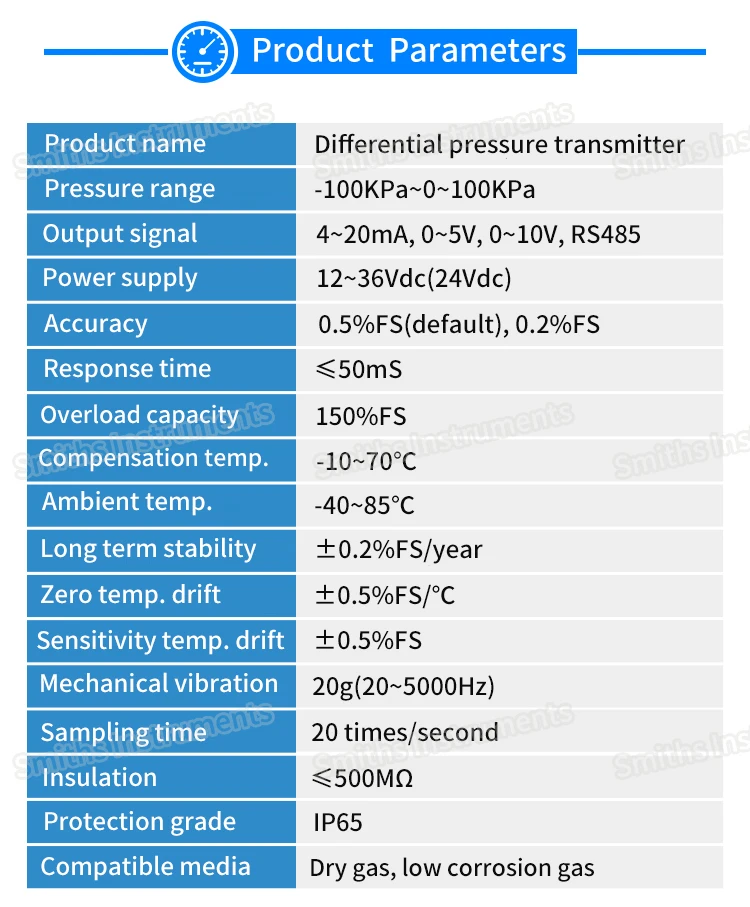

1. Available measuring range: any range within -100KPa~0~100KPa.

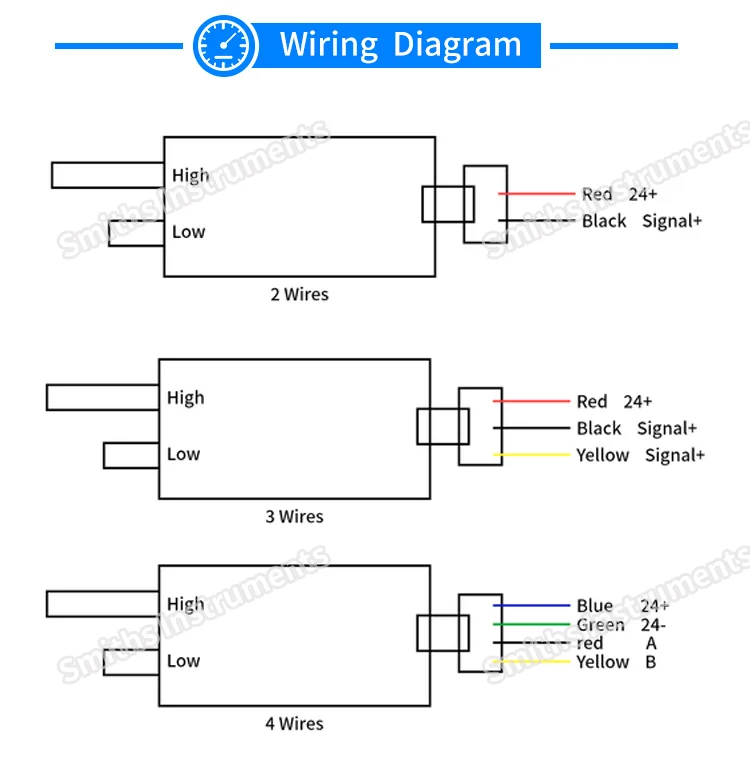

2. Available output signal: 4~20mA, 0~10V, 0~5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc.

So: if you need other parameters, please contact me.

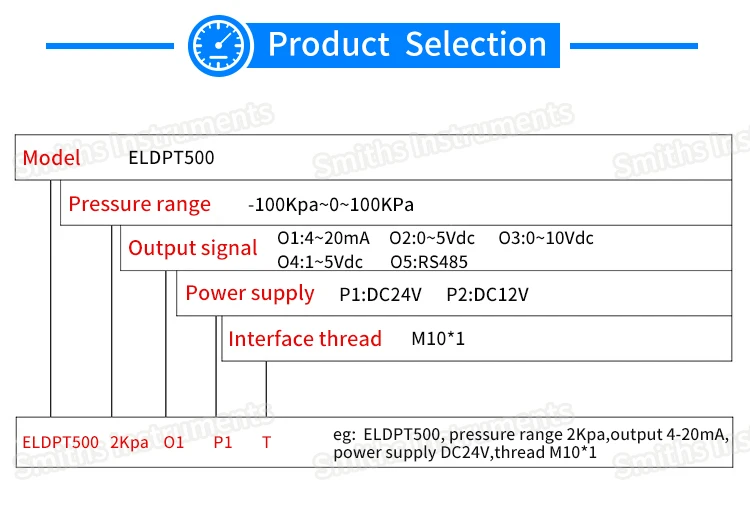

And tell me the measuring range, output signal, power supply, thread size.

We can make special customization for you.

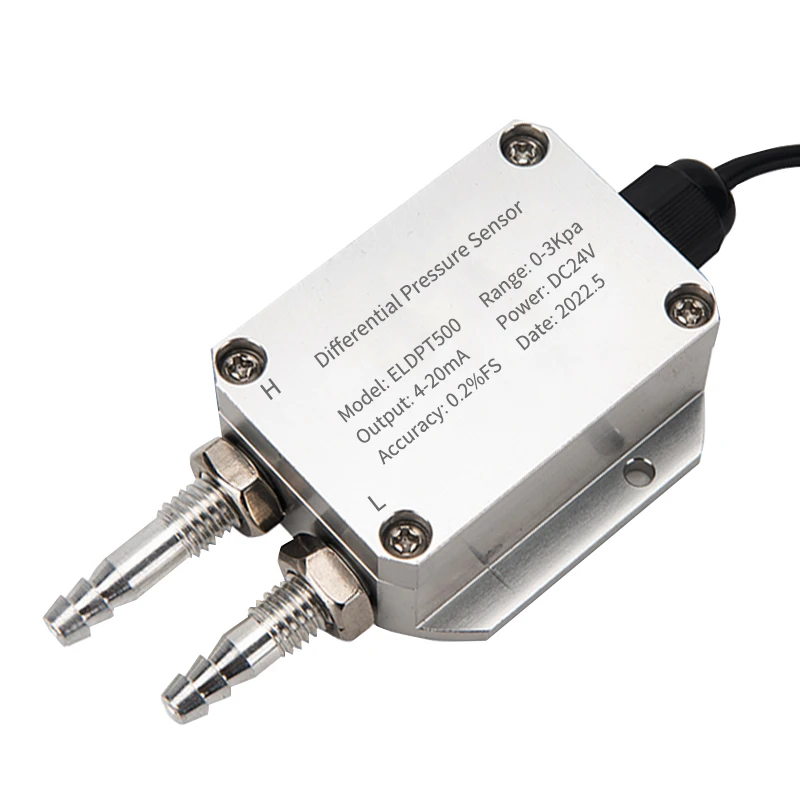

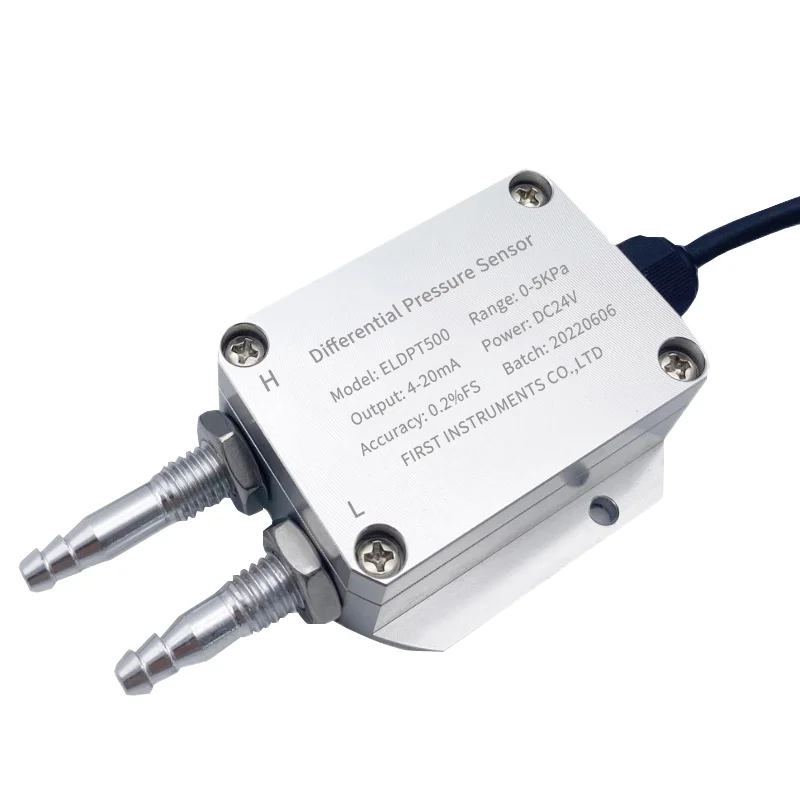

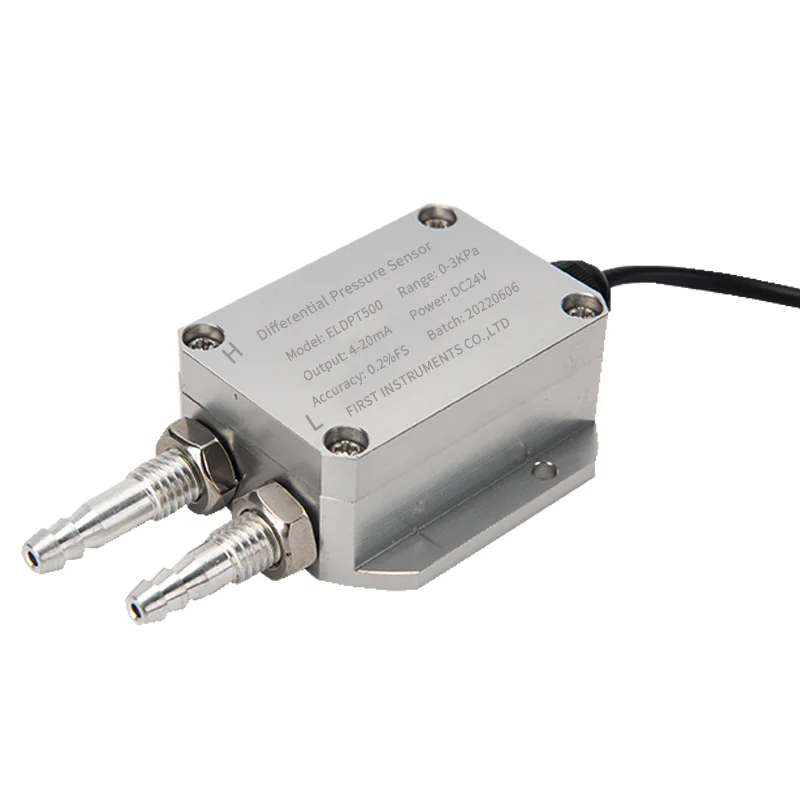

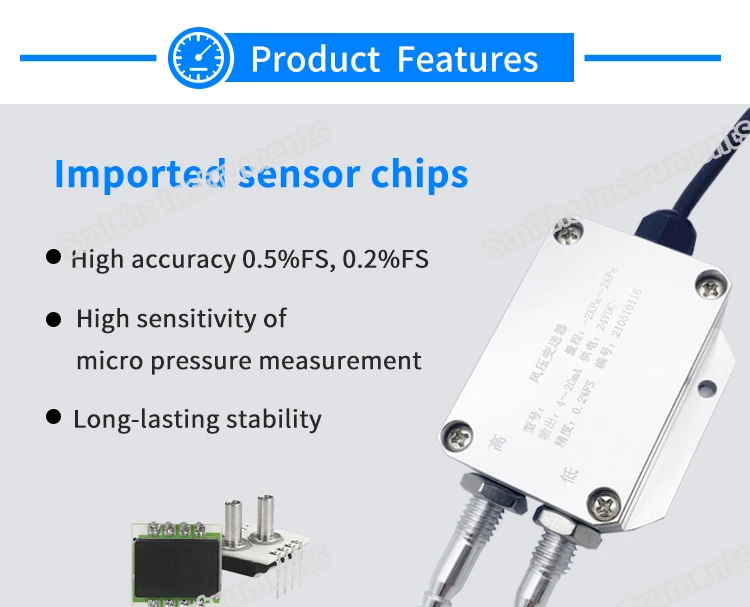

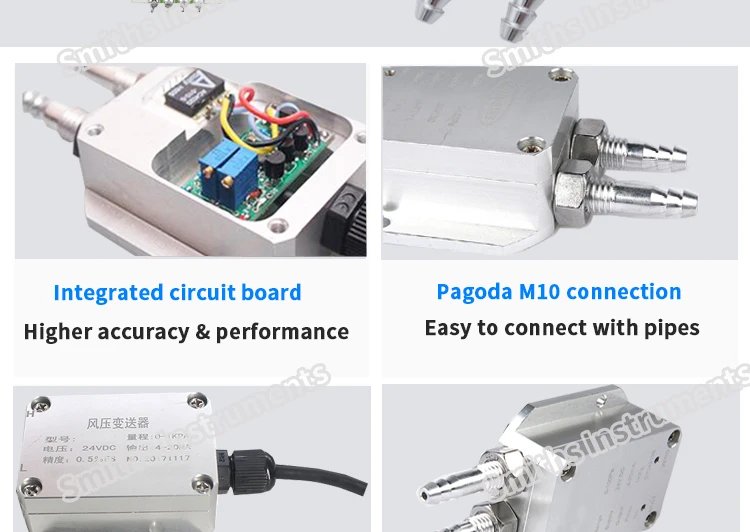

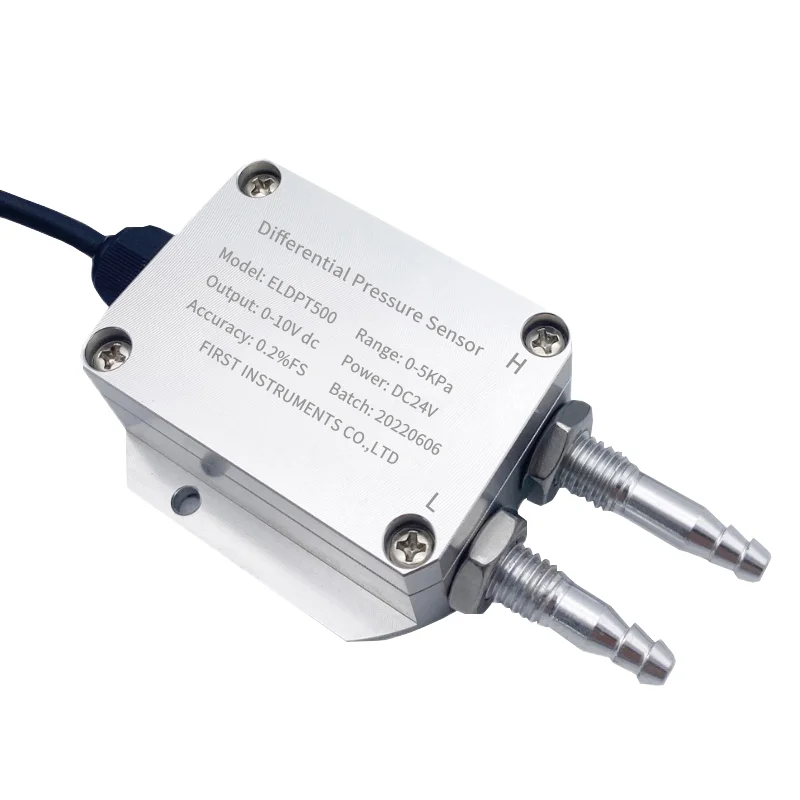

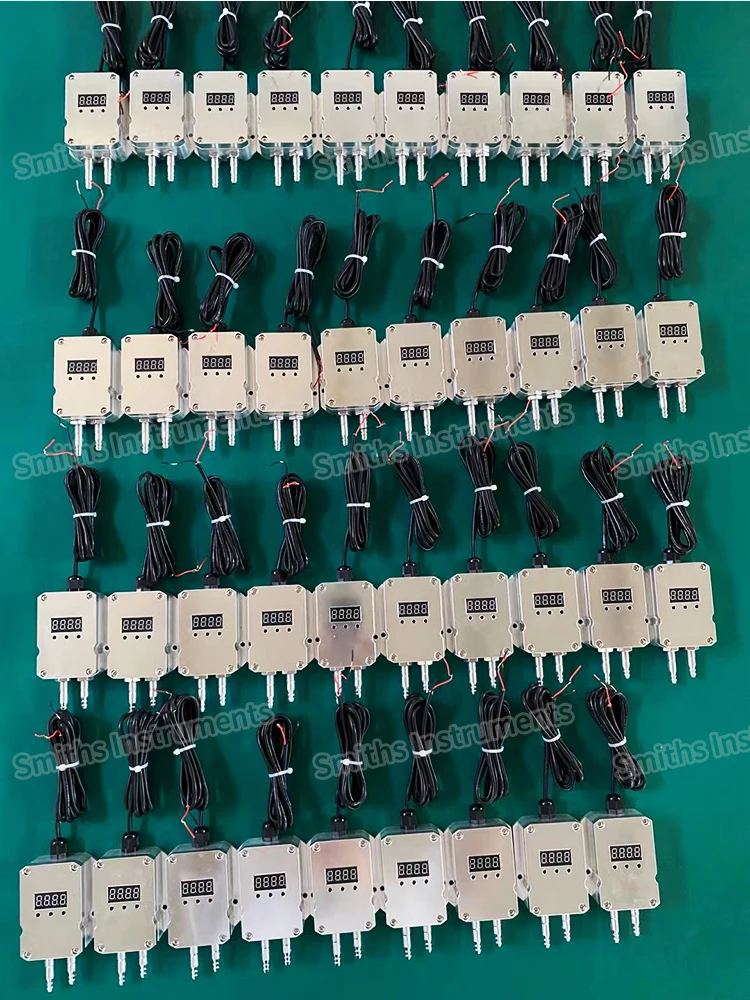

1>>. ELDPT500 differential air pressure transmitter is composed of high quality silicon piezoresistive differential pressure core and aluminium alloy shell, with 2 pressure interfaces M8 threaded and cock structures.It can be directly installed in the measuring pipeline or connected through the booster pipe, and can accurately measure the pressure and differential pressure of the gas.

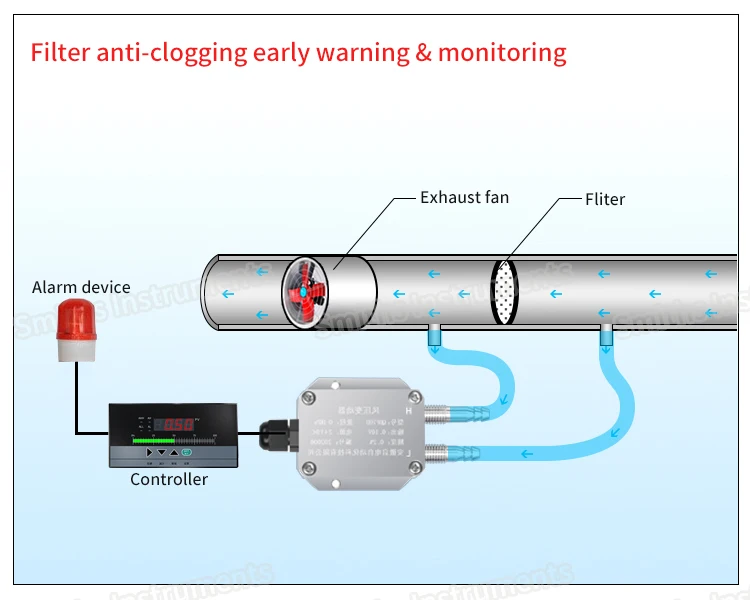

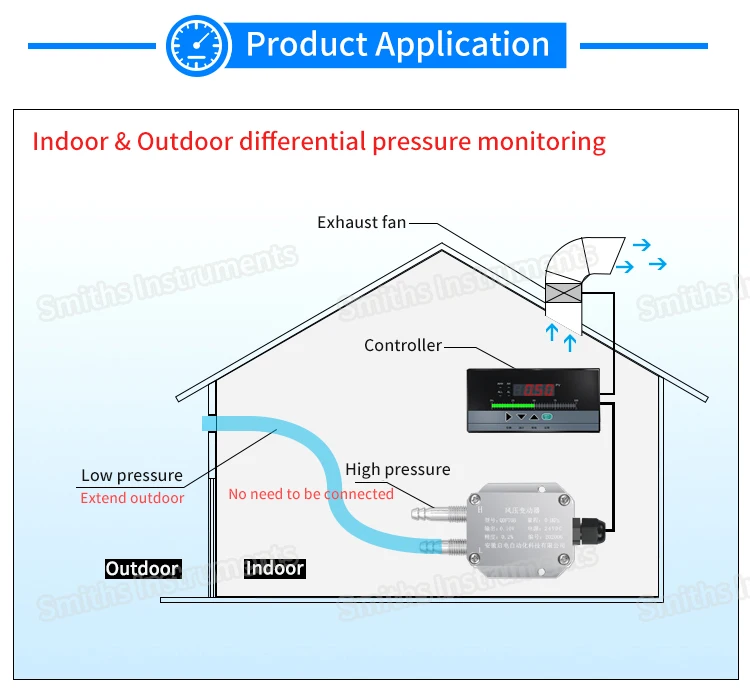

2>>. ELDPT500 differential pressure transmitter is widely used in the field of pressure process control in power and coal industry, such as boiler air supply and underground ventilation.

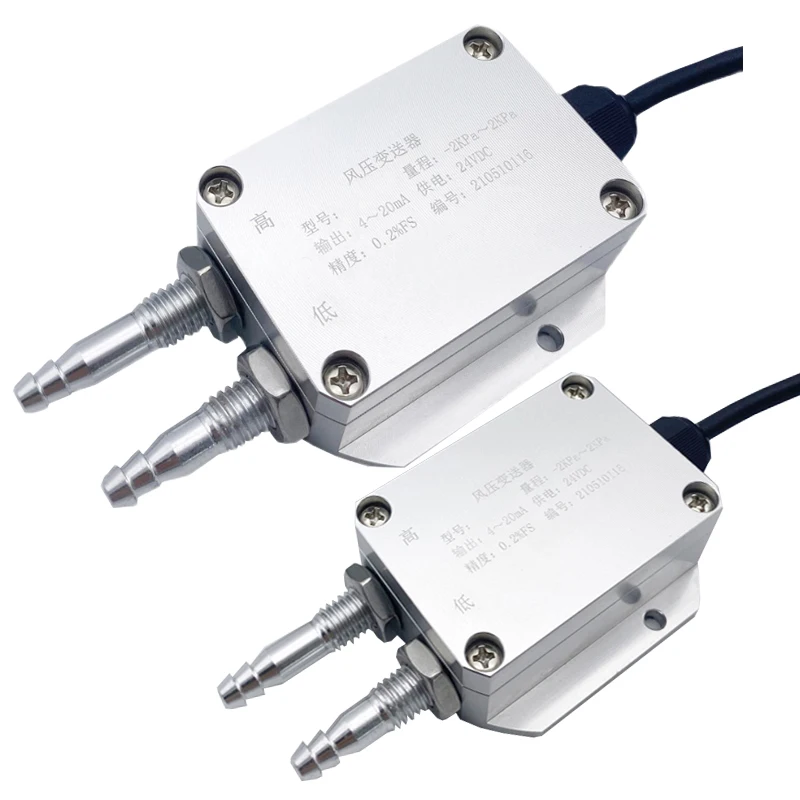

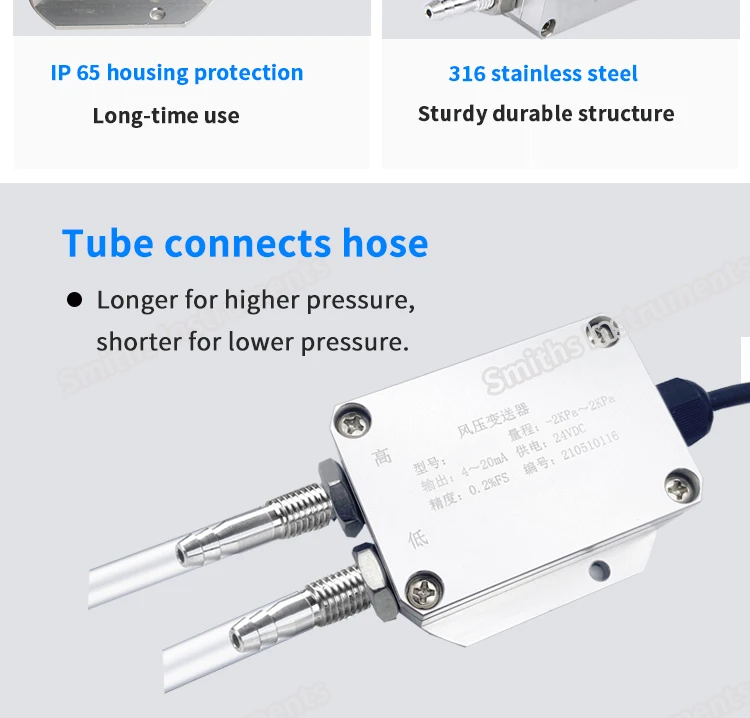

3>>. The long tube is the high pressure input port, while the short tube is the low pressure input port.
