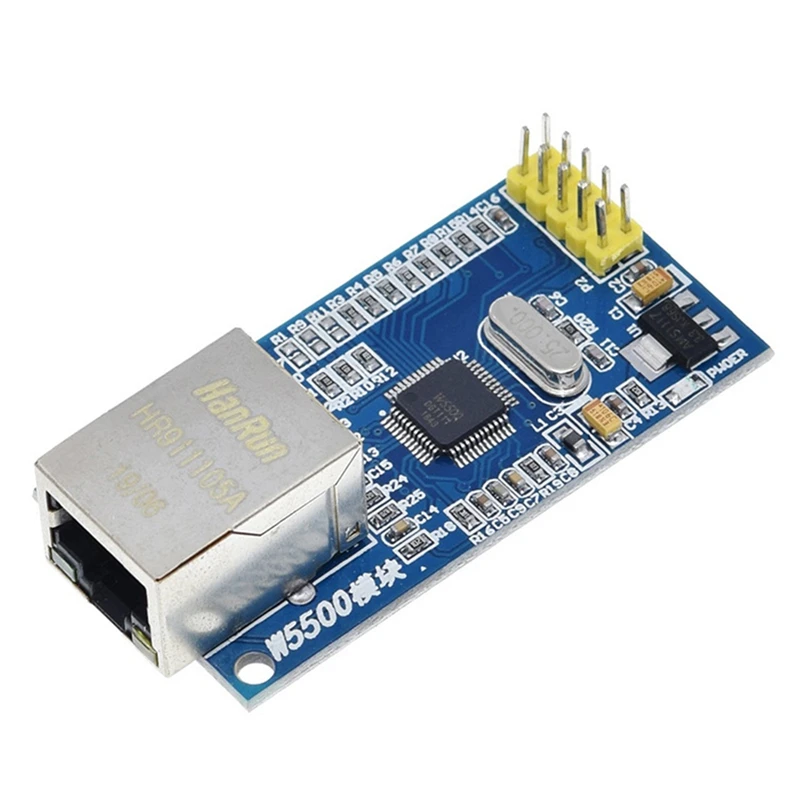

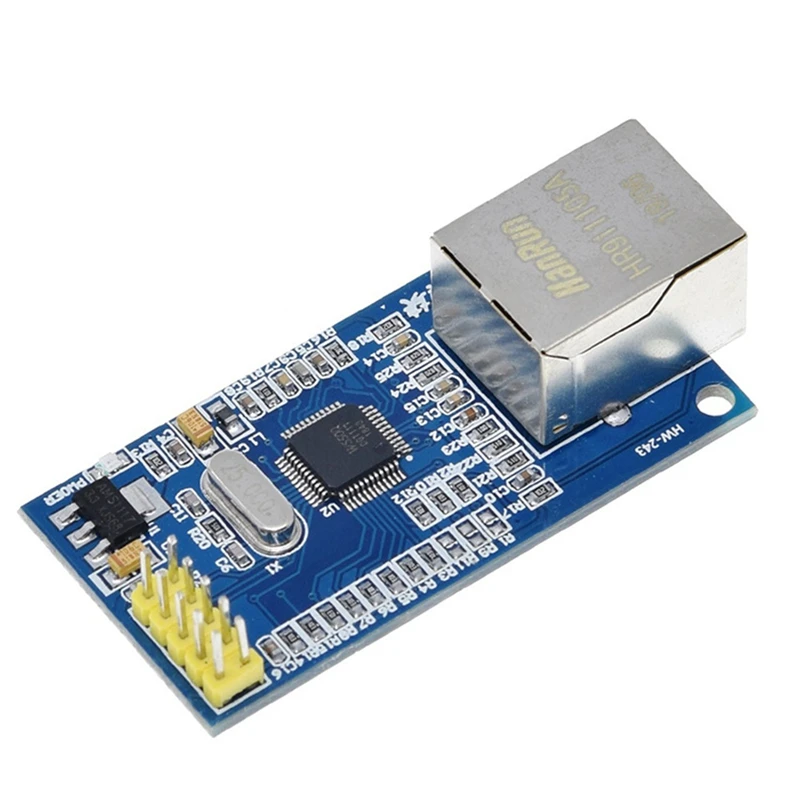

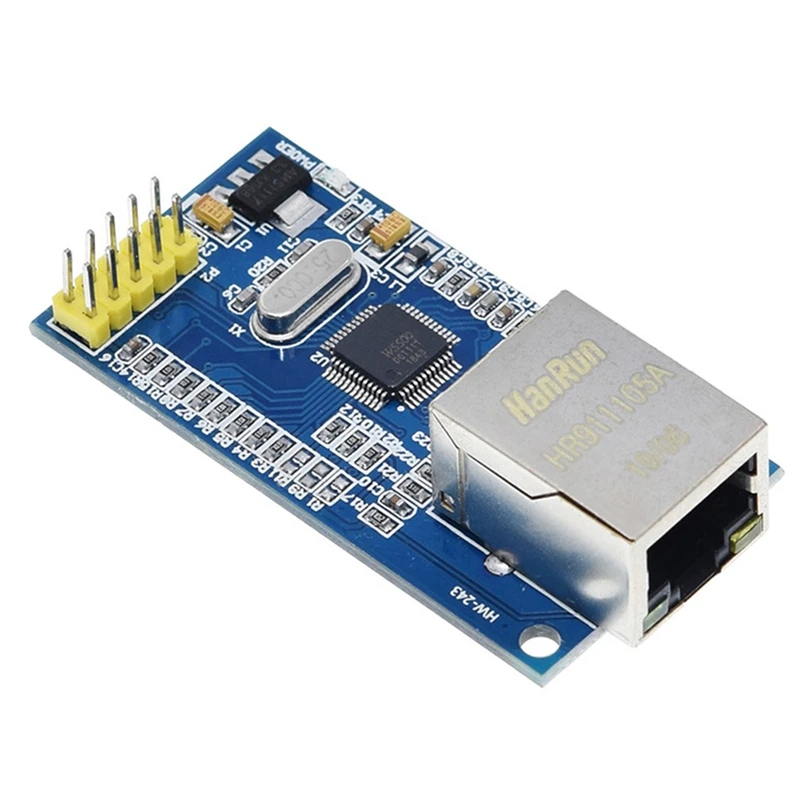

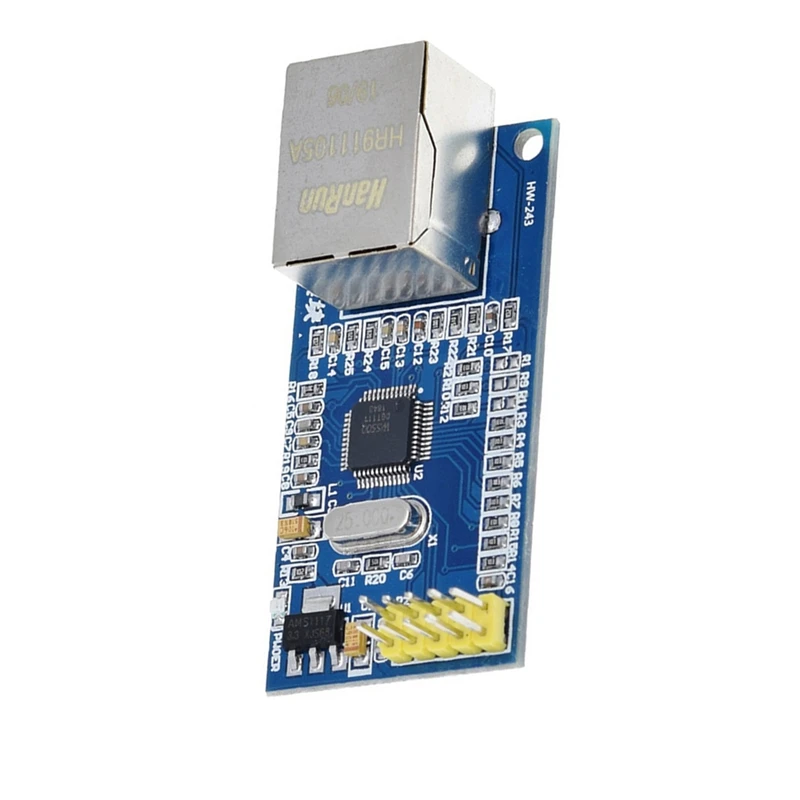

USR-ES1 модуль Ethernet с аппаратным SPI для LAN/TCP/IP 51 STM32 микроконтроллера.

---

Brand NameNoneOriginMainland ChinaTypeFolding Folio CaseApplication Laptop Size10.2Measurement unitpiece/piecesEach pack1

Unavailable in

Description

1. High speed SPI interface 80MHz. Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge. Supports up to 8 Socket
2. Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol. Integration of the data link layer, physical layer. Support the wakeup
3. Support high speed serial peripheral interface (SPI model 0, 3). Internal 32K bytes receive buffer. The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
4. Support auto negotiation (10/100-Based full duplex or half duplex). Does not support the IP patch. The working voltage of 3.3V, I/O and 5V voltage signal
5. LED display (full duplex or half duplex, network connection, network speed,active). Pin type package ultra small, convenient for embedded applications. Application of C sample project
Power supply mode:3.3V external power supply, current should be more than 200mA

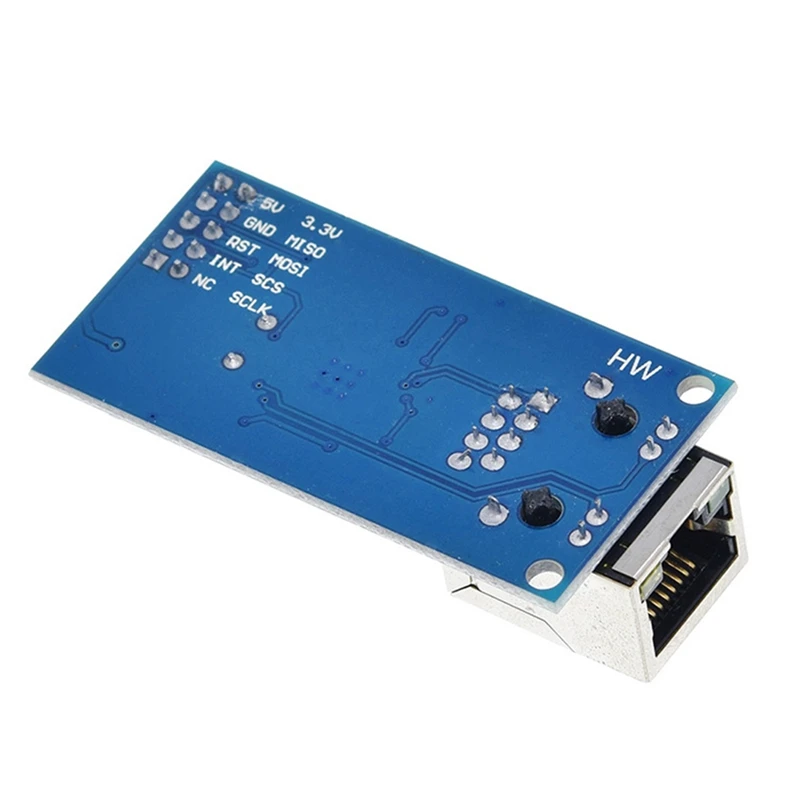

Control interface:The TTL level, 3.3V SPI interface

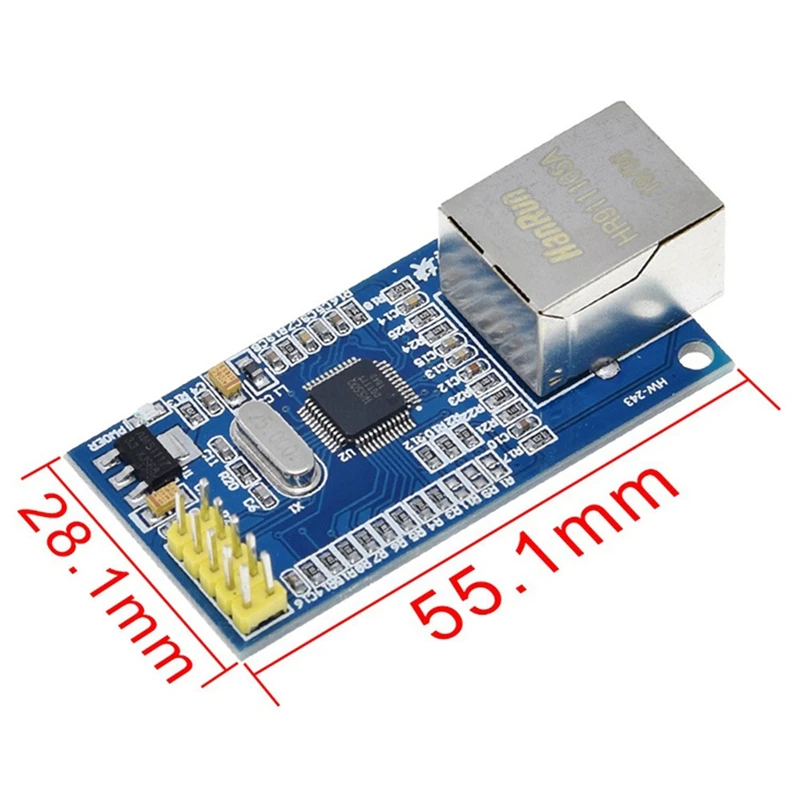

PCB size:23 x 25 mm
Mechanical Dimensions:28.5 x 23 x 24mm
Condition: New
Model Number: USR-ES1 W5500
color:As shown
Material:PC+Metal

Package Contents:
1 x W5500 module
/

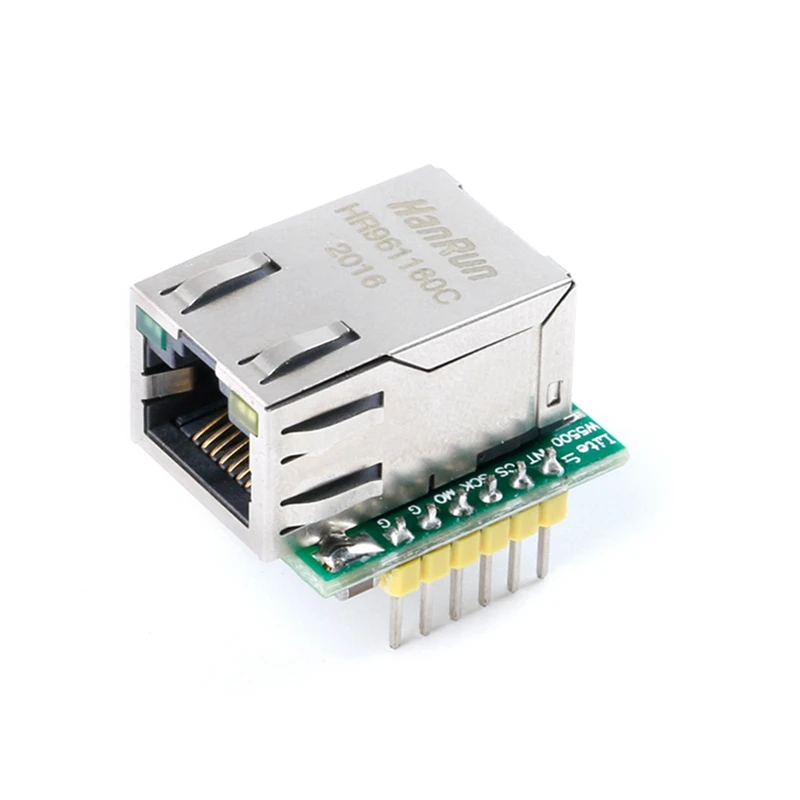

1 x W5500-USB module

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
