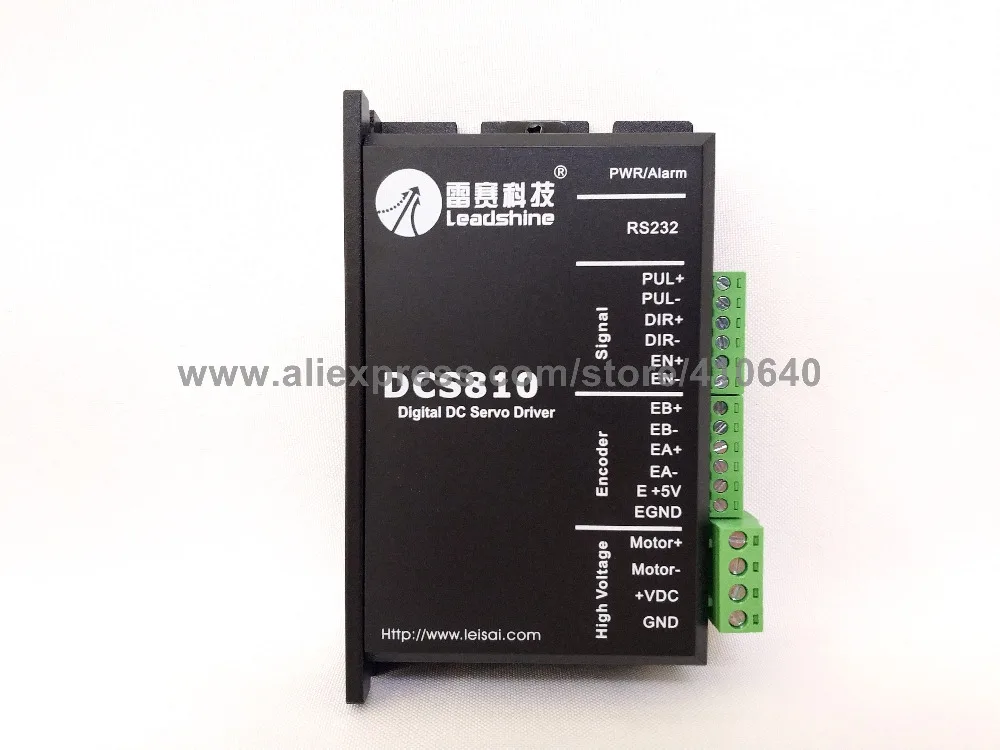

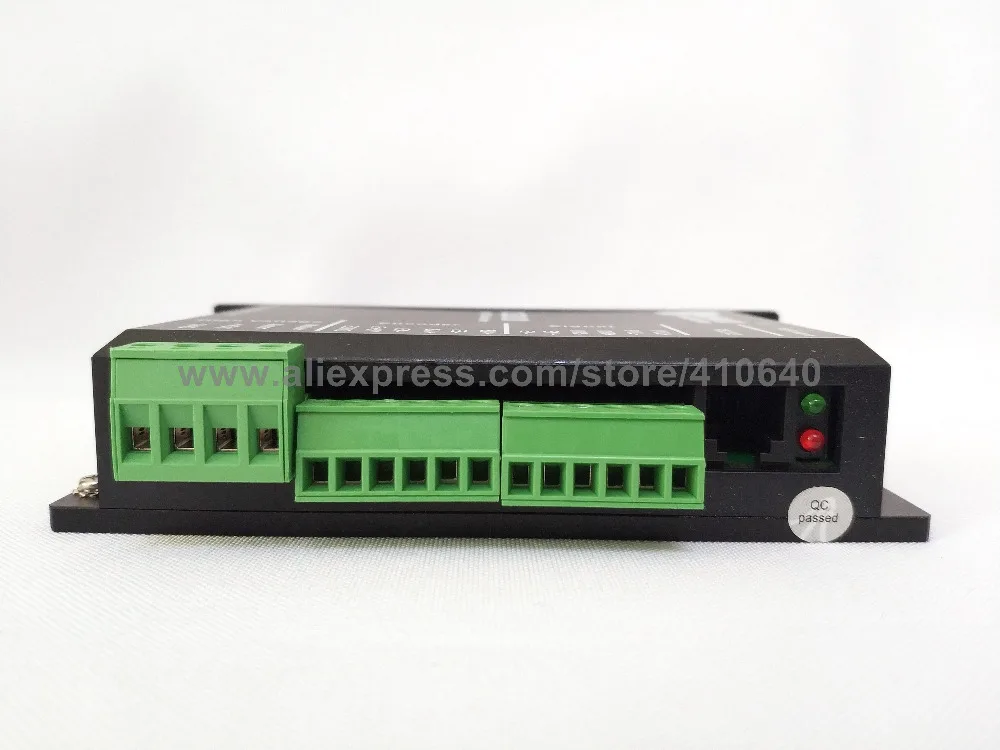

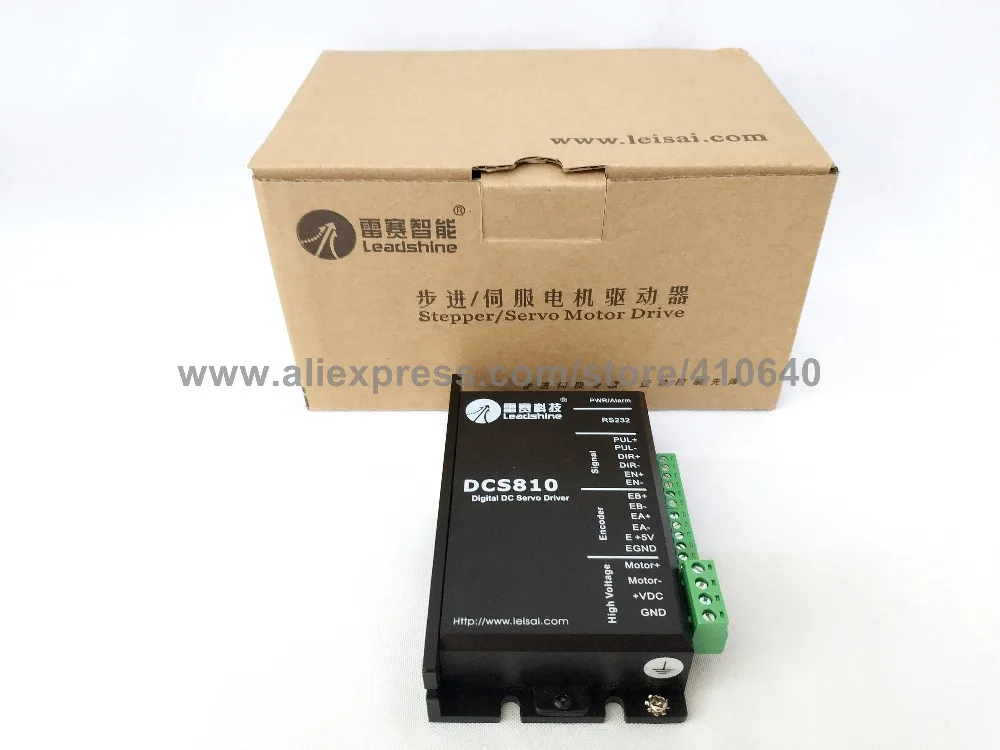

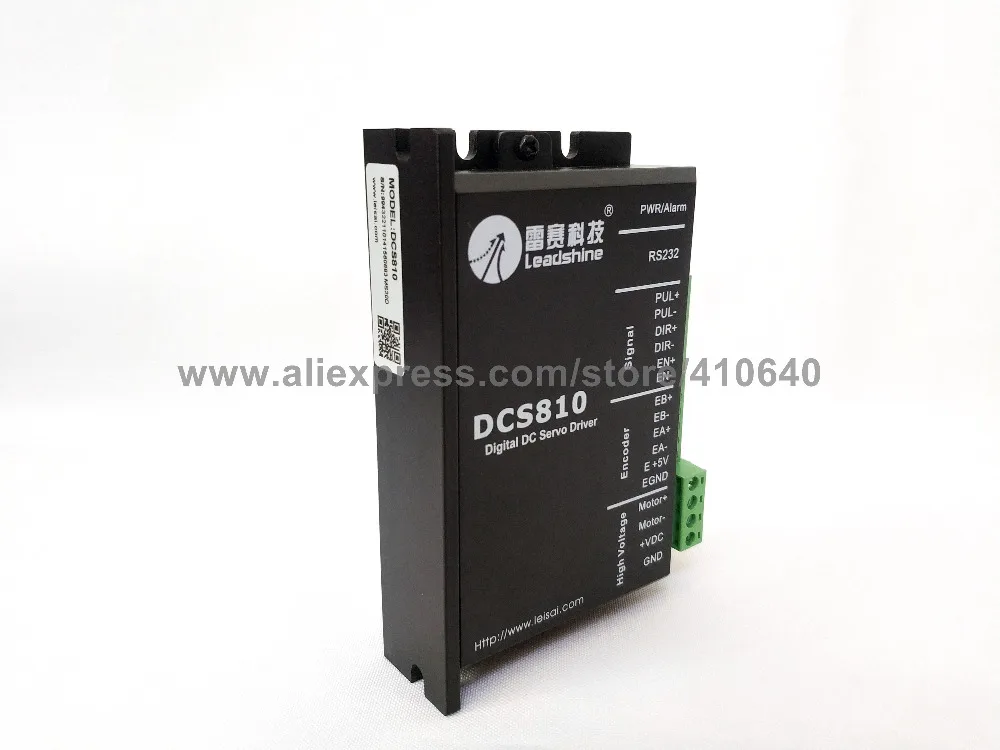

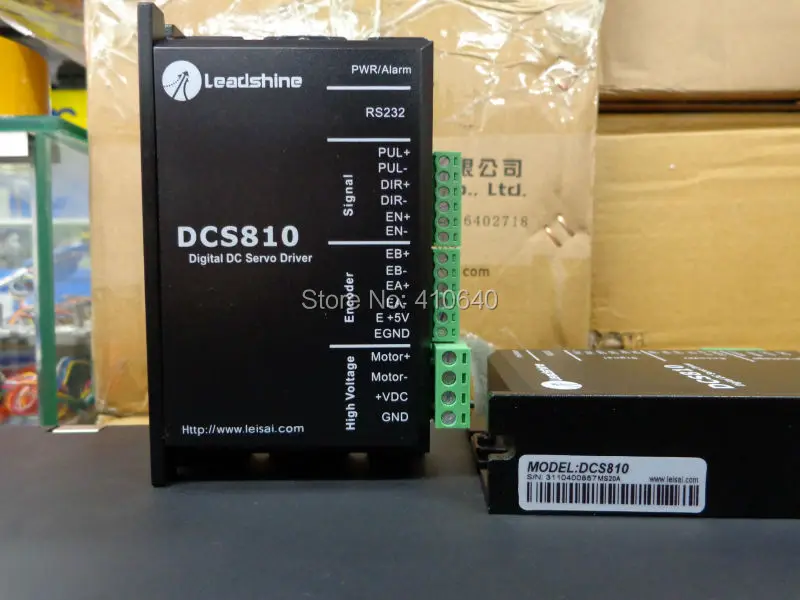

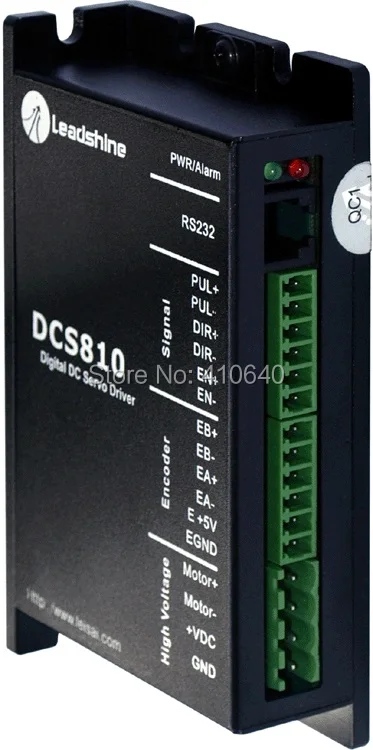

DCS810 Brushed DC Servo Drive



The DCS810 is a digital DC servo driver developed with DSP and high efficient MOSFET technologies. In position control, it's easy for the end users to change stepping drivers to the DCS810 without changing control systems, because its input command is PUL/DIR signal, which is compatible with that of stepping drivers. In low power motion control applications, performances of DC servo systems using the DCS810 are better than those of digital AC servo systems in velocity, precision, noise, stability, or at least as good as those of digital AC servo systems. However, the cost of the DCS810 stays at the price line of stepping driver, namely far lower than those of AC servo drivers.

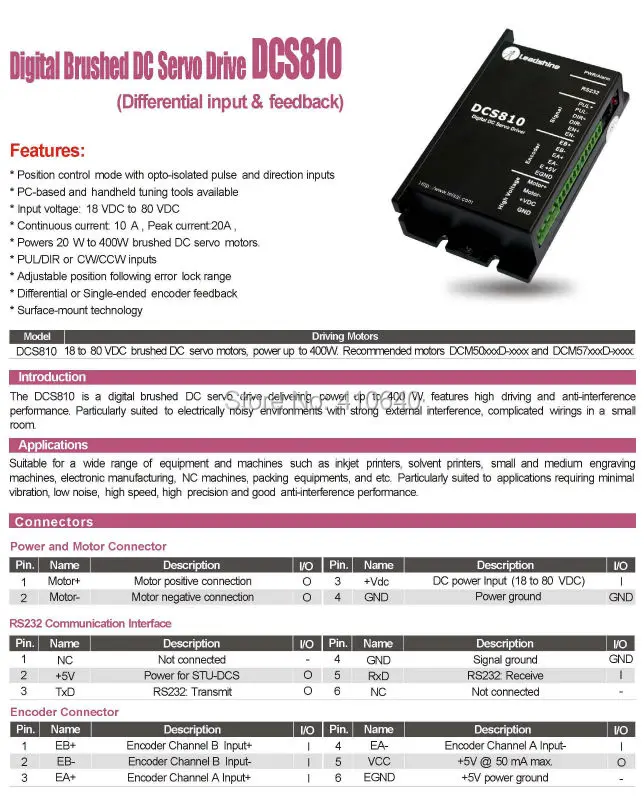

Compared to the DCS810S, the DCS810 can accept differential control signals and differential encoder feedback signals, offering better anti-interference performances. Compared to the DB810A, parameter visible tuning tools make the DCS810 much easier to tune.   The DCS810 is very easy to tune and all parameters are visible. Parameter visible tuning tools, including Pro Tuner (Windows based setup software) and STU (Small servo tuning unit) can meet different tuning environments or requirements.   Features: 18-80VDC, 0-20A, 20-400W.   Based on DSP control technology and high smooth servo control algorithm.   Parameter visible tuning tools, including Pro Tuner and STU.   Feedback resolution X4 encoder line count.   Position Following error lock range adjustable   Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* 0.3%   Electronic gear ratio from 1/255 to 255   Built-in motion controller for self-test with trapezoidal velocity profile   Support PUL/DIR and CW/CCW control signals   Opto-isolated inputs, support single-ended and differential signals   10 latest errors self-record function    Over-current, over-voltage, under-voltage, phase error, encoder error, position following error protections Small size, surface-mount technology     Specifications: Model: DCS810 Control Mode: Step & Dir Max Input Frequency: 500KHz Input Voltage Range: 18 - 80 VDC Continuous Current: 10 A Peak Current: 20 A Logic Current Range: 7-15 mA      (10mA typical) Logic Voltage Range: 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low Communication Type: RS232 Pulse enabled at: Rising edge Electronic gear ratio: 1/255 - 255 # of Digital Inputs: 3 Step Width: 2,500 ns Minimal Direction Setup Time: 5,000 ns Protection: Over-current; over-voltage; under voltage; phase error; encoder error; position following error Isolation Resistance: 500M Ohm Environment: Avoid dust, oil fog and corrosive gases Ambient Temporature: 0-50°C Humidity: 40–95% RH Operating Temporature: 0-70°C Vibration: 5.9 m/s2 Max Storage Temporature: -20-65°C Specification: 4.57 X 2.73 X 1.04 Inches Weight: 0.46 lb   Electrical Specifications (Tj = 25oC/77oF):

arameters	DCS810
	Min.	Typical	Max.	Unit
Peak output current	0	-	20	A
Supply voltage	+18	-	+80	VDC
Logic signal current	7	10	15	mA
Pulse input frequency	0	-	500	KHz
Isolation resistance	500			Mohm
Current provided to encoder			50	mA

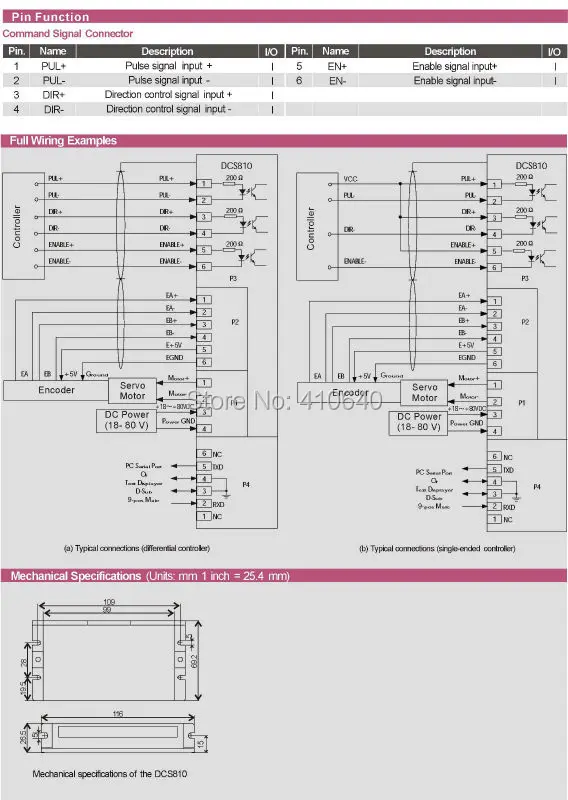

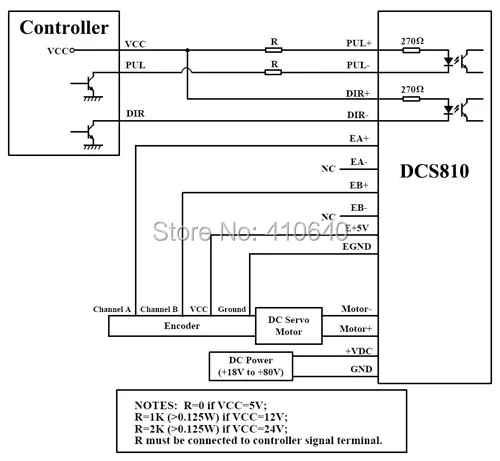

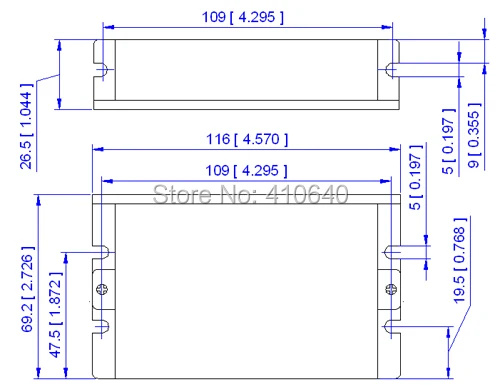

  Connector:     Mechanical Specifications (unit: mm[inch] ):   Typical Connection:     Capable of driving 20-400W brushed servo motors: DCM50202D-1000 DCM50205D-1000 DCM50207D-1000 DCM57202D-500 DCM57207D-500
