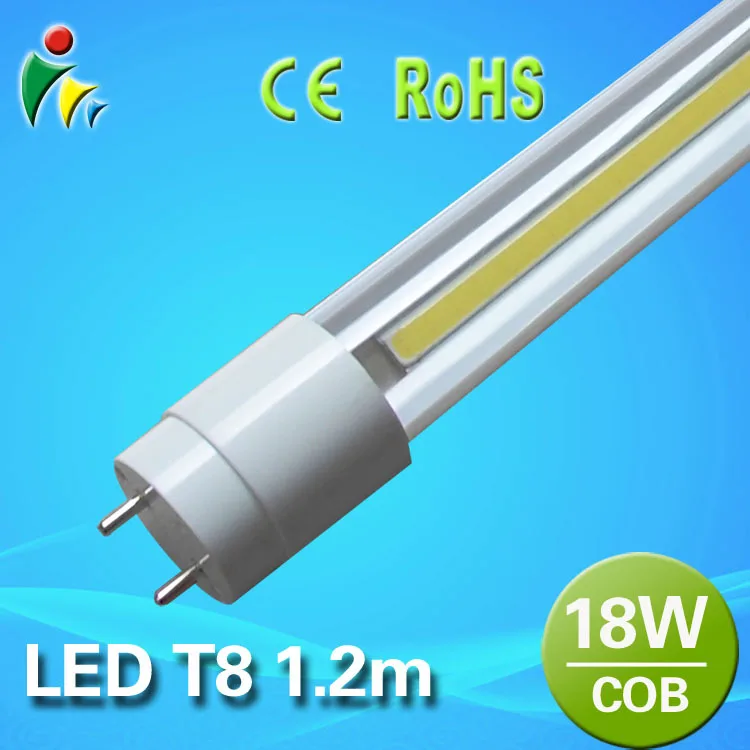

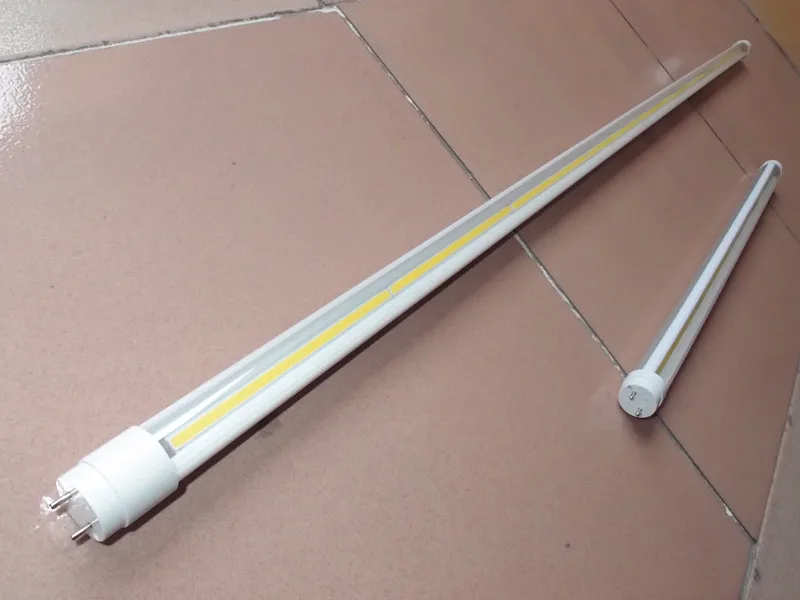

COB T8 1200mm 18W LED tube

Item  : AL-COBT812-18W

Tube Light  Power : 18W

Color temperature : 3000K/4000k/5000k/6000k

Luminous flux: 1920±10%

Light source : COB

Color rendering index: >80Ra

Average Lifespan : >50000H

Working temperature: -10-50C

Votage:AC90-265V

Shell Material : Aluminum 1/2  Plastic 1/2 ( Cover Diffuse or Clear)

Holder type: G13

Products size : 1200x26mm


COB, MCOB T8 T5 tube, adopted Chip on Board strip encapsulation technology, is invention patent encapsulation, achieve technical breakthrough of COB long strip. That MCOB encapsulation case, LED chip series and parallel connection directly encapsulated Aluminum base board.

  COB, MCOB T8 Seires advantages:

1. Greater Emitting Bean : MCOB  every lighting point beam more than 160°; Ordinarily SMD beam maximum only 140°. MCOB’s light  be well-proportioned

2. Better Dissipation Efficiency : MCOB, chip encapsulated directly Al base board, so light panel’s heatsink is dissipation to Al base board at once. but SMD need have lead frame, and through SMT fixed Al base board, so the inner temperature need through for transfer Al base board and heat dissipation bar.

3. Stability: COB MCOB strip: According to designed circuit encapsulated directly, didn’t re-SMT. But SMD strip inevitable appear unsoldering on carriage and installed due to working procedure.

4. 25% Longer Lifespan: MCOB strip, adopted small power multi-point encapsulation technology, whole PCB current is low; but SMD strip used chip power form 0.06W to 0.5W,  so current more high, in addition heat dissipation secondary.

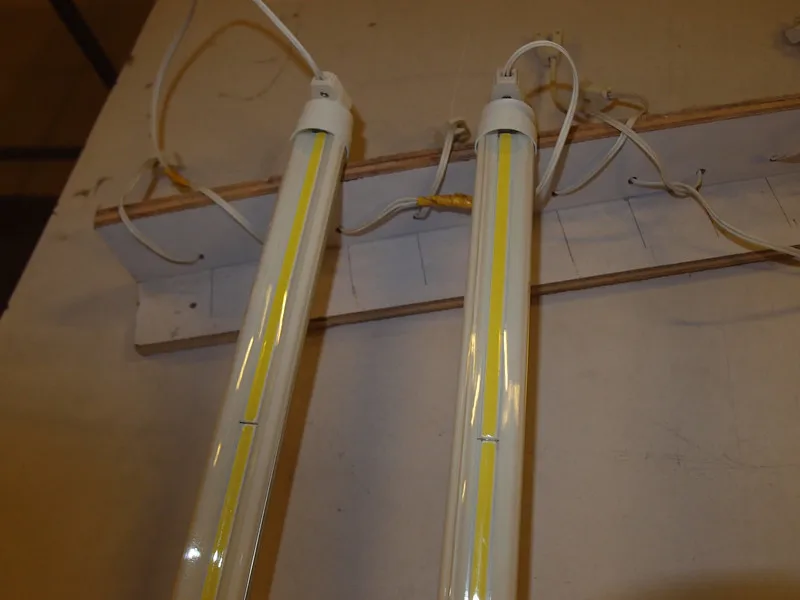

COB T8 lighting effect testing:

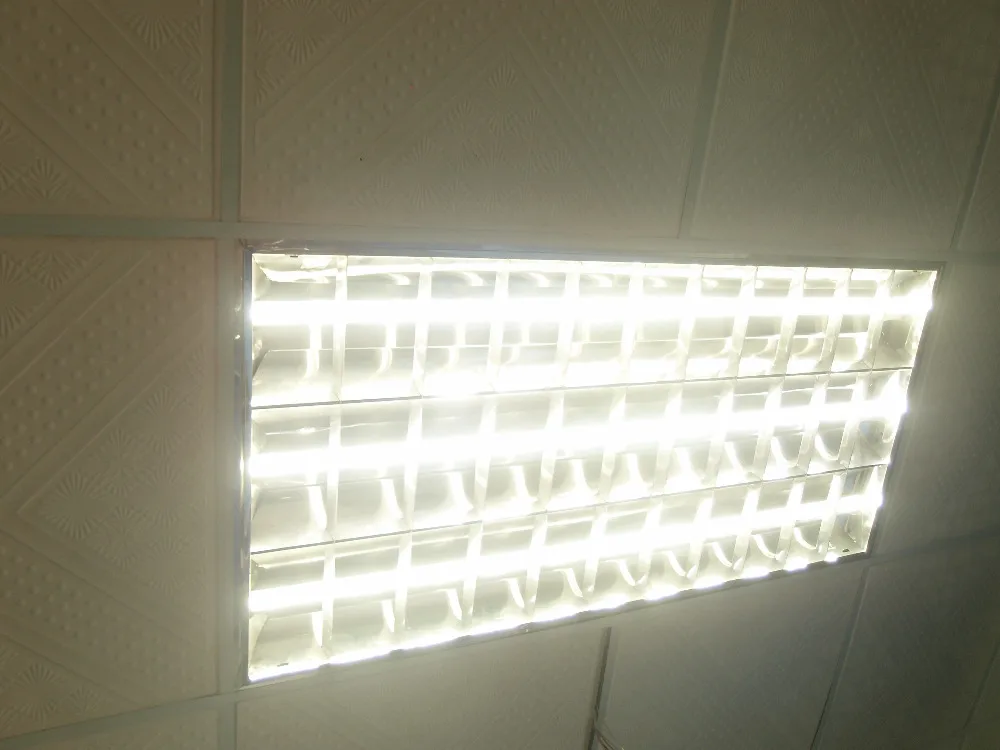

COB T8 for commercial lighting:

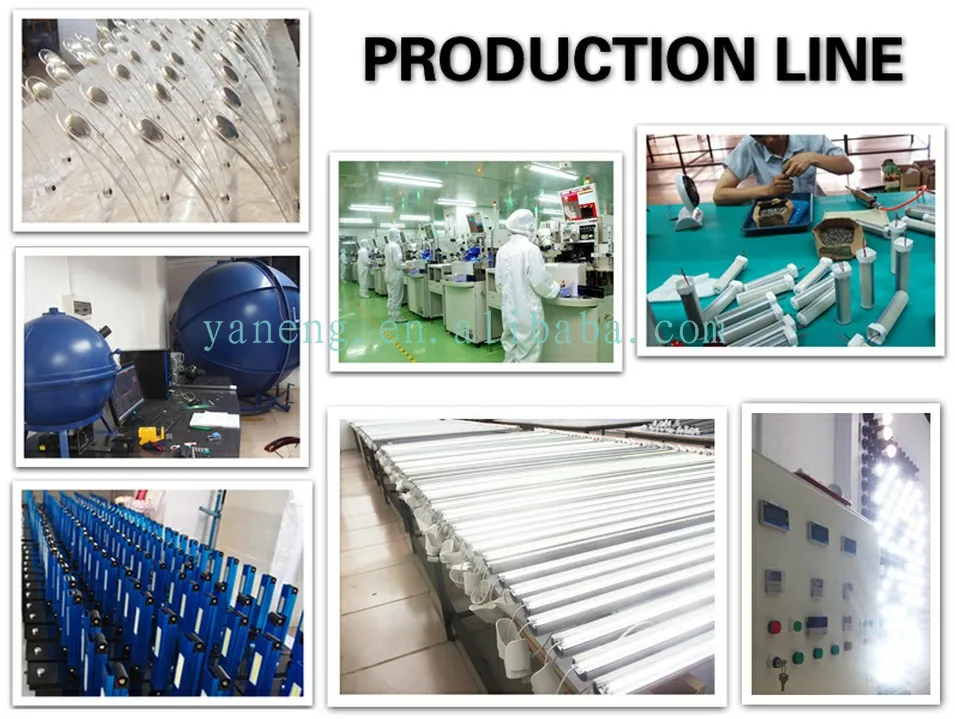

Factory production line:

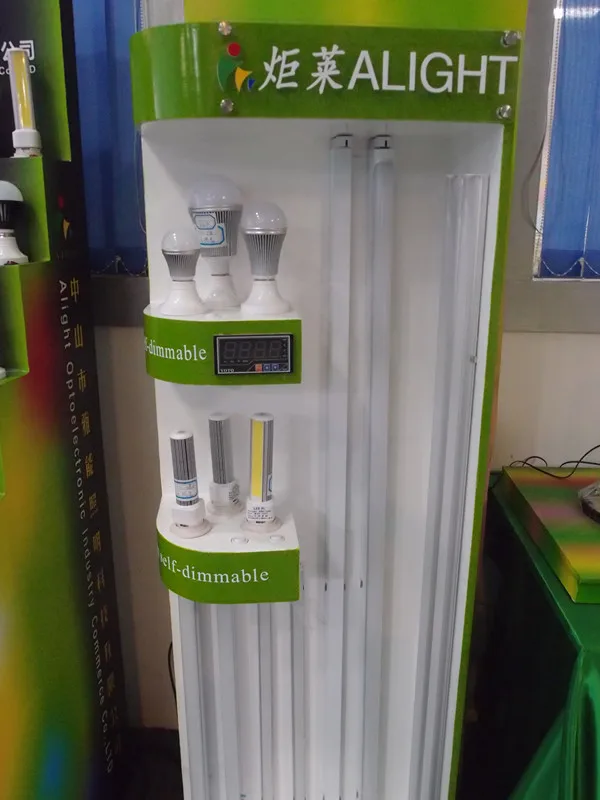

Alight Show room:

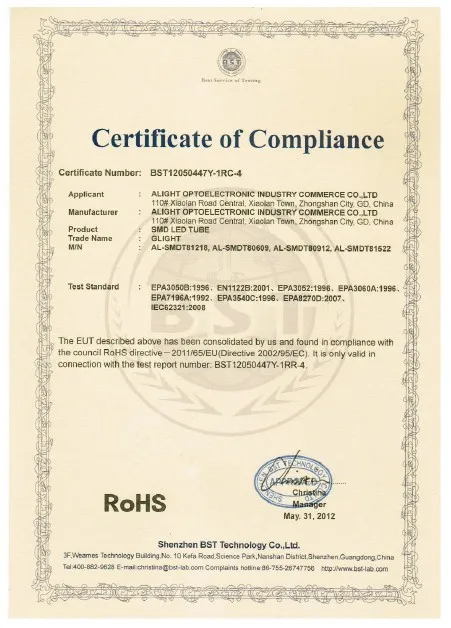

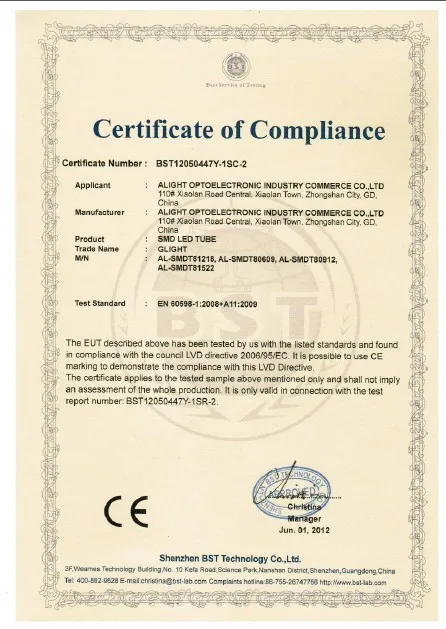

CE & RoHS Certifications

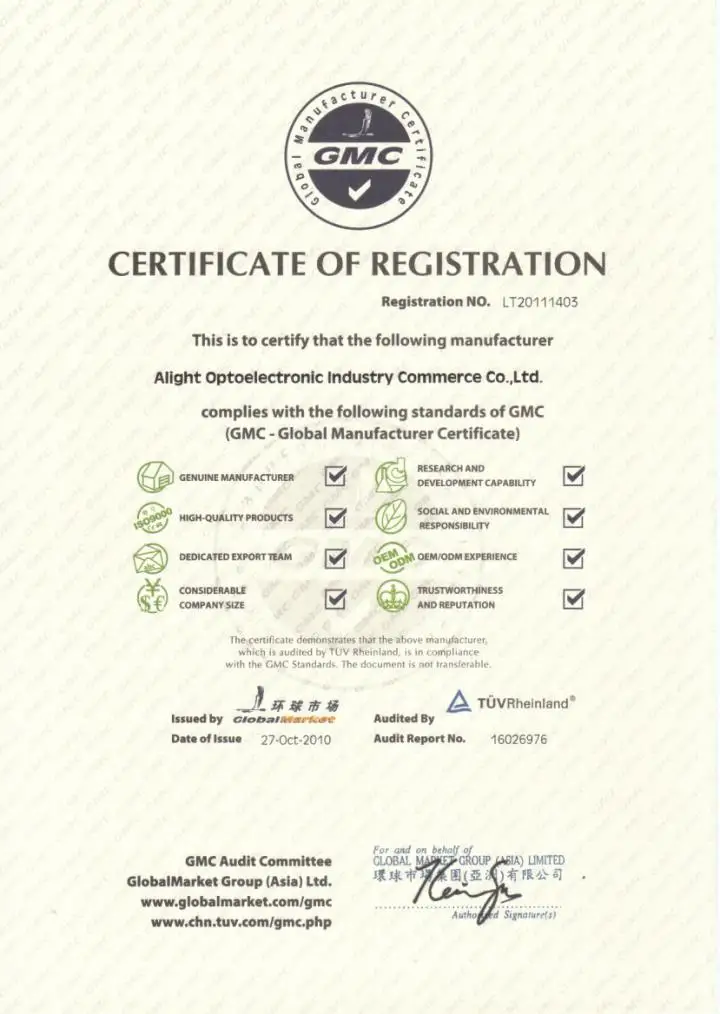

CHINA HIGH QUALITY SUPPLIER of GMC and TUV Certification:



We specialize in manufacturing all types of led light panels and related led products,integrating development and manufacturing together . Lead people have continuously tried to improve product quality
Mian products as follow:

1. COB Panel light source:                     2. Commercial Lighting / homelights (bulb, tube, panel
                                                                    light, ceiling light spotlight, down light ect) :


3. Marine Lights:                                        4. Indoor lighting ( table lamp and ceiling lighting):

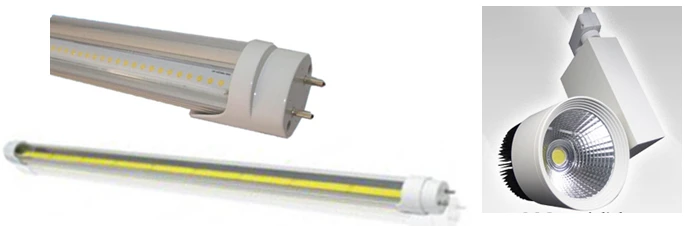

5. Newest product: COB tube, COB track light,



 Our company regards' reasonable prices,short production time and satisfactory after-sales service'as our tenet.  We hope to cooperate with more customers for mutual development and benefit.welcome to contact us .

Tips:

1.Price term: EXW.

2. Payment: West Union, T/T.

3. Warranty: 2 years.

4. Lead Time: 10--20 working days after the orders are confirmed.

5. Transportation: express, air or sea.

6. Valid period: 30 days.

Pls leave a massage for any questions on offer or Express cost. We will reply you within 7h.
