Free shipping 12V 2CH RF Wireless Remote Control Switch System 3 transmitter & receiver 2ch relay smart home z wave|home alarm door contacts|home

---

DC12V 2CH Wireless remote control switch : Application range:
This product is typically applied to the multi-channel electric doors and windows, ordinary electronic lock, switch, electric garage door, window, hoisting equipment ,industrial automation and control, all kinds of anti-theft alarm ,security and other fields .The remote controller supports the use of forming a complete set of wireless intelligent remote control system .It has a wide range of uses.

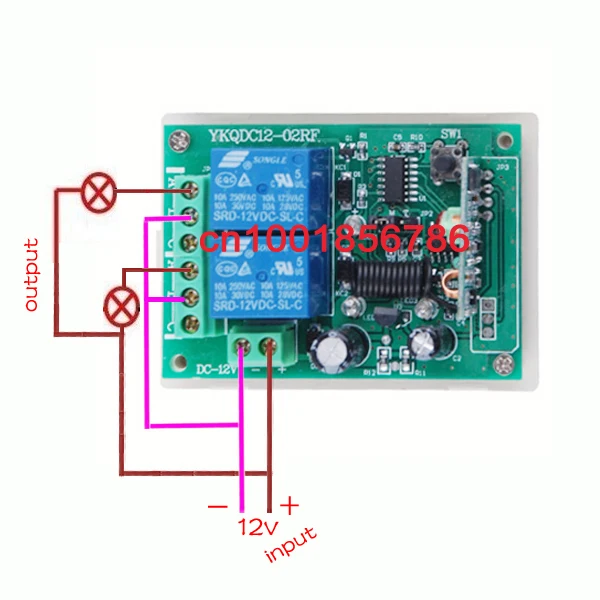

Specifications: Operating Voltage: DC12V Operating Current: 6Ma Operating Frequency: 315,433 MHz Operating Temperature: -40C ~ +80C Receiver Sensitivity: -105dBm Output Voltage: AC / DC (optional) Output Current: 10A Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self-Latched ) Size: 48.2 x 32.8 x 15mm/1.89 x 1.29 x 0.59in(L x W x H) Output working way:

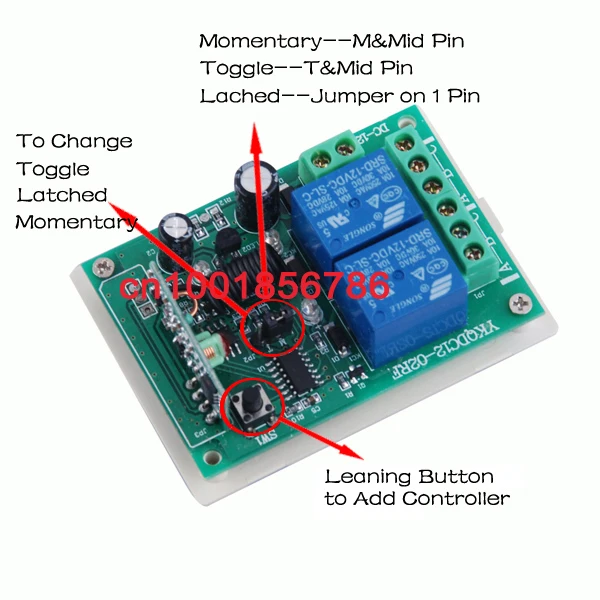

Self-locking: Connect the jumper 1 with the cutting out cap. ( Self-locking control mode :Press the switch is on the load, press the same switch again is to disconnect the load .Need one channel switch and a one-button remote controller.)
Jog---The cutting out cap is not occupied, jumper 1 and jumper 2 do not connect either. Press the switch is on the load ,loosen is to disconnect the load. Also need one channel switch and a one-button remote controller.)

Inter-lock------- Connect the jumper 2 with the cutting out cap (Press one switch is on the load , press another switch is to disconnect the load . (Need one channel switch and 2- button remote controller.)
2 Channel is self-locking and 2 channel is jog ,connect the jumper 1 and jumper 2 with the cutting out cap .)
Please notice that there is a 2CH receiver and a 2-button transmitter, you can choose these working ways :self-lock , jog or self-lock and jog together. Learning and removing method:
1 .There is a learning button on the control panel of touch switch, the button is used to learn and remove the code.
2 .Press and hold the learning button for three seconds.When the indicator light flashes ,we enter the learning state. Press any key on the remote controller to emit signal, thelight flashes two times and off .It means you learn it successfully.
3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller.
4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted. Wireless remote control metal shell wireless rf remote control
1.Working Voltage:DC12V
2.Operating Current:16MA
3.Transmitting distance :20-200M

Working voltage DC12V
Operating Current 16MA
Operating frequency 266-433MHZ
Transmitting distance: 180 meters
Encoding way: Fixed code, learning code, rolling code.
IC chipset: PT2260 ,PT2240,EV1527, HCS301.
Size 55 * 30 * 13.5 m

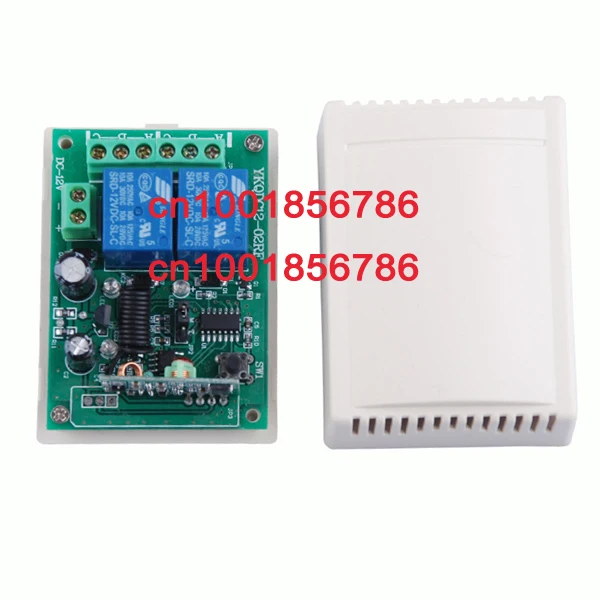

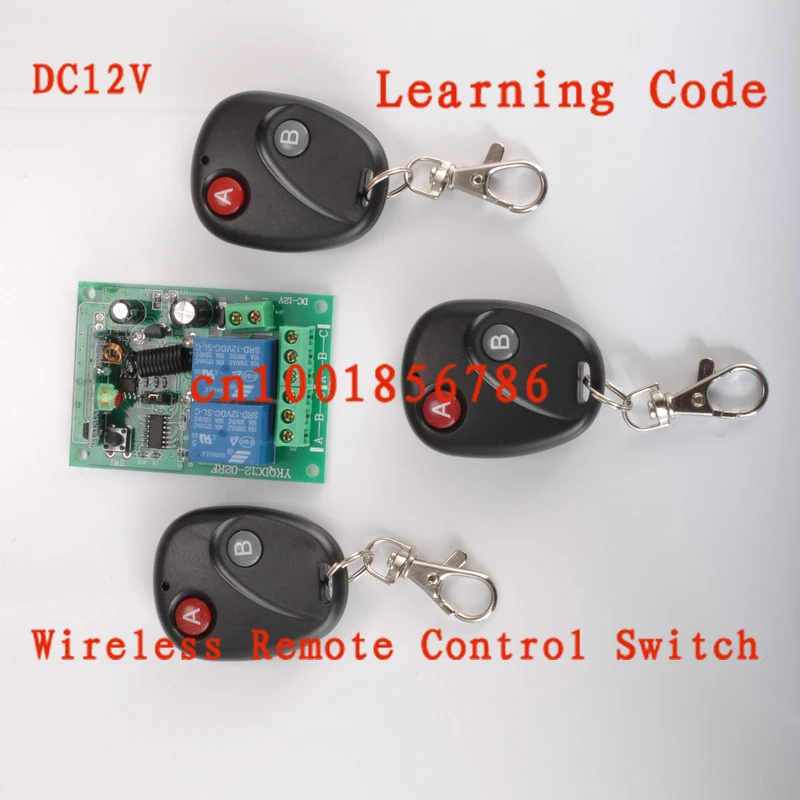

package included: 1*receiver 3* transmitter
