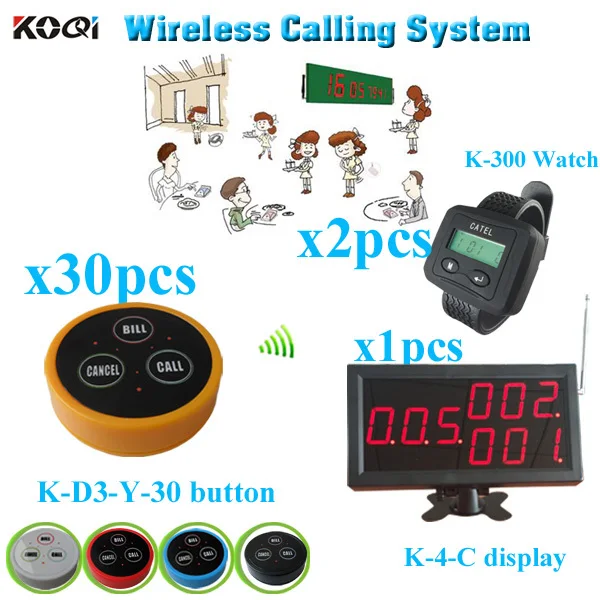

 Wireless Service Calling System Restaurant with monitor button  watch pager

(1 display receiver+ 2 watch +30 yellow table bell button)

Restaurant Calling System widely used in service area. It consist of table button for guest use and signal receiver  for waiter or waitress use. When the guest needs any service, he or she just press the button near him or her, his or her desk number will showing on the RECEIVER with alert music or sound. So the waiters could offer service very timely

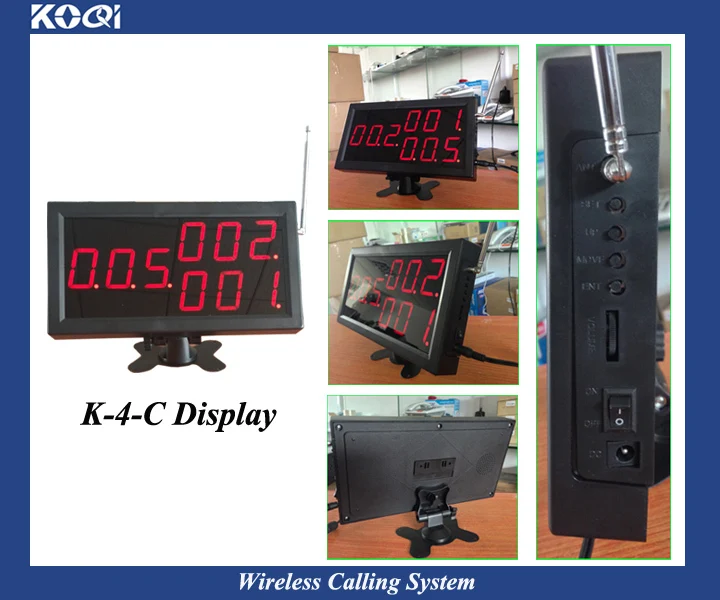

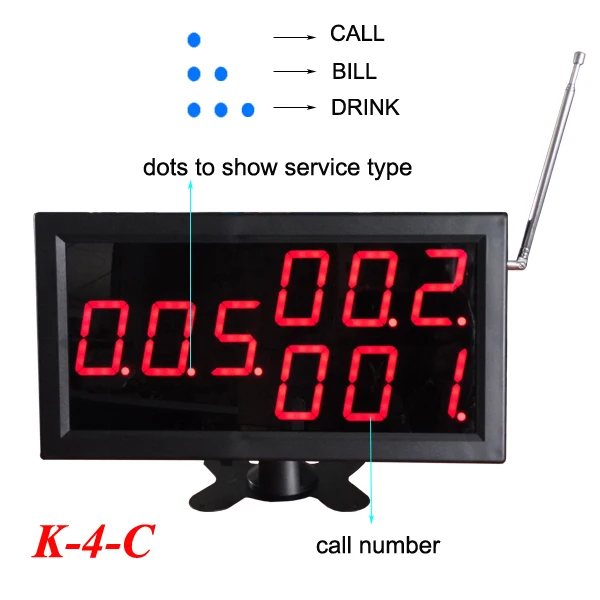

Specification of display receiver K-4-C

1 With high strength ABS shell, durable in use

2 Use digital code technology and the function is steady and reliable

3 Show 3-digit number

4 It can work with 400pcs 1-key or multi-keys call buttons in max

5 It can show different service type

6 It can show 3 groups of number at the same time

7 It can save 30 calling info in turn, and apply in basic service places.

8 Dimension: 282*150*34mm

Technical parameters:

Working voltage: DC12V~18V

Working current: <20mA

Working Frequency: 315MHz±75k

.

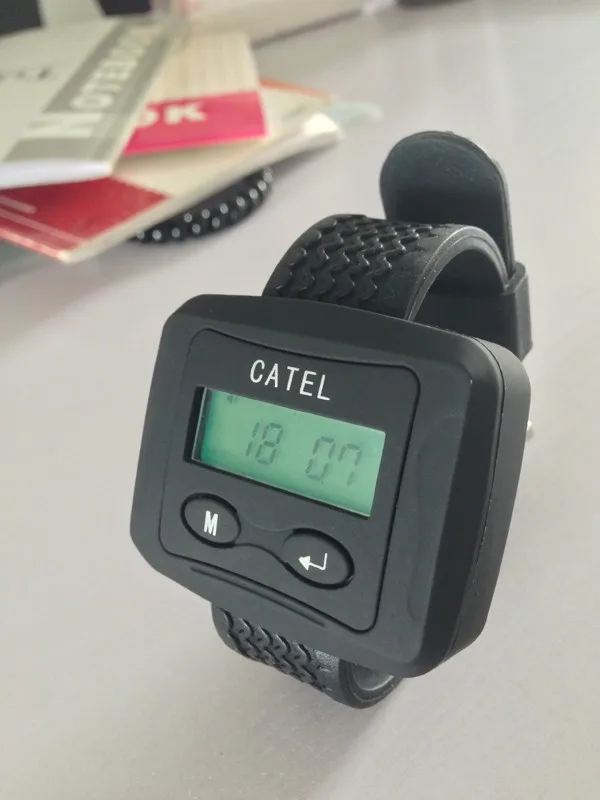

Specification of Watch Pager K-300

1. Can work with 200 pcs 1-key or 3-keys transmitter in max

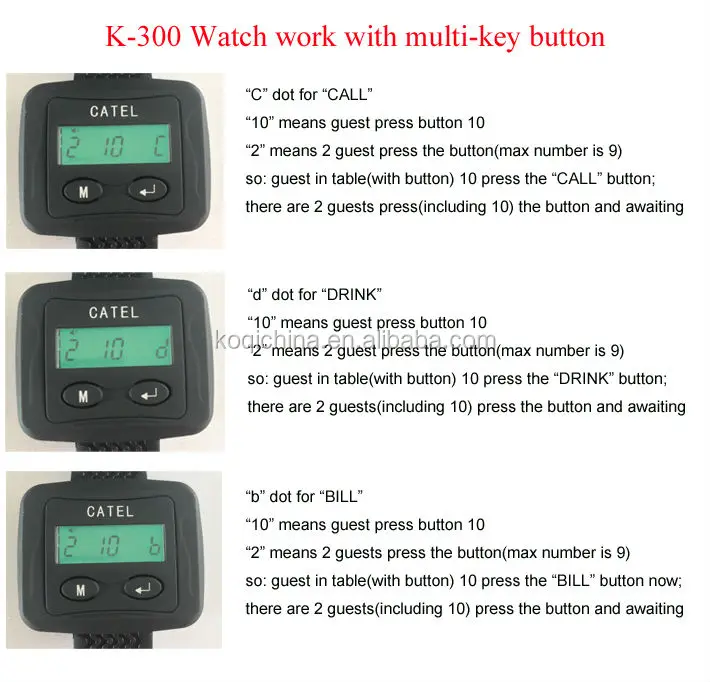

2.Show 4-digit number . First number show total the coming call .Third and Fourth number show the talbe No. from 01-99 and first letter can be ABCDEFHLPU. Last number(letter) show the service type
3.Can indicate different service type with specical symbols

4.Can store 10 calls and track the calls up and down

5.3 reminder ways:sound promt,vibration,or both

6.Battery is AAA 1.5V

Technical parameters:
Power: AAA LR03 #7 battery,1.5V

Working Frequency:433.92MHZ

Transmitted Distance: 300m in open area

Size:55*45*18mm

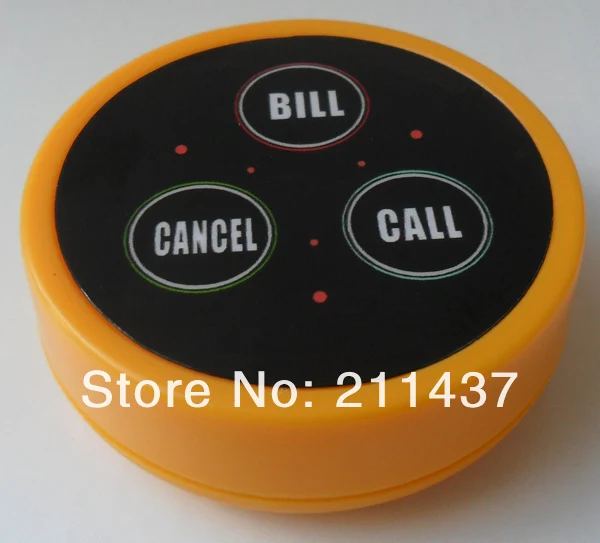

The Specification of call button K-D3:

1  Work with our receiver to combined the wireless calling system

2. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.

3 3key: Call; Bill; Cancel

4 Material: PC

Technical Parameter:

Working voltage: DC12V

Working current: ≤35mA

Use Frequency:  433.92MHZ

Transmitted Power: ≤20mW

Transmitted Distance>300m in open area

Dimension : 60*60*22mm

Any language any LOGO acceptable

FAQ

Applications

Wireless calling system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Signal repeater (optional), enhance the signal

How does the system works?

1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the reciever with ringing. Waiters then head over to the table to take the order of the customer promptly and quickly.

​
