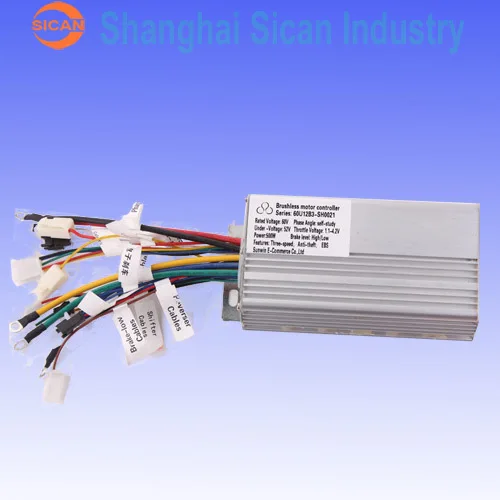

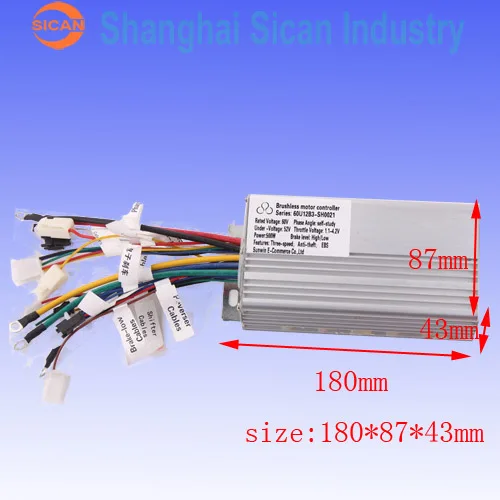

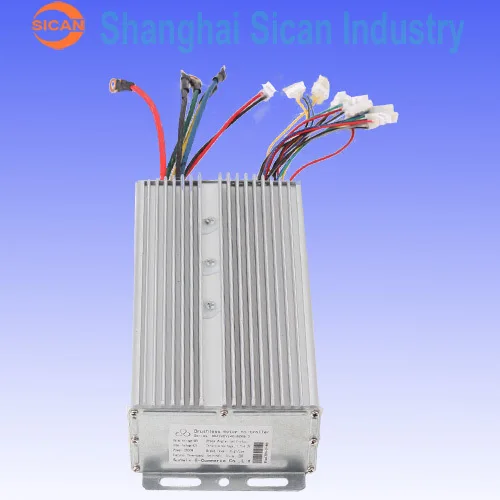

Website: www.eastdiyshop.com 60V 500W Electric Bicycle Brushless Motor Controller For E-bike&Scooter                 Features:   Suitable for electric bicycle & scooter,Mechanical or electric forklift etc.    Features:Three-speed;Anti-theft;EBS   Rated Voltage: 60Volts   Rated Power: 500 Watts   Phase Angle: self-study   Throttle Voltage:1.1-4.2V   Brake level:High/Low    Under Voltage Protection: 52 Volts±0.5v   3 phase 60° or 120° brushless motor.   Operating Conditions: -40~80 C   Waterproof design   Size:180x87x43(mm)   Weight:520g Notes:   Compatible Motors: Only those 8 wires(3 phase-cables & 5 hall-cables) DC brushless motor that can work with this controller, other brushless motors are not compatible.   Installation: These controllers have 4 groups neccessary cables(power cables, E-lock cables, Throttle-cables & Motor-phase cables), when hook up these 4 groups cables, the E-bike can run normally. Besides, these controllers have other optional functions, users can hook them up according to your applications.       Connection Table:   1.)Power Cables: big red + big black   2.)Phase Cables: big yellow + big green + big blue   3.)Electric Door Lock Cable: middle red   4.)Hall Cables: small red, small black, small yellow, small green, small blue   5.)Throttle Cables: small red + small blue + small black   6.)Speed Cables: blue(high speed)+ black + +yellow(low speed)    7.)Brake-Hi Cable: yellow   8.)Brake-Low Cable: Brown    9.)Anti-theft Cables:Red(Positive) + Black(power) Red(E-Start) + Blue(Motor Lock Signal) + Green(Motor Lock)   10.)Self-Study cable: two white cables with black plugs   11.)E-ABS(Optical): two blue cables matched   12.)Cruise(Optical): two Gray cables connecting together.   including 1 x 60V 500W Brushless Motor Controller
