A. The main parameters

Model: WF50-24110 Voltage: DC24V
Load reciprocating speed: 110 times / min Rated current: 1A
Load reciprocating speed: 90 times / min Weight: 1.1kg
  Stroke: 50mm Output Thrust: 0.5KG

Second Dimensions:

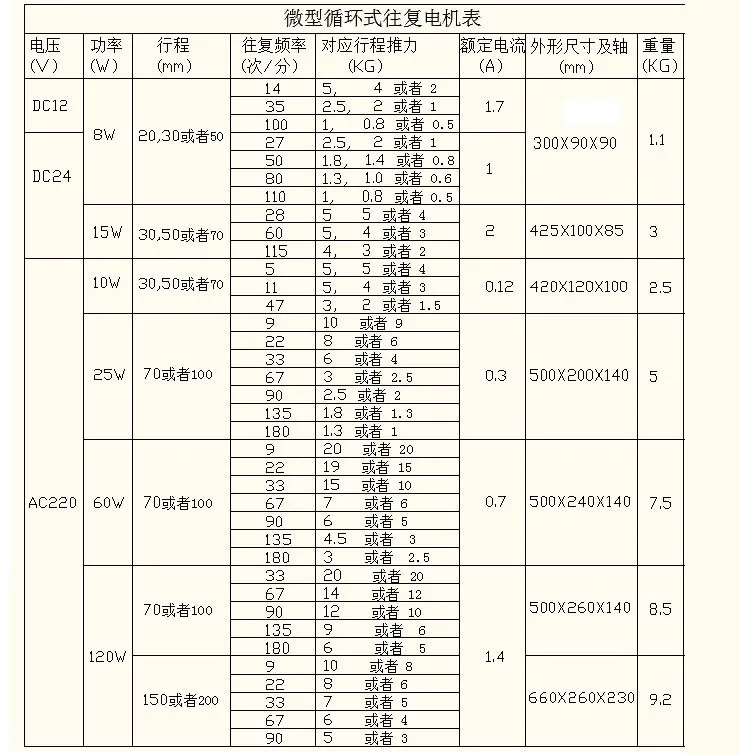

The same series of different speeds, as well as the strength of the table specifications

if you need the other part number motor as the list shows please contact us

Motor power is different, the size is different, the bracket is also different.

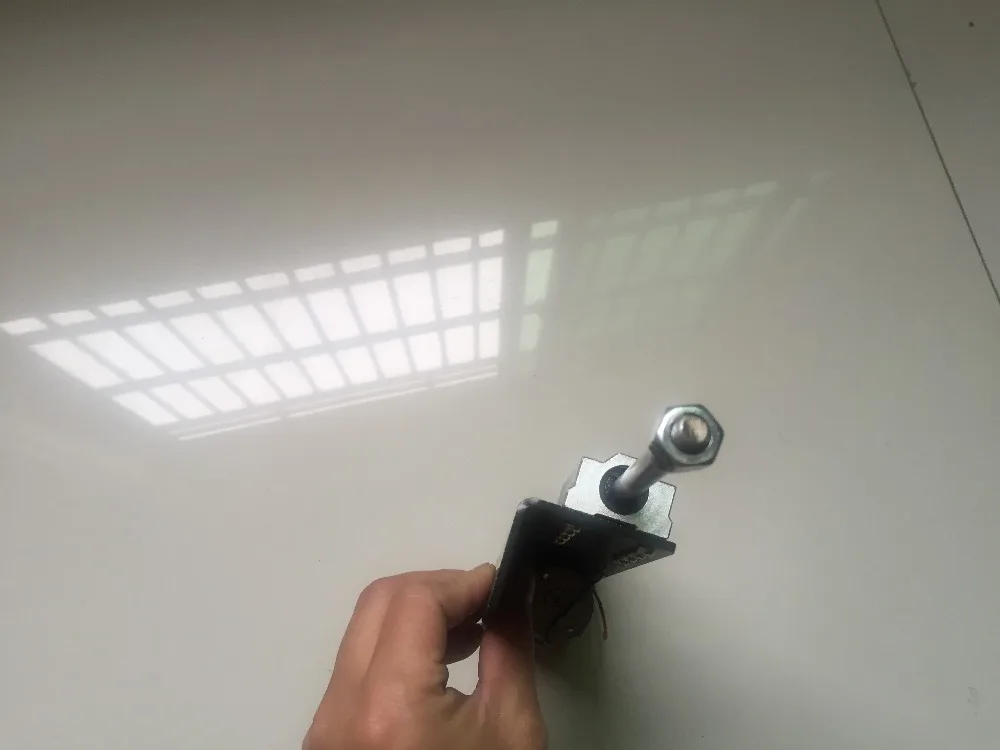

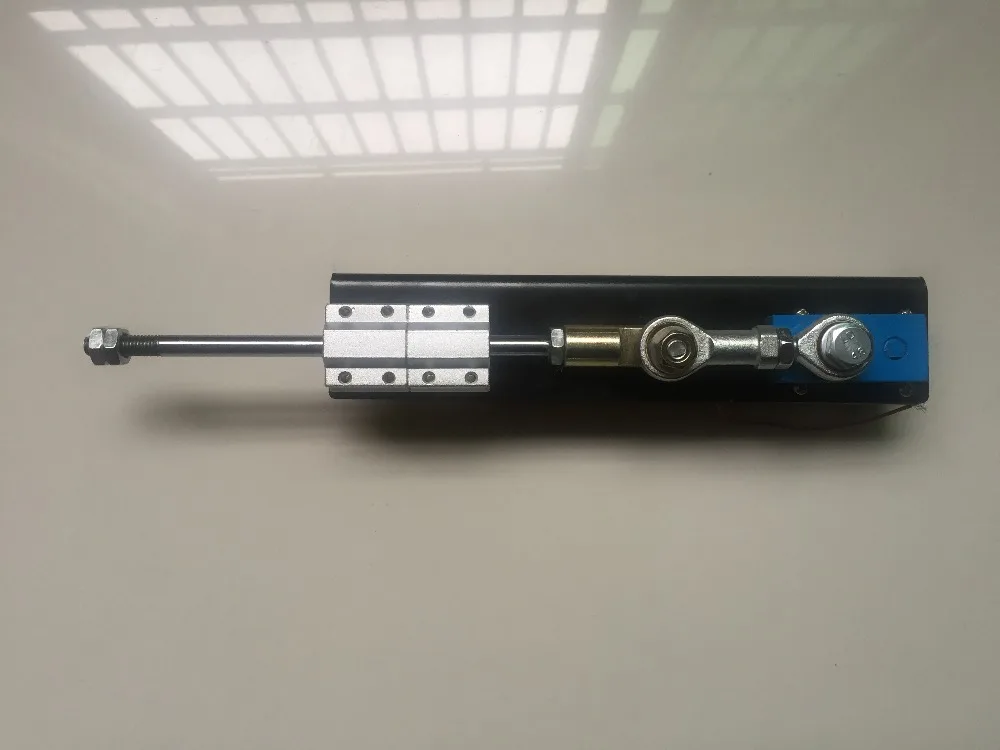

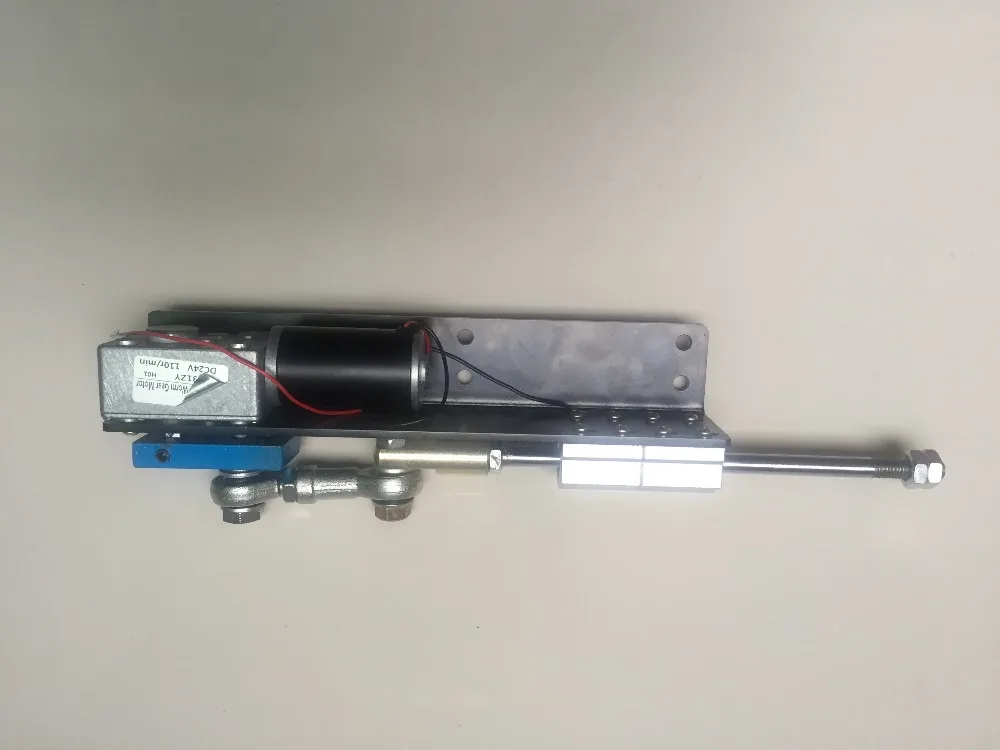

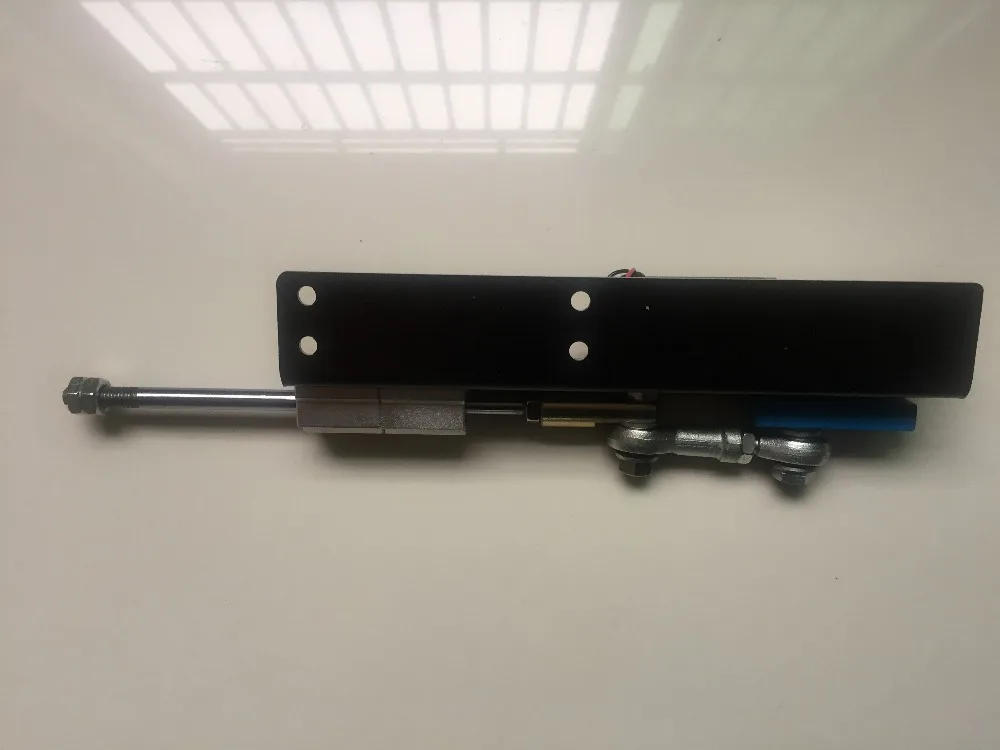

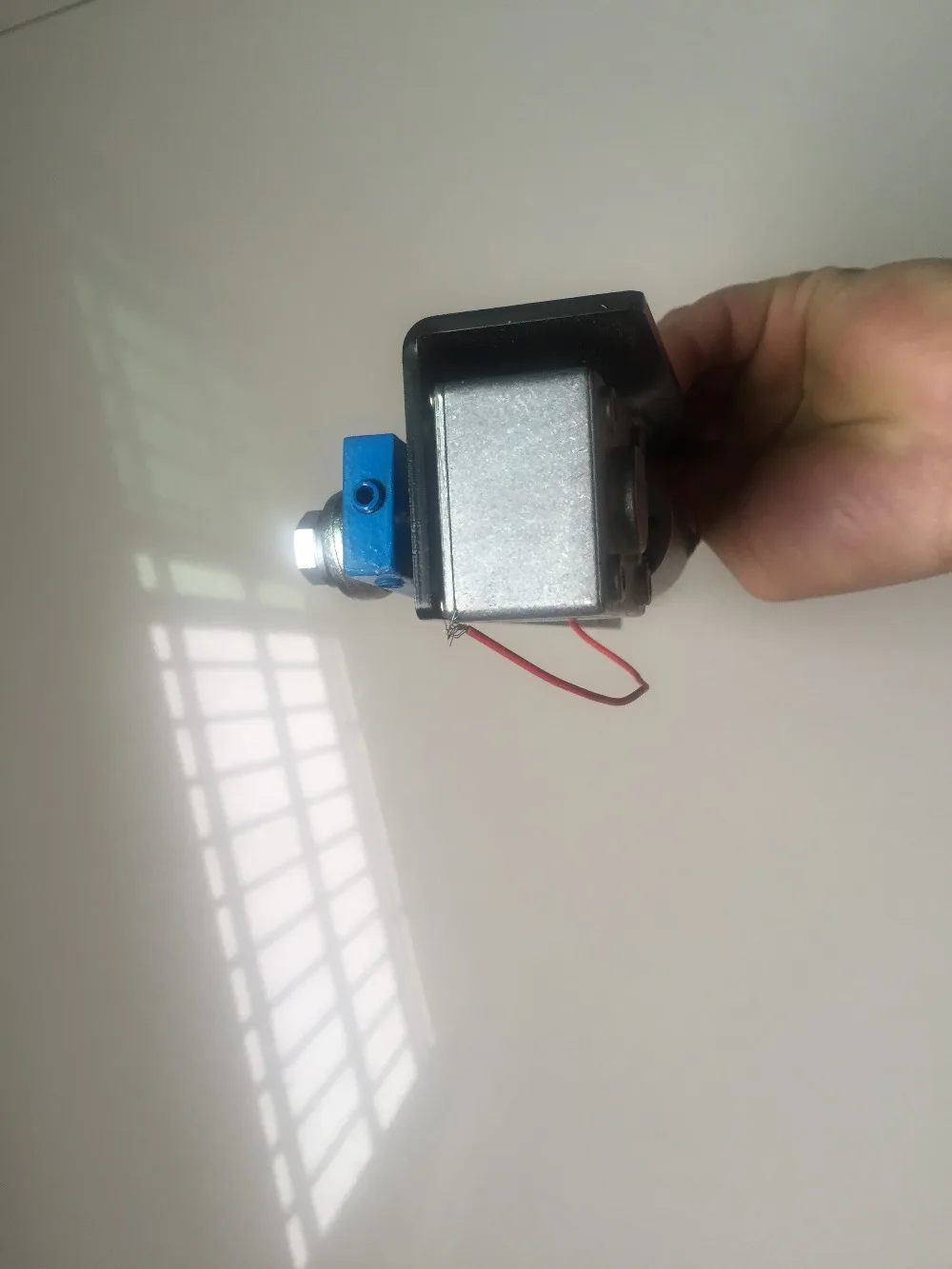

Customized automatic reciprocating motor



Three features:

1. The motor can be continuously reciprocating motion, unlike ordinary electrical jacks intermittent work, work left to see the animation.

2. The linear motor speed reciprocating rod is changing, learning not to require uniform.

3. The product is non-standard products, hand-produced single, slightly rough surface, requiring careful to buy fine.

The linear motion components are steel shafts with linear rolling bearings, need regular lubrication of the shaft surface, depending on the use of time, the frequency of a given, ensure that the steel shaft fever does not exceed 90 degrees, the shaft surface oil quit principle.

Motor Caution:

1. Before using make sure the motor voltage is correct, even if the DC motor to confirm the adequacy of the supply current.

2. Use not overload, overload reasons mainly of two parts, torque and axial force, the load torque of the motor can not exceed the rated torque discontinuity axial and radial shaft may exceed the allowable stress axis, plus after the load should not exceed the rated current of the motor measured current, general motors must be accompanied by burning fuse to avoid overloading the motor.

3. Do not store or operate in hot or humid environments, but also do not place in corrosive gas, the effect will reduce motor

4. The motor shaft assembly transmission parts such as gears, pulleys when, in press-fitting Do not knock the exception.

5. Power on the positive and negative terminals of the motor when you want to solder, soldering iron temperature of 340  ± 40 , heating time within 3 seconds, not the plastic deformation, at work, so that the solder flows into the motor point or broken wire ends, it will motor function decline.

6. When the installation of the motor, note the screw is too long, too long to prevent the screw press touch electrical parts inside.

7. Torque concept: for example, drive pulley, 10KG.CM torque, belt pulley radius 1CM there 10KG tension pulley radius 5CM if only 2KG belt tension.

8. Common units: 1N.M = 10KG.CM == 0.1KG.M, 1HP = 750W, 1W = 1V.A
