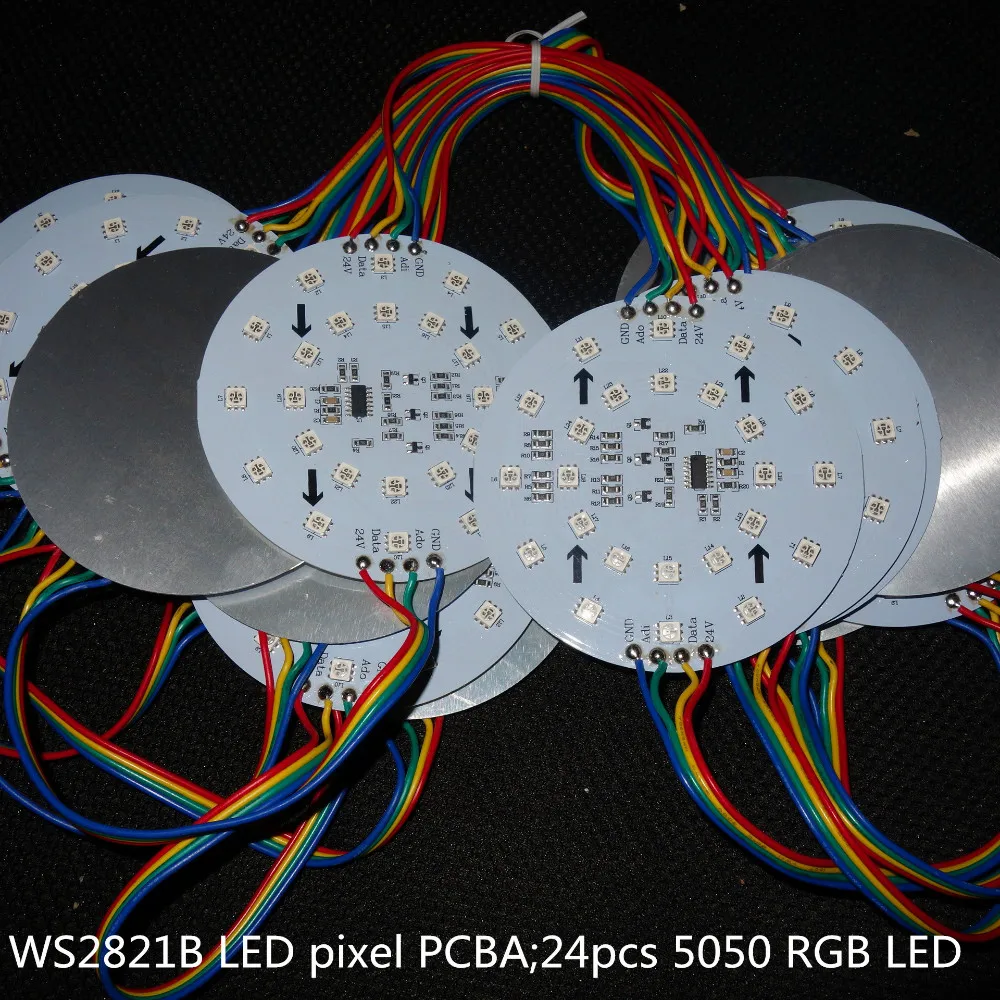

20pcs/set DC24V 100mm diameter WS2821B LED pixel PCBA24pcs 5050 RGB LEDIP33 non-waterproofɵ.76W | Освещение
История изменения цены
*Текущая стоимость 6 605,49 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Jun-25-2026 | 8388.14 руб. | 8556.34 руб. | 8472 руб. |
| May-25-2026 | 6803.56 руб. | 6939.1 руб. | 6871 руб. |
| Apr-25-2026 | 8256.95 руб. | 8421.65 руб. | 8338.5 руб. |
| Mar-25-2026 | 8190.34 руб. | 8354.68 руб. | 8272 руб. |
| Feb-25-2026 | 6539.52 руб. | 6670.67 руб. | 6604.5 руб. |
| Jan-25-2026 | 8058.38 руб. | 8219.44 руб. | 8138.5 руб. |
| Dec-25-2025 | 7992.36 руб. | 8152.33 руб. | 8072 руб. |
| Nov-25-2025 | 7926.27 руб. | 8085.38 руб. | 8005.5 руб. |
Описание товара
1: this pixel node works with parallel signal Transmission,each pixel is individually controlled, each node as one pixel with 3 RGB channels inside,256gray scale,any bad or not working node during the string would not affect the other nodes's working.
2: we use the WS2821A,parallel-single wire-three channels-256gray level-constant current led driver IC
3: the signal is still TTL input, so they can be stilll controlled by the T-1000S,t-1000B,T-1000A,T-4000,T-8000A,T-100K,T-200K.H805SBEtc,(please choose the dmx mode when you edit the programme with lededitor or led built software)
4: it can also work with DMX marster controller directly,you can connect the DAT wire to the DMX+ of the dmx controller,and leave the dmx- port alone
5: please use the below dmx editor to set the dmx address:
http:/store/product/WS2821-DMX-address-writer-dmx-editor-programmer/701799_1766823443.html
Specification:
Part No | RA-WS2821B-N-24V-12mm-15cm |
Color | full color RGB(WS2821B IC inside)each module as one pixel;takes 3dmx channels |
LED Qty | 24pcs 5050 SMD RGB LED |
Input Volt | DC24V |
Max current | 240MA |
Max Power | 5.76W |
Driver method | Constant current circuit |
Dimension | 100mm diameter |
Viewing angle | 150-180degree |
Protection Level | IP33 |
Certification | CE and RoHS |
Standard connection | 20pcs a string |
Standard wire length | 15cm wire spacing(from side to side) |
Housing | alu pcb |
Fixed way | screw |
Lifespan | 35000 hours |
Warranty | 2years |
Operation temperature | -40-50 |
Store temperature | -50-60 |
