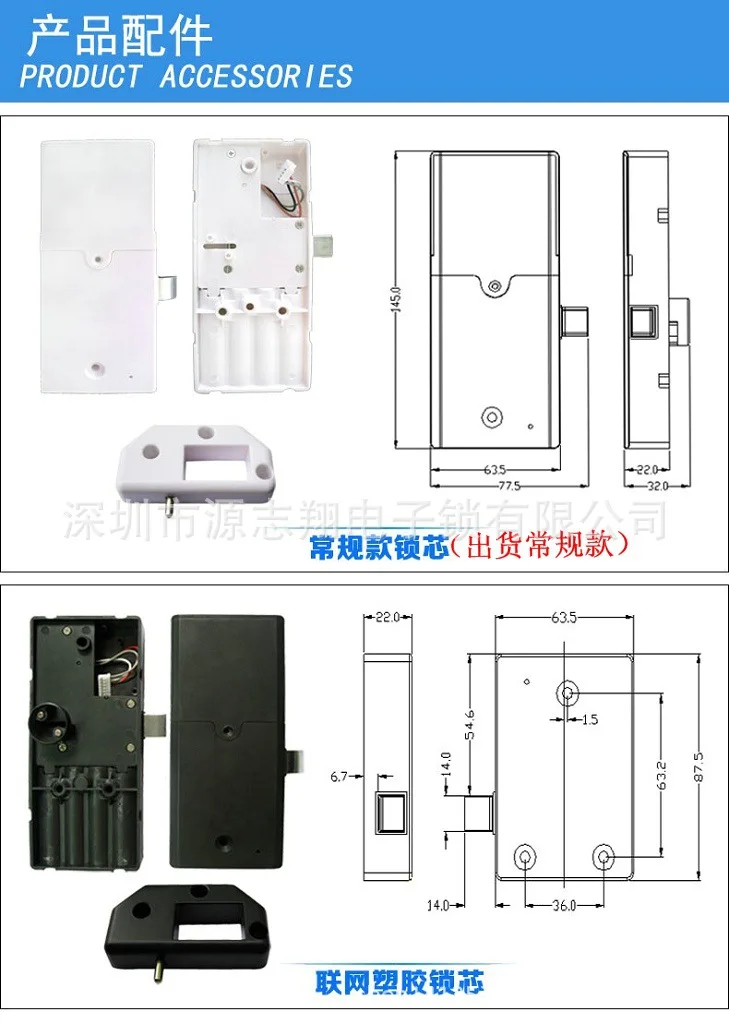

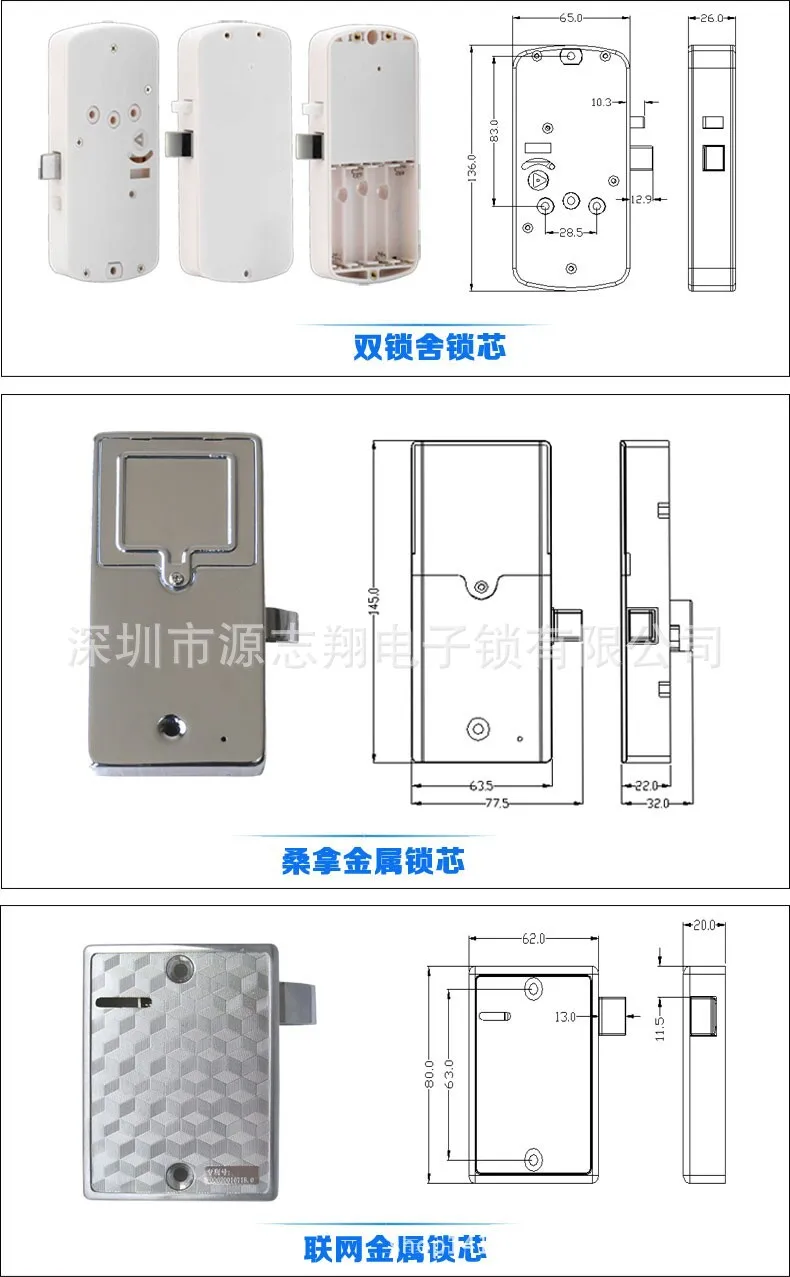

Note: the following lock cylinder and strap is free to mix, take trouble when buyers leave notes or contact customer service, if not note the default normal! (Ship other than the conventional lock cylinder and strap subject to increase)

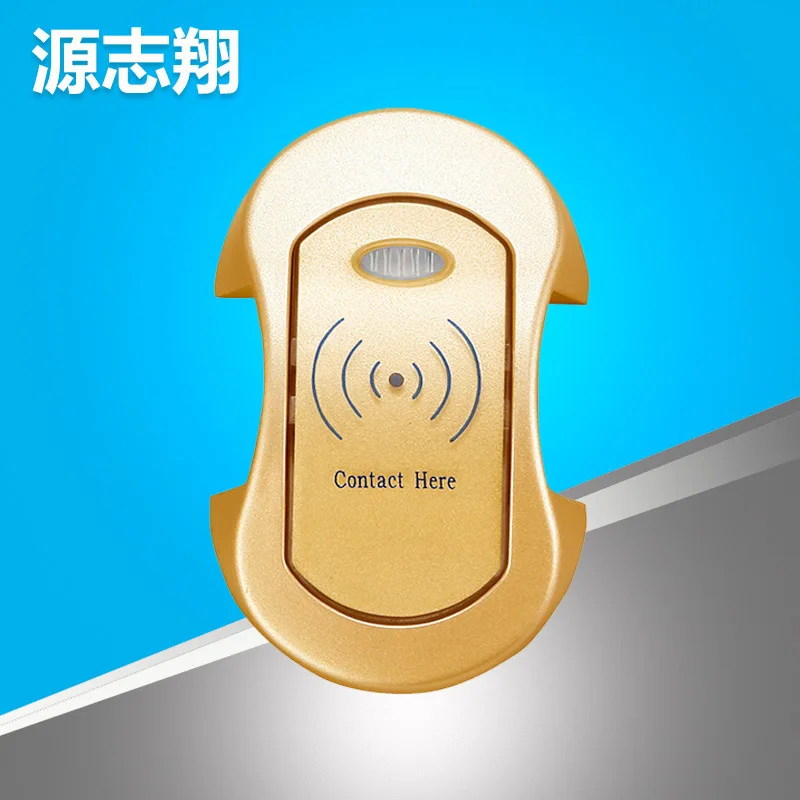

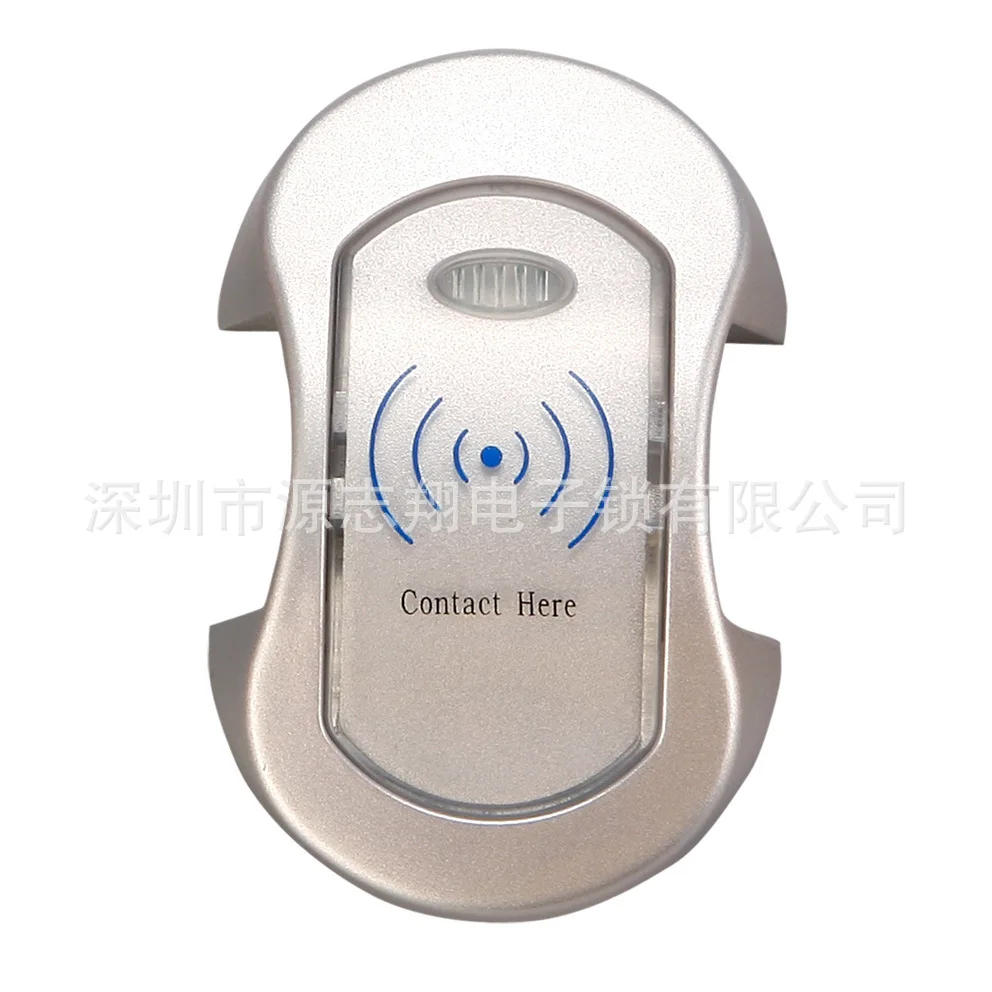

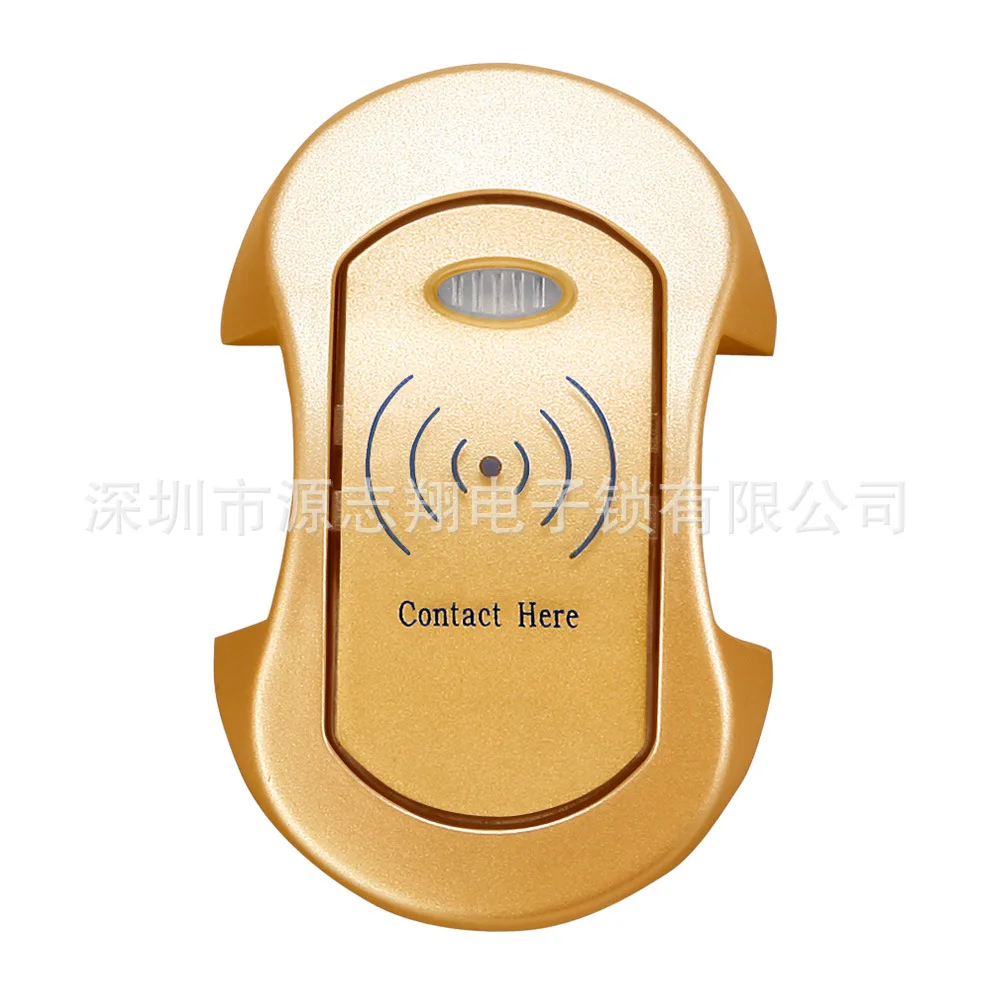

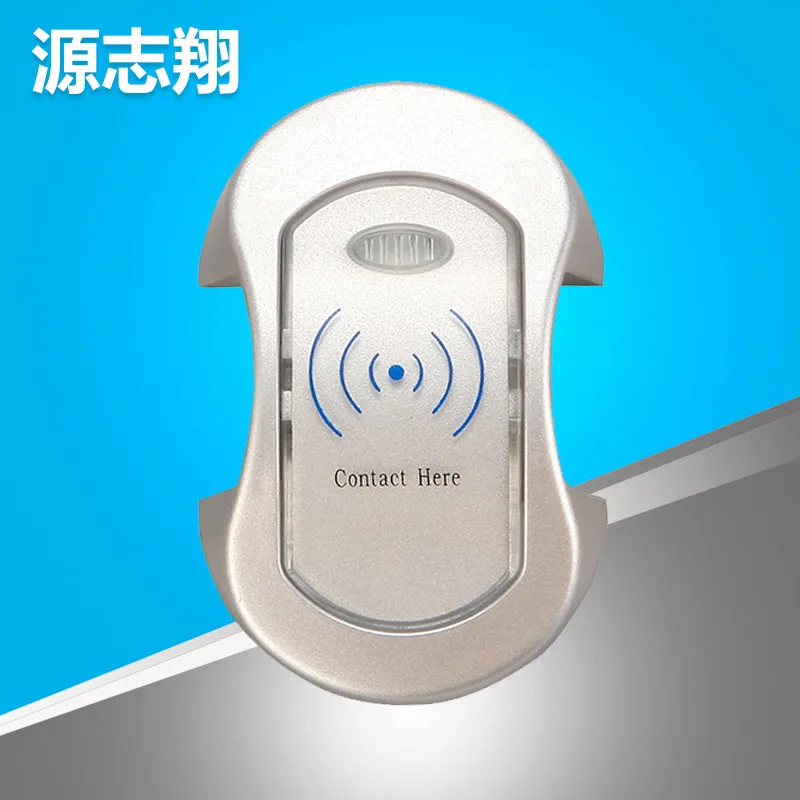

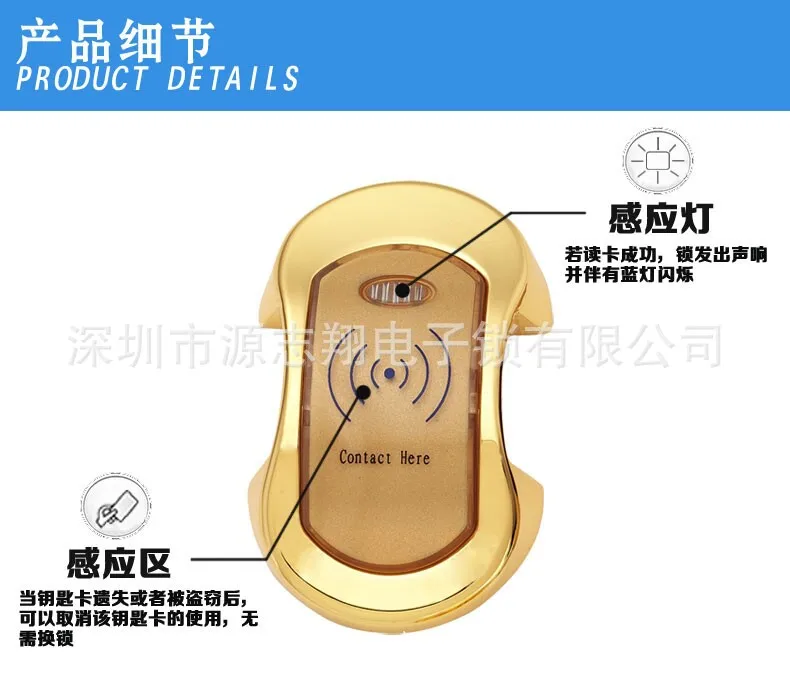

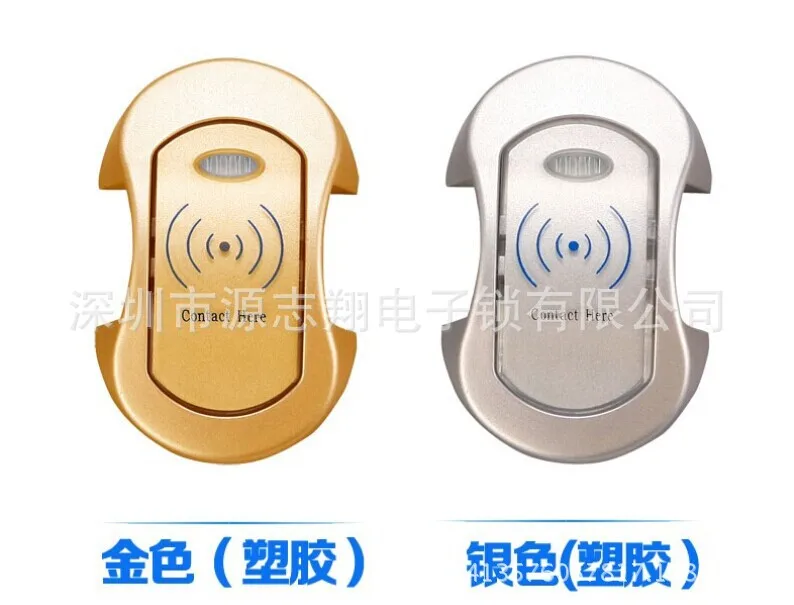

Sauna lock feature

1. single cards (guest card is used alone to unlock) or double (guest cards and staff cards unlocked) door function, the user can at any time set

2. the door locks with automatic recovery function, do not need to install the door handle on the door, door with card, lock automatically open, even if it is a special type of door hinge, or smooth opening does not need to install the door handle.

3. low-voltage alarm function, when the charge is less than 4.8V, each card door, door sound, light double tip, at this point in time to replace the battery.

4. equipped with an external power supply, when the door locks battery, not enough to open doors at a time when external power supply can be used to add capacity, and then use the card opens the doors.

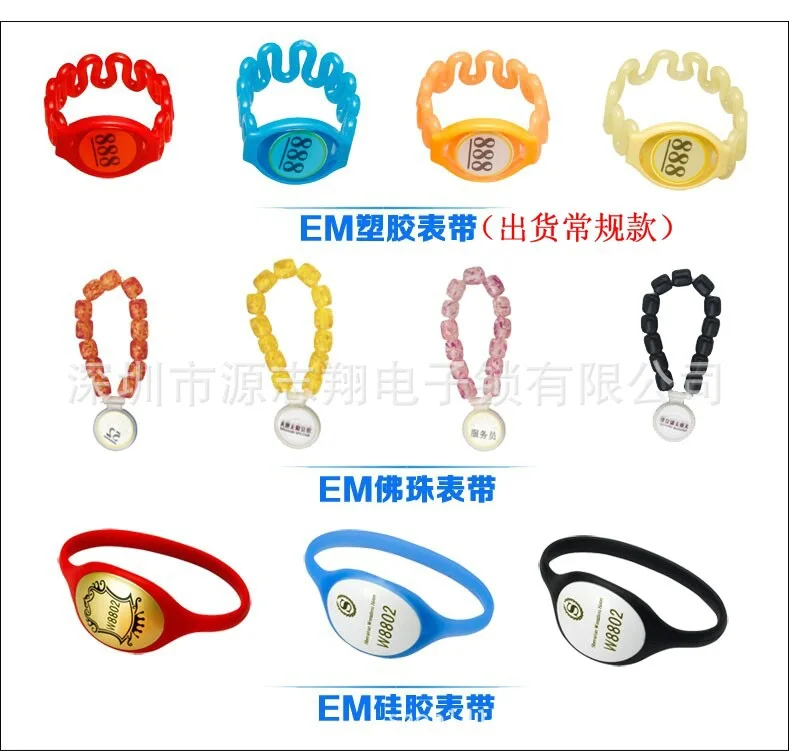

5. strap-type cards, waterproof, moisture-proof, high temperature resistant, easy, safe and durable.

6.TM/EM card to open the door, refusing illegal cards, card service life of up to 100,000 times

Sauna lock with card:

Single door card configuration methods:

1. initialization: powered up, press and hold the white button for 3 seconds on the circuit board (available from the front right corner of the paper clip through the lock cylinder hole to achieve) the green light stay lit. Hear "drop" sound let go after and lock within "drop ... .... (A long shot) drop, drop, drop, drop, drop (five short) "(a total of six sound and the blue light is blinking, the duration is 5 seconds). Dan Ka door was initialized successfully.

2. Configuration management cards: circuit board after initialization, EM EM card contact reader, such as card readers, locks for success within the two sounds (dropping ... Drops), and the blue light flashes two times, said the management card configuration is successful, managing card functions: door function. Configure door card, remove door card.

3. Configuration door card: will Management Contact EM read head, and as read card success, and lock within issued a sound ("drops"), and motor turned, and door open (lock tongue retracted lock core) and blue lamp flashing 6 times within said lock in increased State, and this paragraph time can configuration door card, and will EM/TM card Contact EM read head, and as read card success, and lock within issued a sound short ring, and that first Zhang door card configuration success, and can continuous configuration door card, and up can configuration 15 Zhang, and as in blue lamp flashing 6 times within not configuration success, and Needs to read the management card configuration to open the door.

4. delete door card: will EM/TM management card continued contact EM/TM read head not took open, and as read card success, and first lock tongue recovered lock core, and while lock within issued a sound long ring, and immediately lock within issued 4 times fast Tweet (drops, and drops, and drops, and drops) and with blue lamp fast flashing 4 times, and Hou has 3 times ringing (drops, and drops, and drops) and with blue lamp flashing 3 times, and showed that all guest card and the management card has delete.

Double door configuration methods:

1. power on, press and hold the circuit board on the white button for 3 seconds (available from the front right corner of the paper clip through the lock cylinder hole to achieve) the green light stay lit. Hear "drop" sound let go after and lock within "drop ... Drops, and drops, and drops, and drops, and drops "six sound, and (a sound long ring Hou 5 sound short ring, and and blue lamp bright, and duration for 5 seconds) in heard 5 sound short ring of while, and continues to by about white button that let go, and heard" drops drops, and drops drops, and drops drops, and drops drops, and drops drops "5 sound and with blue lamp fast flashing two times for a group, and total 5 group Hou, and said dual SIM door initial of success

2. Configuration management cards: circuit board after initialization, the EM card/TM contact EM read head, if the read is successful, locked inside two sounds (dropping ... Drops), and the blue light flashes two times, indicates that the managed card configured successfully

3.. Configuration door card: will Management Contact EM/TM read head, and as read card success, and lock within issued a sound ("drops"), and motor turned, and door open (lock tongue retracted lock core) and blue lamp flashing 6 times within said lock in increased State, and this paragraph time can configuration door card, and will EM/TM card Contact EM read head, and as read card success, and lock within issued a sound short ring, and that guest card 1 success, and will waiter card Contact EM/TM read head, and if read card success, and blue lamp bright, and lock within issued a sound short ring, and The attendant card 1 successfully, if you need to configure more than one attendant card, can continue in the staff card 1 configuration, read other attendant card, up to 14 staff.

4. double door: 1 EM/TM read head with your guest card, if reading successfully, blue light flashing once, locks, a short, again: 1 Contact EM/TM reading head, if reading successfully, blue light illuminated steady, simple locks within music, motor, door open (the bolt retracted cylinder), open door finish

5.* Note *: Dual SIM open, managed cards first card guest card, then the distribution of cards is the waiter cards, opened the door, but the attendant card and guest card can only be used in conjunction to the door, punch in no particular order. Two guest card or two attendant card can be played open roles.
