Описание товара

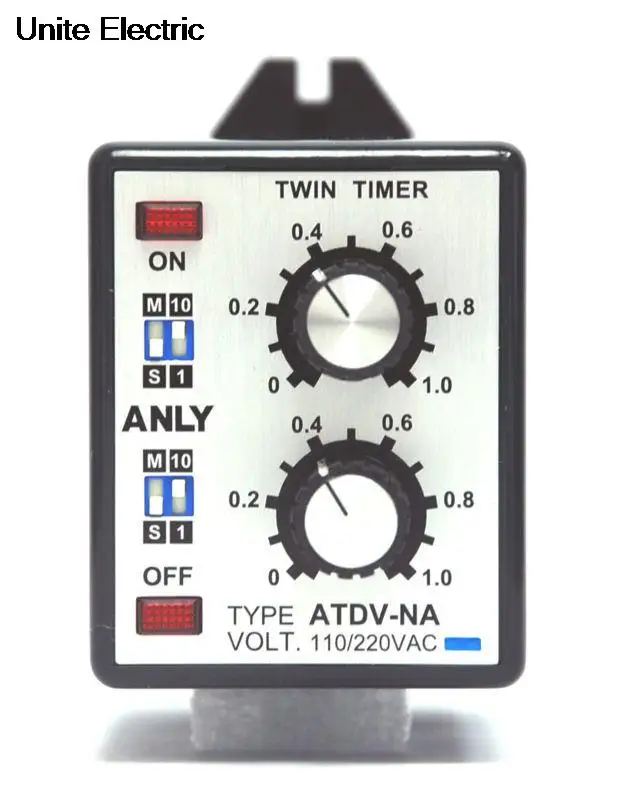

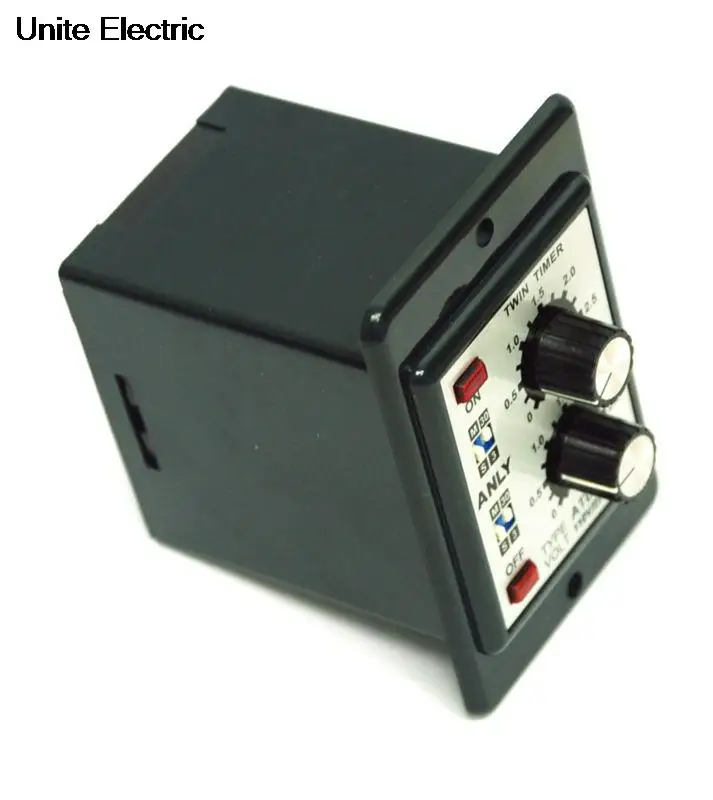

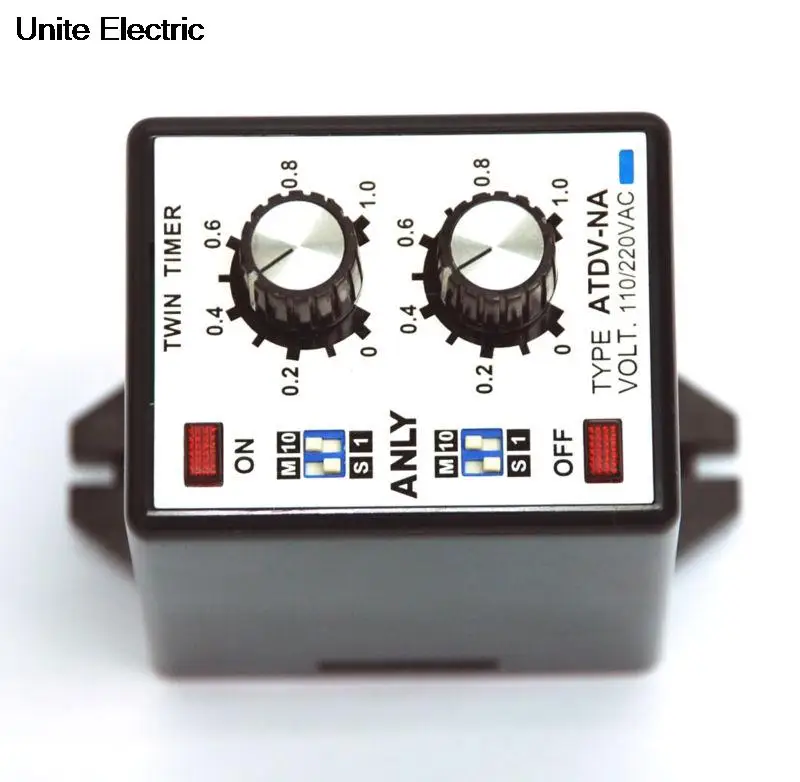

ANLY Timer Relay ATDV-NA Twin Time | Обустройство дома

PRODUCT SPECIFICATIONS:

ATDV-N	ATDV-Y	ATDV-YC			ATDV-NA/NB
61H×49W×70D	88H×58W×68D	50H×40W×57.5D			50H×40W×57.5D
PF083A PS-08		PF083A(E)			PF083A(E)
	US-08 P3G-08	US-08 P3G-08			US-08 P3G-08
6S×6S,6S×60S,60S×6S,60S×60S,6M×6M 6M×60M,60M×6M 60M×60M, Longest time 12 Hours upon clients'request	6S×6S,6S×60S,60S×6S,60S×60S,6M×6M 6M×60M,60M×6M 60M×60M, Longest time 12 Hours upon clients'request	A:1S,10S,1M,10M, B:3S,30S,3M,30M, C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
DC(V):12,24 AC(V):12,24,110,220,240 50/60Hz	DC(V):12,24 AC(V):12,24,110,220,240 50/60Hz	DC(V):12,24 AC(V):12,24,110,220,240 50/60Hz
ON,OFF indicator	ON,OFF indicator	ON,OFF indicator				working flashing indicator
ATDV-N	ATDV-Y	AH3-1□	AH3-2□	AH3-3□		Mode A/B
5A	5A	5A		5A			5A
			5A			5A
				5A			5A
5×10⁶times	5×10⁶times	5×10⁶times
10⁵times	10⁵times	10⁵times
±1% max	±1% max	±1% max
±10 max	±10 max	±10 max
±1% max	±1% max	±1% max
±2% max	±2% max	±2% max
0.2 sec max	0.2 sec max	0.2 sec max
2VA	2VA	2VA
-10°～+55°	-10°～+55°	-10°～+55°
48～85%RH	48～85%RH	48～85%RH
160g	210g	160g

CLASSIFICATION		TWIN TIMER
MODEL		ATDV-N	ATDV-Y
DIMENSIONS		61H49W70D	88H58W68D
MOUNTING&SOCKER	SURFACE(-N)	PF083A	PF083A
	FLUSH(-Y)	-	US-08 P3G-08
FULL TIMING RANGE		A: 1S/10S/1M/10M B: 3S/30S/3M/30M C:6S/60S/6M/60M D:1M/10M/1H/10H E:3M/30M/3H/30H
RATED VOLTAGE		DC(V):12,24 AC(V):12,24,110,220,240,380,415,440,50/60HZ
INDICATOR OPERATING		ON,OFF Operating
O/P CONTACT	MODEL	ATDV-N	ATDV-Y
	TIME LIMIT?1C	5A	5A
	TIME LIMIT?2C	-	-
	INSTANTENOUS 1C	-	-
LIFE	MECHANICAL	5*10 6 times
	ELECTRIC	10 5 times
ACCURACY	TO-and-FRO ERROR	±1% max	±2% max
	CONFIGURE ERROR	±10% max
	VOLTAGE ERROR	±1% max
	TEMPERATURE ERROR	±2% max
RESET TIME		0.2 sec max
CONSUMED POWER		2VA
AMBIENT TEMPERATURE		-10ºC~+55ºC
AMBENT HUMINITY		48~85%RH
WEIGHT		160g	210g

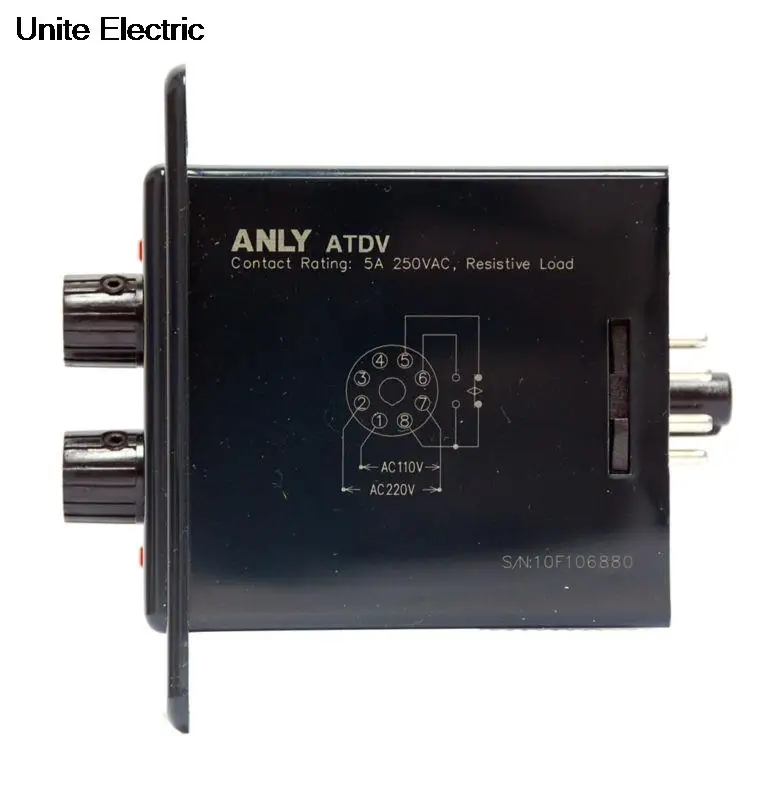

CONNECTION DIAGRAMS&TIMING CHART ATDV-N

CONNECTION DIAGRAMS&TIMING CHART ATDV-Y

For relay base , please link this
