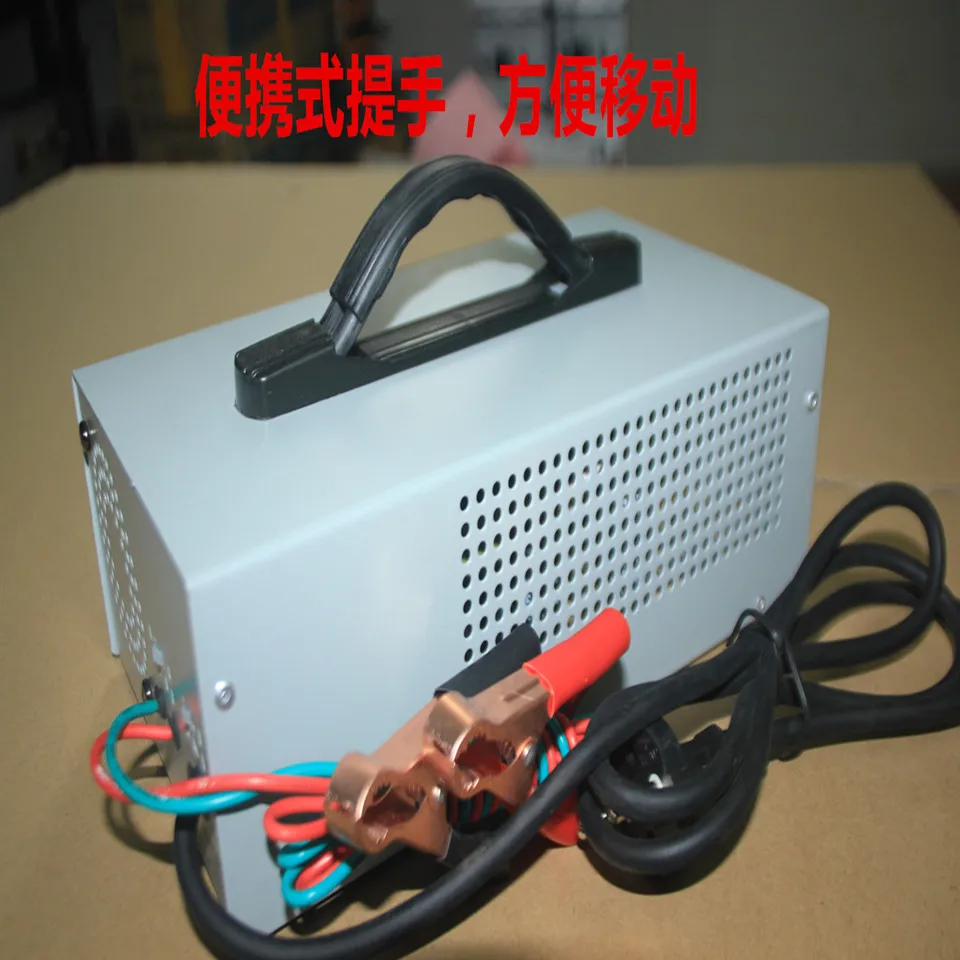

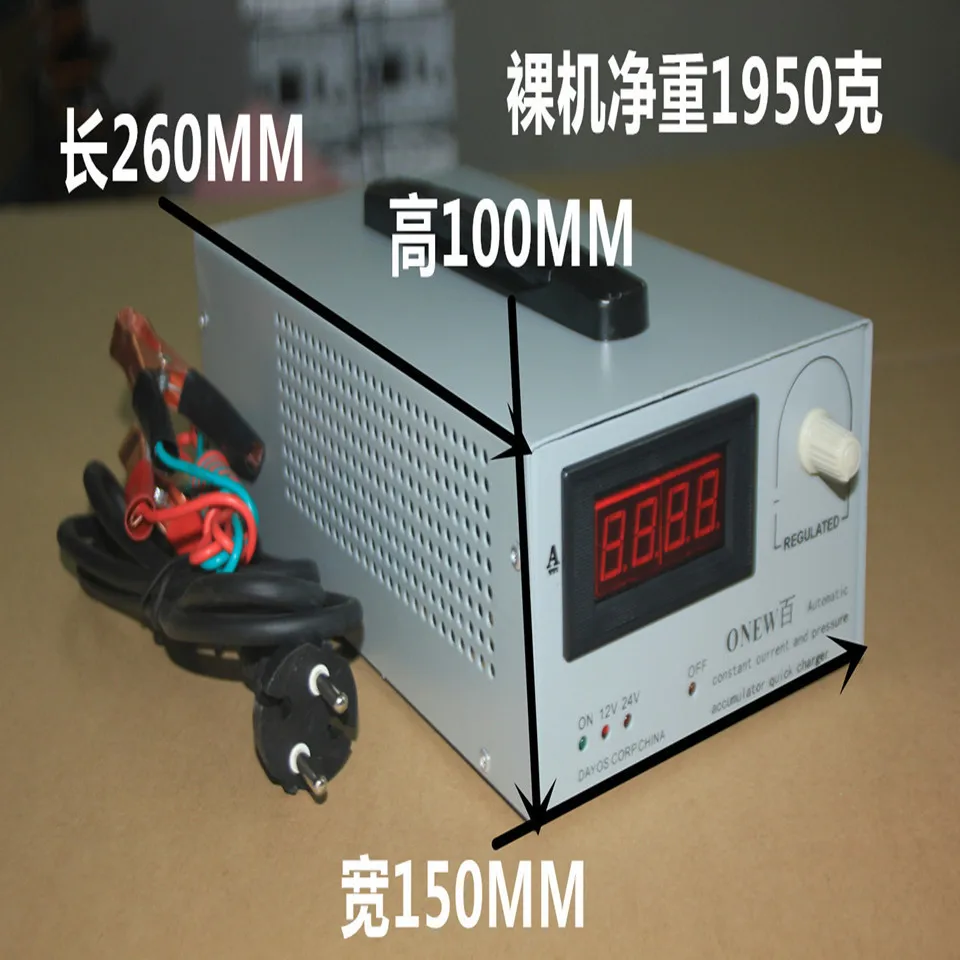

Charger introduction:The role of the battery charger is to discharge its discharge capacity after restoration. Reasonable choice and the correct charger for the battery charge is to ensure that an important condition for the battery performance and extend battery life. The best way is to charge constant current charging and constant voltage charging a combination of both methods. Start by constant current charging, the battery capacity to be gradually increased to close to saturation when shifted to constant voltage charging until saturation. Constant current charging:That is in the process of charging currents remain constant, avoiding the current instability caused by heat or not charge the battery, make sure the charging effect and battery life. Current settings:It is the standard rate was calculated, usually 10% of the battery capacity, charging time 10 to 15 hours. Constant voltage charging:To keep the battery charging voltage constant into saturation, causing the battery to avoid overcharging damage. Voltage setting:Constant in battery rated voltage 120% 125% 'ONEW one hundred' unlicensed automatic constant current type battery fast charger (Model: P-12 / 24-15A) PWM pulse using modern technology, with wide AC input voltage range, output power, high efficiency, light weight , portable and convenient. Specific technical parameters and battery charger matching relationship in the following table: ChargerBattery | AC input voltage | Charging output Constant voltage | Battery voltage automatic recognition | Reverse Battery Protection | Charge Current Adjustment range | P-12/24V-l5A(Model) | 12 volt DC | 110 V / 220 V | 15 V DC | Have | Have | 0.5A-15A | Range for charging the battery capacity 5AH ~ 200AH | 24 V DC | 220 volts | 30V VDC |

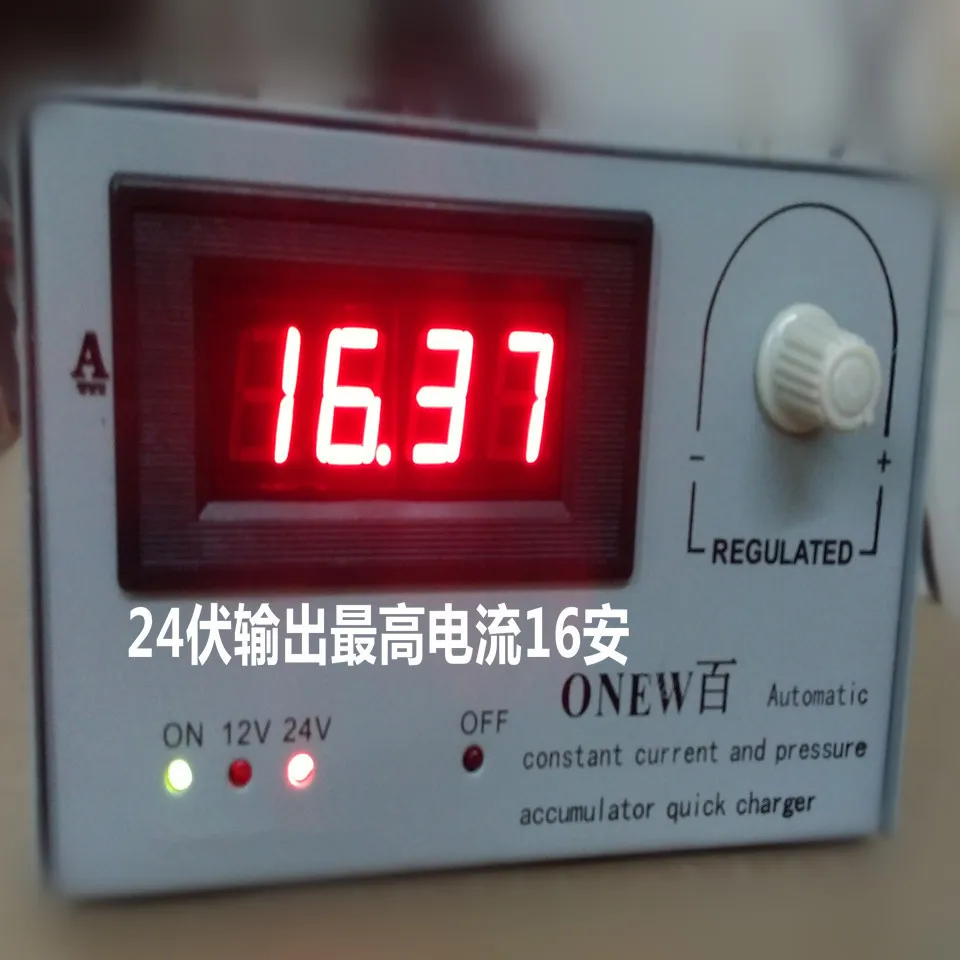

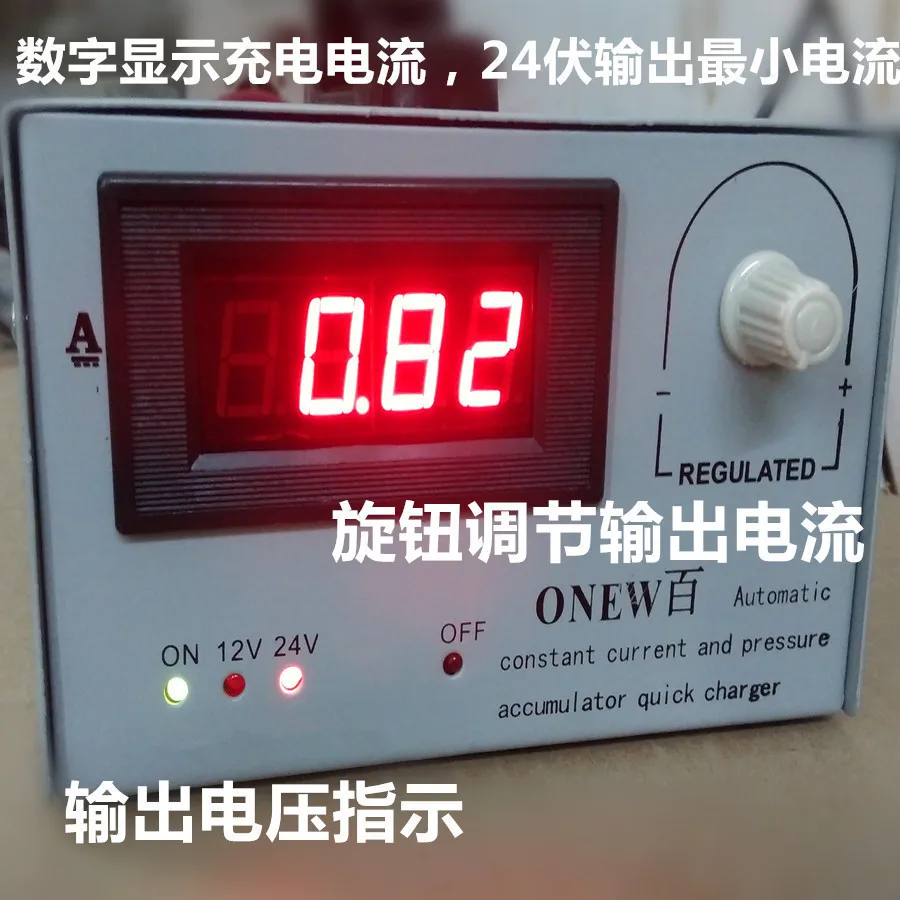

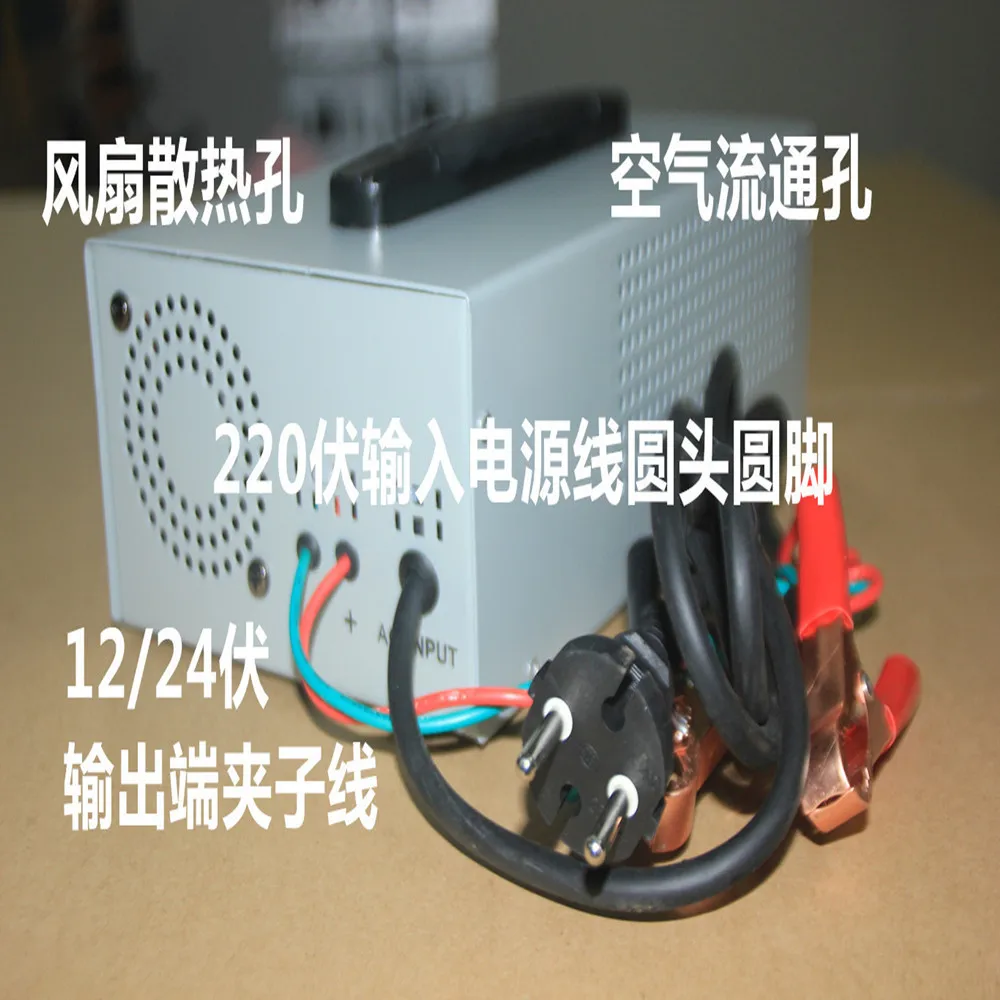

Scope:Generator, battery backup long-term care Steps:1 positive and negative DC output of the charger and the battery positive and negative corresponding connector. 2 plug in the AC 220 volt power supply, "ON" indicator light. 3 battery identification lights "12V / 24V" light (12 volt battery connection 12V bright lights, then 24 volt battery light 24V lamp) 4 Check the battery identification lamp is consistent with the battery before charging. 5 10% of the battery capacity adjust the charge current value. Troubleshooting: 1 When "off" indicator light, battery polarity is reversed, please correct connection. 2 "on" light is not lit: battery clamps or AC input plug is bad; the battery voltage is lower than 9V. Safety Tips: 1 charger AC input connector of the power supply with a safety grounding to prevent electric shock. 2 then the battery clip, not a hand battery positive electrode, a negative electrode holding the battery holder. The right way to first connect one end of the battery clip before they take the other side. 3 connected to a battery charger for too long. Remember to remove the charger will be charged. 4 Keep the charger is placed in a dry place to prevent moisture. 5 non-professional electrical maintenance personnel Do not attempt to disassemble, or peril.
|
