Free shipping 5pcs 22'' W 490mm Adjustable brightness led backlight strip kit Update 22inch-wide LCD CCFL panel to LED |

---

 Free shipping 22'' W 490mm Adjustable brightness led backlight strip kit,Update 22inch wide LCD CCFL to LED backlight

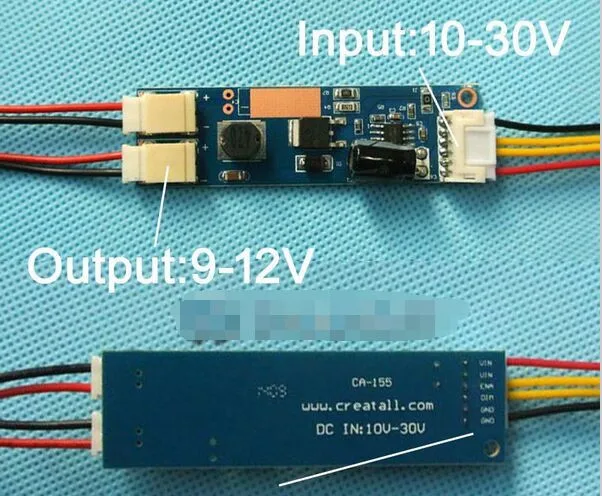

converter:7x2cm
input:DC 10-30v

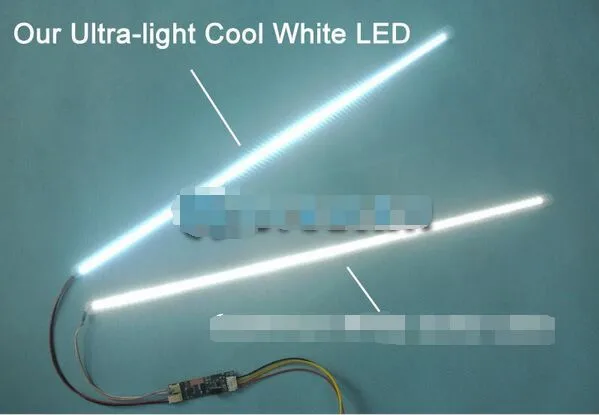

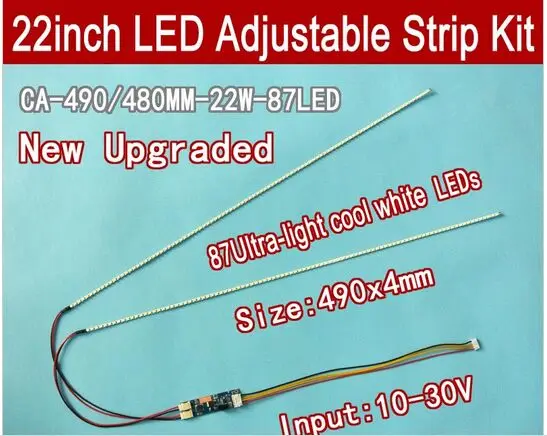

LED strip size:490x4mm

Package:
2x LED strip
1x converter
1x connection cable

















Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;
If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),
and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting
the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive
electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect
with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,
In the original high-pressure front to take power

VIN : voltage
ENA: on/off

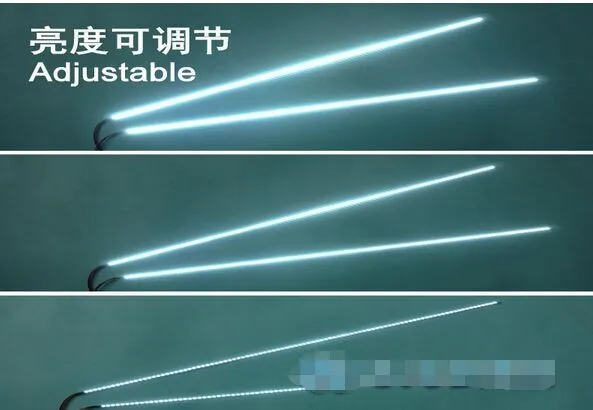

DIM: ADJ adjust brightness
GND: connecting Ground
Hope this can help you ,this is DIY kit,we cannot replace you to do it all.Hope that you can understand it
If you donot know any repair skill,you"d better not choose this kit.


We have also these below sizes for your choice:

for laptop screen:
10inch Led backlight,length: 220mm
12inch Led backlight,length: 255mm
12inch-Wide Led backlight,length:268mm
13inch Led backlight,length:270mm
14inch Led backlight,length:290mm
14inch-Wide  Led backlight,length:310mm
15inch Led backlight,length:310mm
15.4inch Led backlight,length: 336mm

for monitor screen:
15inch led strip kit: length:325mm
17inch led strip kit:length:355mm
19inch led strip kit: length:395mm
19inch wide panel led strip kit :length:425mm
18.5inch led strip kit: length:420mm
20.1inch wide led strip kit: length:455mm
22inch led strip kit:length:490mmmm
23.6inch led strip kit,length:530mm
24inch led strip kit: length:540mm
