Parameter of  Bar refrigerated counter
The product name: bar counter/refrigerator
Model:                 3DFM
Power:                 235W
Cooling type:        straight cooling
Capacity:              330L
Refrigerant:           r134a
Tmeperature:         0°C~10°C
Voltage:                220V/50HZ
N.W/G.W:            126kg/136kg

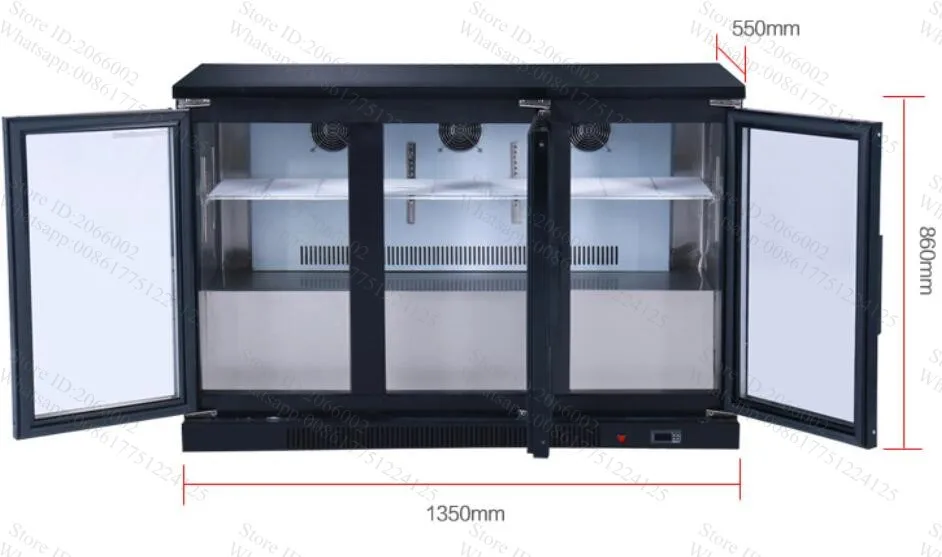

Unit Size:              1350*550*860mm
Packing Size:         1450*650*960mm

Product performance:
1.anti rust 0.3mm galvanized back plate
2.high carbon steel wire impregnated non-toxic layer frame
3.rugged K type clamp, easy to adjust
4.The outlet, to facilitate discharge of condensed water and after clean water
5. long life lamp safety protection
6. low power consumption, low noise, large air flow condenser, pure copper tube aluminum fin condenser
7.stainless steel door hinge, durable, Aluminum Alloy material, accord with human body engineering principle the door handle, easy to stick on
8. high brightness, low power light inside the tubes, mechanical temperature controller, intuitive, accurate, easy to adjust
9. directional universal swap, supporting the heel casters are also interchangeable

Precautions:
1, into the food, please note: (display cabinet)
A, do not exceed the scope of the shelf, the gap between the layer and the glass door is the passage of air conditioning.
B, do not directly into the bottom of the box should be placed on the shelf.
C, the maximum load for each shelf 20Kg, shelf position can be re-adjusted according to the size of the food
2, the freezer in the course of the process, the door does not open too often, to minimize the number of open the door, shorten the time to open the door to reduce air leakage, saving electricity.
3, if the power cord is damaged, due to the need to use professional tools, special maintenance personnel must be replaced.
4, not the fingers, sticks and other objects into the fan, or risk of injury.
5, do not hang items on the door, otherwise there is dumping the freezer, the risk of falling items.
6, do not hand contact with the compressor, or risk of burns.
7, the four sides of the freezer for the condenser suction, should keep its area clean and clean, to avoid dust flying, affecting the cooling effect.
8, freezer for a long time should not be used Note:
A, remove all the items in the cabinet, unplug the power plug.
B, inside and outside the freezer should be clean, clean the cabinet moisture, mildew, and open the door, let it fully dry.
C, can not be placed in children's play, so as to avoid children into the cabinet, the risk.
9, when the use of the environment below 10 ℃, the refrigerator temperature will be very low.

Cleaning and maintenance:
1, clean the refrigerator appearance and the box:
A, using a soft cloth dry rub, or dip in neutral detergent after wipe with a damp cloth, do not rinse the freezer with water.
B, in order to keep the refrigerator clean, regular cleaning and maintenance.
2, Note:
A, for safety, be sure to unplug the power cord after cleaning.
B, do not rinse the surface of the refrigerator directly with water, please use a neutral detergent (edible detergent).
C, if the edible oil (animal oil or vegetable oil) long-term adhesion in the door seal tape, boxes and other plastic pieces, will make these plastic parts aging and listed, please clean and maintenance.
D, the following items will damage the spray side of the door sealing tape, box boxes and other plastic parts surface. Alkaline detergents, soap, grinding powder, boiling water, banana water, acetone, toluene and most organic solvents should not be used.

Special Note: Where freezers, refrigerators and electrical appliances with a compressor after receiving the goods must be put in static for more than two hours and then power!

We can also supply air cooling sliding/push and pull door bar refrigerated counter

Air cooling push and pull door and the prize add ship is USD1380.For example:

Air cooling sliding door and the prize add ship is USD1550.For example:
