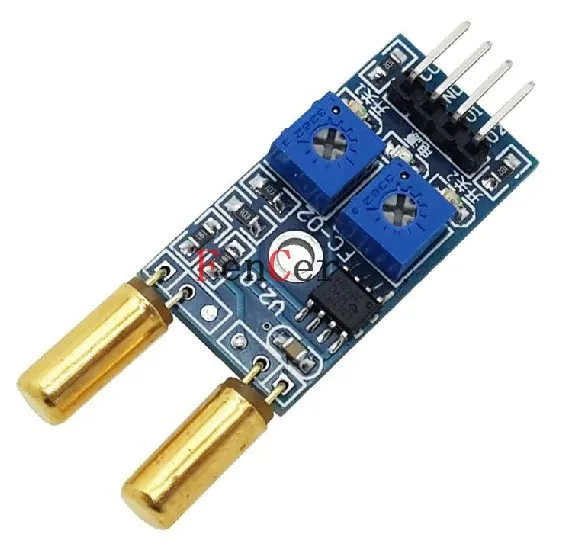

XD-79A factory direct two -way switch dump angle sensor module |

XD-79A factory direct two -way switch dump angle sensor module |

Download product information :pan.baidu.com/share/link?shareid=3784947574&uk=2164862926

Purpose :
Various angle sensor , dumping sensing, tilt sensor , two -way output control .
Module features :
1, the use of the company\'s SW-520D tilt sensor sensitivity

2 , the comparator output signal clean, good waveform , driving ability , than 15mA.
3. Distribution bit sensitivity adjustment
4 , operating voltage 3.3V-12V
5, the output format: digital switching output ( 0 and 1 )
6 , a fixed bolt holes for easy installation
7 , a small PCB board size : 3.2cm x 1.7cm
8, using a wide voltage comparator LM393
Module for use:

1. The initial state of the output from the two depends on the tilt sensor is turned on and off , when turned on , the green light , the output low , the tilt sensor is disconnected , the green light is off, the output is high ;
2. In the initial state tilt sensors typically are installed in the normally open state, the tilt sensor is not in working condition and prolong life ;
3. Default SW-520D sensor for detecting objects dumped 90 degrees , and if the other point of view, please contact the treasurer .

4, the output can be directly connected to the microcontroller through the microcontroller to detect high and low , thereby detecting the angle of environmental change ;

5 , the output relay module can directly drive the shop , which can form a high-power angle control switch ;

Invoice :

2-way tilt sensor module 1 , with two S-520D tilt sensor

Schematic

2-way sensor module wiring diagram
