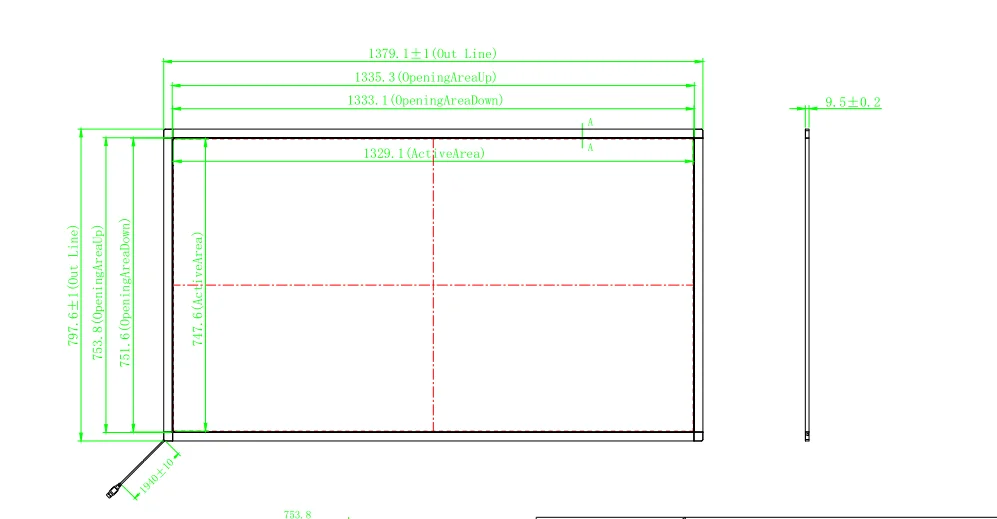

Size

General Size

15 inch to 159 inch

Fit in with

Panel display device

Performance

Touch Mode

Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out

Resolution(Interpolation)

4096*4096

Linearity Error

<1.5mm

Response Speed

<15ms

Mechanical

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Minimum Touch Object

2.5 mm X 2.5 mm

Vandal-proof

No break by 1-pound steel ball dropping from 130 cm high

Optical

Glass:

Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional

Light Transmission

92%

Gloss

Antiglare surface (curved or flat): 95 15 gloss units or 65 15 gloss units

Environmental

Temperature

Operating Range: -20C ~ 70C;

Storage Range: -40C ~ 85C

Relative Humidity

Operating Range: 0%~90% RH (no dew falls)

Storage Range: 0% to 95% RH (no dew falls)

Ambient Light

Direct sunlight 90to 30 to the display surface Touch detection operational

Direct sunlight all angles to display surface Free of false touch reports

Electrical

Operation Voltage

Typical +DC 5V, +4.75V to +5.25V

Power Supply

Size under 52(include 52)USB or PS/2 Interface, power ripple max.200mV rms

Size above 52(52 not included): external AC-DC power adaptor

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Plug and play compatible

Current

Typical 150MA+5VDC; 350mA, maximum

Power

<1.5W, operating current<300mA

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Controller

Integration inside touch panel

Agency Approvals

CE, FCC, Rohs

Operating System

Operation System :windows 7, windows8, Android, Linux
