CCTV 4Ch DVR BNC UTP RJ45 пассивный видео балун Камера Cat5 трансивер безопасности передатчик
История изменения цены
*Текущая стоимость 957,81 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-20-2026 | 1215.12 руб. | 1239.71 руб. | 1227 руб. |
| Jan-20-2026 | 986.6 руб. | 1006.36 руб. | 996 руб. |
| Dec-20-2025 | 1196.43 руб. | 1220.62 руб. | 1208 руб. |
| Nov-20-2025 | 1187.96 руб. | 1211.42 руб. | 1199 руб. |
| Oct-20-2025 | 947.19 руб. | 966.75 руб. | 956.5 руб. |
| Sep-20-2025 | 1168.53 руб. | 1191.20 руб. | 1179.5 руб. |
| Aug-20-2025 | 1158.11 руб. | 1181.47 руб. | 1169.5 руб. |
| Jul-20-2025 | 1148.79 руб. | 1171.59 руб. | 1159.5 руб. |
Описание товара
 | |||
 |  |  |  |
 |  |  |  |
 |  |  |  |

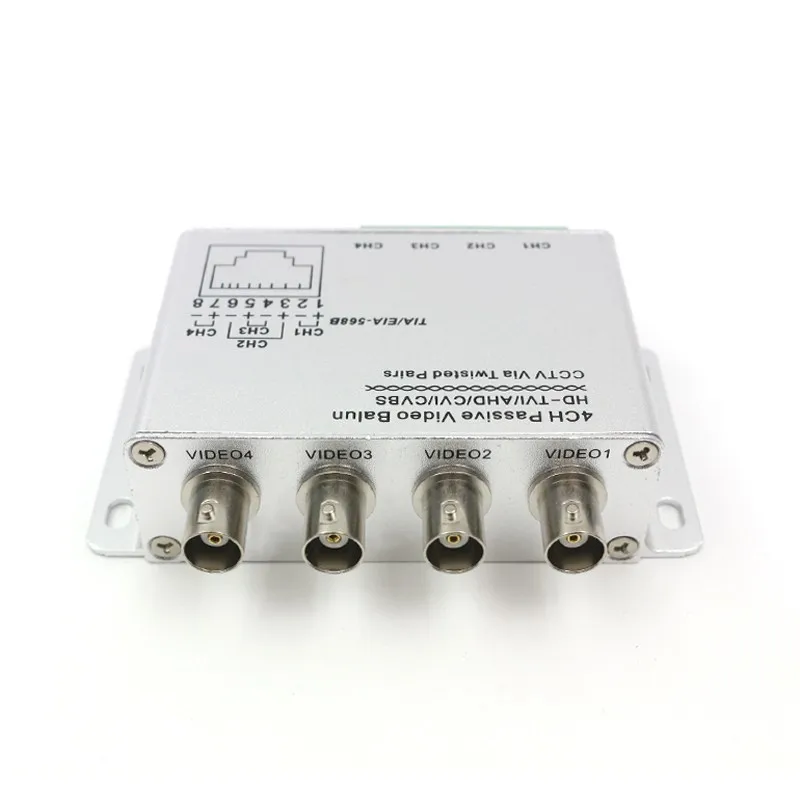

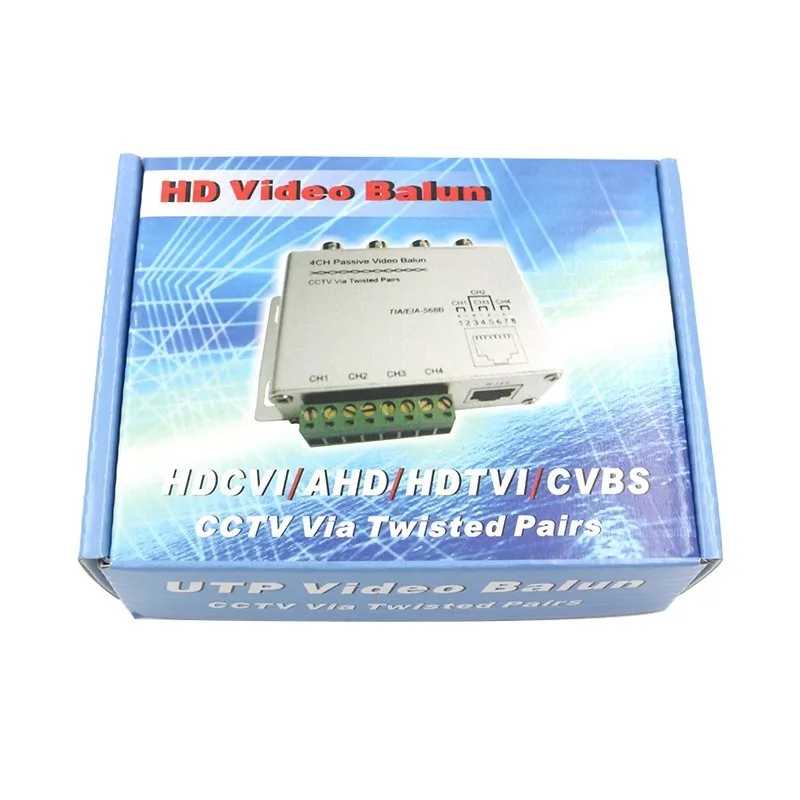

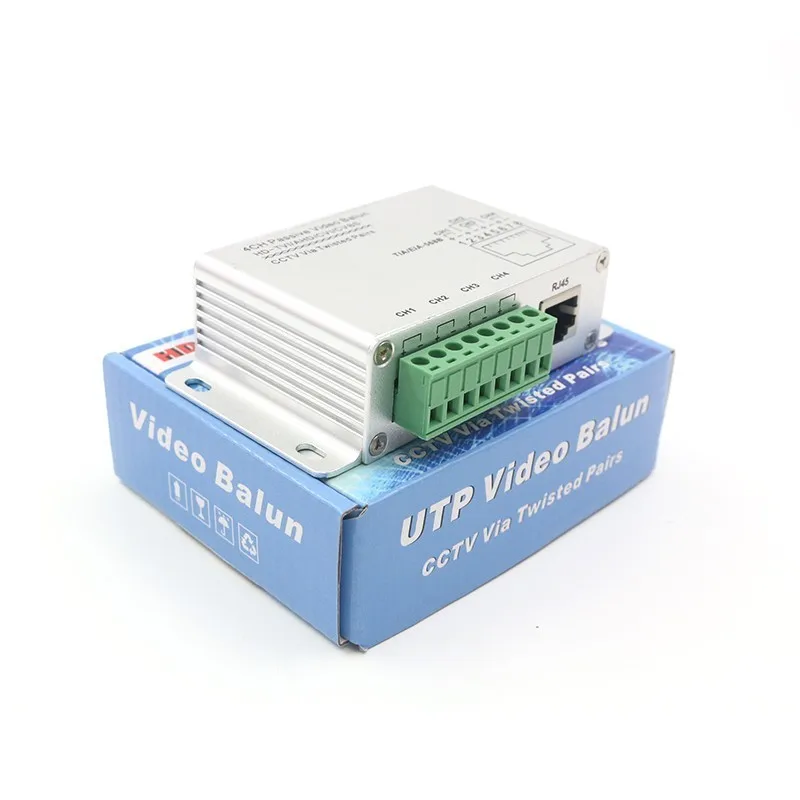

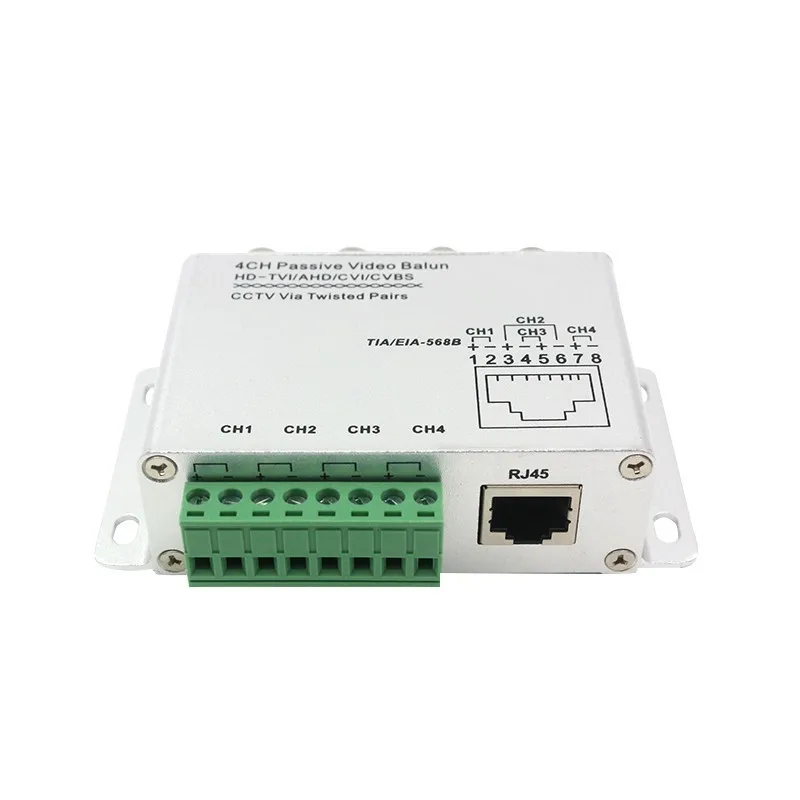

4 channel Passive UTP Video Balun Transmitter Receiver Cat5 RJ45
convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity.
Features:
- Adopt differential signal transmission with excellent anti-jamming ability
- Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
- Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver
- Up to 1500m with any active UTP video receiver
- No power required
- Built-in transient suppression protection.
Technical specifications:
- Frequency response: DC-8MHZ
- CMRR (Common Mode Rejection Ratio): 60DB
- impedance: BNC: 75 ohms; RJ45:100 ohms
- Working temperature: -10 C - 70 C
- Storage temperature: -30 C - 70 C
- Applicable to NTSC, PAL, SECAM and CCIR systems
- External dimension: 75mm*50mm*25mm (excluding BNC)
Connection method:
Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure), connect the clamped modular plugs to the RJ45 sockets, connect the coax to the BNC.
Package Included:
1x 4 channel Passive UTP Video Balun Transmitter Receiver
Warranty Term: One Year Warranty
