Product Description

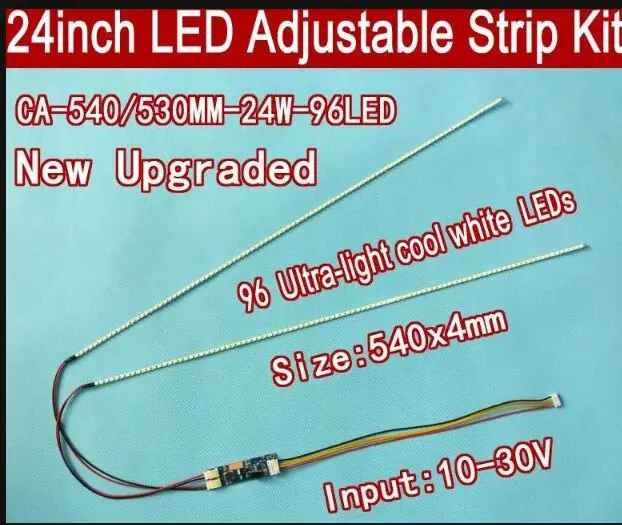

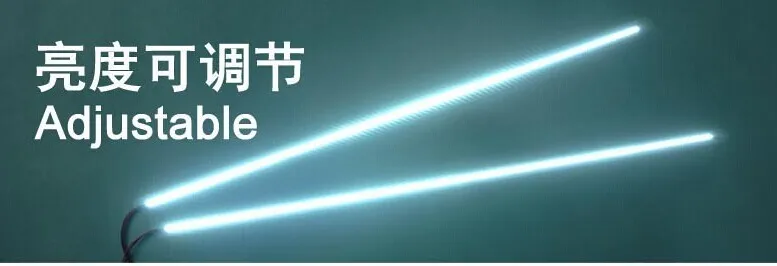

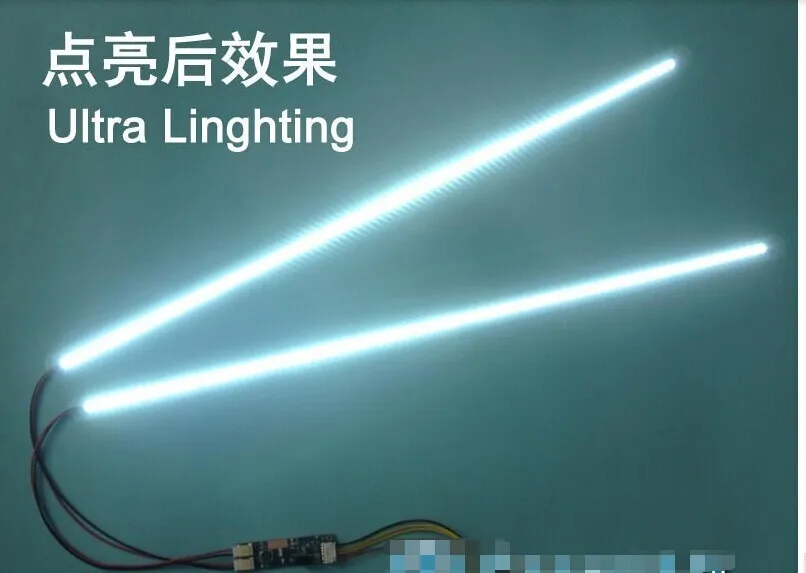

Free shipping 24\\\'\\\' W 540mm Adjustable brightness led backlight strip kit,Update 24inch wide LCD CCFL to LED backlight

converter:7x2cm

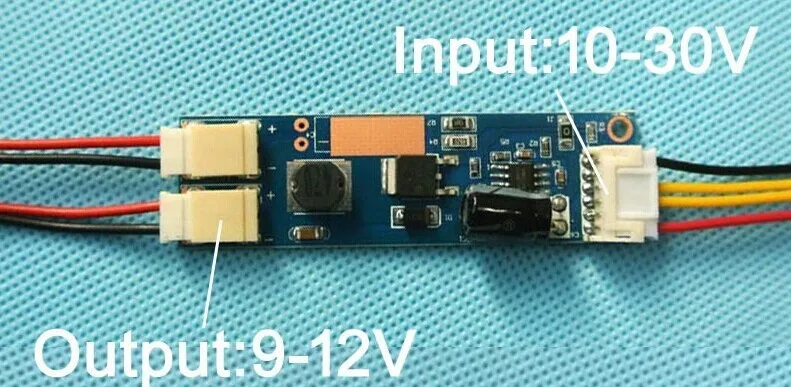

input:DC 10-30v

LED strip size:540x4mm

Package:
2x LED strip
1x converter
1x connection cable

Installation:

If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;

If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),

and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting

the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive

electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect

with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,

In the original high-pressure front to take power

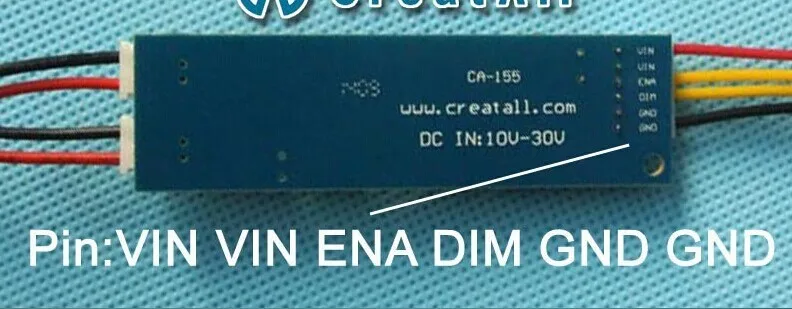

VIN : voltage

ENA: on/off

DIM: ADJ adjust brightness

GND: connecting Ground

Hope this can help you ,this is DIY kit,we cannot replace you to do it all.Hope that you can understand it

If you donot know any repair skill,you"d better not choose this kit.
