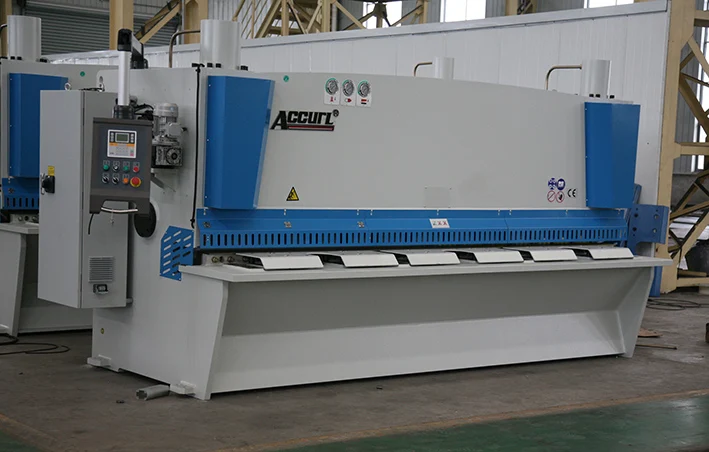

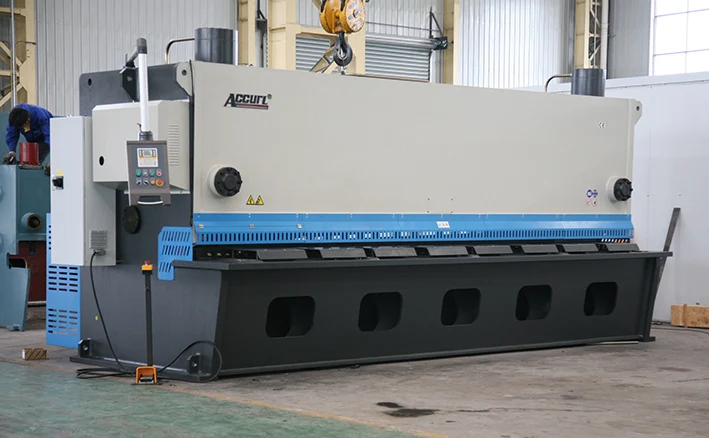

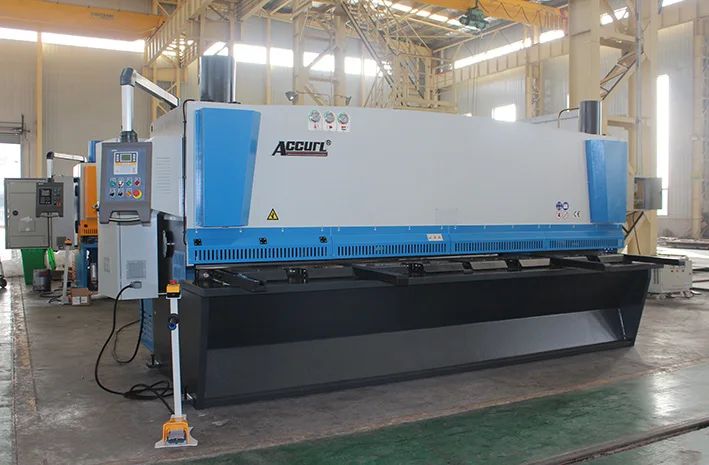

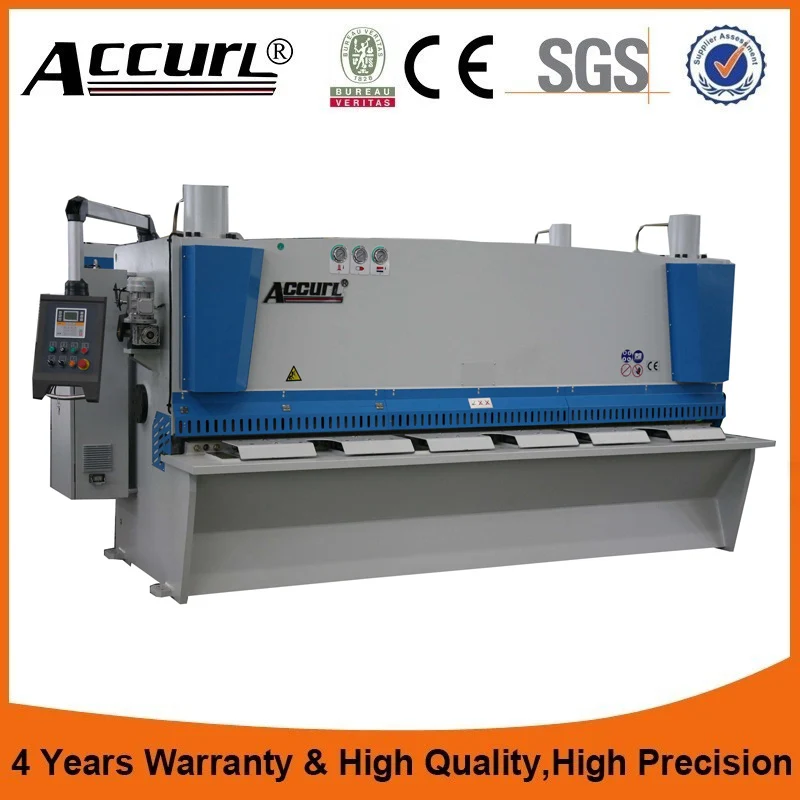

Hydraulic pendulum plate shearing machine |

Hydraulic pendulum plate shearing machine |

Product Application

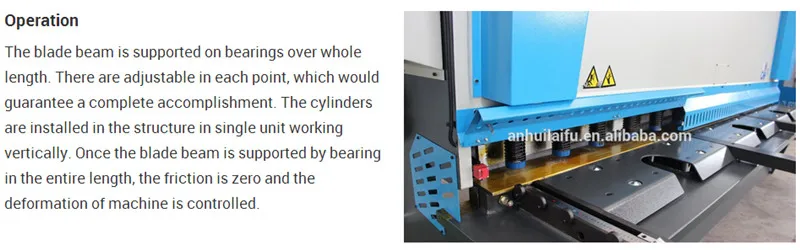

1.The ACCURL® MS8 guillotine shears are a certainty of dimensionally accurate cuts with no burr, no helix, no bow and no twisting in any thickness and in any type of plate. The design principle is based on the vertical cutting principle with angle variation and a robust structure in which the blade beam is supported on adjustable bearings along its entire length. This technology, developed over decades of experience, allows you to adjust the best suited cutting angle according to the characteristics of the plate and therefore the cut is smooth and balanced throughout its length.

Vertical Cut and Variable Rake Aangle
The Accurl shears are machines of vertical cut (the blades beam is supported by bearings) allowing different angle depending on the thickness of the sheet material , situation that can't be possible in swing beam cutting shears, where the angle is steady.


ACCURL® guillotine General:
- Vertical cut
- Variavel rake angle
- Blades holder supported by adjustable bearings

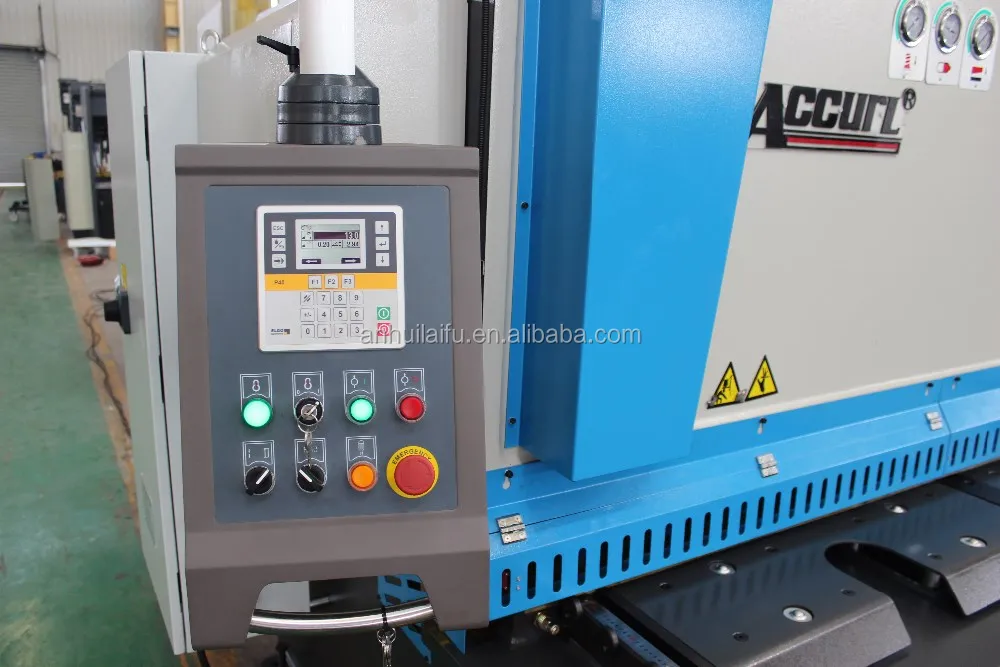

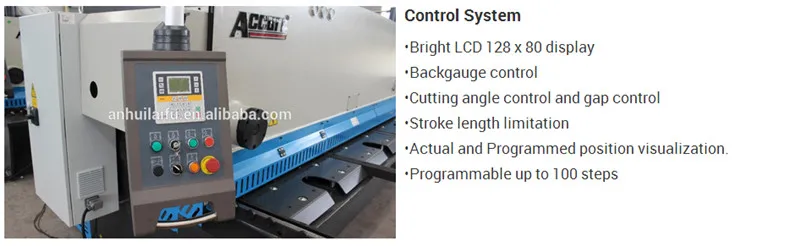

- Germany Elgo P40 control
- Management of energy saving “Standby Function"
- Strong back gauge equiped with high quality hardened ball screws
- RAE system (ACCURL)
- HIWIN Ball screws & Polished rod with 0,01 mm accuracy.

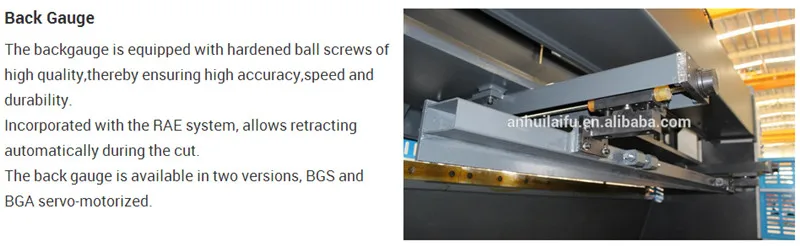

Back Gauge
- The backgauge is equipped with hardened ball screws of high quality, thereby ensuring high accuracy,speed and durability.
- Incorporated with the RAE system, allows retracting automatically during the cut.
- The back gauge is available in two versions, BGS and BGA servo-motorized.

Reliability

ACCURL has a strict policy for the choice of its components, on the basis of an extensive experience acquired over decades.
All components are certified in accordance with European standards and their main sources are Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 (+ N) is used.

Pre-Sales Service

* Technical solution.

* Online video authentication machine work.

* Cutting samples provided by DHL.

After-Sales Service

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it’s necessary, Buyer should send regular his technical staff to Supplier for technical training.
