196ft Wireless Video Audio Transmission WIFI HDMI Extender 60m With IR 1080P Wireless HDMI Transmitter Receiver Like Splitter

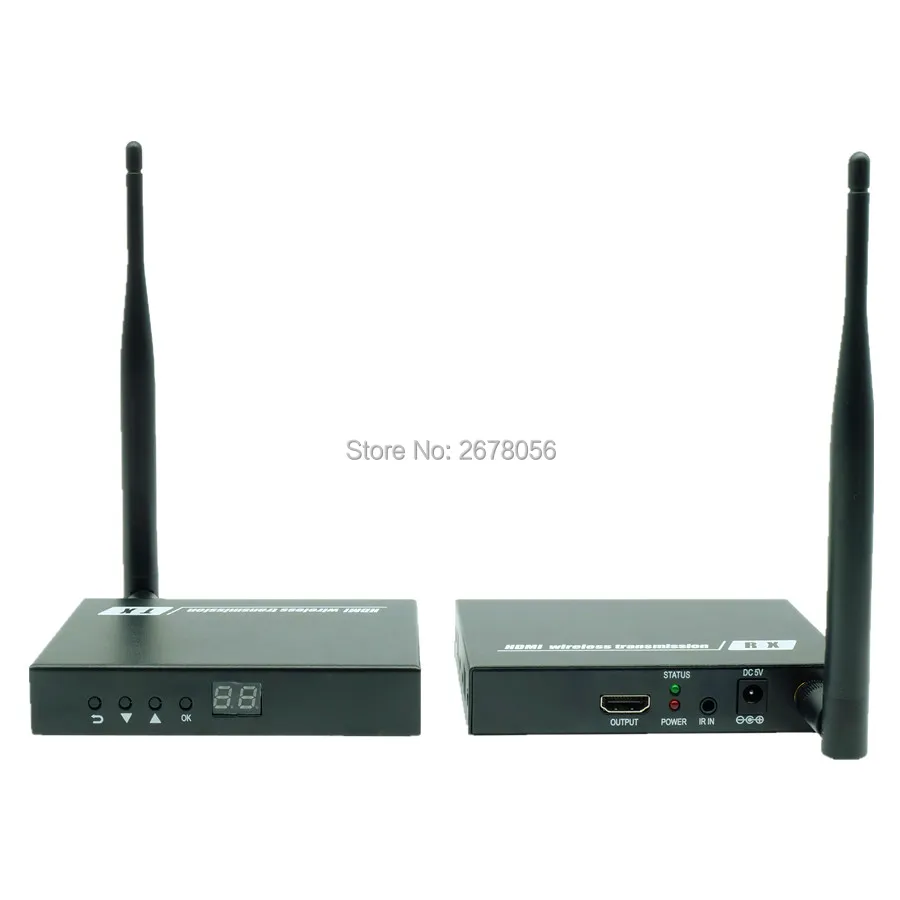

ZY-DT211W,This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 2.4GHz/5GHz band, with very low latency.

It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.

This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

• Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.

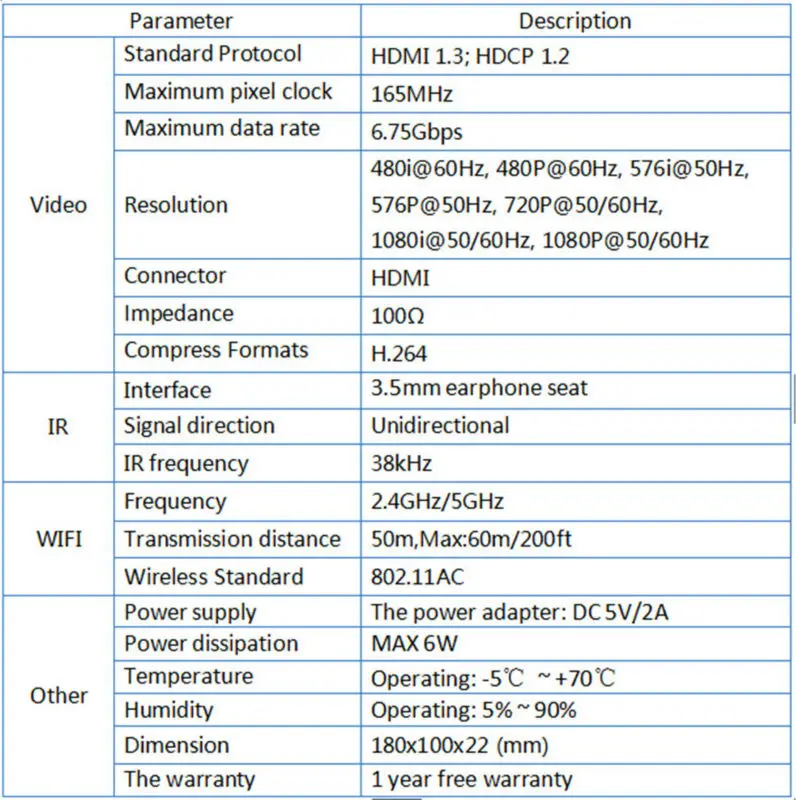

• Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
• Support IR remote control function to control source device content from long distance
• Transmitter have one local HDMI loop out.
• Support H.264 technology ;
• Support one to one application:1 pcs TX,1 pcs RX.

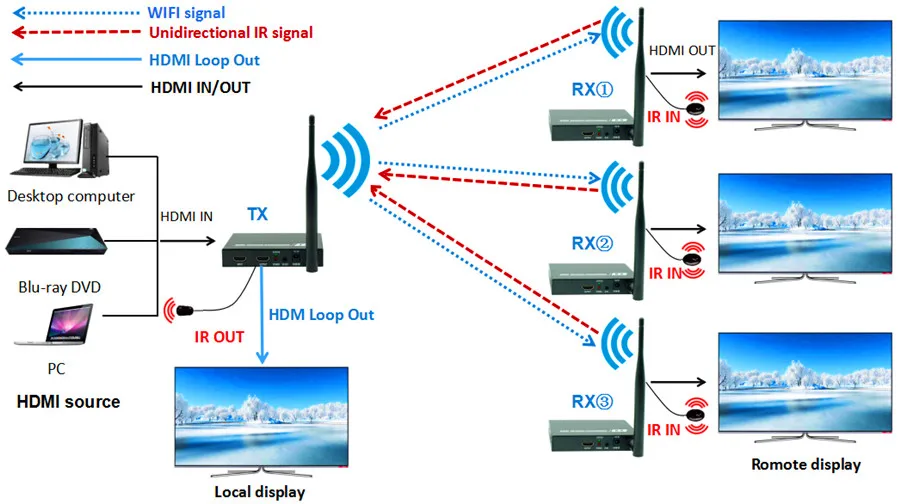

• Support one to many application : 1 pcs TX,4 pcs RX or 2 pcs TX, 8 pcs RX,could use the channel to change the different signal source.

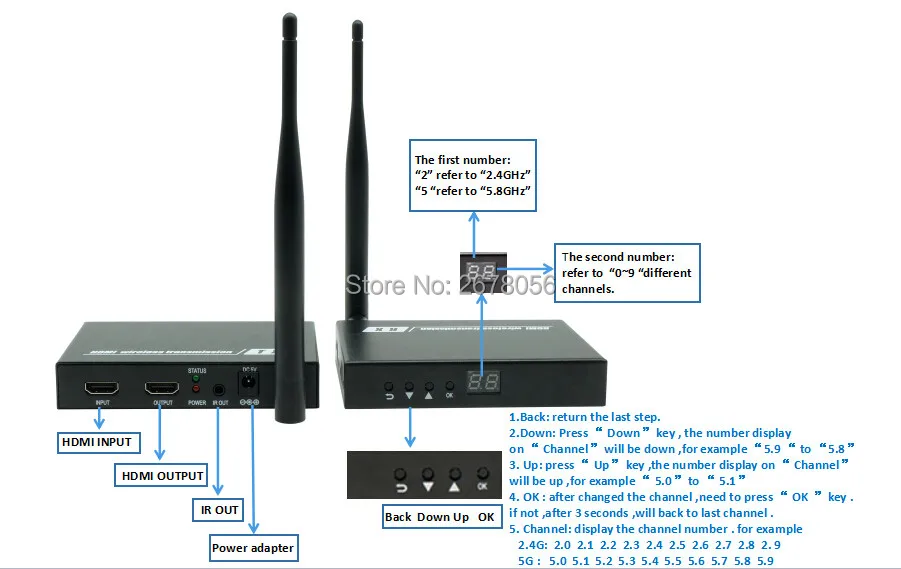

• Support switch 2.4GHz to 5.8GHz frequency or 5.8GHz to 2.4GHz frequency freely;
• Switch different channel of TX and RX,to reduce the influence of the wireless network signal for devices transmission around;
• Low latency <180ms;

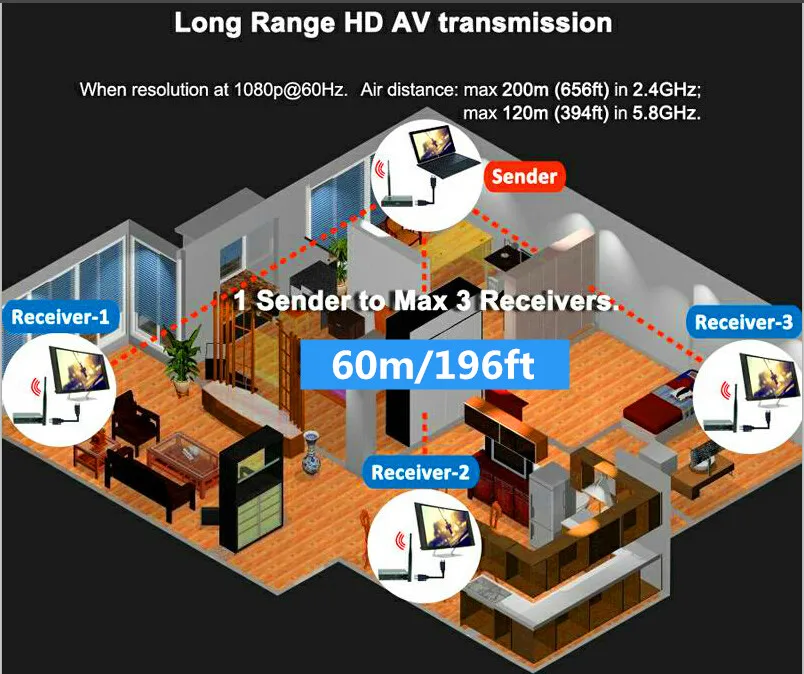

• Effective Range: 60m/200ft ( Line of sight );
• No cable between sender (TX) and receiver (RX);
• Easy and clean installation;
• Plug & Play – full hardware design, no software is required.

Note:

Transmission distance will be different due to the environment
Wall, brick or glass will shorten the signal cover range or cause big signal loss.

We simulated complex environment of different temperature, humidity and obstacles etc , obtain a series of real testing data, Average test result as follows:

1. Straight line distance without any obstacle, suggest 60m/200ft.

(1)If you turn the frequency to 2.4GHz,it can transmit HDMI signal up to MAX:200m(660ft).

(2)If you turn the frequency to 5.8GHz,it can transmit HDMI signal up to MAX:100m(330ft).

2. Straight line distance has wooden wall or glass wall, suggest 40m/133ft.

(1)If you turn the frequency to 2.4GHz,it can transmit HDMI signal up to MAX:60m(200ft).

(2)If you turn the frequency to 5.8GHz,it can transmit HDMI signal up to MAX:30m(100ft).

3. Straight line distance has reinforced concrete wall, suggest 30m/100ft.

(1)If you turn the frequency to 2.4GHz,it can transmit HDMI signal up to MAX:40m(133ft).

(2)If you turn the frequency to 5.8GHz,it can transmit HDMI signal up to MAX:15m(50ft).

4.Straight line distance has load bearing wall, suggest 15m/50ft.
