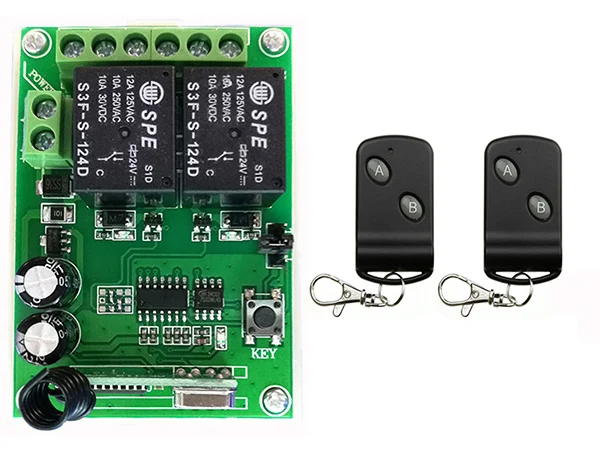

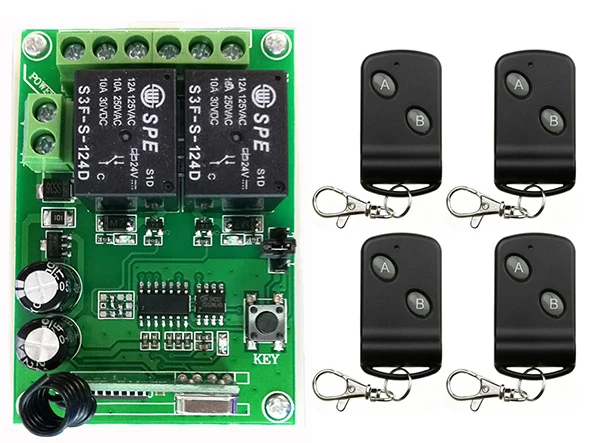

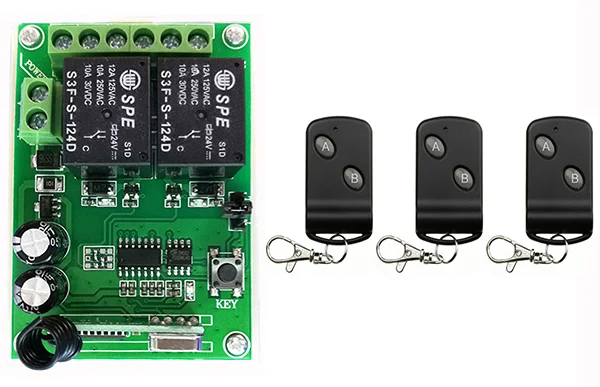

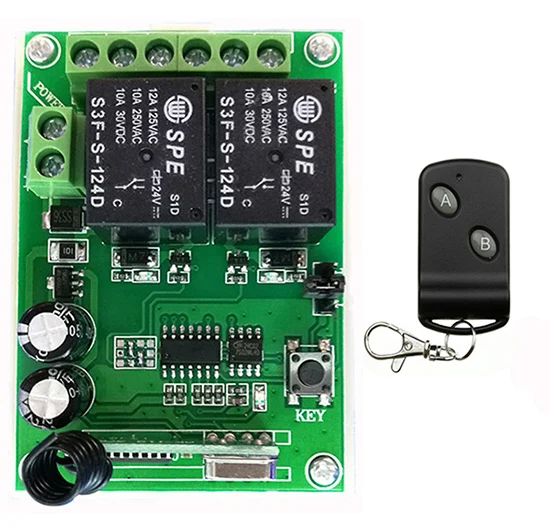

DC24V 2CH Relay Wireless Remote Control Switch Receiver Transmitter Learning 315/433 Normally Open/Closed Door Access LED/lamp |

DC24V 2CH Relay Wireless Remote Control Switch Receiver Transmitter Learning 315/433 Normally Open/Closed Door Access LED/lamp |

Application range:

This product is typically applied to the multi-channel electric doors and windows, ordinary electronic lock, switch, electric garage door, window, hoisting equipment ,industrial automation and control, all kinds of anti-theft alarm ,security and other fields .The remote controller supports the use of forming a complete set of wireless intelligent remote control system .It has a wide range of uses.

Specifications:

Operating Voltage: DC24V

Operating Current: 6Ma

Operating Frequency: 315,433 MHz

Operating Temperature: -40C ~ +80C

Receiver Sensitivity: -105dBm

Output Voltage:  DC

Output Current: 10A

Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self-Latched )

 Output working way:

Self-locking: Connect the jumper 1 with the cutting out cap. ( Self-locking control mode

:Press the switch is on the load, press the same switch again is to disconnect the load

.Need one channel switch and a one-button remote controller.)

Jog---The cutting out cap is not occupied, jumper 1 and jumper 2 do not connect either.

Press the switch is on the load ,loosen is to disconnect the load. Also need one channel

switch and a one-button remote controller.)

Inter-lock------- Connect the jumper 2 with the cutting out cap (Press one switch is on the

load , press another switch is to disconnect the load . (Need one channel switch and 2-

button remote controller.)

2 Channel is self-locking and 2 channel is jog ,connect the jumper 1 and jumper 2 with the

cutting out cap .)

working ways :self-lock , jog or self-lock and jog together.

Learning and removing method:

1 .There is a learning button on the control panel of touch switch, the button is used to

learn and remove the code.

2 .Press and hold the learning button for three seconds.When the indicator light flashes

,we enter the learning state. Press any key on the remote controller to emit signal, thelight flashes two times and off .It means you learn it successfully.

3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote

controller.

4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

pacote inclued:

A:

1 x Receiver(with cover)
