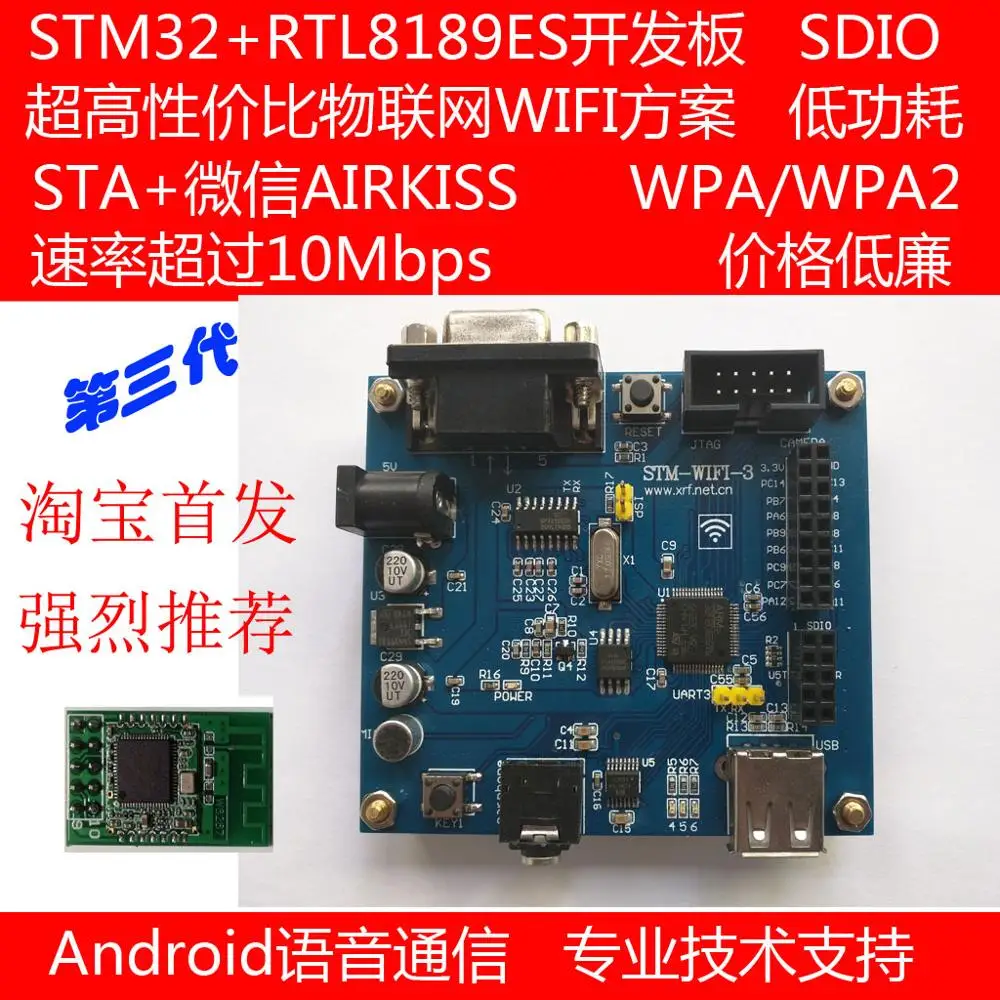

STM32 WIFI - W8189 development board is a high performance embedded WIFI solution, based on REALTECK RTL8189ES, USES the SDIO interface, support the AP/STATION work mode, AIRKISS air configuration, WPA/WAP2 encryption, support for low power consumption.Through our program, you can use the common MCU drive the chip, and quickly developed low-cost high-performance Internet WIFI products.

If you want to further understand our development board, please go to the following address download the latest user manual and related information:

pan.baidu.com/s/1i3KRnfv

This development board price 200 yuan to provide a complete version of the code (not the LIB)

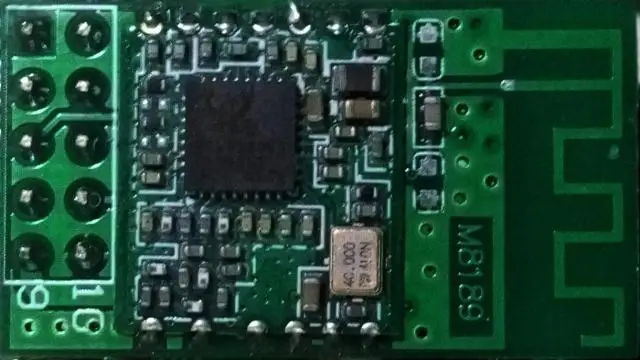

If you want to buy W8189ES module please into the following link (special offer 30 RMB)

item.taobao.com/item.htm?Id = 44180477225?

Development board, the features:

- the general ARM - the Cortex M3 cost-effective microcontroller STM32F205RGT6, the microcontroller provides 1 mbyte of FLASH and 128 kbyte of RAM space, has the abundant peripheral resources.

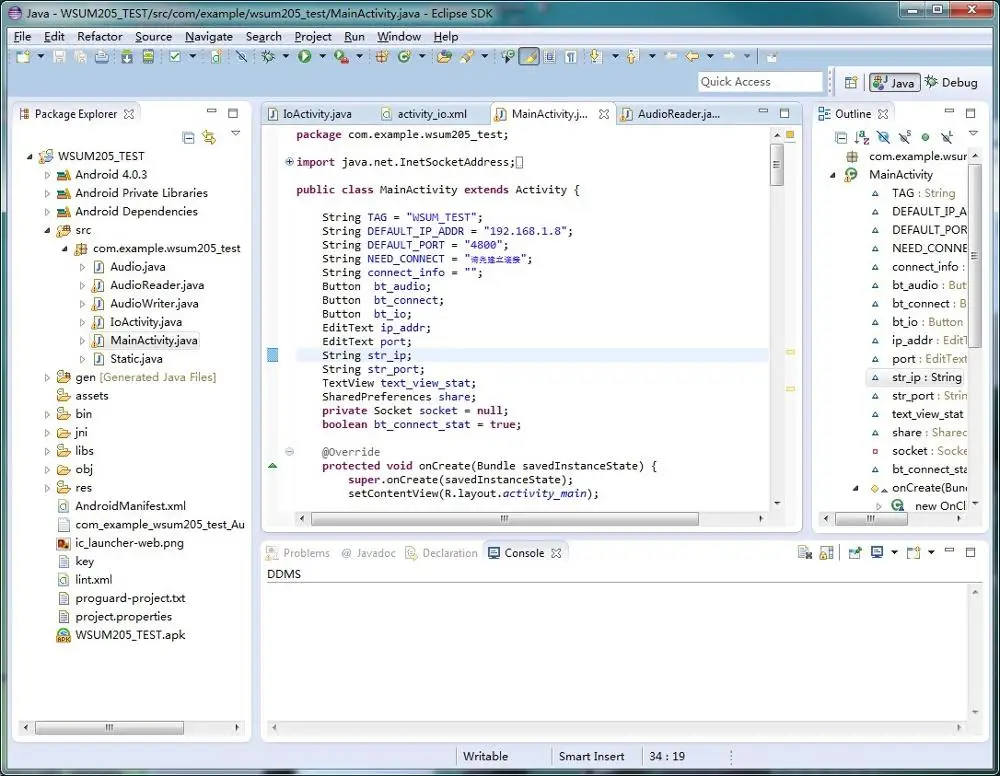

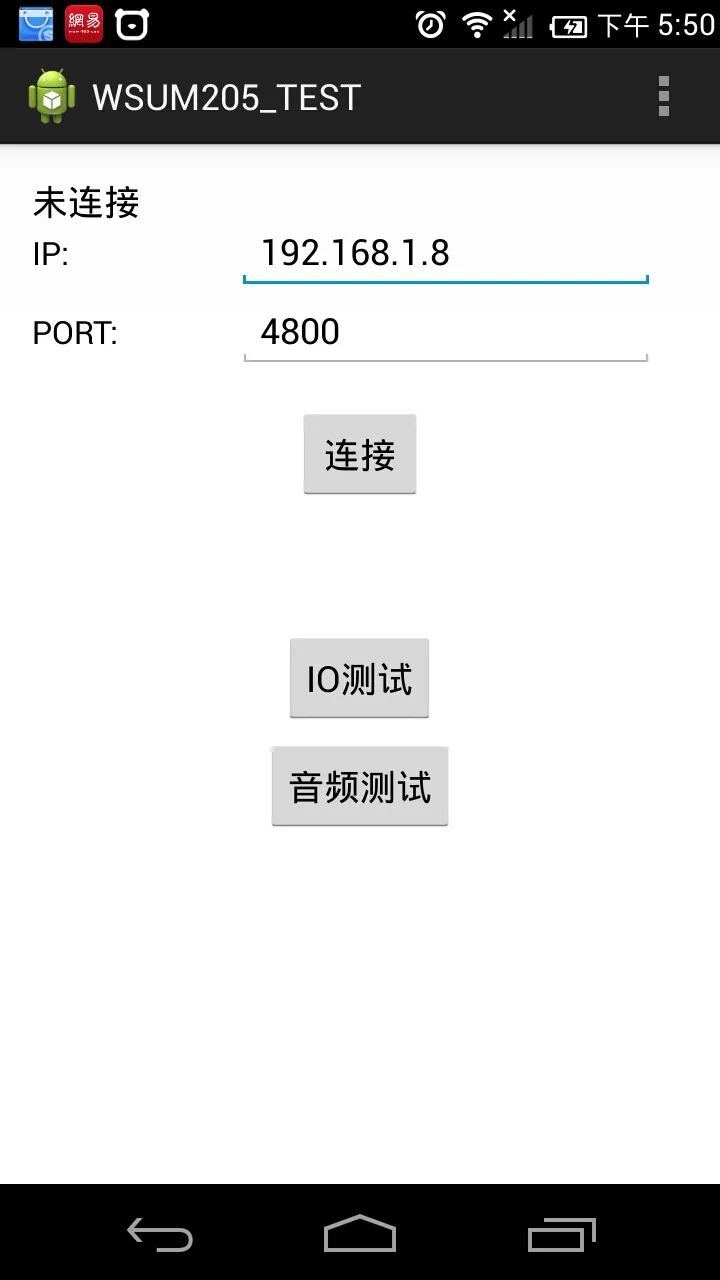

- provide development board source code and test the android software source code, to provide professional technical support.

- wireless communication rate of more than 10 MBPS (two-way)

- support WEP, WPA/connected security certification and TKIP and AES encryption various patterns

- support AP/STATION working mode (AP mode of short duration does not support encryption, welcome customized)

- support AIRKISS configuration

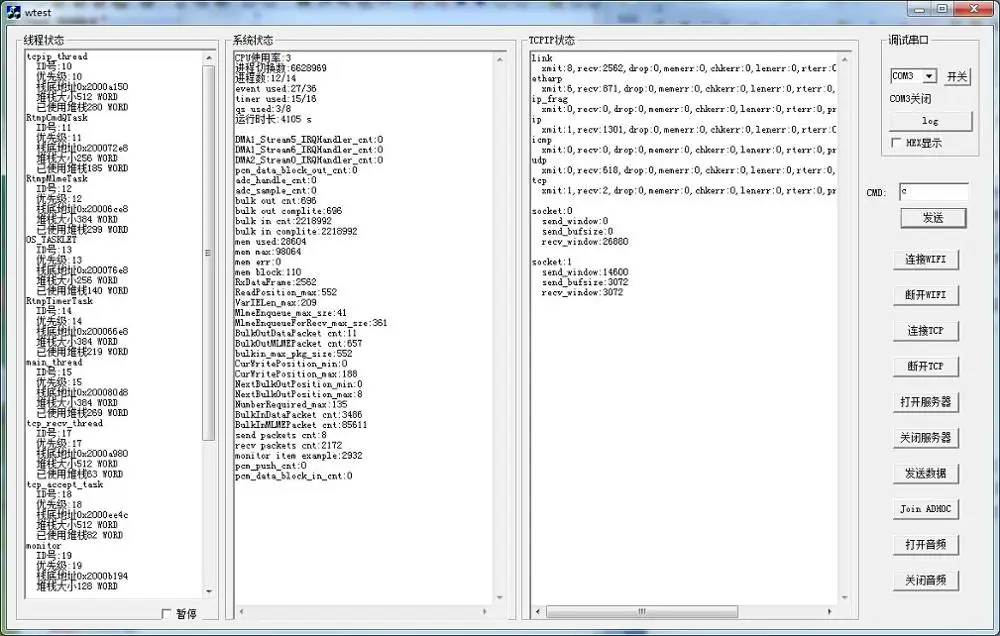

- Integrated real - time operating system with high stability, provides powerful and perfect API interface

- Integrated LWIP TCP/IP protocol stack to dojo.provide easy to understand example operations

- Integrated DHCP server

- Integrated libmad - MP3 decoding library

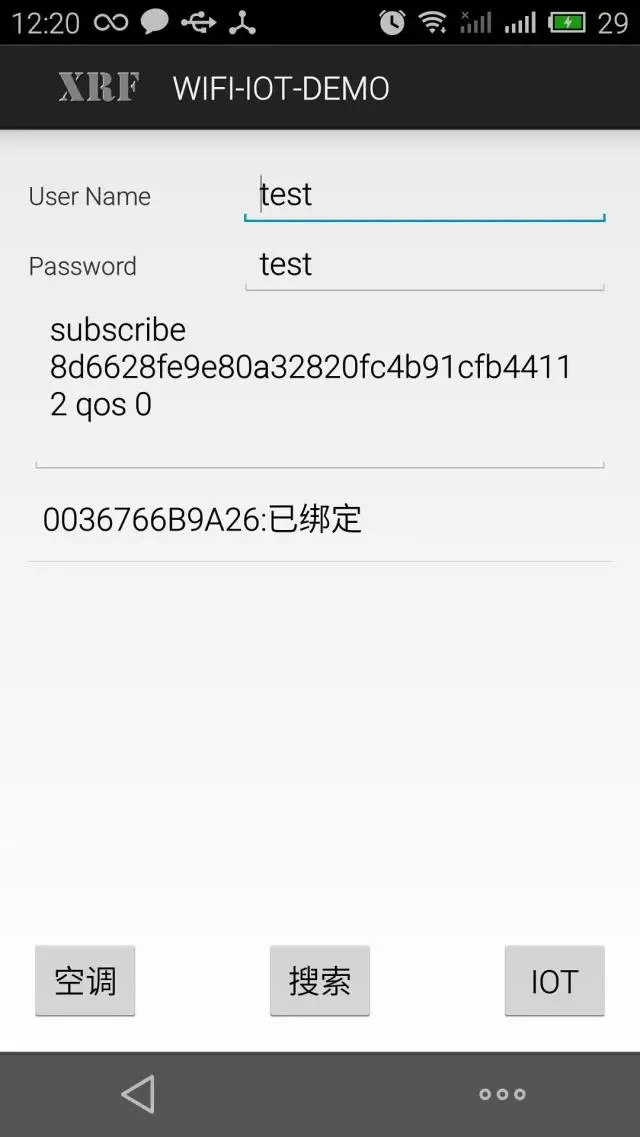

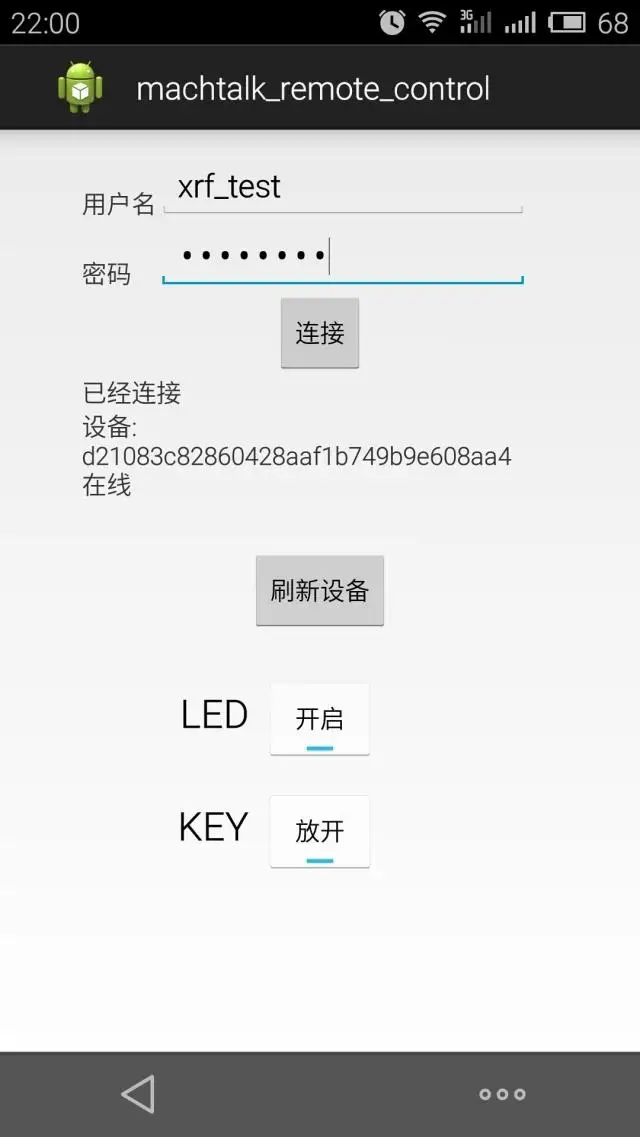

- integrated Internet remote control model, which can be controlled via the Internet development board

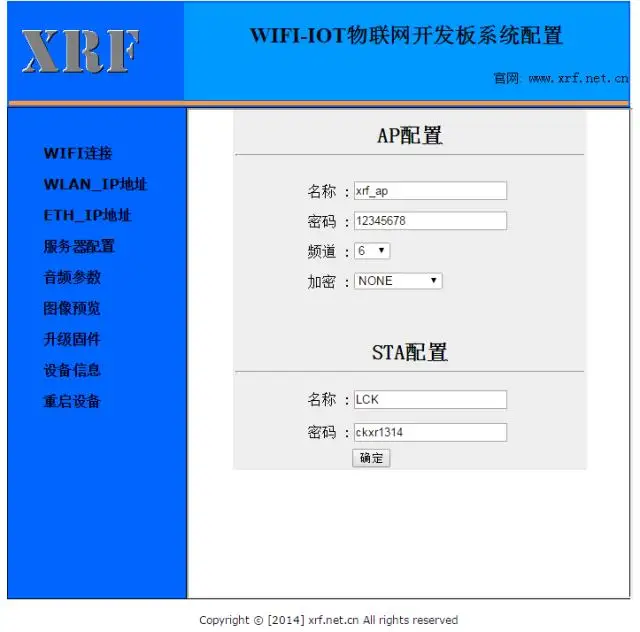

- integrated WEB server paradigm, which can realize the form submission and interactive functions such as file transfer

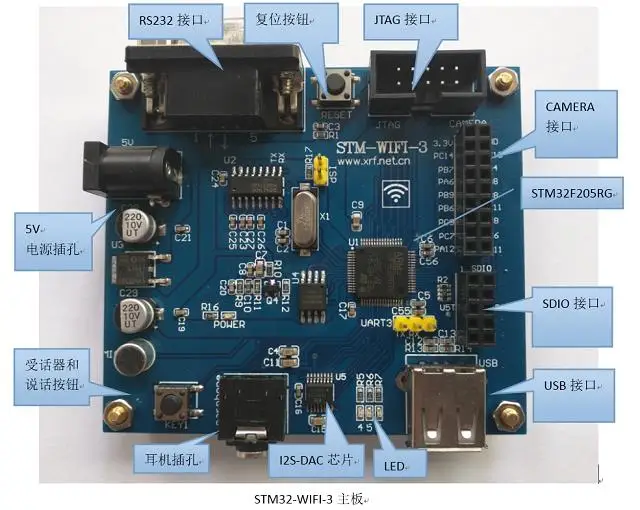

- development board to provide 3 LED display, provide a camera interface, a microphone, a headphone jack, provide mobile phones with voice intercom, development board control LED light switch, the online play MP3, and other interesting examples.

- The development board provides 1 pieces of 1 mbyte of SPI - Flash

- development board provides a I2S audio DAC chip, high quality MP3 can be performed

WIFI solution features:

- support 80211 BGN, accord with the standard IEEE802.11 N, and backward compatibility IEEE802.11 B/G, supporting the IEEE 802.11 I security protocols, and the standard of the IEEE 802.11 e service quality, the high compatibility.

- support the latest 64/128 bit WEP encryption, support the WPA wpa2-psk/connected wpa2-psk, WPA/connected security mechanism.

- highly integrated single chip design, smaller volume, lower power consumption.

- support for operation, low power consumption can be batteries.

- chip initialization time is short, the entire startup process is less than 1 second.

Occupy less resources, can be applied to a variety of MCU.

- open source code, DEBUG powerful (we keep only a small.lib file).
