Overview:

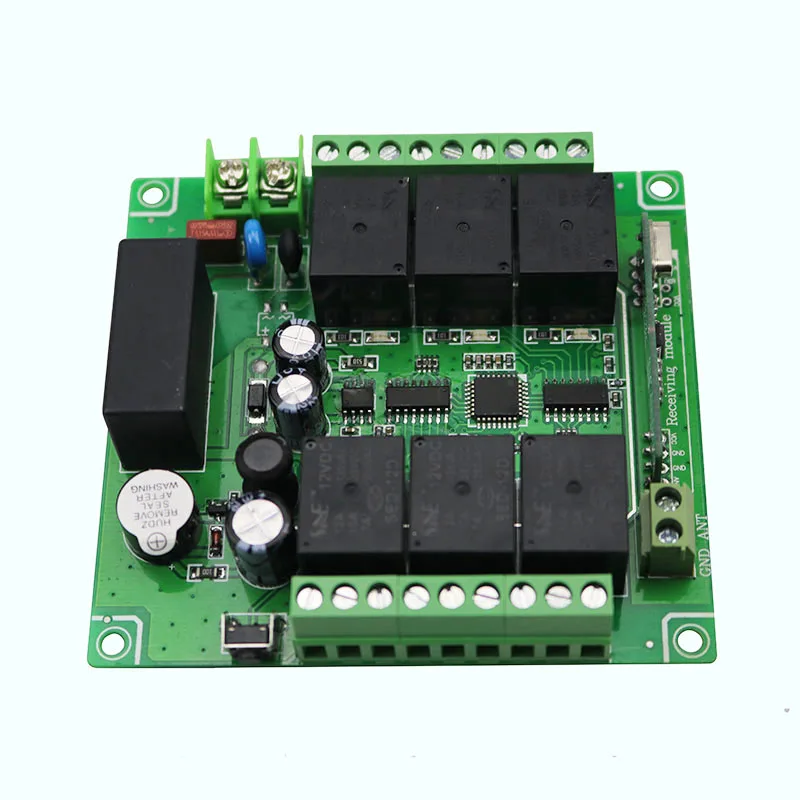

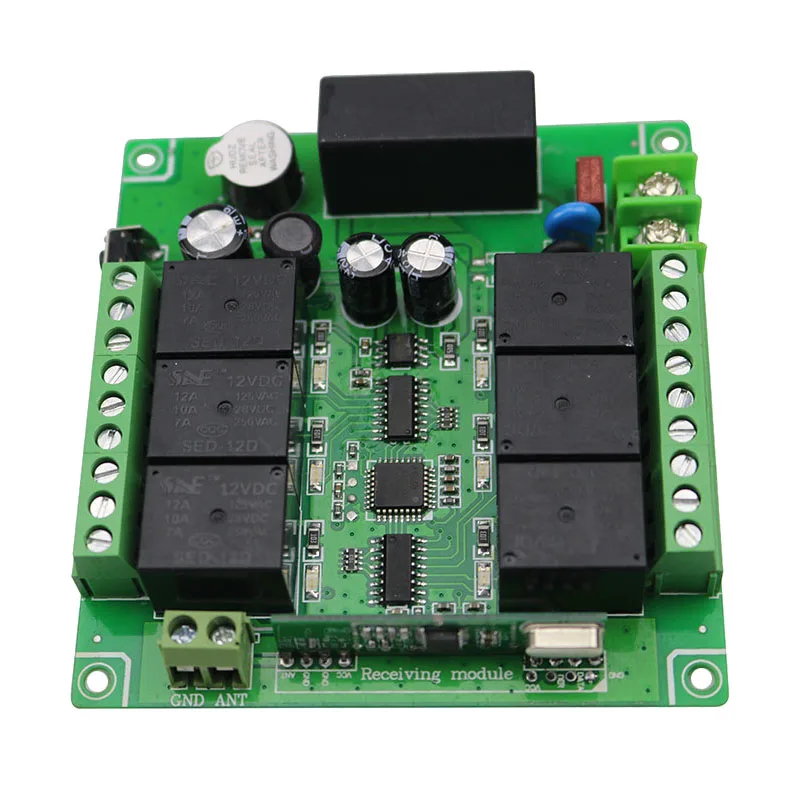

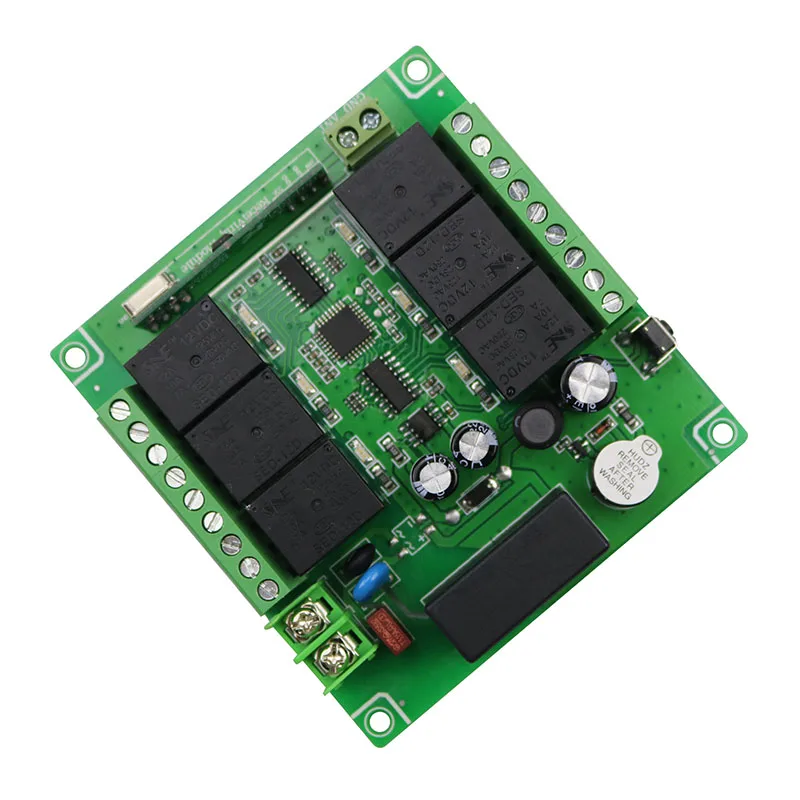

The remote control switch is electronic research and development of new production of the new learning code no.6 remote control switch is on the basis of the old upgrade, shape using exquisite industrial control shell design, design is more upscale.The terminals are upgraded, and when the interference is strong, the receiver's antenna and the high sensitivity receive module, enhance the reception capacity of the signal.Chip IC upgrade, which can be repeated repeatedly, can change program according to customer's requirement.Each relay has a separate working indicator lamp.There is also a buzzer prompt.

Without the traditional jump line or dial the code switch coding, the wireless signal emitted by just put the remote control to make the receiving controller receives and storage, can be realized.Lost in use process, if learn good remote control need to clear the receiving controller in the storage of information, will not be lost by the remote control to remote control of the receiving controller, to regain access to relearn again by the master to use.There are six switchable modes of output.

It is mainly used in electric door, window, lifting equipment, gate, elevator, industrial control and security.

Specifications:

Operating Voltage: AC220V

Operating Frequency: 315 MHZ / 433 MHZ

Operating Temperature: -40C ~ +80C

Receiver Sensitivity: -105dBm

output current: less than 3A

 Learning code:jog/Non-Latched .inter-lock/Latched .self-lock /Self-Latched

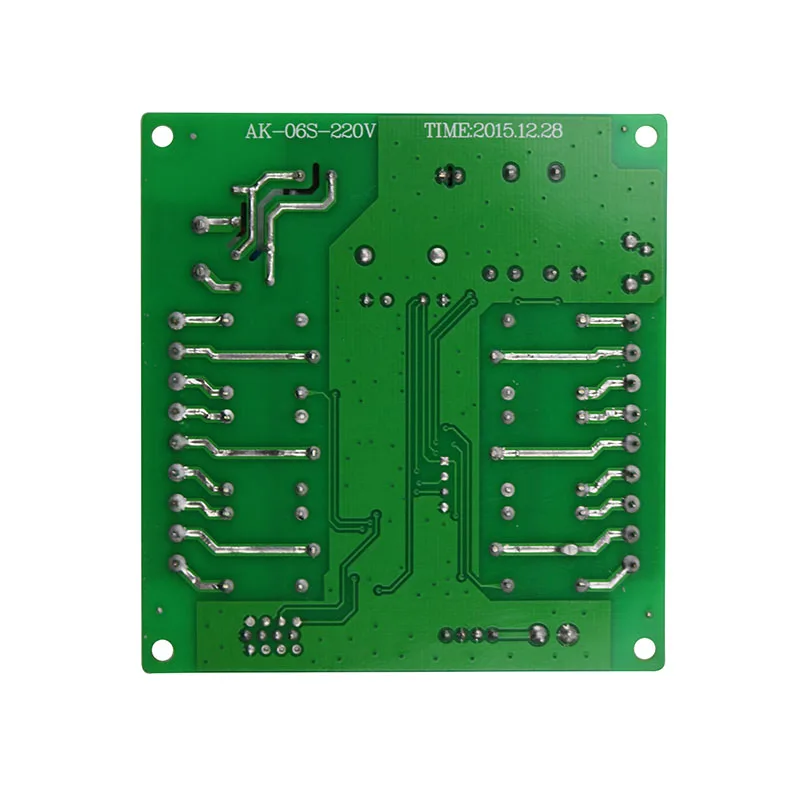

PCB size : 87*92.6*16.4mm

Output working way:Through the toggle switch, jog, self-locking, interlocking

Set  jog mode: learn by 1 key

Set  interlock mode: learn by 2 key

Set self-lock mode:learn by 3 key

1-3 road jog, 4-6 self-lock - learn by remote control 4

1-3 road jog, 4-6 interlock - learn by remote control 5

1-3 road interlock, 4-6 self-lock - learn by remote control 6

The learning method and the step

1, press the receiver learning key - the buzzer, said to enter the learning state,

2, press the remote control button, the buzzer stops any noise, said to have success in learning.

Clear stored information

Long press the receiver button until the buzzer sound to stop, said the stored information has been successfully cleared.

Note:433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

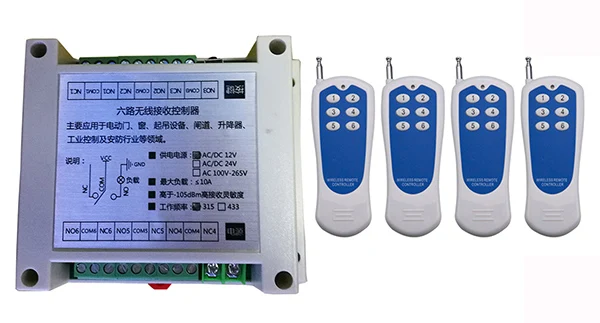

package included:

A:

1 x Receiver(with cover)

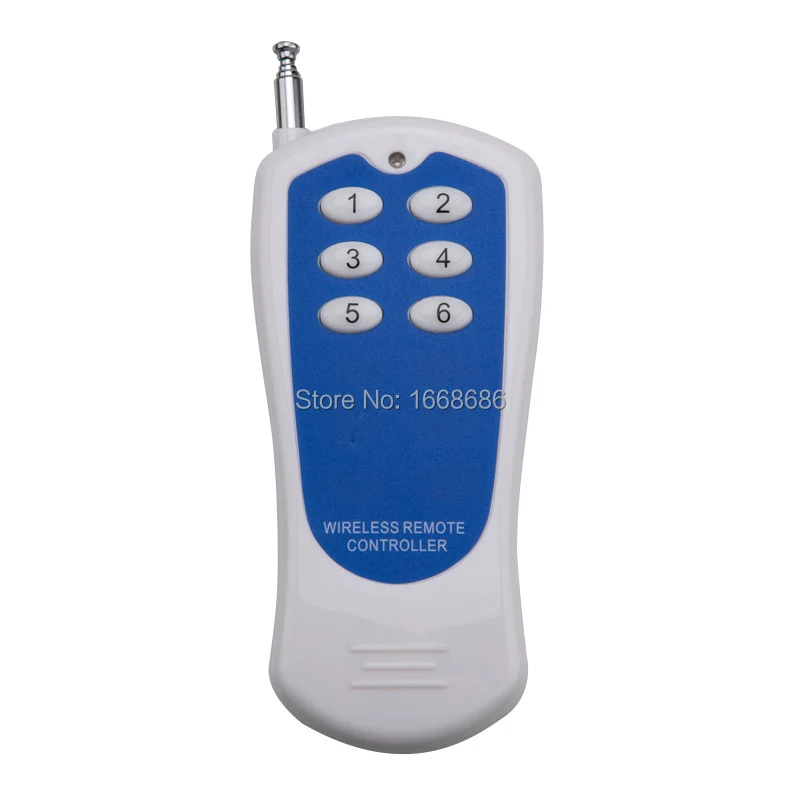

4 x Transmitter(with battery)
