SSRIVER HDMI Audio Extractor HDMI to HDMI +3.5mm Analog Audio with SPDIF Extractor
Converter Support 4Kx2K for Laptop TV PS4
This is a high-performance, multi-functional HD audio extractor, this extractor can extract the audio signal among the
HDMI signal to the power amplifier system to obtain high-quality audio effects which is hard for TV speaker to achieve.
Features

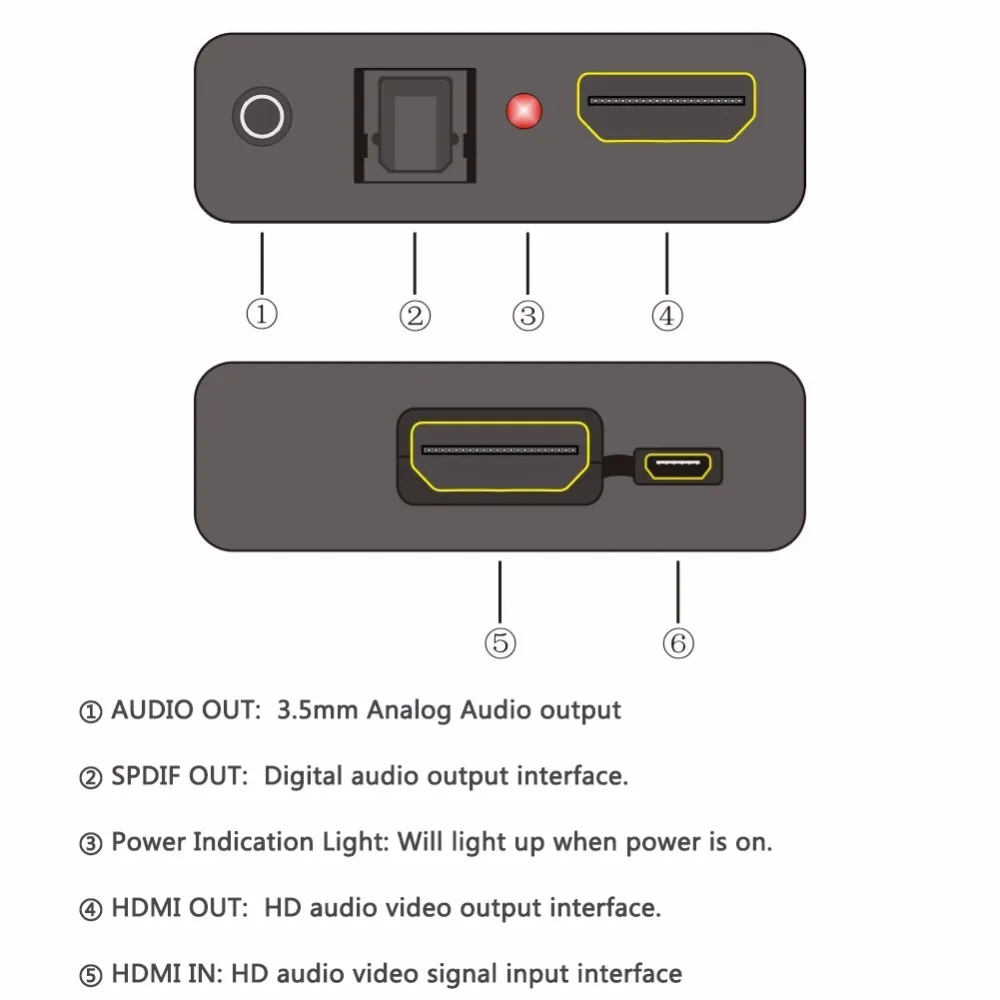

● Convert 1 HDMI Input to 1 HDMI + 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output
● Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.
● HDMI to achieve the synchronization of audio signal separation. There are 2.0CH/ 5.1CH two kinds of audio mode options.
● LED clearly indicate the working state of the Extractor.
Specifications
HDCP Version...........................................HDCP1.4
HDMI Version...........................................HDMI1.4b
HDMI resolution................................2160p@30Hz/
1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format.........24bits/deep color 30bit,36bit
Audio Output...........................SPDIF+3.5mm Audio
Max Bandwidth...........................................340MHz
Max Baud Rate.........................................10.2Gbps
Input/ Output TMDS signal.....0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal.................5Volts p-p(TTL)
Input Cable Distance......................................<=7m AWG26 standard cable HDMI
Output cable distance........................<=8m AWG26 standard cable HDMI
Max Working Current....................................340mA
Working Voltage……….............................DC +5V
Operating temperature range............(-15 to +55°C)
Operating humidity range...........................5 to 90% RH(NO Condensation)
Dimension (LxWxH).............................8x5x1.6 CM
USB cable length.........................................110CM
HDMI cable length.........................................45CM

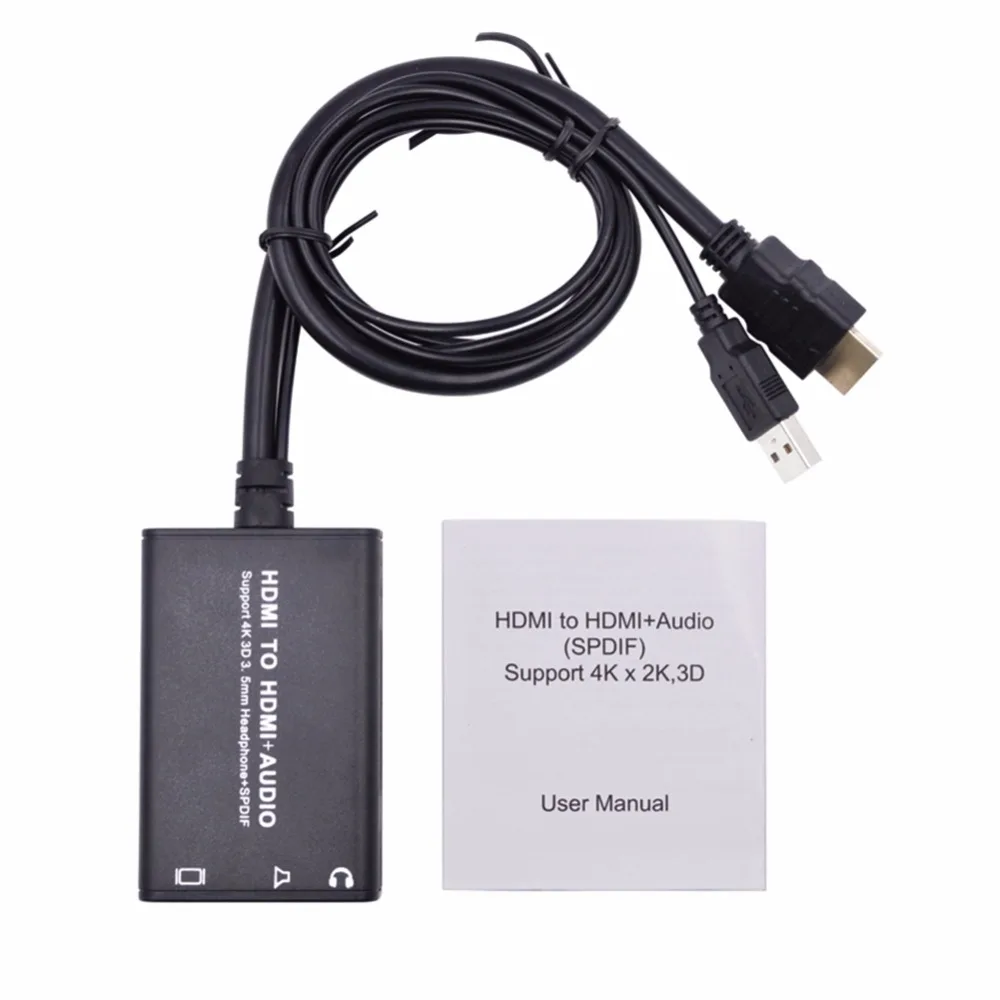

Package Contents
1 * Extractor
1 * User Manual
![aeProduct.getSubject()]()
![aeProduct.getSubject()]()
![aeProduct.getSubject()]()
![aeProduct.getSubject()]()
![aeProduct.getSubject()]()
![aeProduct.getSubject()]()
Notes:
In order to prolong the service life, please pay attention to the following points:
1. Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidative environment, and make sure that no objects filled with liquids are placed on the unit,such as vases.
2. Please handle the item with care and clean only with dry cloth.
3. Please do not touch the item with wet hands.
4. Please hold the plug when unplugging. Do not pull the power cable directly.
5. Please turn the unit off when it is not in use for a long period of time.
6. To prevent risk of electric shock or fire hazard due to overheating, please do not obstruct the unit with newspapers, tablecloths, curtains or similar items or open the shell while it is working.
7. Please use the original factory USB power cable.
