Product Description:

    The fine misting nozzles are made of brass bodies, inlayed stainless steel core guide vanes, the liquid forms a centrifugal vortex in the guide vanes, spray tiny open-core type particles from the jet hole, can be widely used in factory humidification, cooling, disinfection, dust fall, landscaping, salt fog test, and other artificial fog. The nozzle use American precision punching device, The aperture is about 0.3mm, well-made, compare the using costs and gas humidification, able to save more than 10 times.
     This series of nozzles does not require air assistance, the system is simple, spray a fine mist, sufficient atomization, has the advantages of energy saving, water saving, low cost and good effect; Stainless steel spray sheet is processed by advanced forging technology,  strong durability, the working life is about 2.5 times compared with similar products.
     The nozzle can be completely atomized by the pressure of the tap water, and the effect of using the high-pressure water pump is better.

Installation steps:
1.  It is recommended that the misting system be installed at the height of 2.5m-3m.
2. Connect the adapter to the water tap.
3. Turn on the water tap and wash the system for 1 minute and remove the impurities.
4. Screw the spray nozzle onto the tee parts, except for the end one.
5. Turn on the water tap and clean system for 2 minutes to make sure the system is completely cleaned.
6. Close the water tap and install the last nozzle to the joint and use the end cap.
7. Fix the misting hose by a cable belt saddle clamp.
8. Turn on the water tap until the sprayer works and enjoy the cooling misting system.
9. When no need to use the misting system for long time, close the nozzle and keep it dry and clean.


Application range:
1. Wetting and rust removal
2. Air humidification
3. Chemical treatment
4. Chemical spraying
5. Liquid spraying
6. Tobacco leaf humidification
7. Tablet coating
8. Flue gas evaporative cooling
9. Disinfection
10. Unit cooling
11. Fruit wax spray
12. Ceramic tile glazing
13. Factory humidification
14. Salt fog test
15. Artificial fog
16. Humidification in other places


Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.

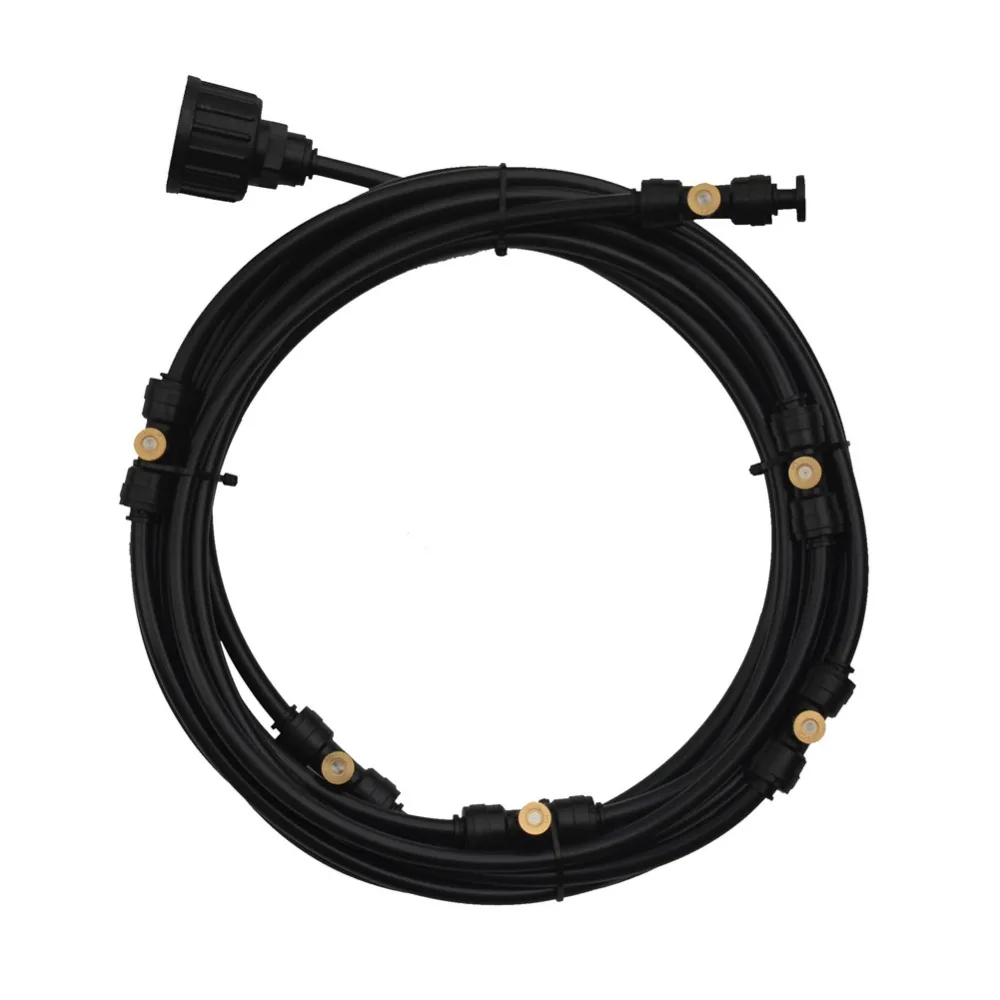

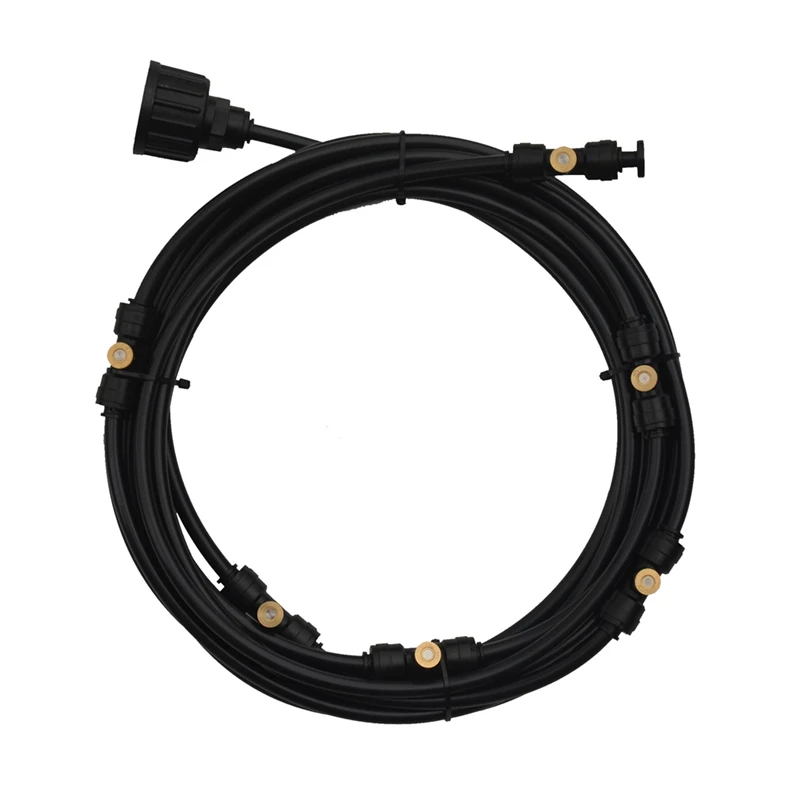

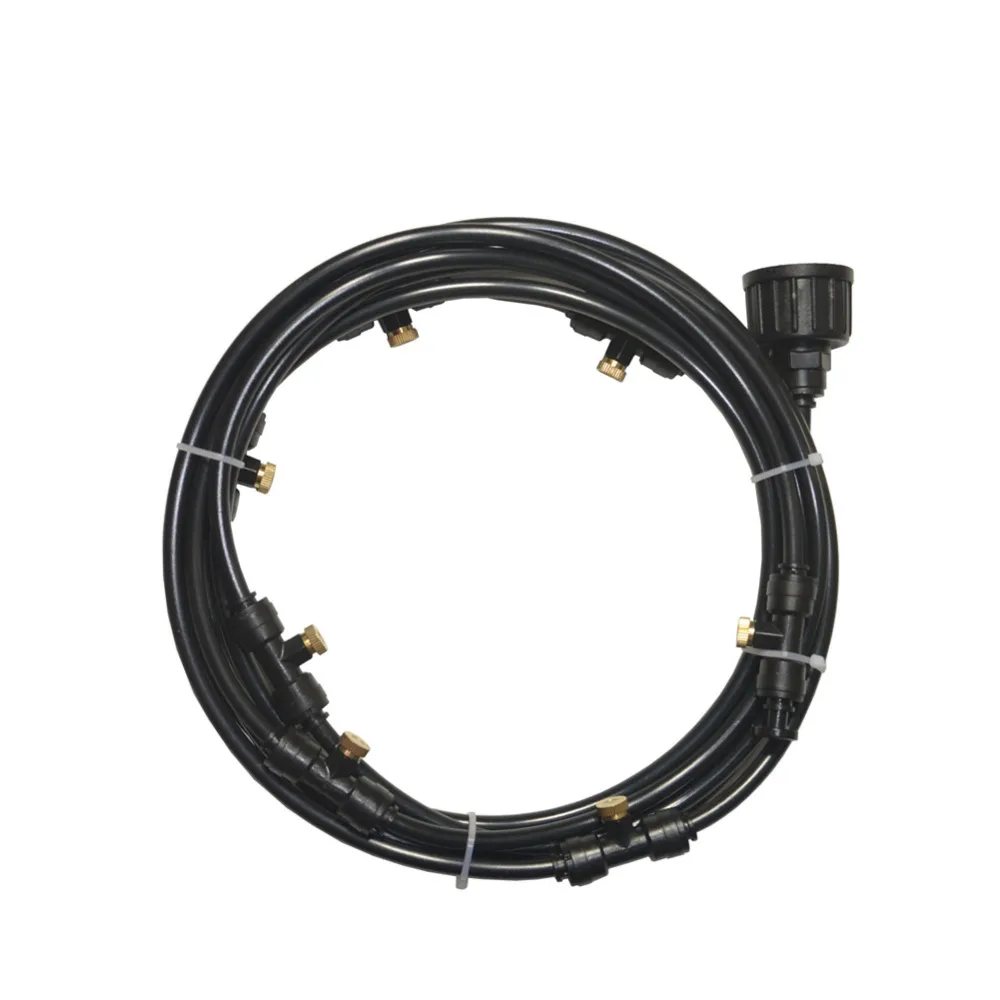

Packing List:

1 * 3/4 inch  internal thread faucet connector
6 * clips
6 * sprinklers + bases ( We will send an additional sprinkler to you ,it is free for you .That is to say  ,it is including 7 sprinklers.)
1 * 6m pipe
1 * choke plug
