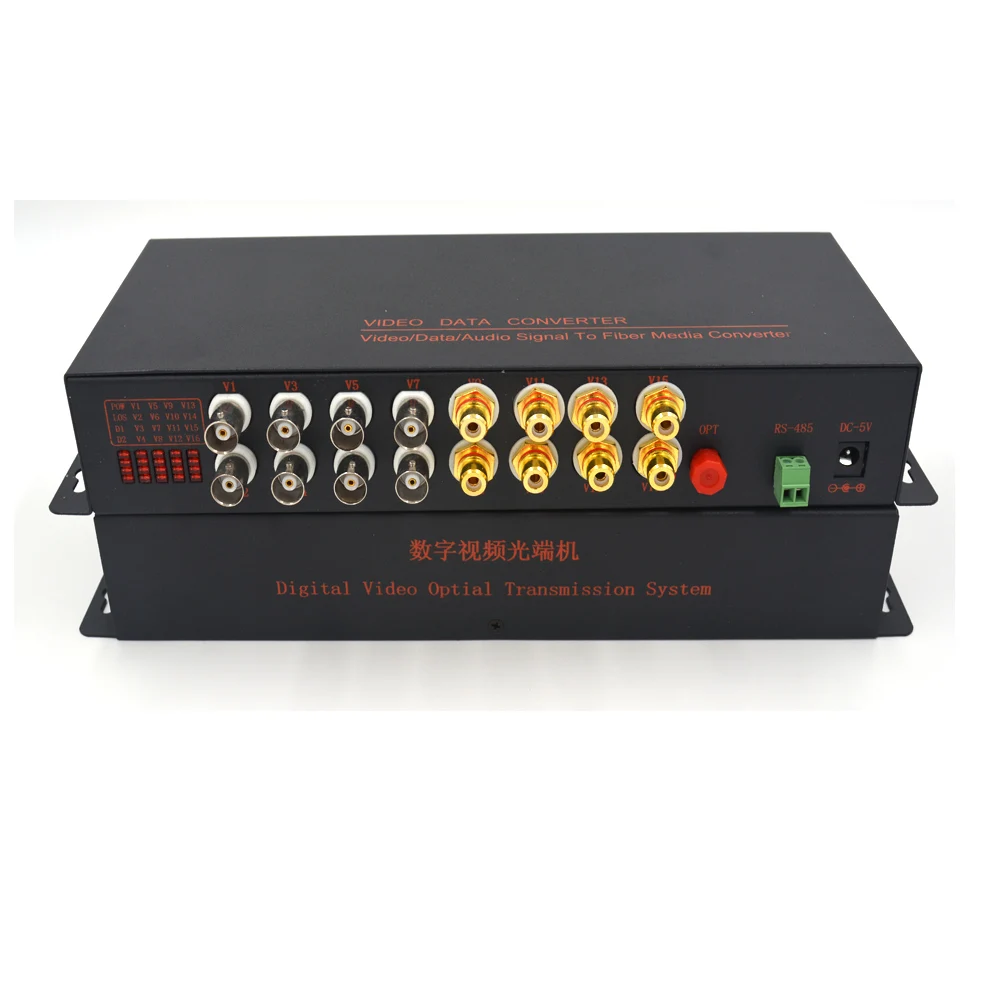

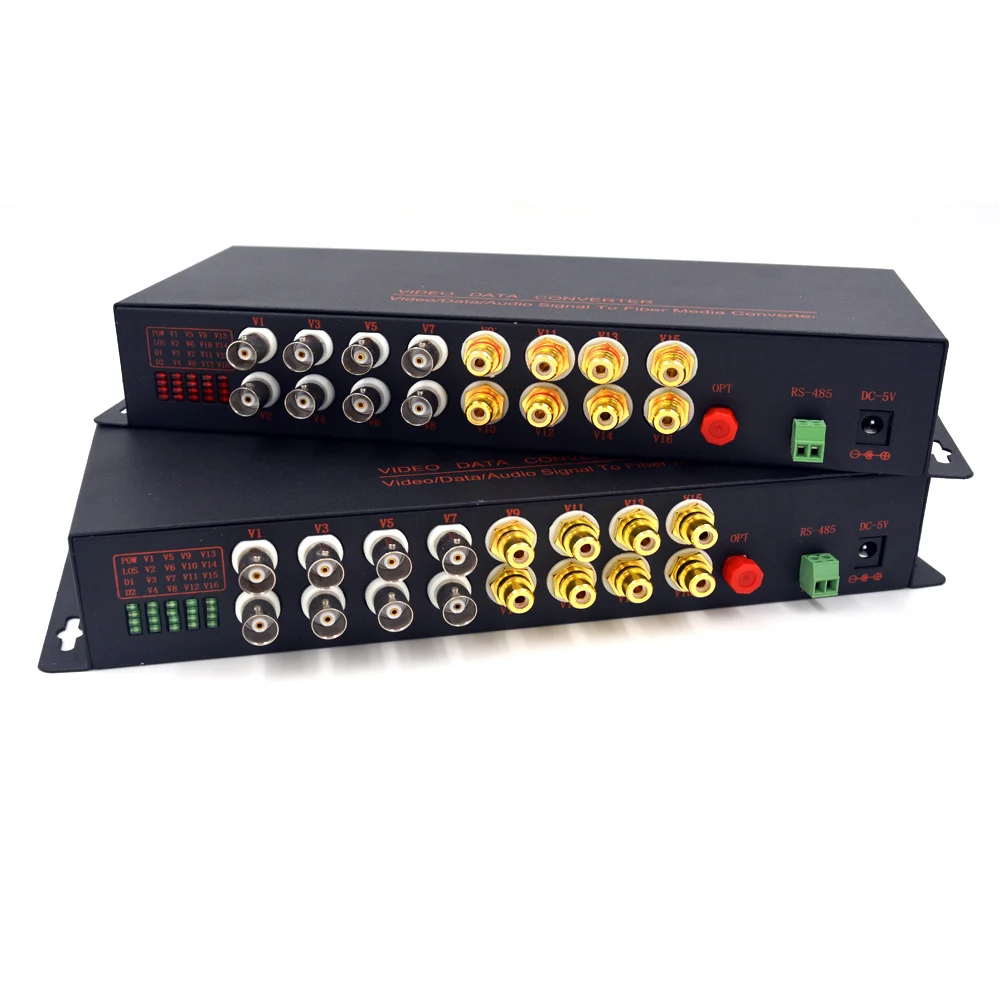

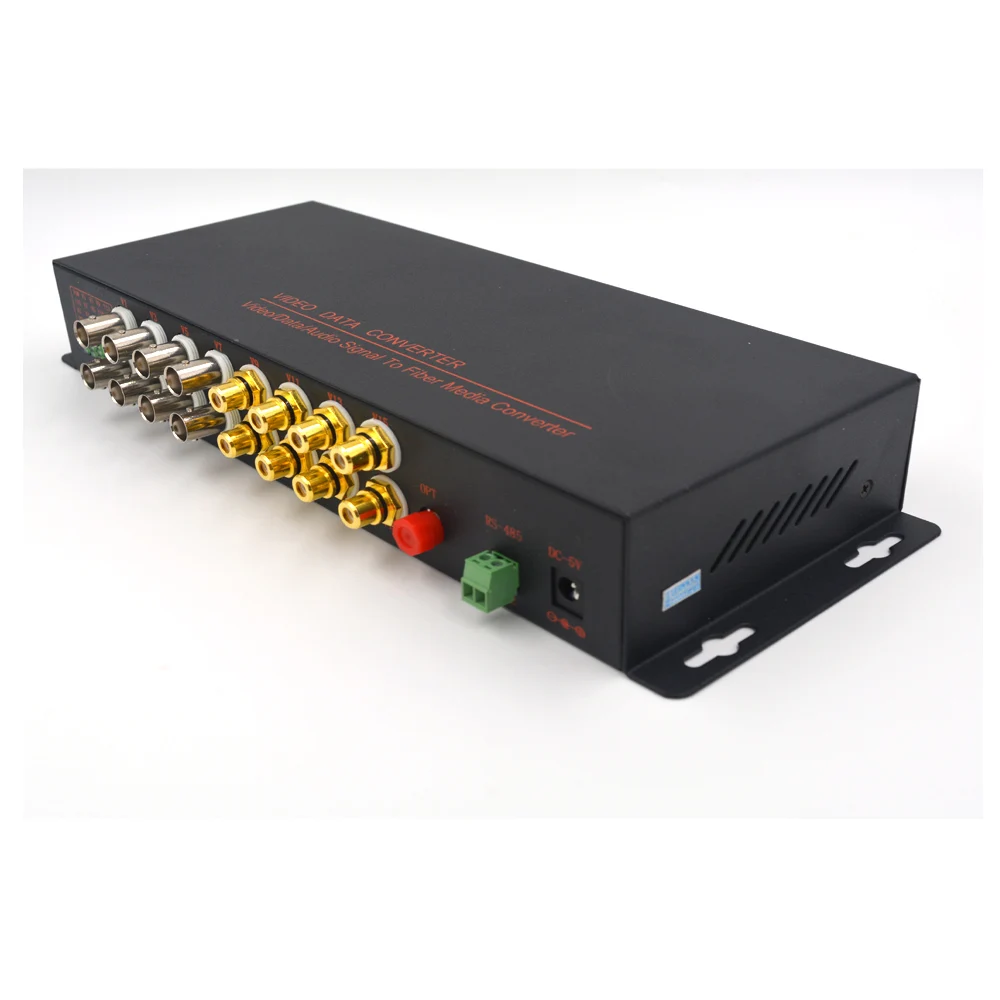

Multifunction Video/Audio/Data Optical Media Converter,1Pair (Tx and Rx)

Premium Quality & High Perfromance

Customization is available, if you have specail request, contact us.

Overview:

This model is multifunctional digital video/audio/data optical media converter with 8 channels video (BNC) +8 channels Audio (RCA)+ RS-485(reverse directional data), specific parameters are as follows:

1) Video Technical parameters:

1.Video Interface: 8 channel (forward direction)

2.Video Interface Type: BNC

3.Differential Gain: <1% (typ)

4.Differential Phase: <0.8  (typ)

5.Field tilt: <0.5% (max)

6.Input / output impedance: 75(unbalanced)

7.Input / Output voltage: 1.0Vpp (typ)

2) Audio Technical parameters:

1.Audio Interface number:4ch (forward direction)

2.Interface terminal: Industrial terminals, audio RCA

3.Audio input impedance: 10K

4.Interface mode: unbalanced interface

5.Input and output amplitude ratio: 1/1

6.Frequency response: 20HZ-20KHZ

7.Audio sample rate: 24bit / 96KHZ

8.SNR: more than 85dB

3) Data parameters:

1.     Data Interface: RS-485 (reverse direction, 2wires)

2.     Property Interface: Industrial terminals (standard)

3.     Interface signals: RS-485

4) the transmission fiber optic

Transmission wavelength: 1310nm / 1550nm

Optical interface: FC

Emitted light power: -8dB

Receiver sensitivity: -30dB

Optical Dynamic Range: 22dB

Optics allow maximum chain loss: 20dB

5) Transmission distance : Single-mode: 0 ~ 20 km, Multimode: 0 ~ 500m

6) Technical Specifications

1.Working temperature: -40  - + 70 degree

2.Humidity: 0 - 95% (non-condensing)

3.Power consumption: 5W, DC5V

4.Dimensions: 280mm (length), 120mm (width), 45mm (height)

5.Weight: 2.5Kg

6.There was no time between failures (MTBF): more than 100,000 hours

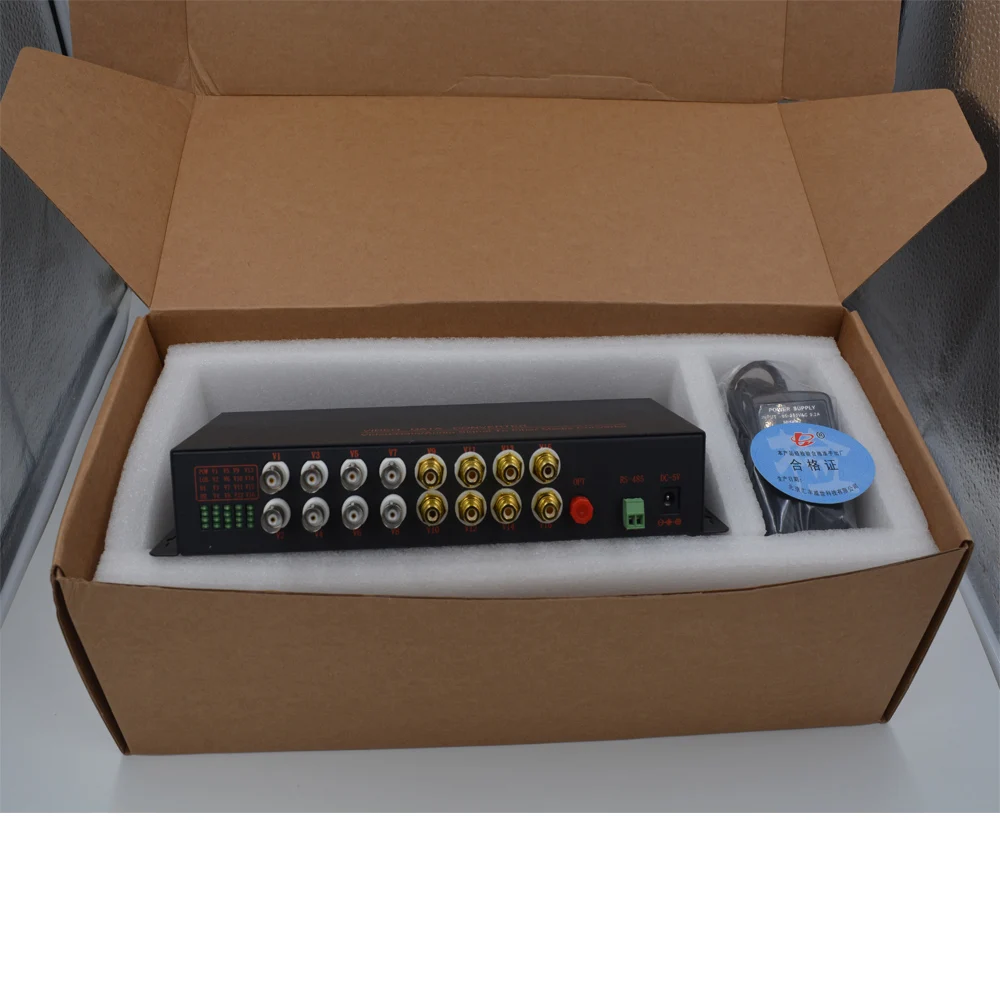

Package include:

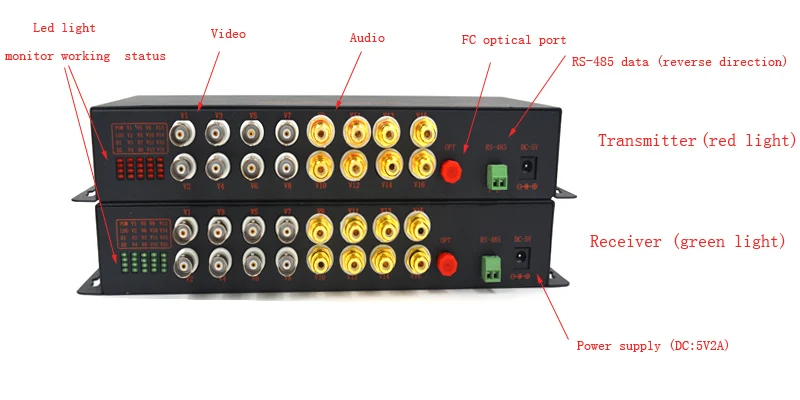

1x Transmitter

1x Receiver

2x Power supply (default US, EU/UK/AU available)

1x Manual
