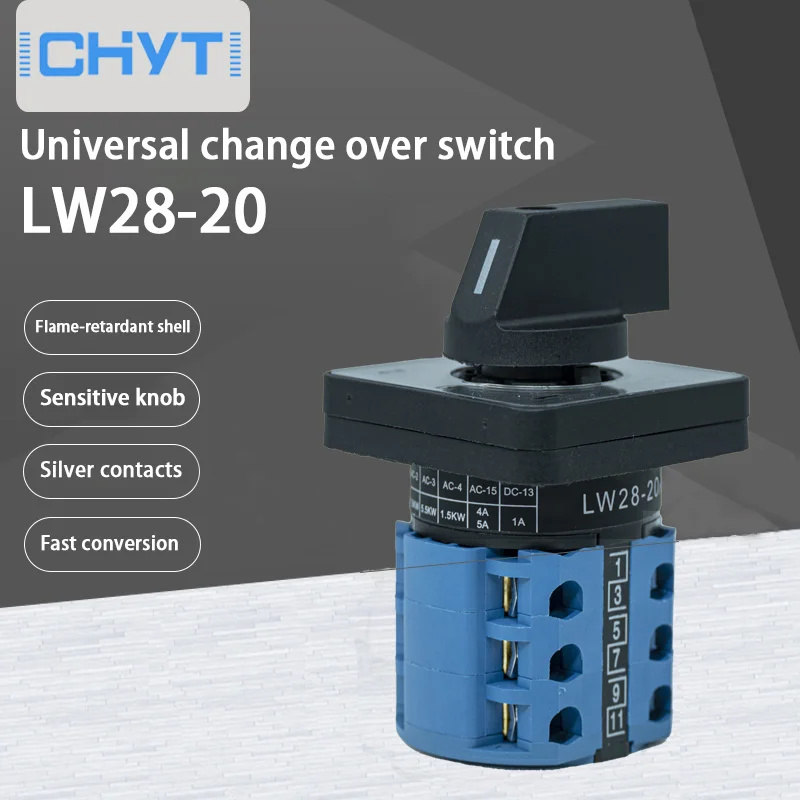

Переключатель переменного тока LW28-20 660 В 20 А 2 полюса 1/2/3 положения поворотный
290,25 - 361,44 руб.
10PCS Red Push Button Switch LED 15A250V/20A125V KCD4 Copper 6Pin On/Off Rocker | Обустройство дома
593,80 руб. / lot

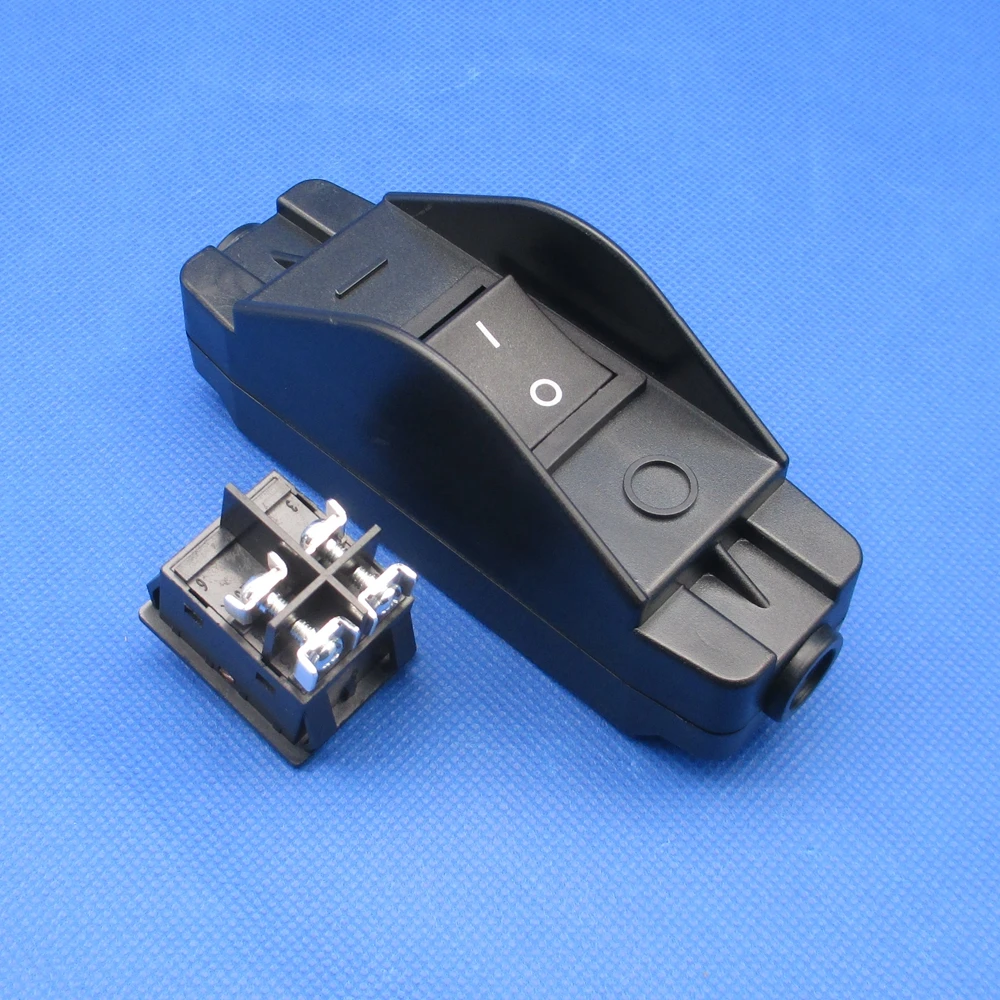

1 шт. JR-617 высокого тока переключатель кулисный со светодиодным индикатором
309,81 - 317,63 руб.
Заколка для волос модные элегантные Стразы искусственные украшения
129,09 руб.
Wireless Wall Switch Waterproof Cordless Light Battery-free Button Can Be Used In Bathroom Easy To Install | Обустройство дома

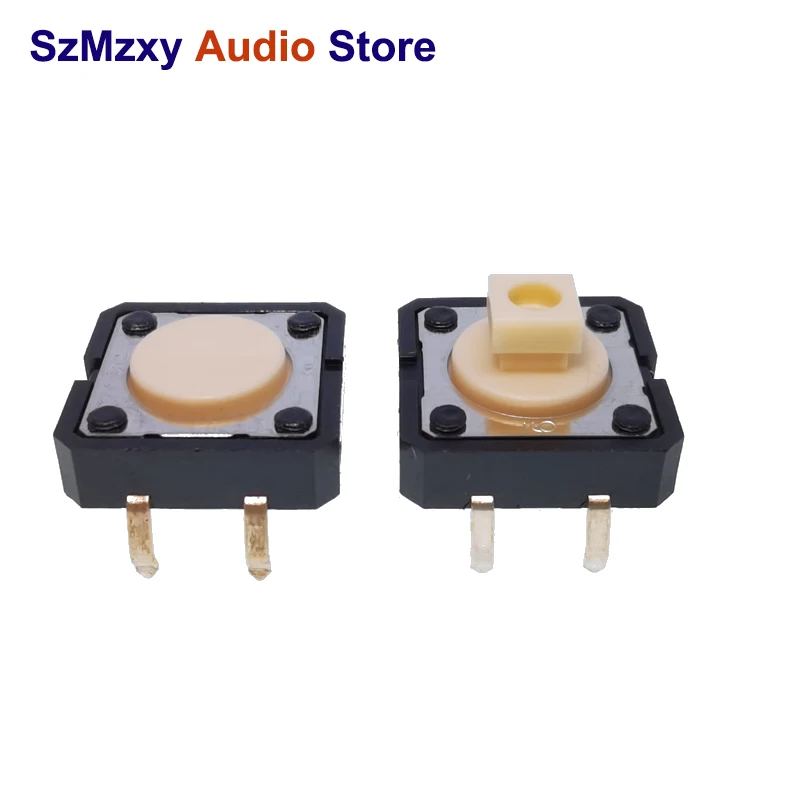

5PCS New B3F-4000 B3F-4050 Light touch switch B3F 4PIN | Обустройство дома
US $0.86 - 1.03 / lot
Plastic Side Mounted Liquid Level Float Sensor Switch EPDM 220V ZPC4 | Обустройство дома
US $2.64
CHOAN Store
Магазина CHOAN Store работает с 09.06.2011. его рейтинг составлет 92.47 баллов из 100. В избранное добавили 688 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 131 наименований товаров, успешно доставлено 1643 заказов. 239 покупателей оставили отзывы о продавце.
Характеристики

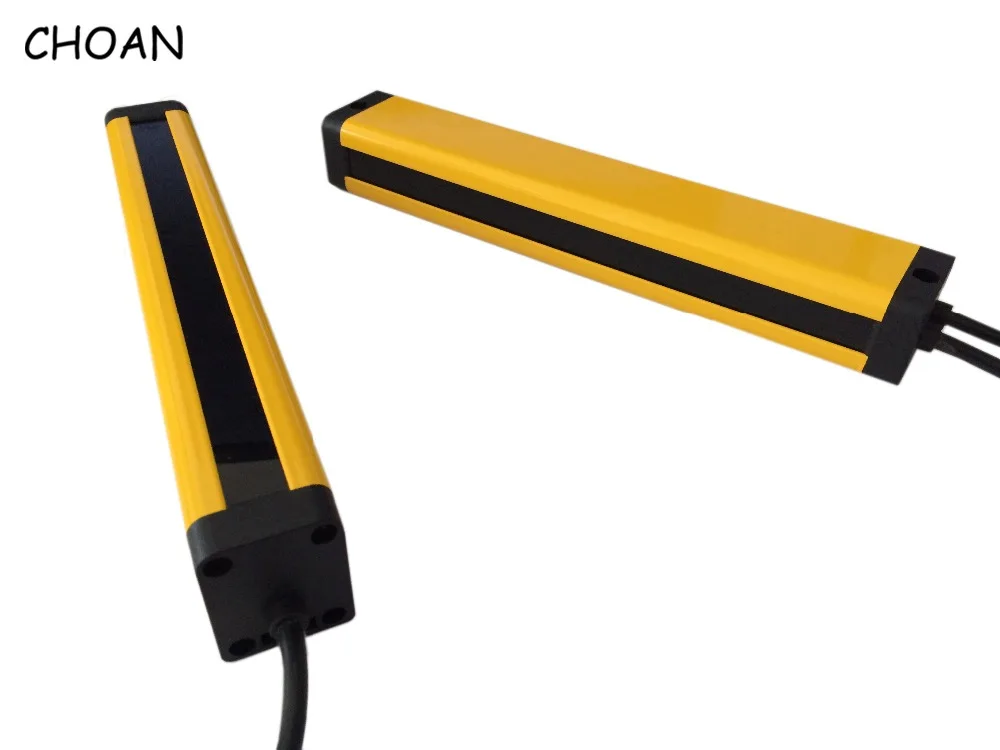

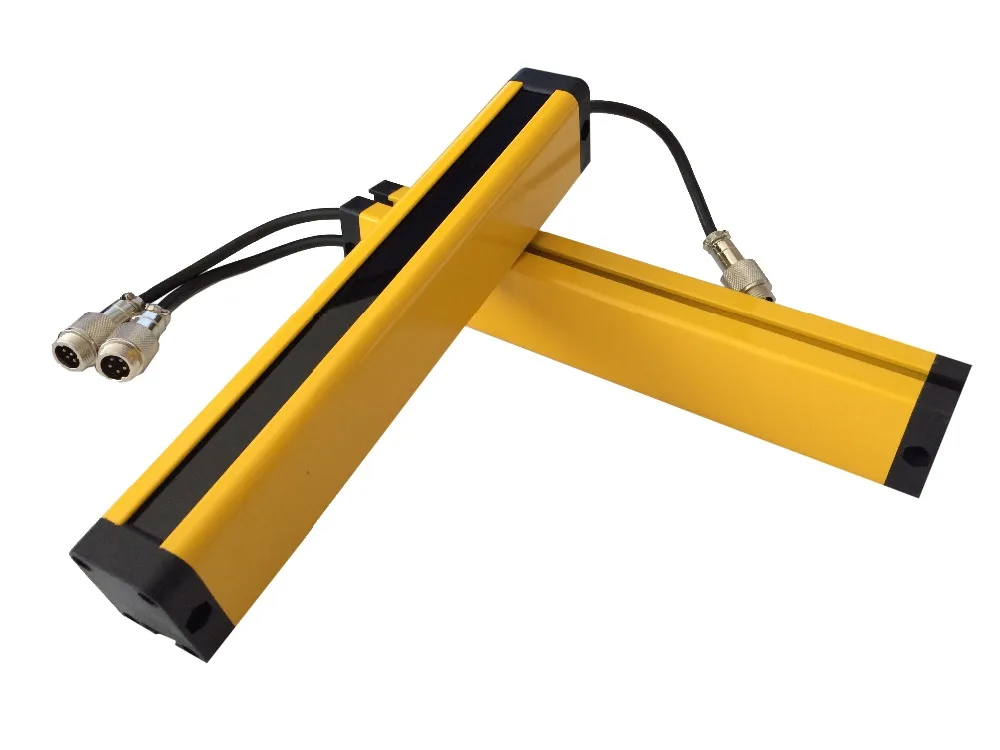

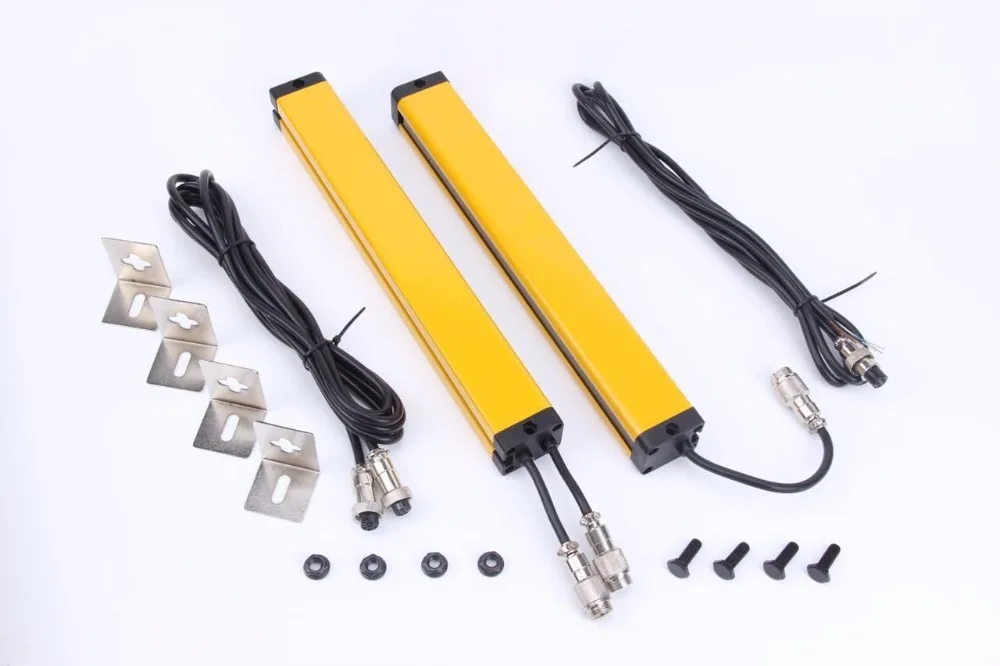

CHOAN GM4004T 40MM 4Beams Relay Output Safety Light Grating Curtain Switch Sensor Photoelectric Transmitter and Receiver | Обустройство
История изменения цены
*Текущая стоимость US $28.71 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 33.71 руб. | 35.26 руб. | 34 руб. |
| Feb-20-2026 | 33.58 руб. | 35.69 руб. | 34 руб. |
| Jan-20-2026 | 28.61 руб. | 29.3 руб. | 28.5 руб. |
| Dec-20-2025 | 32.86 руб. | 34.61 руб. | 33 руб. |
| Nov-20-2025 | 28.80 руб. | 29.28 руб. | 28.5 руб. |
| Oct-20-2025 | 32.10 руб. | 34.57 руб. | 33 руб. |
| Sep-20-2025 | 32.1 руб. | 34.28 руб. | 33 руб. |
| Aug-20-2025 | 31.14 руб. | 33.90 руб. | 32 руб. |
| Jul-20-2025 | 31.96 руб. | 33.47 руб. | 32 руб. |
Описание товара
CHOAN GM4004T 40MM 4 Points Infrared Area Switch Safety Light Curtain Sensor Photoelectric Protection Device Relay Grating
Model: GM4004T ( 40MM 4 Points )
| ||||||||||||||||||||||||||||||||||||||||||||||||||

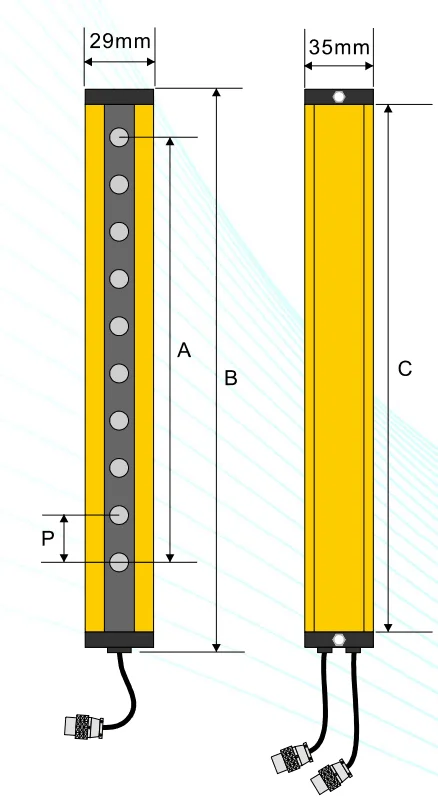

| Model | Points Quanitty | A (Protection Height) | B (Total Length of the Housing) | C (Length of the Alumium Housing) | P (Resolution) |
| GM2004T | 4 | 60MM | 141MM | 113MM | 20MM |
| GM2006T | 6 | 10MM | 181MM | 153MM | 20MM |
| GM2008T | 8 | 140MM | 223MM | 195MM | 20MM |
| GM2010T | 10 | 180MM | 263MM | 235MM | 20MM |
| GM2012T | 12 | 220MM | 298MM | 270MM | 20MM |
| GM2016T | 16 | 300MM | 378MM | 350MM | 20MM |
| Model | Points Quanitty | A (Protection Height) | B (Total Length of the Housing) | C (Length of the Alumium Housing) | P (Resolution) |
| GM4004T | 4 | 120MM | 203MM | 175MM | 40MM |
| GM4006T | 6 | 200MM | 283MM | 255MM | 40MM |
| GM4008T | 8 | 280MM | 363MM | 355MM | 40MM |
| GM4010T | 10 | 360MM | 448MM | 420MM | 40MM |
| GM4012T | 12 | 440MM | 524MM | 501MM | 40MM |
| GM4016T | 16 | 600MM | 689MM | 666MM | 40MM |
Allowable deviation 3MM

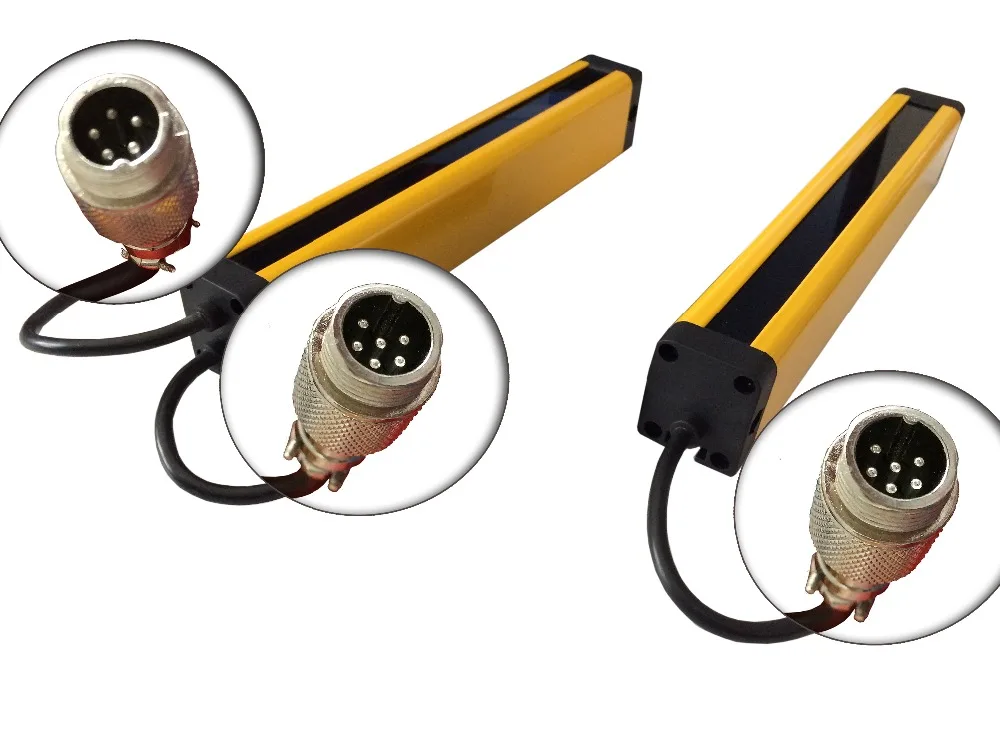

Connecting:
The positive pole of the power supply, the blue one is connected to the negative pole respectively, and the wires at both ends of the transmitter and the receiver are connected together as a synchronous line, and the white line in the receiver is connected to the input terminal of the device. Connect the transmitter's six-wire system—brown, blue, black, green, yellow, and red—to the receiver, and then connect the receiver to three-wire or five-wire system—brown, blue, white, gray, and black. The brown of the equipment is the positive pole of the power supply, the blue is the negative pole, the black is the normally open output, the white is the common end, and the gray is the normally closed output. The safety light curtain sensor has two output modes, NPN and PNP, normally open and normally closed. You only need to select one output mode according to your actual needs. ( If the relay output is not required, this model product is replay output, so you can just ignore it, the replay output Is the best automatic way ) Performance Characteristics

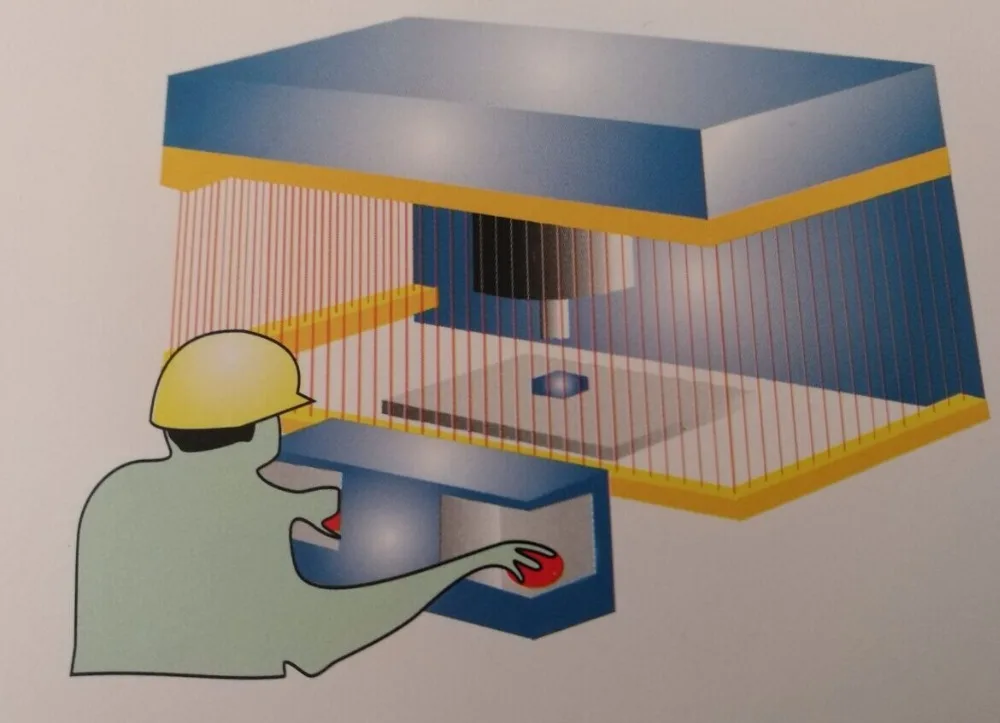

The safety light curtain sensor system is a newly developed high-quality automatic control product using infrared scanning detection technology. The transmitting device and the receiving device are installed on both sides, and the internal digital control is controlled by the single-chip microcomputer, so that the infrared transceiver unit forms an infrared light curtain guarding barrier under the condition of high-speed scanning. When people and objects enter the screen area of the light curtain, the control system rapidly switches The output level signal, so that the load action, when people and objects leave the light curtain alert area, the load will automatically shut down to achieve safety protection purposes. Fast Response Capability: 16MS fast response time, avoiding security risks. The 500MS return delay completely eliminates machine malfunctions. Relay double contact output mode. AC and DC 24V power supply. Advantages: Easy to install and use. Using a low-power design can reduce the failure rate, extend the service life, and save energy. Light resistance, anti-electromagnetic interference ability, stable and reliable work. Application Area: Safety light curtain is mainly used in the electric companines, oil pressing machine, rubber machine, shearing machine, bending machine, three-dimensional garage, moulding machine, filter press, wood-working machinery and other dangerous equipment, etc.- Attention:
