USB CAN debugger Adapter to Bus Analyzer|Хранилища для электроники| |

---

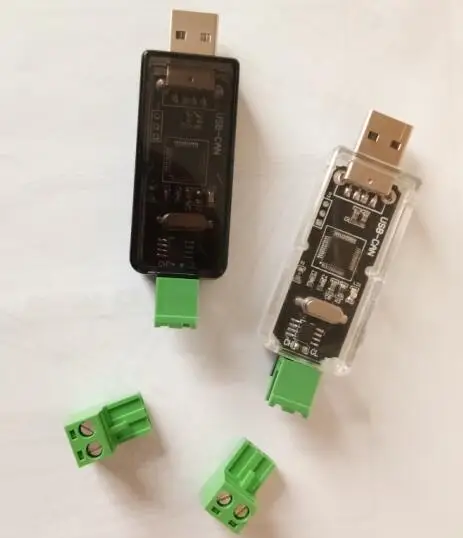

Note: because the shell has 3 colors (black, transparent, transparent), please specify when purchasing, otherwise, it will be shipped at random.



This module is a virtual serial device of USB interface on the computer to realize communication. The user only needs to master the related knowledge of serial communication on the computer. It is convenient, and the two development is simple and stable. Application areas: CAN network teaching, development, testing; Fast CAN network data collection, data analysis; CAN network instead of RS485 network; Large flow, high speed CAN communication network; Industrial field CAN network data monitoring. The main performance indicators of the product: The USB interface supports USB2.0, compatible with USB1.1 The protocol conversion between USB and CAN bus; Support CAN protocol 2.0A and 2.0B active mode; Support two-way transmission, CAN transceiver; Support CAN identifier standard format (11 bit) and extended format (29 bits); Support data frame, remote frame format; The baud rate of CAN controller is up to 1Mbps, and can be configured by software. It supports automatic repeat mode and can be configured by software. It supports automatic offline management mode, which can be configured by software. Support 14 filters, which can be configured by software; Two points to the user: 0. this is a new addition, because a few customers buy the debugger but use other computer software, it is necessary to clarify this: it doesn't work. This debugger can only use our host computer. 1. the debugger currently issued the default CAN baud rate is 500K. Please set the debugger to the baud rate (maximum to 1M) of the debugger you need after receiving the device. 2. to ensure that the debugger is consistent with the baud rate of the debugged device, this is very critical, and many beginners forget to set it up. 3.CH CL must be connected to the CH CL of the device. Do not cross it. 4. reminding the parents who bought them, there are very detailed operating instructions in the information. Please read carefully so that everyone can make better use of this gadget. The 5. data contains two software: parameter configuration software and transceiver software. Please close the configuration software after reconfiguring the parameters, otherwise the transceiver software will prompt the port, many novice will forget this 6. individual customers may not understand the CAN bus at all. The shopkeeper will spend a lot of energy to help the client build the test platform. It is suggested that the relatives who are not familiar with the CAN bus first understand the CAN and read the instructions of the data package carefully.
