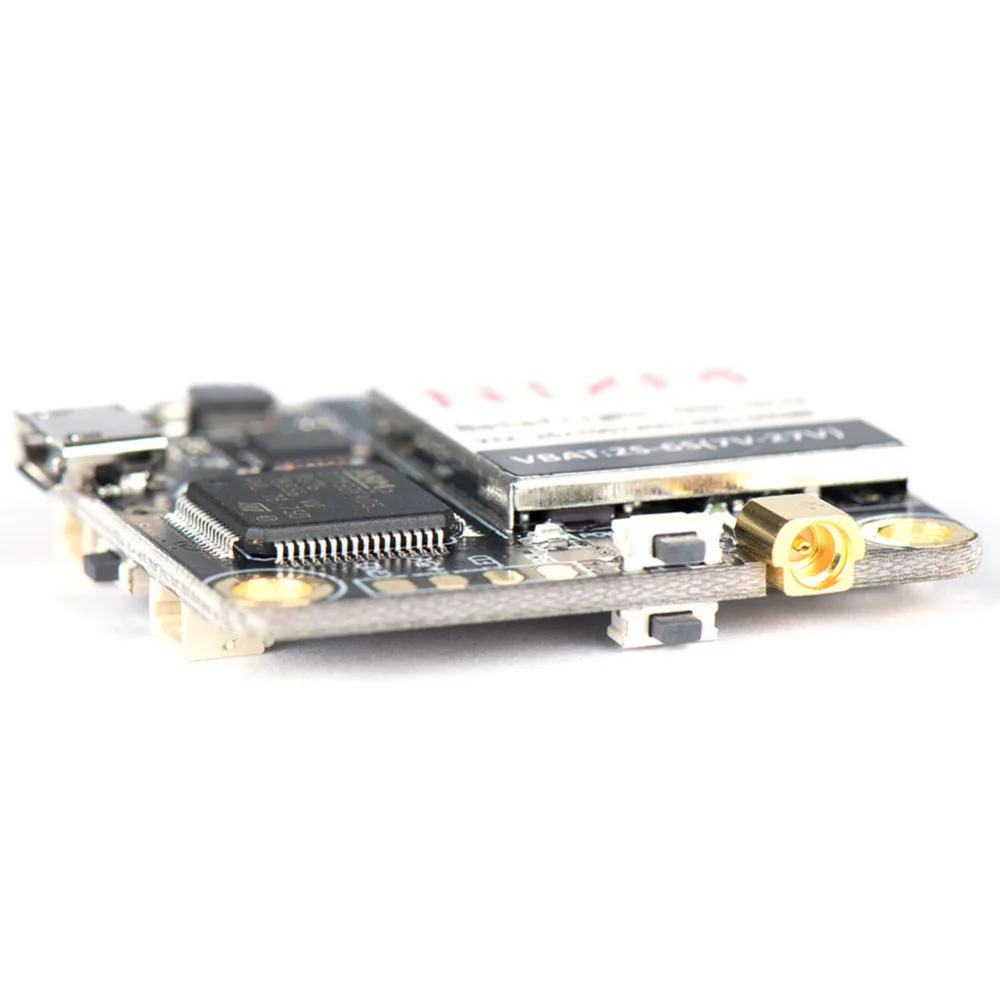

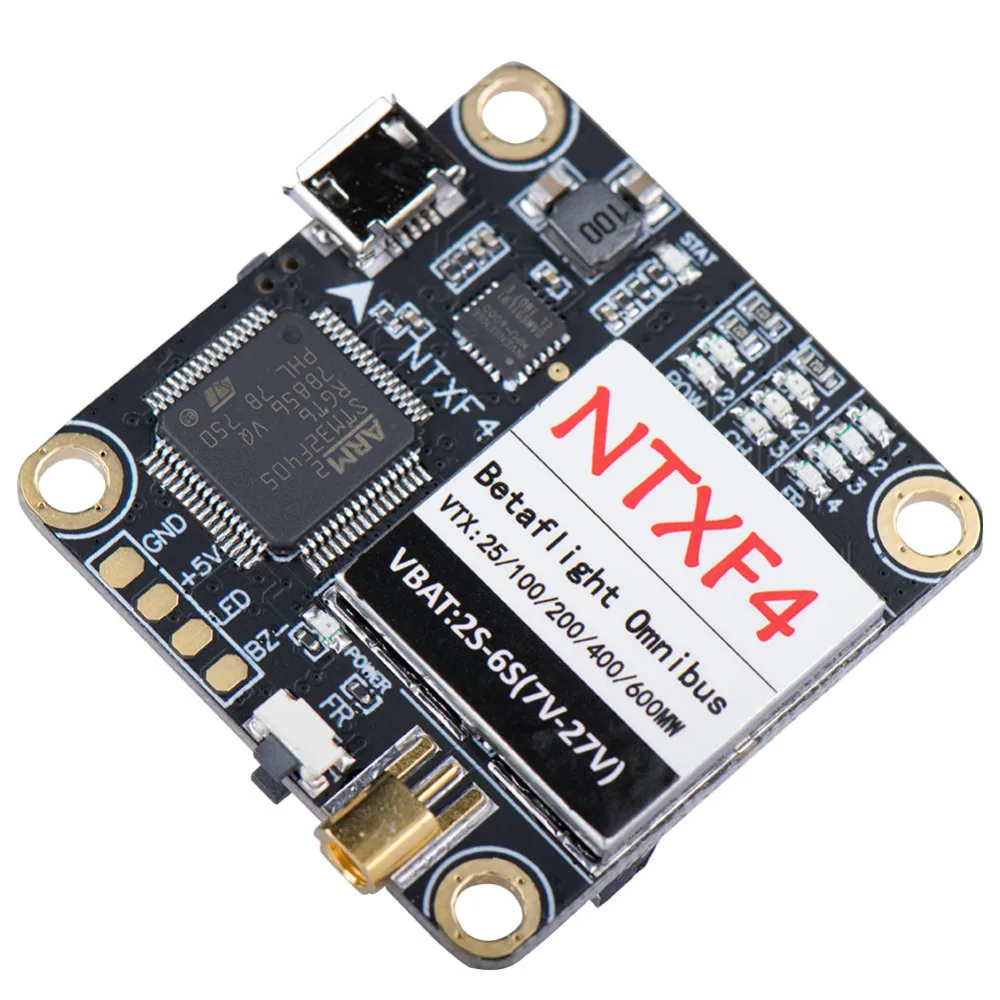

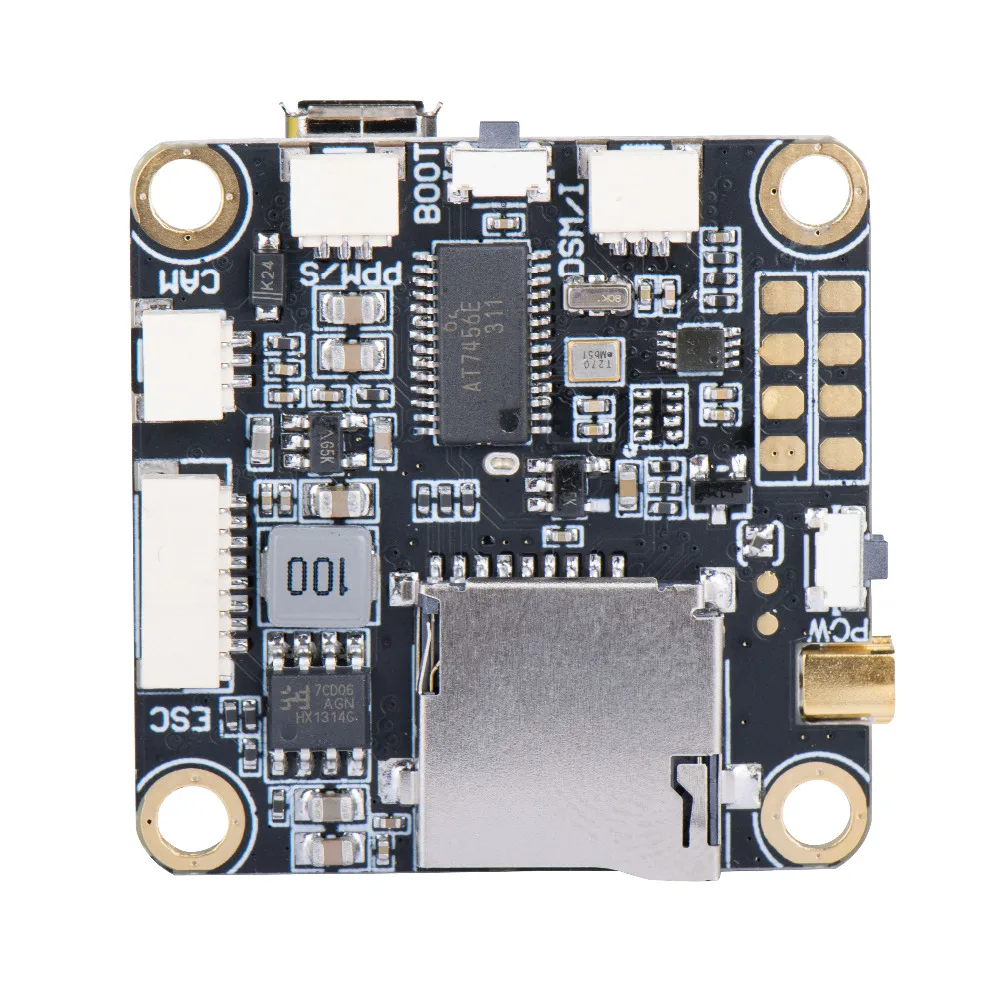

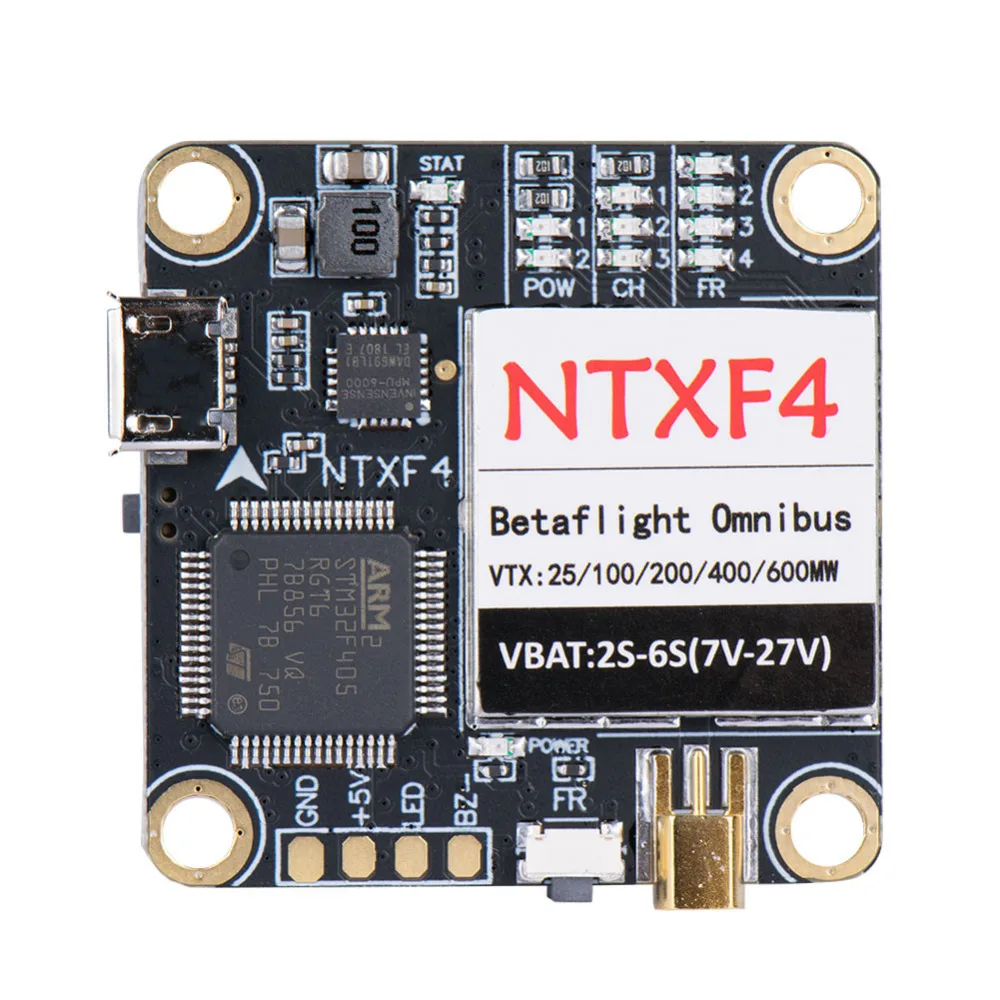

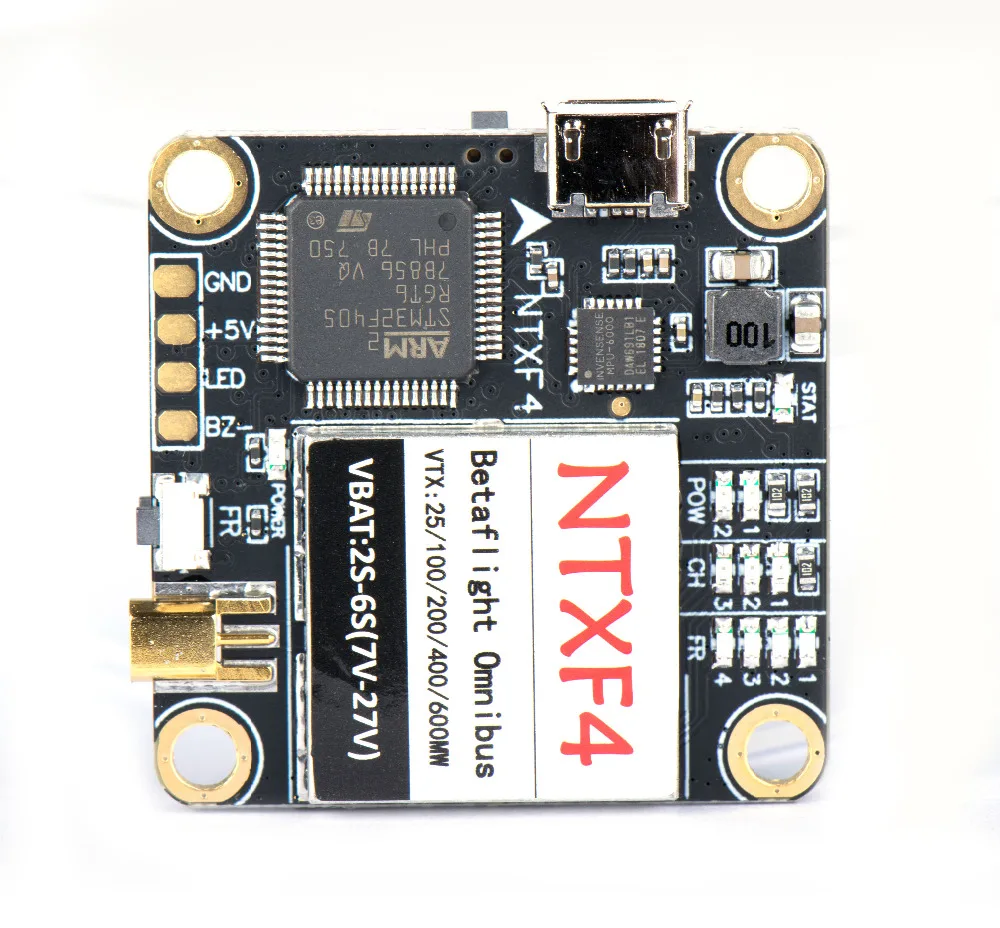

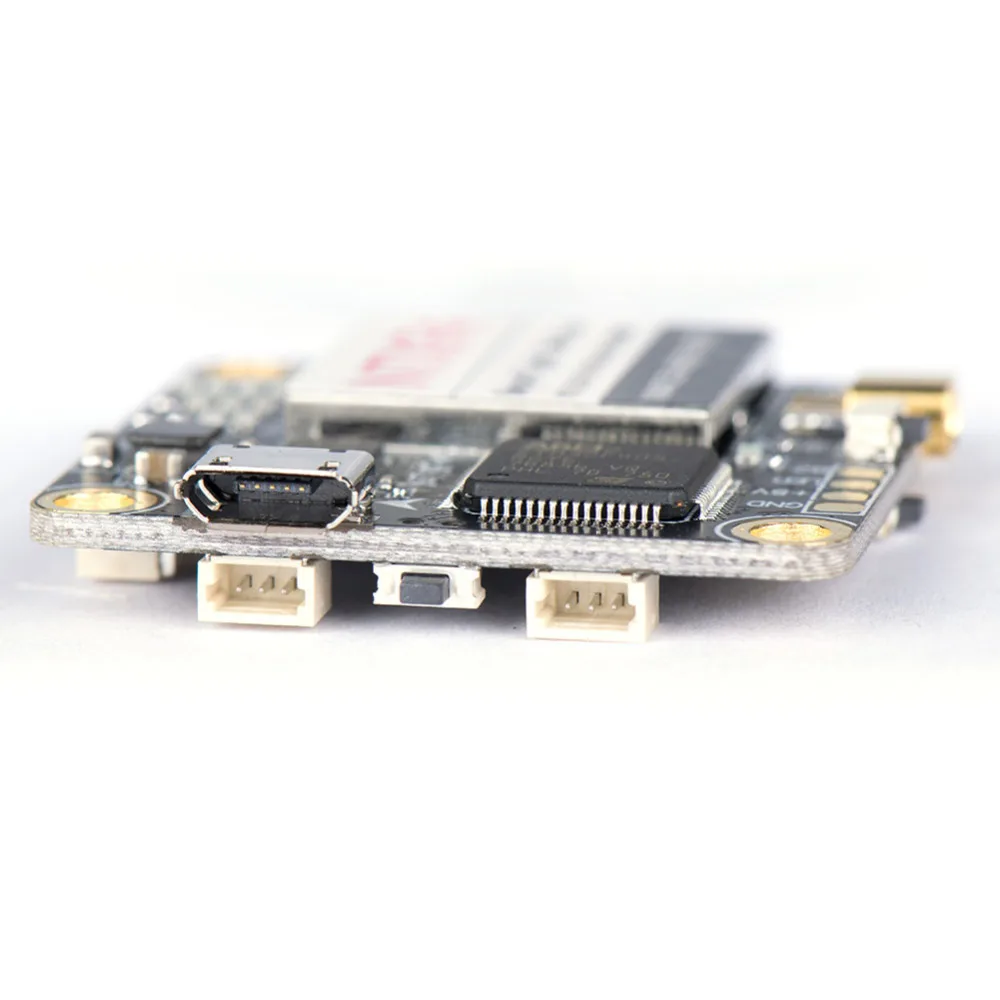

NTXF4-FC F4 Flight Control Integrated OSD Integrated 600MW 5.8G Power Adjustable Image Transfer

NTXF4-FC F4 Flight Control Integrated OSD Integrated 600MW 5.8G Power Adjustable Image Transfer OSD Tuning

Description:

The flight controller uses Omnibus F4 firmware as its predecessor, equipped with STM32F405 processor with MPU6000 six-axls sensor, and supports OSD adjustment function. Based on this, an additional 600MW 48CH 5.8G transmitter is added. There are independent 48 frequency points adjustable, and the transmission power of six gears is adjustable (PIT, 25MW, 100MW, 200MW, 400MW, 600MW). Reserved camera input, DSM / IBUS receiver input, PPM / SBUS input, LED_Strip output interface. The image transmission power supply adopts LC filter to reduce the interference of the motor to the image and built-in 5C/3A high-current BEC. Supports online adjustment of the Cleanflight/Betaflight firmware (default shipment is Betaflight firmware).

The receiver configuration, SBUS signal configuration RX6 input interface.

The DSM/IBUS receiver input configures RX1 as the input interface.

Factory firmware: betaflight_3.2.0_OMNIBUSF4SD

Main configuration:

Processor: STM32F405RGT6

Sensor: MPU6000

OSD video overlay: AT7456E

5.8G transmission picture transmission: 600MW 48CH six transmission power adjustable (PIT, 25MW, 100MW, 200MW, 400MW, 600MW)

Image transmission antenna interface: MMCX antenna base (feeder with distribution to SMA needle)

Receiver interface: IBUS, PPM, SBUS

LED_Strip interface

BB ring/buzzer interface

Voide INPUT connector (5V)

SD card black box (self-provided SD card)

Reserved UART1, UART3, UART6 interface

LC filter

Built-in 5V 3A BEC

Supply voltage: 2-6S (7.4V-25.6V)

ESC signal support Dshot, Oneshot, Multishot, PWM

Board size: 36*36MM, screw hole spacing 30.5*30.5MM

Board weight: 8.7 g

Shipping list:


NTXF4-FC flight control 1 piece

8P*1.0MM plug line 1 item

3P*1.0MM plug wire 2 pieces

M3*5+6MM nylon column 8 pieces

M3*5MM screw cap 4 only

MMCX-SMA Feeder 1
