Factory sale INNO View 3 FTTH optical fiber fusion splicer machine1 set | Мобильные телефоны и аксессуары
История изменения цены
*Текущая стоимость 253 952,16 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-21-2026 | 302203.69 руб. | 317313.65 руб. | 309758 руб. |
| Feb-21-2026 | 299663.40 руб. | 314646.42 руб. | 307154.5 руб. |
| Jan-21-2026 | 251412.63 руб. | 263983.36 руб. | 257697.5 руб. |
| Dec-21-2025 | 294584.13 руб. | 309313.67 руб. | 301948.5 руб. |
| Nov-21-2025 | 256492.18 руб. | 269317.58 руб. | 262904.5 руб. |
| Oct-21-2025 | 289505.12 руб. | 303980.38 руб. | 296742.5 руб. |
| Sep-21-2025 | 286966.5 руб. | 301314.38 руб. | 294140 руб. |
| Aug-21-2025 | 284426.77 руб. | 298647.39 руб. | 291536.5 руб. |
| Jul-21-2025 | 281887.70 руб. | 295981.44 руб. | 288934 руб. |
Описание товара
Cheap sale INNO View 3 FTTH optical fiber fusion splicer machine1 set
Please contact us if have any questions! Specification
Model | View 3 |
Dimension | 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper) |
Weight | 2.31KG (with battery) / 1.95KG (without battery) |
Number of Fiber | Single |
Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
Cladding Diameter | 80~150 μm |
Splicing Mode | Max 128 modes |
Heating Mode | Max 32 modes |
Typical Splice Loss | SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB |
(ITU-T Standard) | |
Return Loss | >> 60 dB |
Lighting | 3 White LEDs |
Splicing Time | Quick mode : 7 sec / Auto mode : 9 sec |
Estimated Splice Loss | Available |
Protection Sleeve Length | 20~60 mm |
Heating Time | FP-03 typical heating time: 30 sec |
Results Storage | The last 2000 results |
Tension Test | 1.96~2.25N |
Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
Storage Condition | 0~95% relative humidity, -40~80°C |

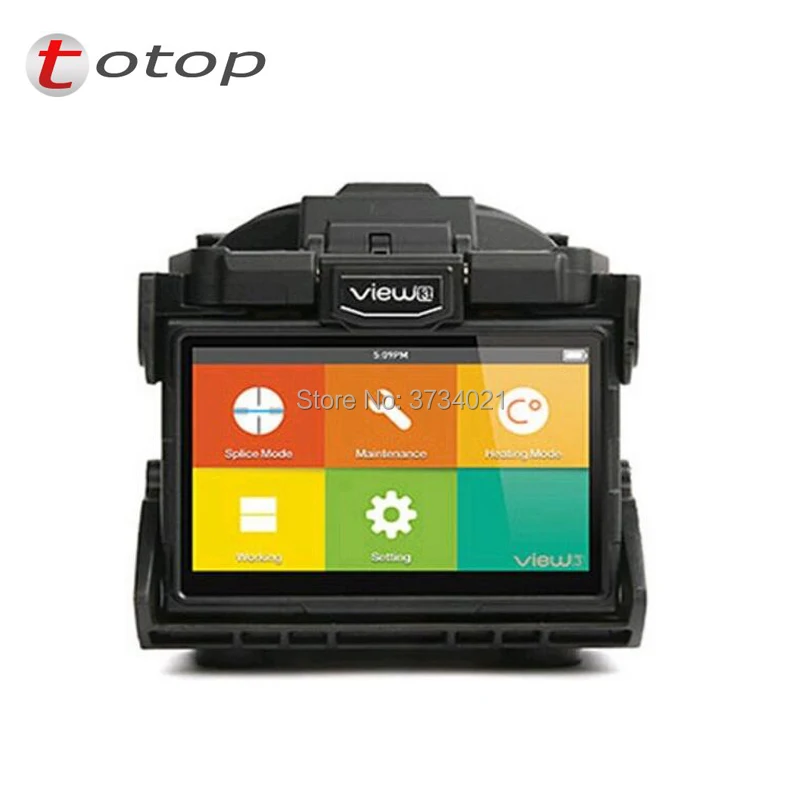

Display | 90° bi-directional view, 5.0” Color High Resolution Display |
Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
Power Supply | AC Input 100-240V, DC Input 9-14V |
No. of Splice / Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
Operating Methods | Button / Touch screen |
Automatic Calibration | Automatic arc calibration by air pressure and temperature |
Electrode Life | 3500 arcs, can be extended by using an electrode grinder |

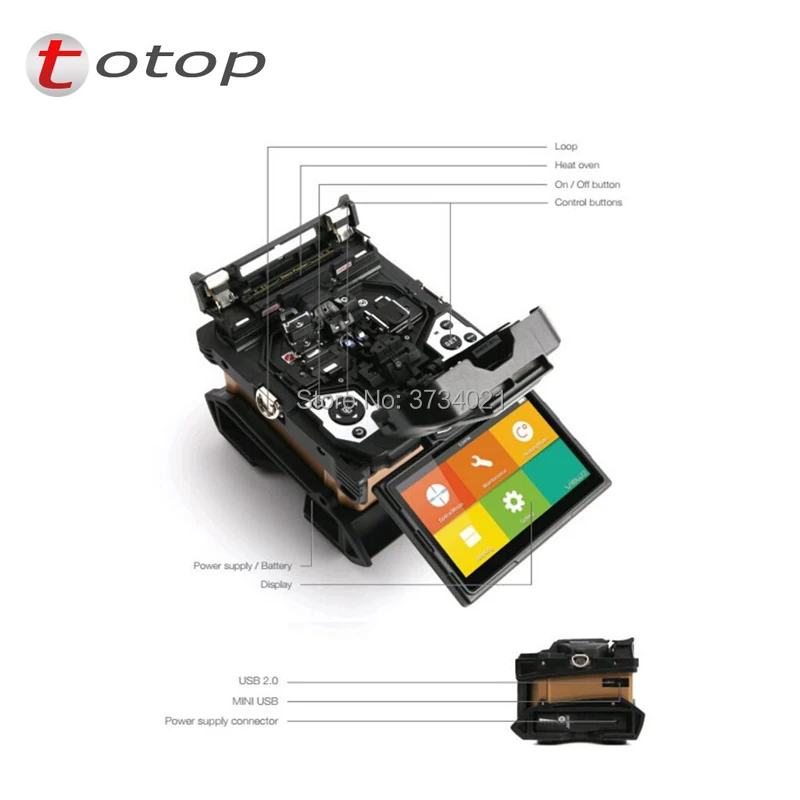

Terminal | USB2.0 / MINI USB |

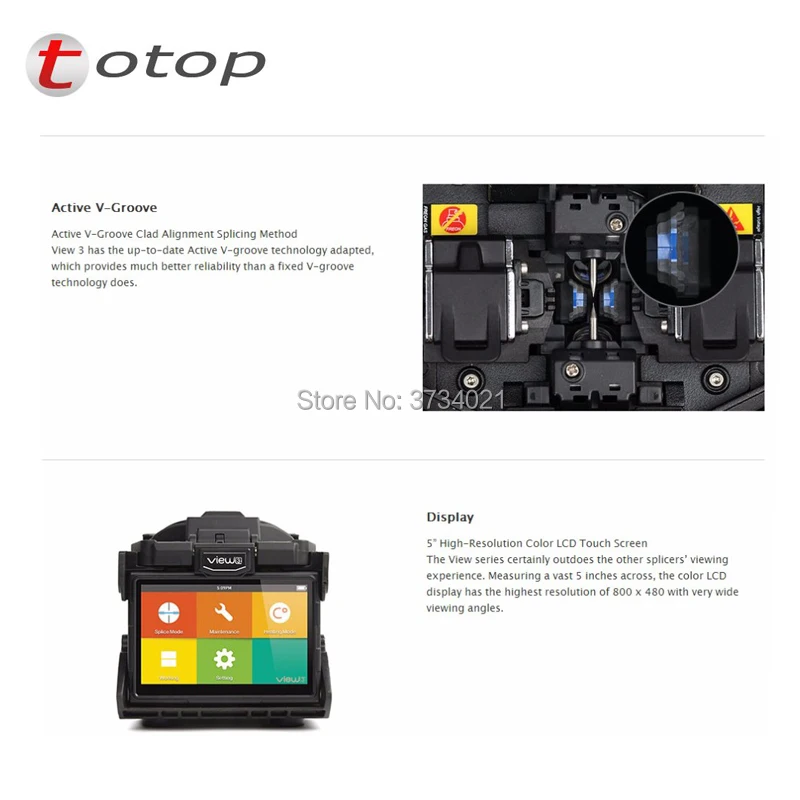

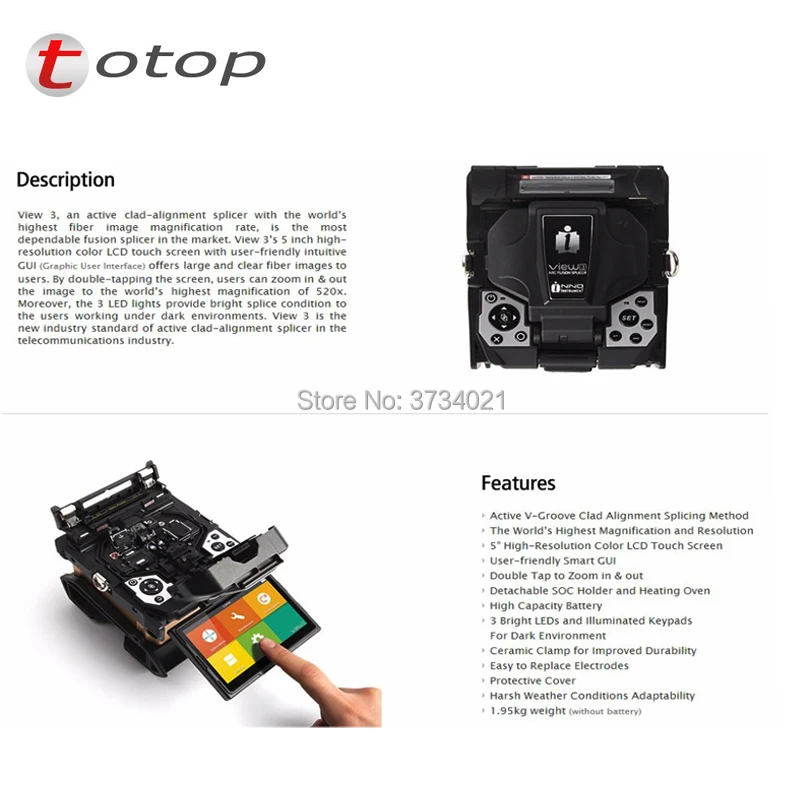

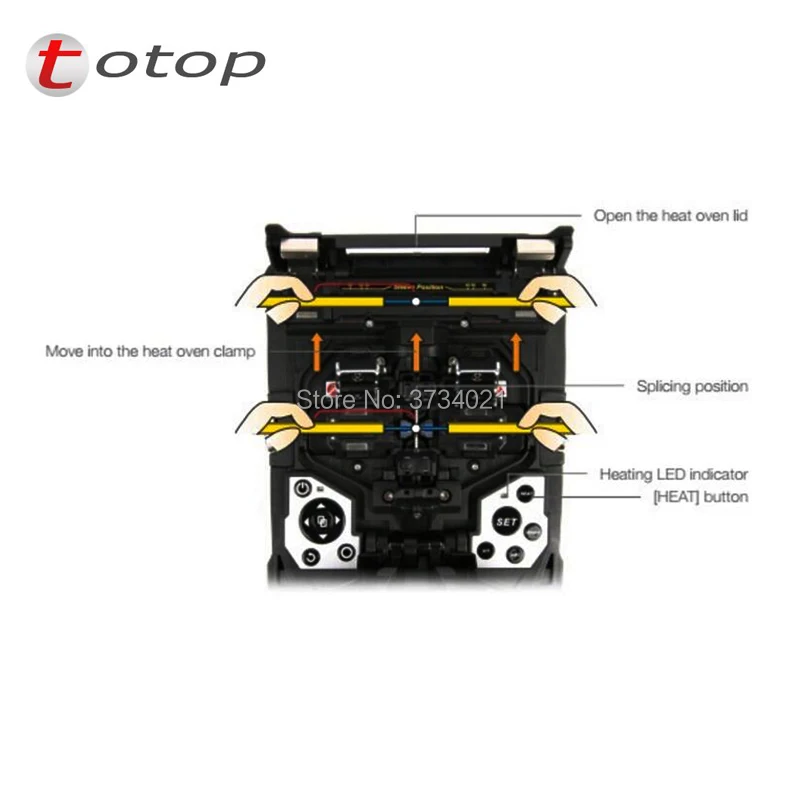

Description View 3, an active clad-alignment splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 3’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can zoom in & out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 3 is the new industry standard of active clad-alignment splicer in the telecommunications industry Features 1. Active V-Groove Clad Alignment Splicing Method2. The World’s Highest Magnification and Resolution3. 5” High-Resolution Color LCD Touch Screen4. User-friendly Smart GUI5. Double Tap to Zoom in & out6. Detachable SOC Holder and Heating Oven7. High Capacity Battery8. 3 Bright LEDs and Illuminated Keypads9. For Dark Environment10. Ceramic Clamp for Improved Durability11. Easy to Replace Electrodes12. Protective Cover13. Harsh Weather Conditions Adaptability14. 1.95kg weight (without battery) Detail 1. Active V-GrooveActive V-Groove Clad Alignment Splicing MethodView 3 has the up-to-date Active V-groove technology adapted, which provides much better reliability than a fixed V-groove technology does. 2. Display 5” High-Resolution Color LCD Touch ScreenThe View series certainly outdoes the other splicers’ viewing experience. Measuring a vast 5 inches across, the color LCD display has the highest resolution of 800 x 480 with very wide viewing angles. 3. InterfaceUser-friendly Smart GUIThe advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training. 4. SOC CompatibilityDetachable SOC Holder and Heating OvenView 3’s SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field. 5. BatteryHigh capacity battery provides long enough power for working in the field, which is the industry’s standard 170 splicing/heating cycles by 4200mAh. 6. LED Working Light3 Bright LEDs For Dark Environment 7. ClampCeramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface. 8. Electrode CoverSpecially designed electrode covers make users replace electrodes in a much easier and faster way without any tools
*******************************************************************************************************
