6 Axis Ethernet Smooth Stepper Interface Adapter CNC Motion Control Mach 3/4 ESS & Intelligent Full Terminal Board

6 Axis Ethernet Smooth Stepper Interface Adapter CNC Motion Control Mach 3/4 ESS & Intelligent Full Terminal Board

ITEM DESCRIBE

CNC - Modulkit

6 Axis ESS ( Ethernet Smooth Stepper) CNC Motion controller for Mach3/Mach4 +

Intelligent Full Terminal Board

VFD Control and Protection circuit, 4Mhz pulse speed.

The most advanced solution for CNC and Robots under Mach Software.

               Ethernet Smooth Stepper 6 Axis Mach 3, 4MHz, Original USA ESS Board Stock Available

              Find us in

Our Contact Ways Are Below:

Skype: Justo1231

WhatsApp: + 86 13661792760

Wechat: + 86 13661792760

Email: justogarbajosa@hotmail.com

​

PRODUCT INTRODUCTION

By using an Ethernet connection, the ESS is far more noise resistant than when using a USB or parallel Port connection and therefore helps to protect the logic signal when the controller and drives are located a large   distance from the computer.

Runs on MACH3 / MACH4 with Windows XP, Win7, Win8 both 32 and 64 bit, Win 10 on both desktop and notebook computers.

New! Utilizes All 3 ports of the ESS. (Ethernet Smooth Stepper Motion controller).

New! The Motion Command Signal can be selected between Pulse/Sign, CW/CCW, and Quadrature. Frequency can be selected from 32 kHz to 4 MHz

New! Differential line driver for motion signals, allows for longer wiring with more resistance to interference when compared to TTL open end.

New! A single 24Vdc Power Supply is needed.  There is a 5Vdc isolated and non-isolated dc2dc converter on board, thus saving installation space and wiring.

New! OSSD (Output Signal Switching Device) outputs and safety circuit are implemented when a peripheral device such as a servo motor drive or a spindle

VFD (Variable Frequency Drive) trigger an alarm condition, which causes the Safety Circuit to disengage the OSSD output.  This method is used on large CNC machines to cut power from the drives.

New! LED status for all inputs and outputs including motion control signals. Makes it much easier to diagnose and trouble shoot.

Isolated power and ground between the PC, ESS and I/O, which eliminates crossover noise and ground loop problems.

New! Polarity and over voltage protection (in conjunction with a fuse) for the 24Vdc power supply.

An “Ana-Speed” circuit has been implemented.  This circuit is totally isolated from the Terminal Board and forms a part of the VFD inverter, acting as a digital VR (variable resistor).  High voltage noise from the inverter cannot cause interfere through this connection.

A charge-pump signal is provided. This helps the user to form a safety interlock condition between controller and devices.

22 isolated input terminals, consisting of 17 terminals of NPN and 5 terminals of PNP type.

14 NPN isolated output terminals capable of sinking current up to 100mA for each channel and up to 500mA per group.

New!  2 onboard relays with both NO/NC contacts and “Off Delay Time”. It allows the user to create a timing sequence for devices that need to power up or power down independently at different times, which can be used for such application as “Z Drop Protection”.

New. The K2 Relay can now be controlled by a charge pump signal

Spring terminals for quicker connecting and disconnecting of cables. They are resistant to vibration, so no more screws which have rattled loose and no more forgetting to tighten.

The Ethernet Smooth Stepper (ESS) is a high performance external motion controller for Mach3 and Mach4.

Because it has a connector that conforms to the Parallel Port standard,

it integrates seamlessly with most devices that the Parallel Port driver of Mach interfaces with.

It accepts high level commands from Mach and produces Step & Direction signals that are compatible with

nearly all step & direction motor drivers (it also has a quadrature mode for high-end motor drivers,

but those are not common). Because it is a dedicated hardware device,

it is capable of producing pulses at very high frequencies and with extremely low jitter compared to the

Parallel Port driver and microcontroller based solutions.

In addition, the SmoothStepper is able to run on any flavor of Windows, both 32 bit and 64 bit.

Mach will run under 32 bit or 64 bit, but an external controller such as the SmoothStepper is needed for 64 bit editions.

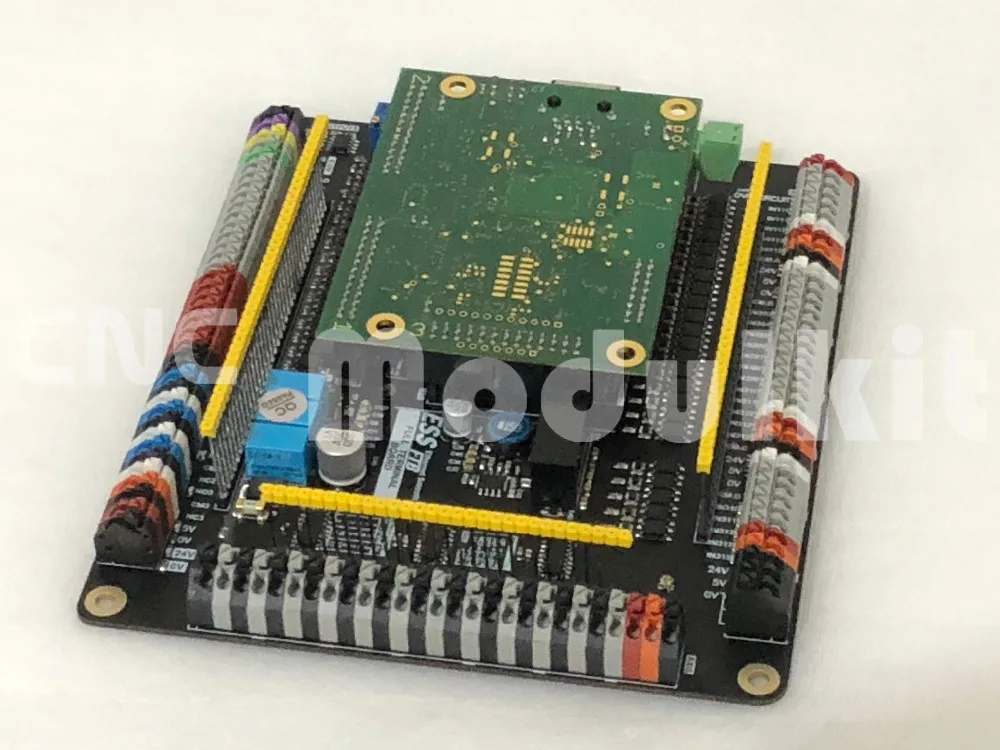

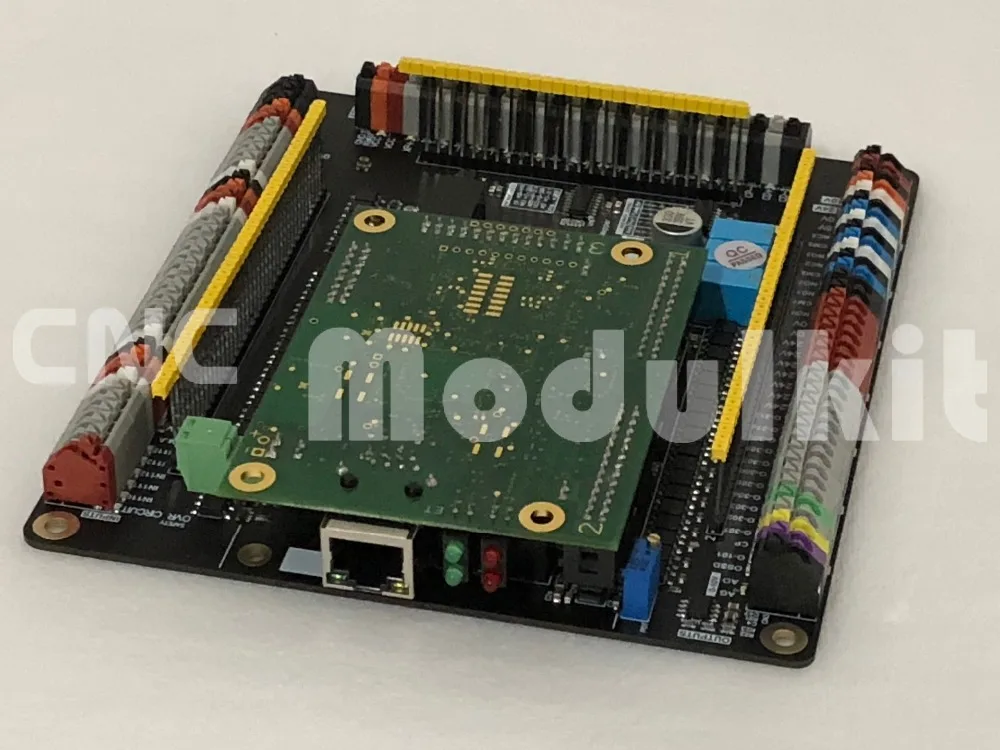

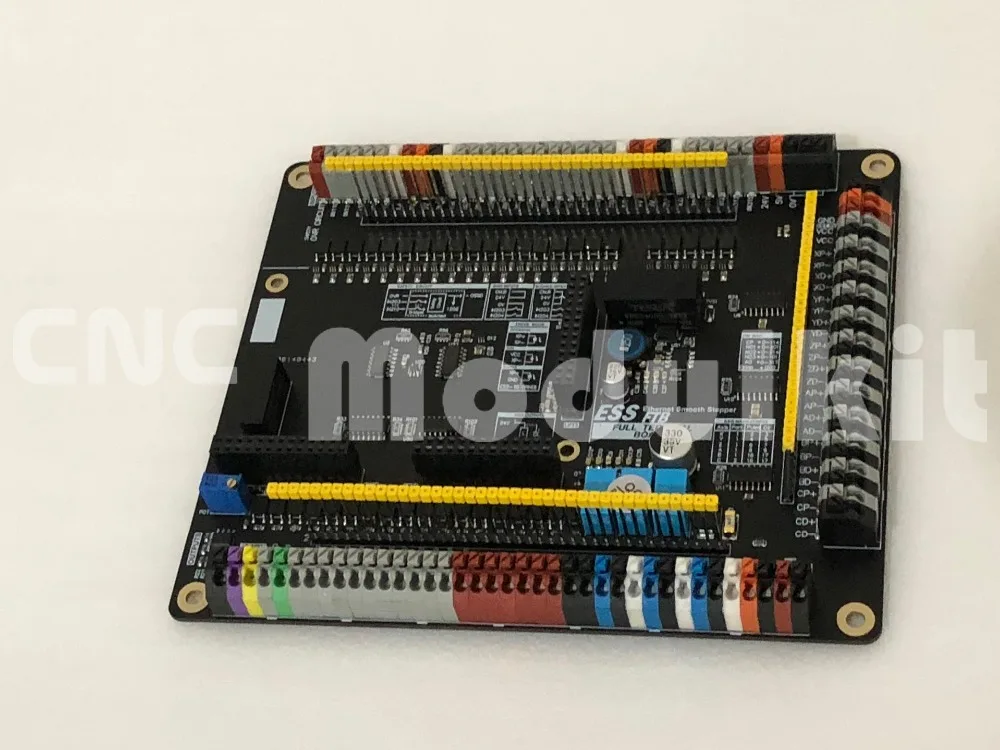

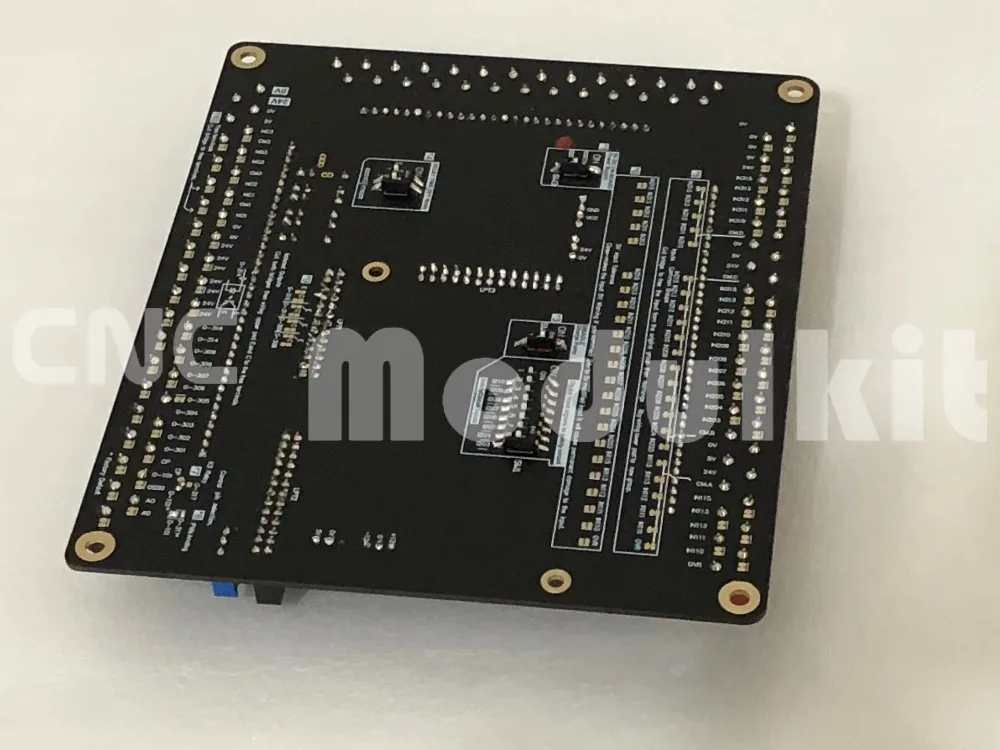

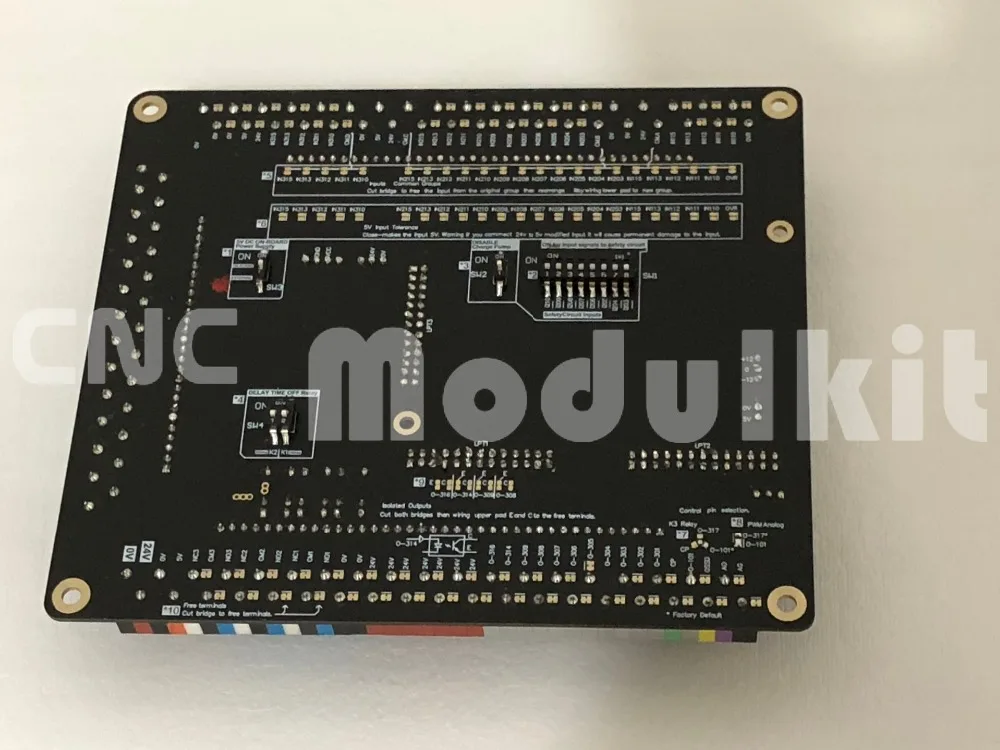

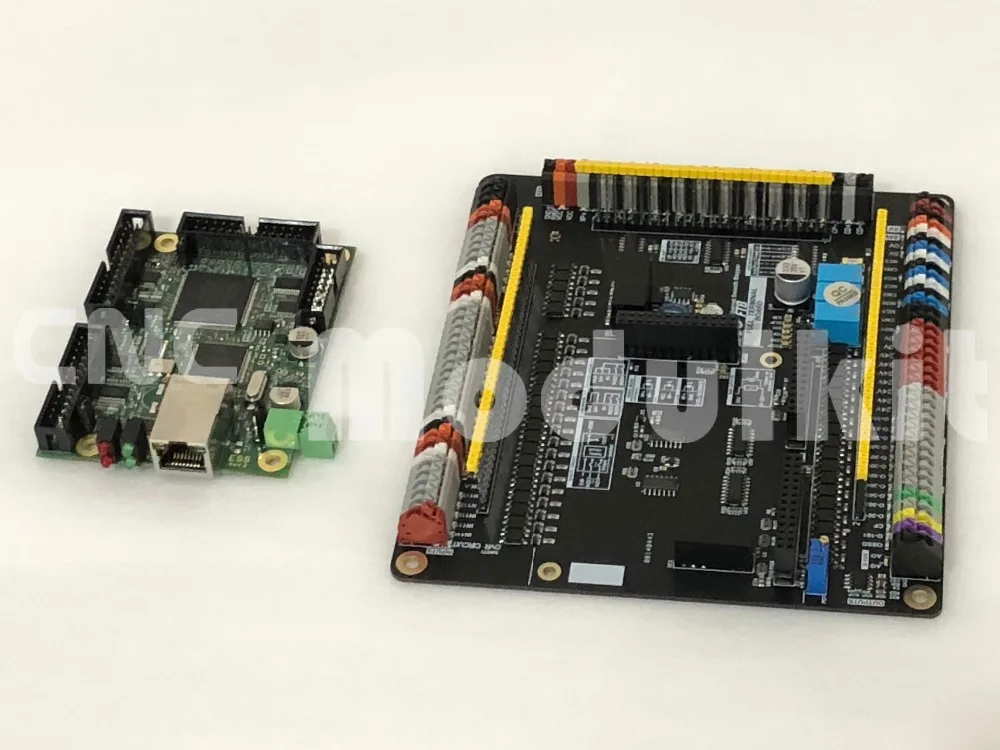

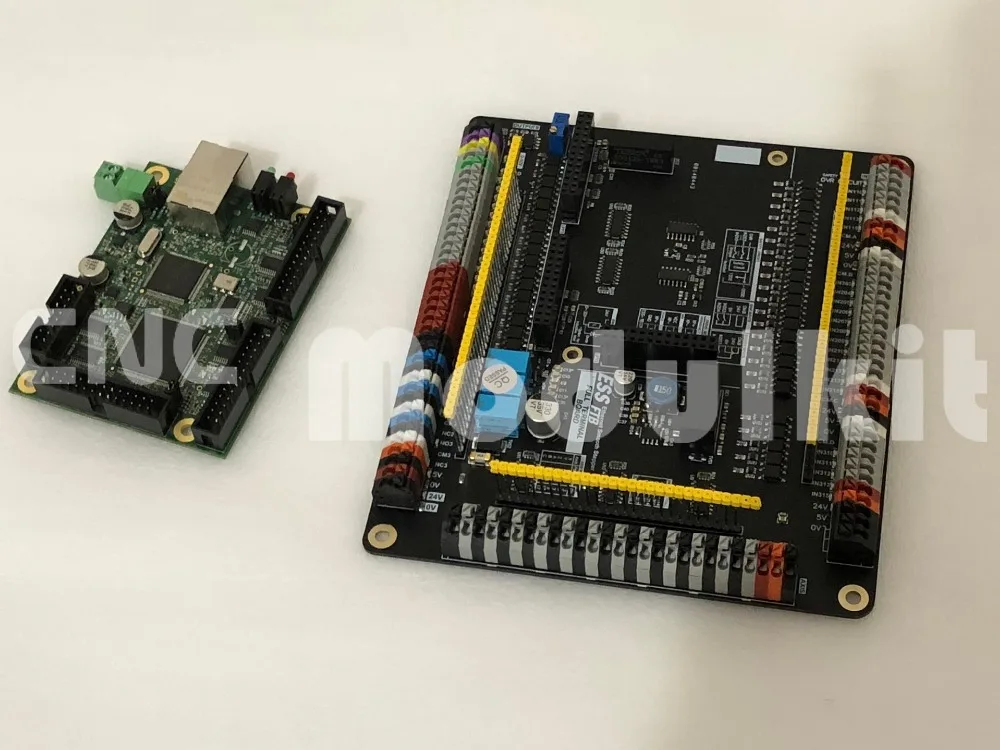

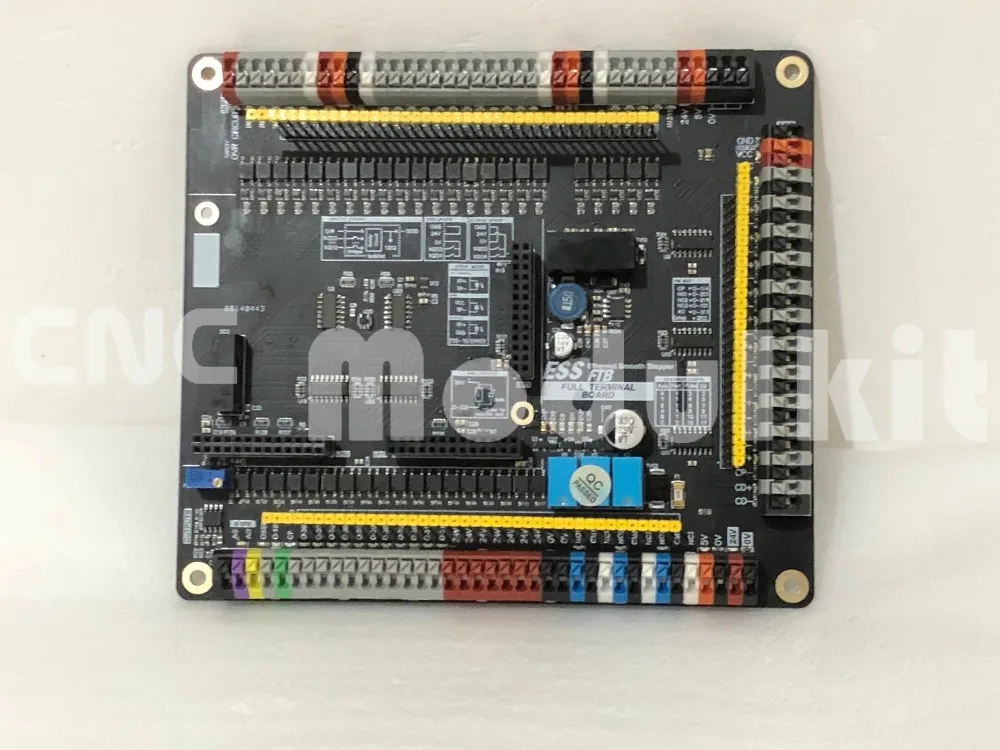

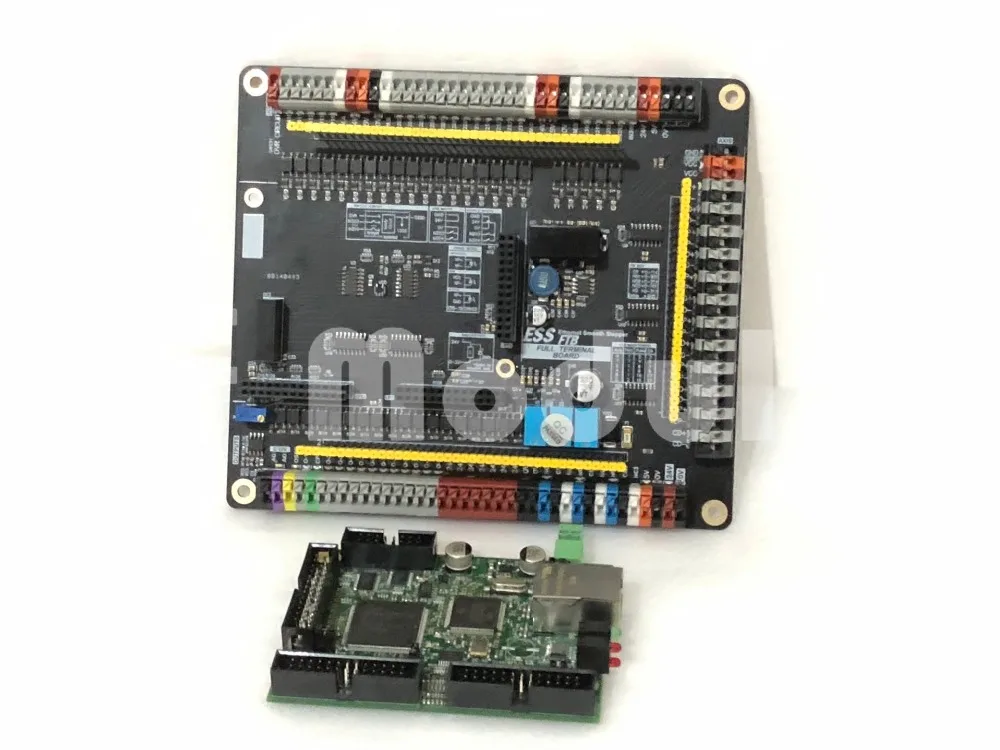

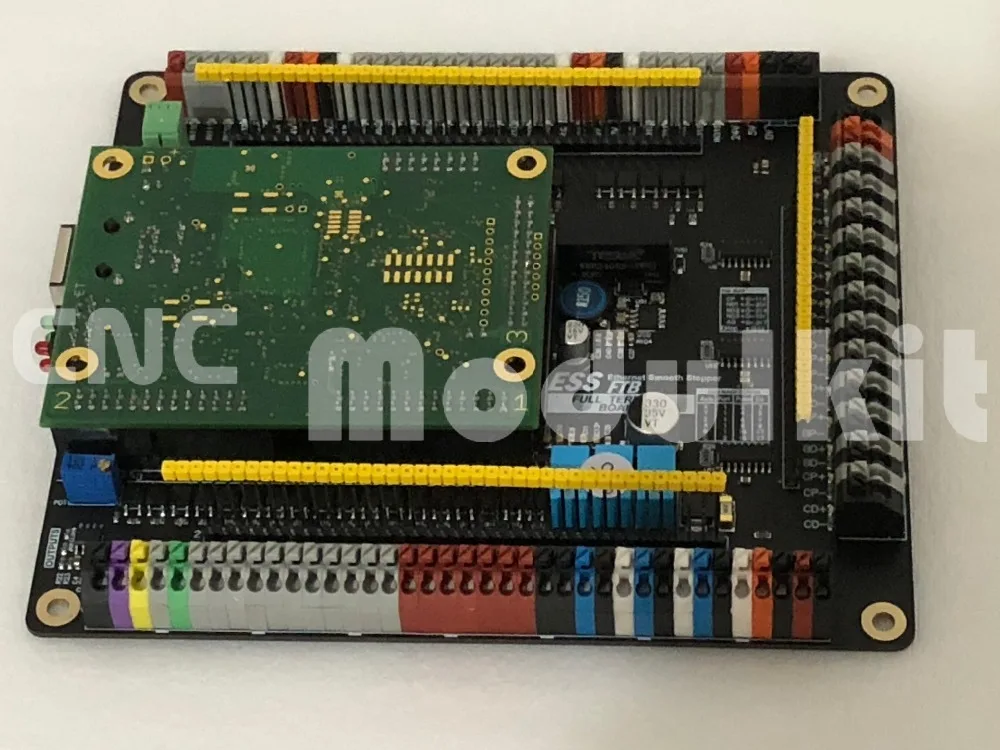

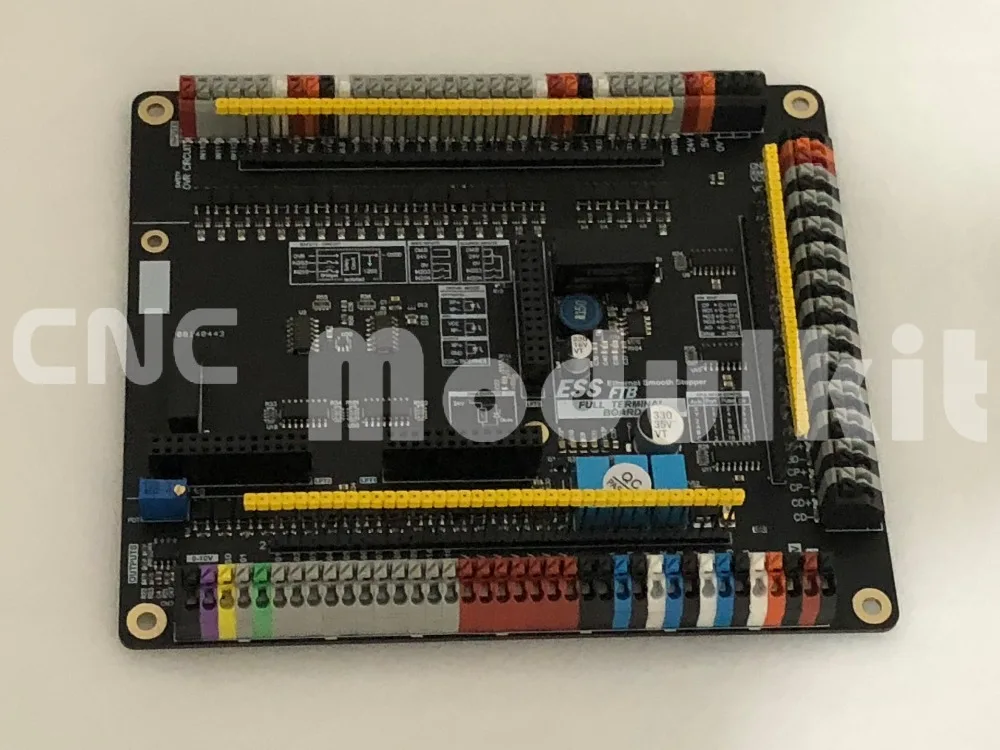

The ESS BOARD PICTURES:
