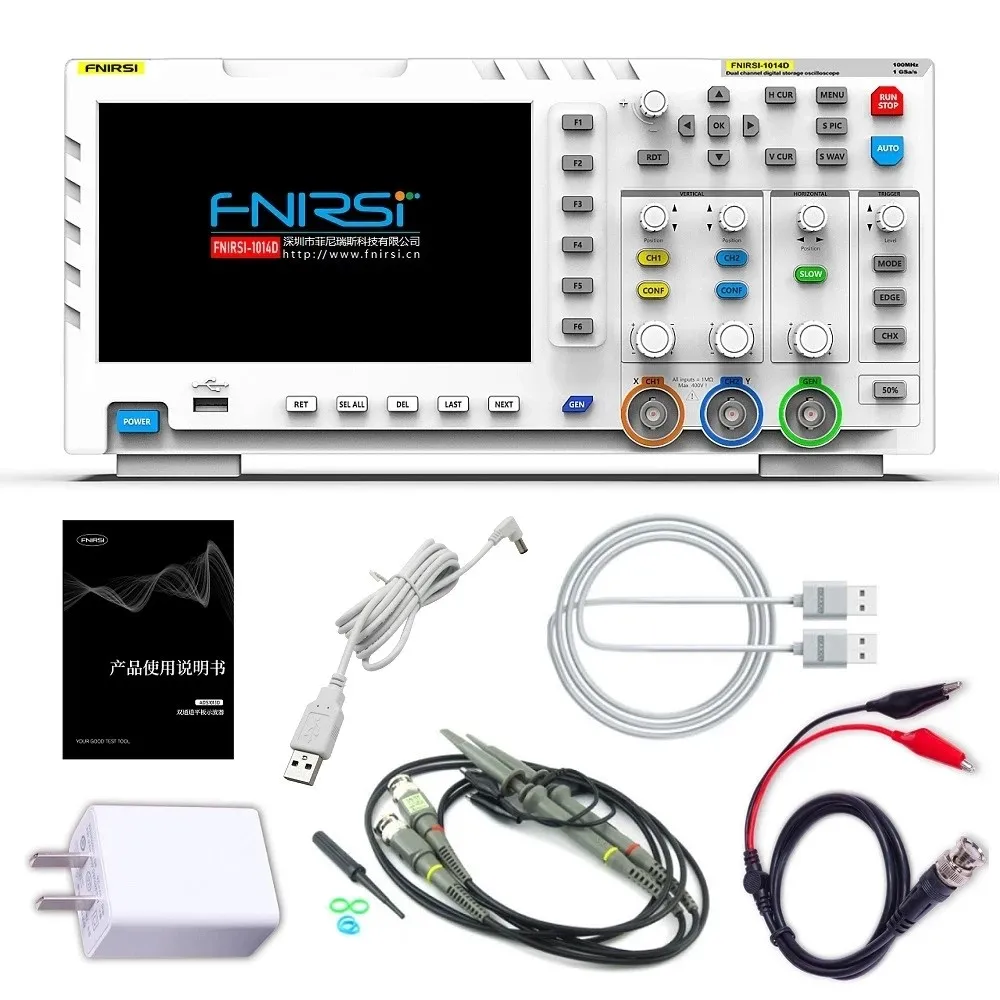

FNIRSI-1014D Digital Vitural Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100MHz* Ana-log Bandwidth Logic Analyzer |
13 108,19 руб.
FNIRSI-1014D 100MHz Digital Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100MHz* Ana-log 1GSa/s Sampling Rate | Инструменты
13 361,87 руб.
FNIRSI-1014D Oscillosco 2 In 1 Dual Channel Input Signal Generator Desktop Oscilloscope Capture Output Function 100MHz | Инструменты
4 694,27 - 13 159,08 руб.
M328 Multi-Purpose Digital Transistor Tester Diode Resistor 128*160 Thyristor Capacitance Meter MOSFET ESR LCR | Инструменты
50 МГц DSO 1GSa/S 2 канальный цифровой осциллограф RIGOL DS1052E | Инструменты
KKmoon 2 4 "цифровой осциллограф tft комплект с блоком питания и bnc-клип кабель зонд
2 508,30 - 3 319,70 руб.
Pro Powers Tools Store
Магазина Pro Powers Tools Store работает с 13.04.2017. его рейтинг составлет 91.44 баллов из 100. В избранное добавили 4155 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 2061 наименований товаров, успешно доставлено 24721 заказов. 1659 покупателей оставили отзывы о продавце.
Характеристики
Hantek 1008C 8 Channel Oscilloscope Virtual Automotive USB DAQ Signal Generator | Инструменты
История изменения цены
*Текущая стоимость 9 803,15 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-22-2026 | 12450.50 руб. | 12699.51 руб. | 12574.5 руб. |
| Jan-22-2026 | 10097.61 руб. | 10299.0 руб. | 10198 руб. |
| Dec-22-2025 | 12254.95 руб. | 12499.71 руб. | 12376.5 руб. |
| Nov-22-2025 | 12156.56 руб. | 12399.52 руб. | 12277.5 руб. |
| Oct-22-2025 | 9705.16 руб. | 9899.19 руб. | 9802 руб. |
| Sep-22-2025 | 11960.79 руб. | 12199.60 руб. | 12079.5 руб. |
| Aug-22-2025 | 11862.99 руб. | 12099.53 руб. | 11980.5 руб. |
| Jul-22-2025 | 11764.77 руб. | 11999.12 руб. | 11881.5 руб. |
Описание товара
Hantek 1008C 8 Channel Oscilloscope Virtual Automotive USB Oscilloscope DAQ Signal Generator
Features:
- 8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performer/Starter and charging circuits etc.).
- Video Help Function, provides the video help of diagnostic which can be watching online
- The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data.
- Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.
- Transmit signals through USB 2.0 interface plug and play, and no need extra power supply
Specification:
| Vehicle Diagnosis |
Vehicle Diagnostic Function | Ignition | Primary Ignition (Voltage) |
| Primary Ignition（current） | |||
| Primary Ignition（Voltage& Current） | |||
| Primary Ignition (Crankshaft Sensor) | |||
| Primary Ignition&Secondary Ignition | |||
| Secondary | Secondary Ignition Distributor Type (Plug Lead) | ||
| Secondary Ignition Distributor Type (King Lead) | |||
| Secondary DIS (Positive-fired) | |||
| Secondary DIS or CPC (Negative-fired)） | |||
| Secondary Coil Output Diagnosis | |||
| Secondary Ignition&Primary Ignition | |||
| Sensors | Air Flow Meter | Air Flow Meter (Hot Wire) | |
| Air Flow Meter (Air Vane) | |||
| Air Flow Sensor (Diesel) | |||
| Air Intake Pressure Sensor (Diesel) | |||
| Camshaft | Camshaft (Inductive) | ||
| Camshaft (AC Excited) | |||
| Camshaft (Hall Effect) | |||
| Camshaft (Common Rail Diesel) | |||
| Crankshaft | Crankshaft Inductive Running | ||
| Crankshaft Inductive Cranking | |||
| Crankshaft Hall Effect | |||
| Crankshaft Sensor &Primary Ignition | |||
| Distributor | Distributor Pick-up (Hall Effect) | ||
| Distributor Inductive Pick-up Cranking | |||
| Distributor Inductive Pick-up Running | |||
| Lambda Sensors | Lambda Sensor Titania | ||
| Lambda Sensor Zirconia | |||
| Lambda Sensor Zirconia Pre & Post cat | |||
| Throttle Position | Throttle Position Potentiometer | ||
| Throttle Position Switch | |||
| Throttle Pedal Switch (Diesel) | |||
| ABS Digital Speed Sensor | |||
| ABS Analog Speed Sensor | |||
| Coolant Temperature (5V) | |||
| Coolant Temperature | |||
| Crash Sensor | |||
| MAP Analog | |||
| MAP Digital | |||
| Hall Effect Road Speed Sensor | |||
| Accelerator Pedal (Diesel) | |||
| Bus Diagnosis | CAN Bus | CAN Bus Data View | |
| CAN Bus Signal Integrity | |||
| CAN Bus LH Long Capture | |||
| LIN Bus | LIN Bus | ||
| Engine | Petrol | Single-point Injector (Voltage) | |
| Single-point Injector (Current) | |||
| Multi-point Injector (Voltage) | |||
| Multi-point Injector (Current) | |||
| Injector Voltage & Current | |||
| Injector Current & Primary Ignition | |||
| Diesel | Common Rail Diesel (Current) | ||
| Injector CDi 3 (Current) | |||
| Injector Diesel (Idling) | |||
| Injector Diesel (Accelerating) | |||
| |
Diesel Glow Plugs | ||
| Electronic Fuel Pump | |||
| Carbon Canister Solenoid Valve | |||
| ERG Recirculation Solenoid Valve | |||
| Stepper Motor Example 1 | |||
| Stepper Motor Example 2 | |||
| Idle Speed Control Valve (Rotary) | |||
| Idle Speed Control Valve (Electromagnetic) | |||
| Throttle Servomotor (Idling) | |||
| Throttle Servomotor (Accelerating) | |||
| CDi3 Quantity Control Valve | |||
| CDi3 Pressure Regulator Valve | |||
| Variable-Speed Cooling Fan On | |||
| Variable-Speed Cooling Fan Off | |||
| Variable Camshaft Valve Timing | |||
| Startup & Charge | Charging Circuits | Charging Circuits Current/Voltage | |
| Charging Circuits Current/Voltage Starting 24V | |||
| Charging Circuits Current/Voltage Idling 24V | |||
| Charging Circuits Alternator AC Ripple/Diode Diagnosis | |||
| |
Relative Compression Petrol | ||
| Relative Compression Diesel | |||
| Starting Voltage Drop | |||
| General Oscilloscope | Model | Hantek1008C | |
| Analog Channel | 8 | ||
| Input Impedance | Resistance: 1MΩ | ||
| Input Sensitivity | 10mV/div to 5V/div | ||
| Input Coupling | DC | ||
| Resolution | 12 bits | ||
| Memory Depth | 4K | ||
| Max. Input | 400V (DC+AC ) | ||
| Real-Time Sampling Rate | 2.4MSa/s | ||
| Time BaseRange | 1ns/div to 20000s/div(1-2-5sequences) | ||
| Time Base Precision | ±50ppm | ||
| Trigger Source | CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 | ||
| Trigger Mode | Edge | ||
| X-Axis Input | CH1 | ||
| Y-Axis Input | CH2 | ||
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot | ||
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | ||
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes | ||
| Waveform Signal Process | +,- , x,/, FFT, Invert | ||
| Voltage Range | 10mV to 5V/div @ x 1 probe | ||
| 100mV to 50V/div @ x 10 probe | |||
| 10V to 5000V/div @ x 1000 probe | |||
| 100V to 50000V/div @ x 10000 probe | |||
| 200mV to 100V/div @ 20:1 | |||
| Current Range | 100mA to50.0A/div @ CC65(20A) | ||
| 1000mA to500.0A/div @ CC65(65A) | |||
| 1A to100.0A/div @ CC650(60A) | |||
| 1A to200.0A/div @CC1100(100A) | |||
| 10A to2000.0A/div @CC1100(1100A) | |||
| FFT | Rectangular, Hanning, Hamming, Blackman Window | ||
| Math | Addition, subtraction, multiplication, division | ||
| Interface | USB 2.0(Full Speed) | ||
| Power | No need extra power supply | ||
| Size&Weight | 22.5*19*4cm/8.9*7.5*1.6in 1593g/56.2oz |
||
| |
|||
| High pressure ignition probe | 1 | ||
| Programmable signal generator | Channel | 8CH | |
| Output Level | LVTTL | ||
| Frequency Range | 0-250kHz | ||
Package list:
1 x USB Oscilloscope
8 * clip to BNC cable1 * USB data cable
1 * black bag
1 * secondary ignition probe
1 * CD
