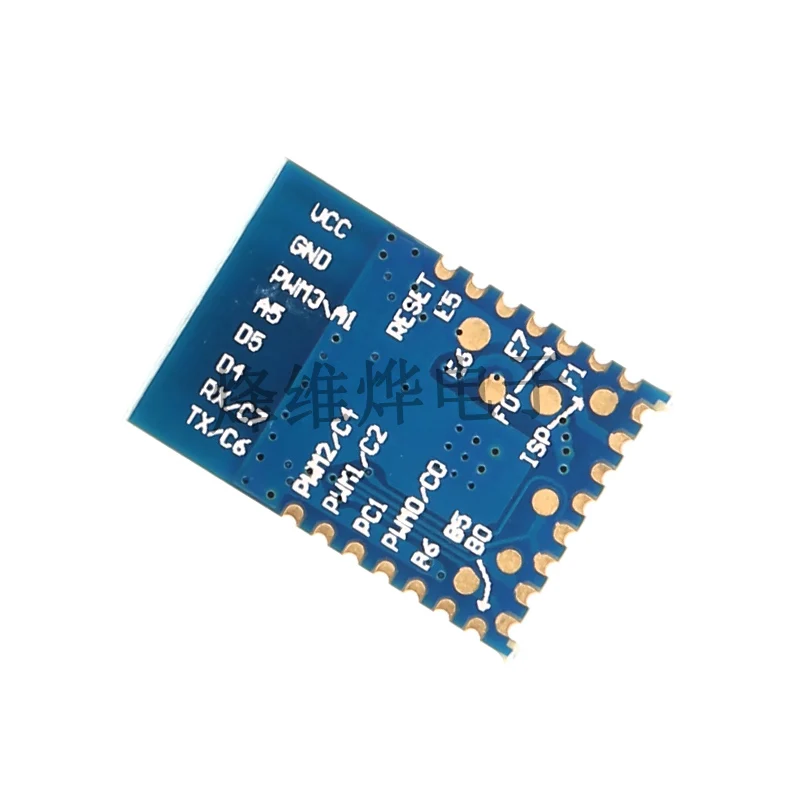

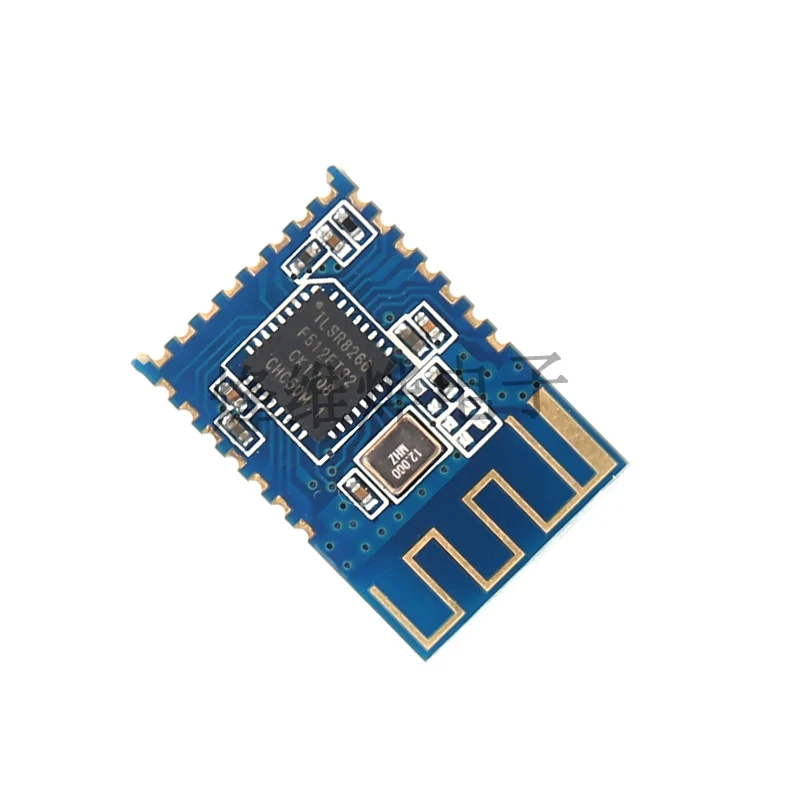

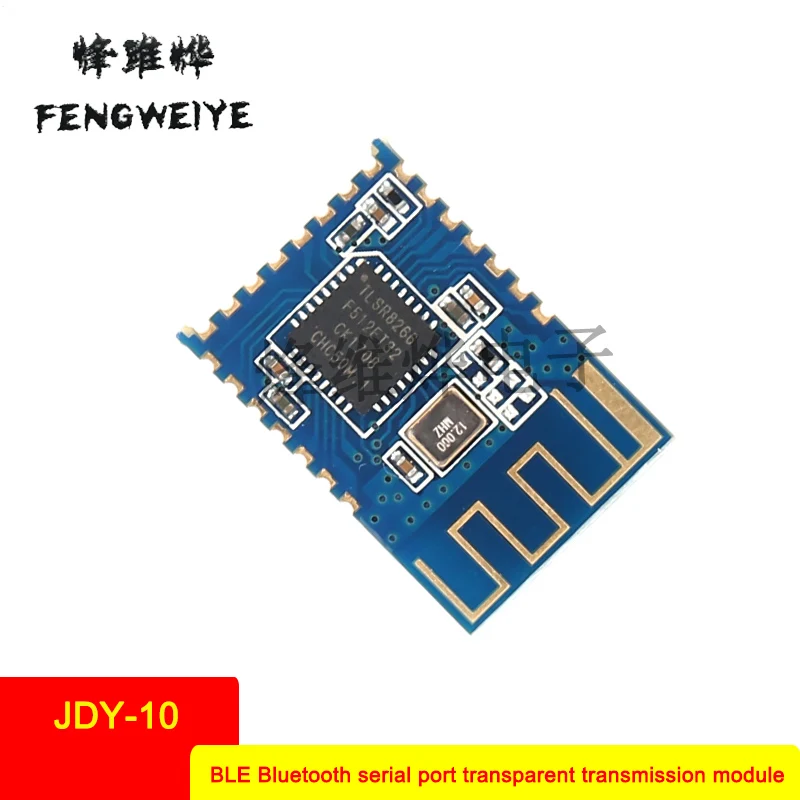

Panel JDY-10 Bluetooth 4.0 module BLE serial port transparent transmission Compatible with CC2541 | Обустройство дома
История изменения цены
*Текущая стоимость US $4.95 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 5.90 руб. | 5.60 руб. | 5 руб. |
| Feb-20-2026 | 5.45 руб. | 5.4 руб. | 5 руб. |
| Jan-20-2026 | 4.81 руб. | 4.1 руб. | 4 руб. |
| Dec-20-2025 | 5.98 руб. | 5.58 руб. | 5 руб. |
| Nov-20-2025 | 4.11 руб. | 4.53 руб. | 4 руб. |
| Oct-20-2025 | 5.92 руб. | 5.38 руб. | 5 руб. |
| Sep-20-2025 | 5.78 руб. | 5.93 руб. | 5 руб. |
| Aug-20-2025 | 4.80 руб. | 4.18 руб. | 4 руб. |
| Jul-20-2025 | 4.27 руб. | 4.67 руб. | 4 руб. |
Описание товара
Model: JDY-10 Bluetooth 4.0 slave module
Kernel: M0
Communication interface: serial port
Working voltage: 1.9-3.6V
Communication distance: 100 meters (some modules have large transmission power, and the communication distance is much farther than the previous modules.
Working current: 90ua
Suspen mode: 14 uA
Module is: Bluetooth 4.0 slave
Product introductionPrefix = "o" ns = "urn:schemas-microsoft-com:office:office"
JDY-10The transparent transmission module is based on Bluetooth4.0Protocol standard, the working frequency band is2.4GHZRange, modulation method isGFSK, the maximum transmit power is8db, maximum launch distance80Meter, with low power consumption, small size, strong signal, stable data transmission and other characteristics.
product features
1:stand byAndroid,IOSMobile phone data penetration
2: Support low power consumption (standby current can reach severaluA)
3:stand byGPIOversusUARTPeripheral interface
4:stand byATInstruction operation
5:accessibleFCC/CEStandard certification
Product application range
1:BluetoothledLighting
2:Motor adjustment and other products
3: Anti-lost alarm and other products
4: Sports Health Care
5:home appliances
6:vehicle electronics
Technical specifications:
Types of | Specifications | |
Operating Voltage | 1.9 - 3.6V | |
Operating temperature | -40 - 85°C | |
Maximum transmit power | +8dbm | |
antenna | PCBOnboard antenna | |
Receiving sensitivity | -92dbm | |
Average current | Wake mode | 90uA |
Suspenmode | 14 uA | |
Deep Sleepmode | 1uA | |
Factory default configuration:
Service UUID: FFE0
Feature UUID: FFE1
Serial port baud rate: 115200bps
This module is a serial port transparent transmission module (Customizable4roadPWMOutput,15roadIOPort input and output,Customers who need customization can contact the service
ATInstruction Set
Users can communicate with the Bluetooth chip through the serial port. The serial port uses Tx, Rx two signal lines, and the baud rate is supported.
Hold 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200. The default baud rate of the serial port is 115200bps.
Instruction set details
(Note: You must enter and enter the line when you send the AT command. The AT command can only take effect when the module is not connected. Once the blue is enabled.
When the tooth module is connected to the device, the Bluetooth module enters the data transparent transmission mode)
Detailed instructions
(The AT command is case sensitive and ends with a carriage return or line feed character: rn)
1, Get the version number:
instruction | response | parameter |
AT+VER | + | Param:version default:+JDY-10-V1.8 |
2, Get the Bluetooth MAC address
instruction | response | parameter |
AT+MAC | +MAC: | Param:MACaddress |
3, Set the Bluetooth name
instruction | response | parameter |
AT+NAME | OK | Param:Bluetooth name Default name:JDY-10 longest18byte |
4, Set / Query - Transmit Power
instruction | response | parameter |
AT+POWE AT+POWE | OK +POWE: | Param:(0-5) 0:8db 1:5db 2:0db 3:-5db 4:-10db 5:-13db |
1, Set / Query - Serial Port Baud Rate
instruction | response | parameter |
AT+BAUD | OK | Param:(0-7) 0:115200 bps 1:57600 bps 2:38400 bps 3:19200 bps 4:14400 bps 5:9600 bps 6:4800 bps 7:2400 bps |
AT+BAUD | +BAUD: |
2, Settings / Query - Broadcast Interval
instruction | response | parameter |
AT+ADVINT | OK | Param:(0-6) 0:100ms 1:100ms 2:250ms 3:500ms 4:1600ms 5:3200ms 6:4800ms |
AT+ADVINT | +ADVINT: |

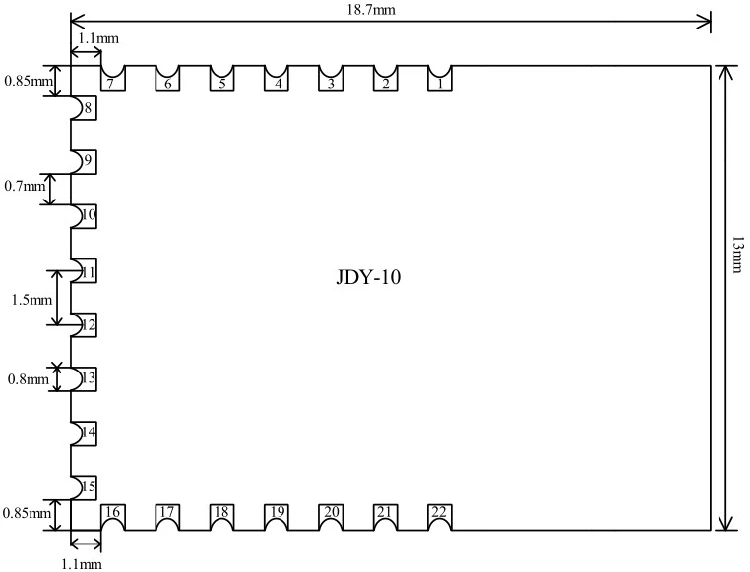

Size package
