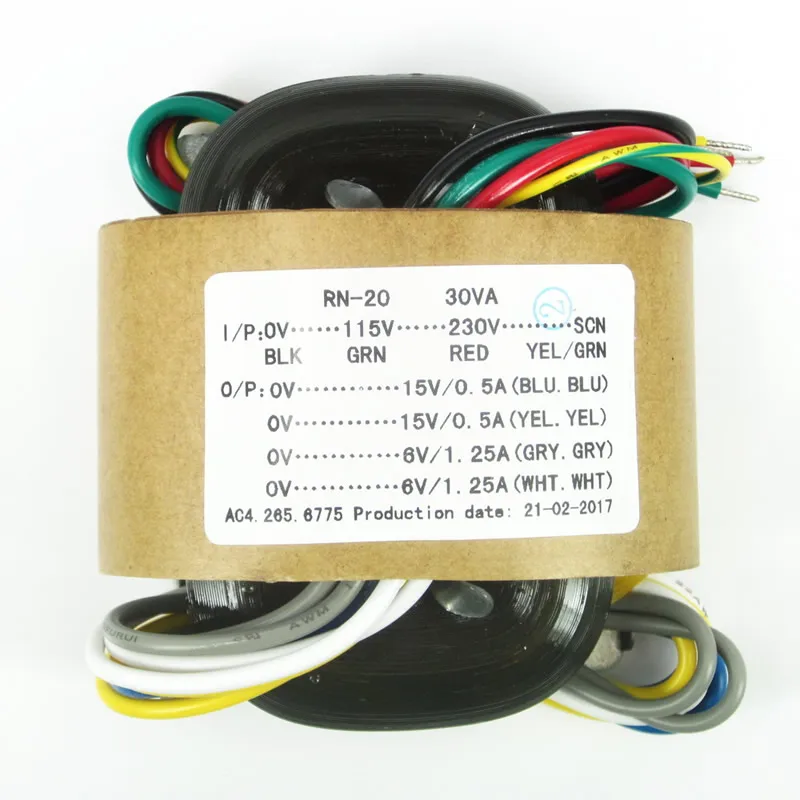

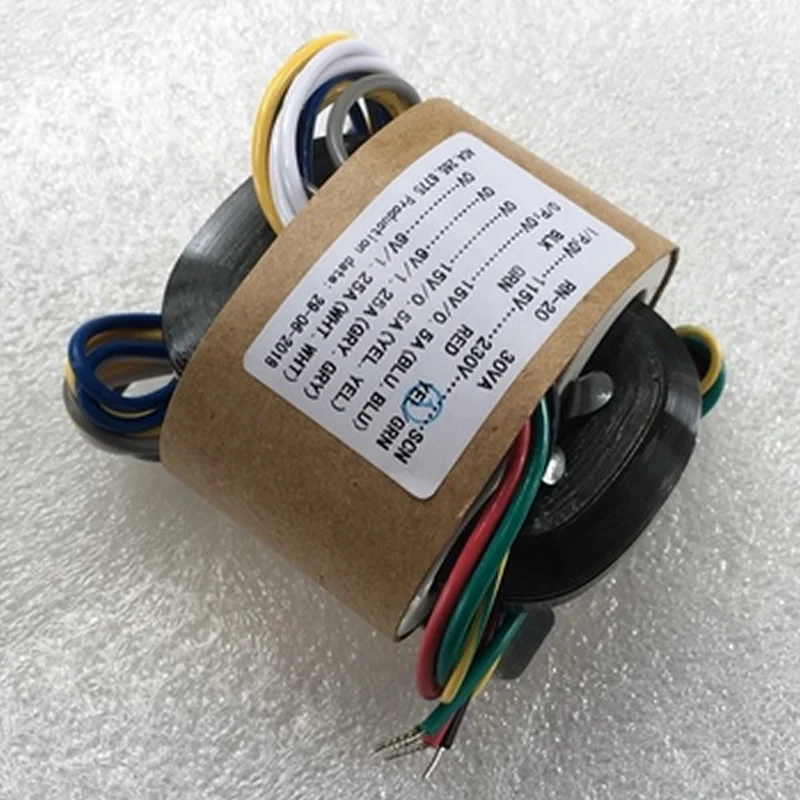

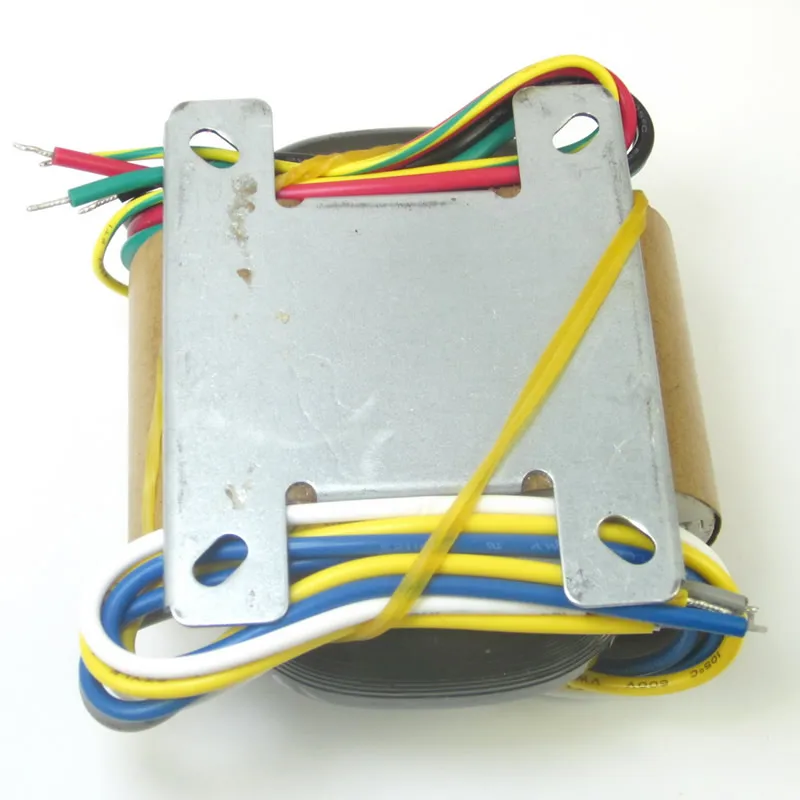

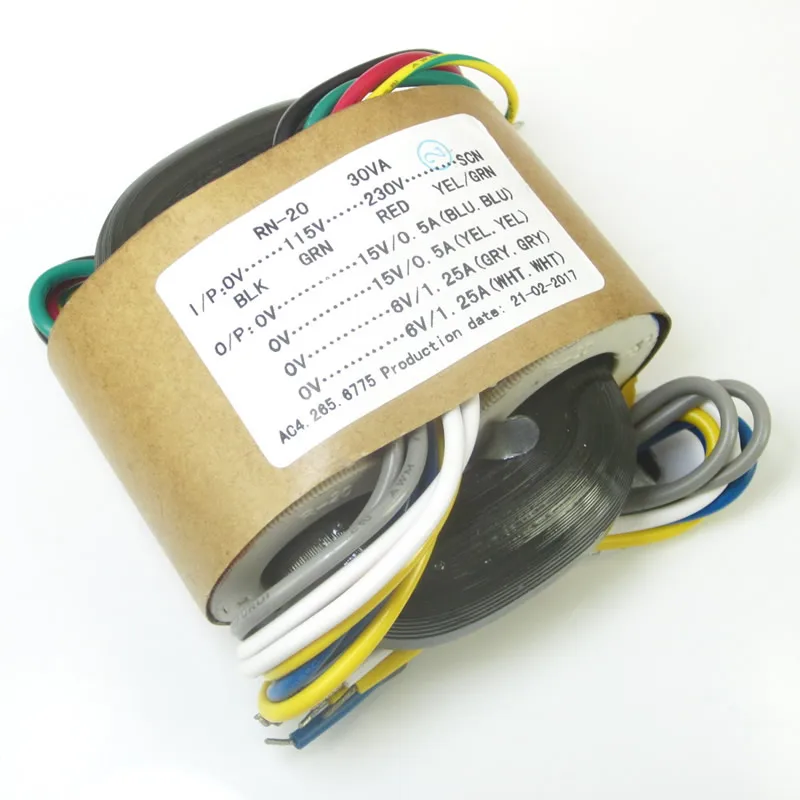

R type power transformer, dedicated audible design, customized Imported iron core material with Japanese silicon steel sheet, oxygen-free copper enameled wire, all independently and with shielded wire output, precision manufacturing Import materials, professional production, welcome batch order. Size: 80 x 68 x 40 (mm) weight is about 0.5 kg. Input voltage: (International voltage to universal! ) Primary: 0V-115V-230V- shielded wire (4 lines) Secondary: double 15V (0.5A) + double 6V (1.25A) all 4 lines. 0 ~ 15V 0.5A, 0 ~ 15V 0.5A, 2 group (4 lines) 0 ~ 6V 1.25A, 0 ~ 6V 1.25A, 2 group (4 lines) Two groups are 4 lines, if you want to make 3 lines. After the two groups are tiled, take the middle two lines of different colors, that is, 0V. SCN green yellow yellow double color line is the ground wire. BLU blue WHT white VIO purple BRN Brown GRY grey ORG orange RED red YEL yellow GRN green
