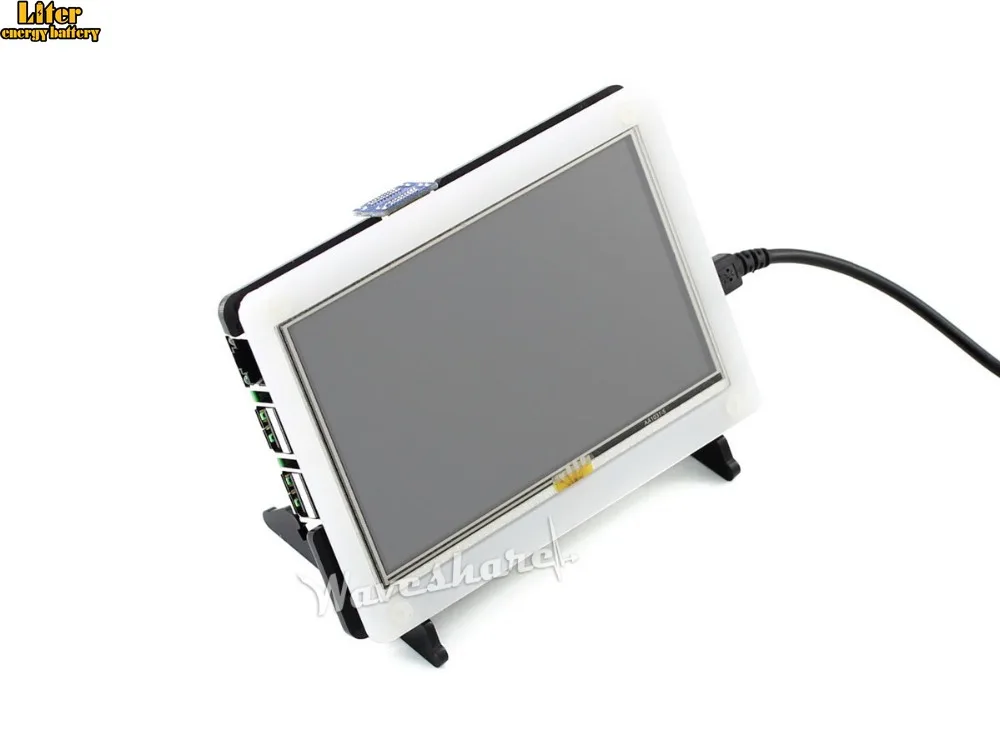

Двухцветный чехол для Raspberry Pi 5 дюймов LCD сочетает 5-дюймовый HDMI и в одном

Двухцветный чехол для Raspberry Pi 5 дюймов LCD сочетает 5-дюймовый HDMI и в одном

QFP64 TQFP64 LQFP64 PQFP64 OTQ-64-0.5-01 Enplas QFP IC Test Burn-In Socket 0.5mm Pitch | Компьютеры и офис

QFP64 TQFP64 LQFP64 PQFP64 OTQ-64-0.5-01 Enplas QFP IC Test Burn-In Socket 0.5mm Pitch | Компьютеры и офис

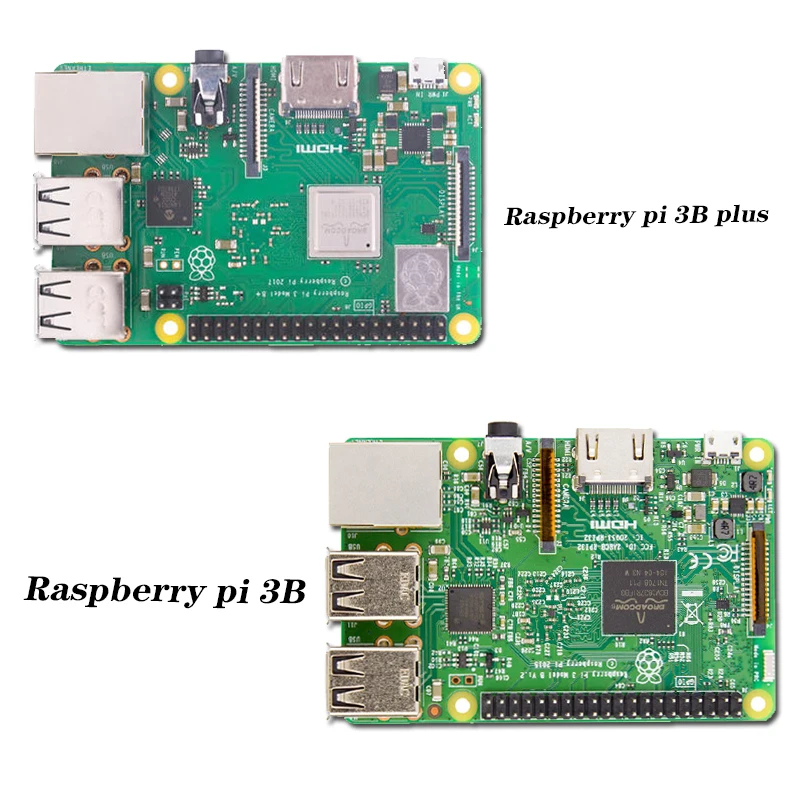

Raspberry Pi 3b 3 3B с Wi-Fi и Bluetooth plus raspberry pi | Компьютеры офис

Raspberry Pi 3b 3 3B с Wi-Fi и Bluetooth plus raspberry pi | Компьютеры офис

EVK407I = STM32 плата STM32F407IGT6 Cortex-M4 с USB HS/FS Ethernet NandFlash JTAG/SWD для UART 3 2 𧌠x240 Touch LCD |

EVK407I = STM32 плата STM32F407IGT6 Cortex-M4 с USB HS/FS Ethernet NandFlash JTAG/SWD для UART 3 2 𧌠x240 Touch LCD |

Waveshare Development Kit Store

Waveshare Development Kit Store

Магазина Waveshare Development Kit Store работает с 23.11.2012. его рейтинг составлет 97.03 баллов из 100. В избранное добавили 4826 покупателя. Средний рейтинг торваров продавца 4.9 в продаже представленно 1719 наименований товаров, успешно доставлено 4803 заказов. 874 покупателей оставили отзывы о продавце.

Характеристики

SMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | Компьютеры

История изменения цены

*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Mar-21-2026 0.87 руб. 0.17 руб. 0 руб.
Feb-21-2026 0.87 руб. 0.73 руб. 0 руб.
Jan-21-2026 0.52 руб. 0.83 руб. 0 руб.
Dec-21-2025 0.97 руб. 0.33 руб. 0 руб.
Nov-21-2025 0.42 руб. 0.10 руб. 0 руб.
Oct-21-2025 0.3 руб. 0.59 руб. 0 руб.
Sep-21-2025 0.67 руб. 0.63 руб. 0 руб.
Aug-21-2025 0.26 руб. 0.10 руб. 0 руб.
Jul-21-2025 0.35 руб. 0.13 руб. 0 руб.

Описание товара

SMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | КомпьютерыSMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | КомпьютерыSMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | КомпьютерыSMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | КомпьютерыSMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | КомпьютерыSMD258C Two-Phase Hybrid Stepper Motor Driver supports 16 grades setting resolution up to 40000S/R Applied CNC equipment etc | Компьютеры

DESCRIPTION

Note: stepper motor in the photos is not included.

SMD258C Two-Phase Hybrid Stepper Motor Driver, Resolution up to 40000S/R

Overview

The SMD258C is a two-phase motor driver for hybrid stepper motors, supports 16 grades setting for both drive current and stepping subdivision, resolution up to 40000S/R. It is widely used in CNC equipment, sculpturing machine, cutting machine, etc.

Features

  • Wide range voltage input (DC 24V~80V)
  • 16 grades stepping subdivision setting, resolution up to 40000S/R
  • 16 grades drive current setting, adjustable between 0.5A/Phase and 5.0A/Phase
  • Supports three control modes: common cathode, common anode, and differential
  • Supports alerts for undervoltage, overvoltage, overheat, overcurrent
  • Supports phase memory when power down
  • Optical isolation for both I/O signal and input signal
  • When the stepping pulse stops over 100ms, coil current will be halved automatically
  • Comes with development resources and manual (examples for Raspberry Pi, STM32, Arduino)

Specifications

  • Operating voltage: DC 24V ~ 80V
  • Signal voltage: 4.2V ~ 24V
  • Drive current: 0.5A ~ 5A
  • Signal frequency: ≤150KHz
  • Control mode: common cathode, common anode, and differential

Applications

The SMD258C is suit for medium or small size CNC equipments which requires high resolution, such as:

  • Sculpturing machine
  • Glue dispenser
  • Automatic screw machine
  • Cutting machine

Demo

[15646] SMD258C

Connections

Symbol Description
PU+ pulse signal optical isolated positive terminal
PU- pulse signal optical isolated negative terminal
DR+ direction signal optical isolated positive terminal
DR- direction signal optical isolated negative terminal
MF+ motor enable signal optical isolated positive terminal
MF- motor enable signal optical isolated negative terminal
A+ stepper motor winding A output positive terminal
A- stepper motor winding A output negative terminal
B+ stepper motor winding B output positive terminal
B- stepper motor winding B output negative terminal
DC+ 24~80V power supply input
DC- power supply ground

Dimensions

[15646] SMD258C

Development Resources

Wiki : www.waveshare.com/wiki/SMD258C

Selection Guide

Part Number Phases Power supply (V) Drive current setting (A) Dimension (mm) Equivalent power (W) Applicable motor
SMD258C two-phase DC 24~80 Im0.5~5.0/Ip0.7~7.0 118×76×34 80~100 57 series, 86 series
SMD356C three-phase DC 24~60 Im1.2~6.0/Ip1.7~8.4 118×76×34 80~100 57 series





PACKAGE CONTENT

Weight: 0.257 kg

Note: stepper motor in the photos is not included.

  1. SMD258C x1
