Описание товара
Supported LCD Model List :
| LTN154CT02-001 | LTN154CT02-002 | LTN170CT01-001 | LTN170CT01-L01 |
| B170UW02 V0 | LQ170M1LA4G | LQ170M1LA4B | LQ170M1LA04 |
| LQ170M1LG1K | LQ0DZA0051 |
|
|
|
|
|
|
|
Note:
1.If your LCD panel included in above list , You can use current link to create your order directly. But it is better to leave a message to let us know the exact model number of your LCD panel too .
2.If your LCD panel not included in above list , please don’t use current link to create order directly. You can leave a message or contact us directly, and let us know the model number of your LCD panel , our technician will help you to select a best link to create your order.
1. GENERAL DESCRIPTION
M.NT68676.2 is a multi-purpose LCD controller board which support HDMI
DVI+VGA various of video signal input and dual channel 8bit LVDS output interface. LVDS output signal can up to 1920X1200@60Hz.
M.NT68676.2 with Audio function, Support direct Audio signal from HDMI input or external Audio signal input from Audio Jack . The output speaker is 2X1W (8Ω).
M. NT68676.2 Also support Infrared remote control , Backlight Brightness Control(Optional , Need custom firmware), Earphone output .
2. FEATURES
| CHIPSET | NT68676UFG(Novatek) | |
| Support LCD Panel | Interface | Single/Dual LVDS |
| Resolution | Up to 1920X1200@60Hz | |
| Power | For Board | 12V DC Power Supply |
| To LCD Panel | 3.3V,5V,12V | |
| Management | Low Power Consumption Mode | |
| Standby | <0.5 W(Board Only) | |
| OSD Language | Simplified Chinese, English, French, German, Italian, Spanish,Portuguese, Korean (optional) | |
| KEY Function | 7 keys | Power , Menu, Vol-,Vol+,CH-,CH+,Input |
| 5 keys(Default) | Power,Menu,Up,Down,Exit/Enter | |
| Video Input | HDMI | 480i,480p,576i,576p,720p,1080i,1080p |
| DVI | 480i,480p,576i,576p,720p,1080i,1080p | |
| VGA | Analog RGB(0.7Vp-p) V-H SYNC Separator(TTL) | |
| Audio Input | 0.2 ~ 2.0 VRMS | |
| Audio Output | Earphone | |
| Speaker | 2X1W (8Ω) THD+N<10%@1KHz | |
| Extend Function | IR control, Factory Setting , Adjust Backlight Brightness( Optional , DC /PWM Dimming Mode) | |

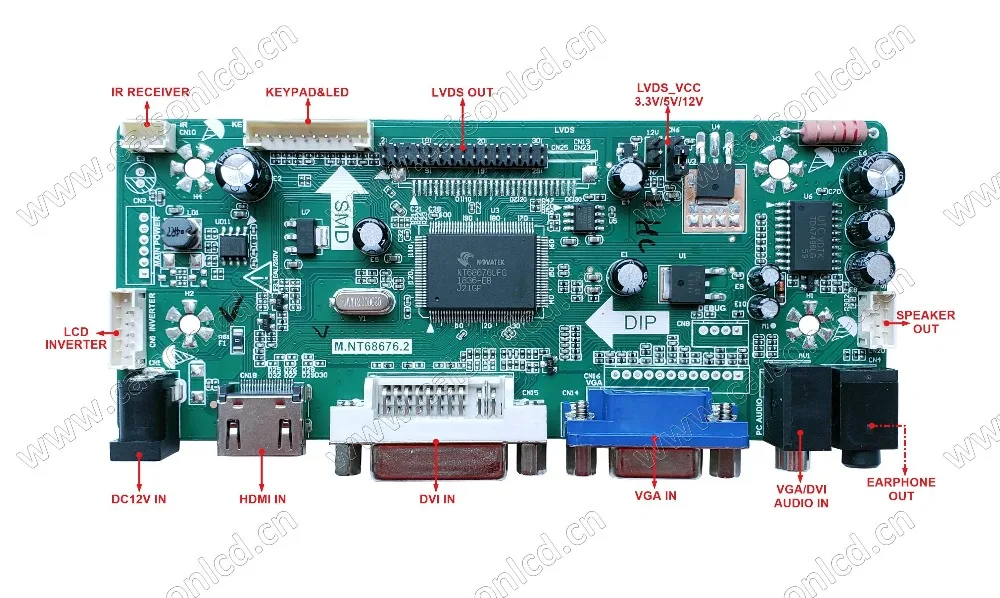

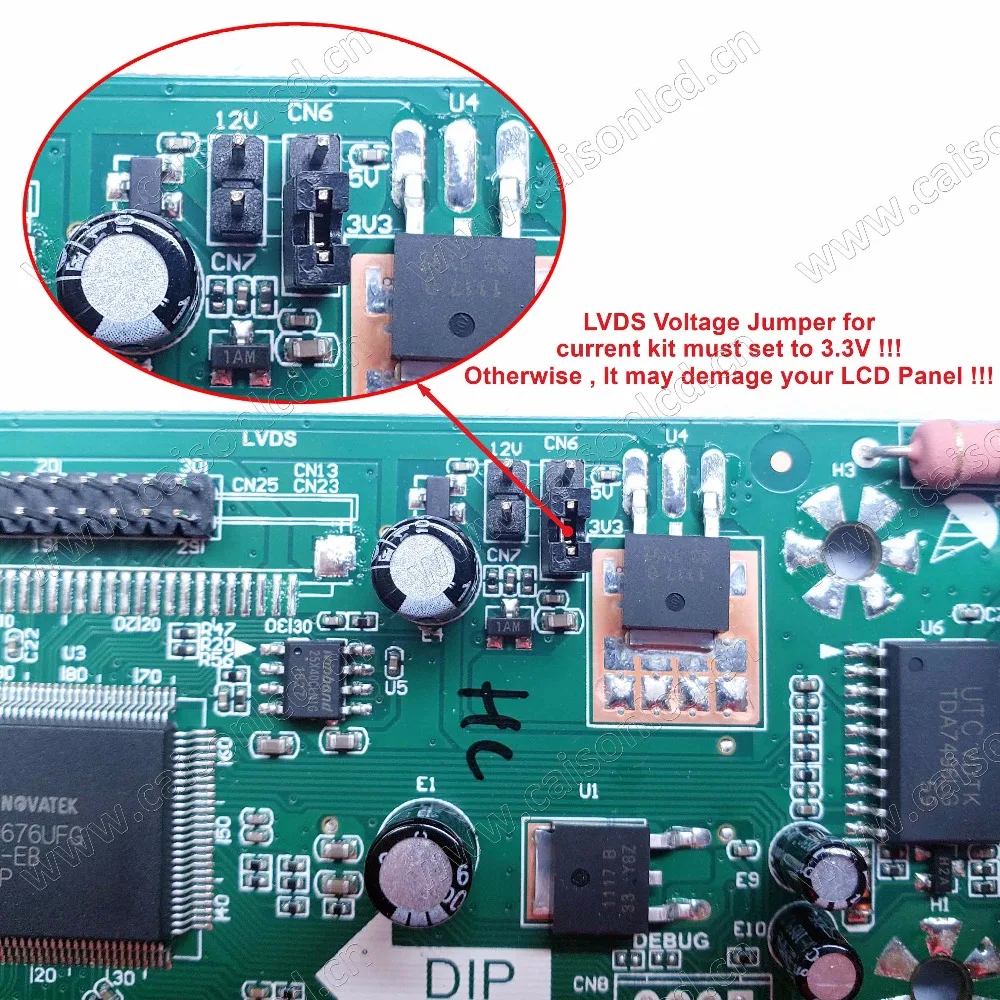

3. FUNCTION LAYOUT
The picture is for a reference only, the actual item is the standard.

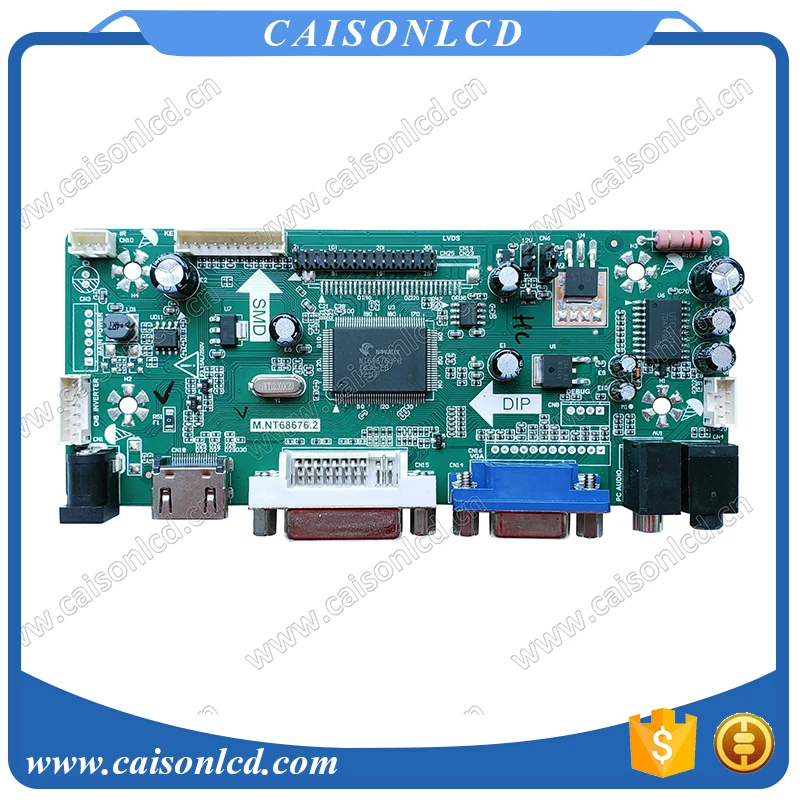

Top View:

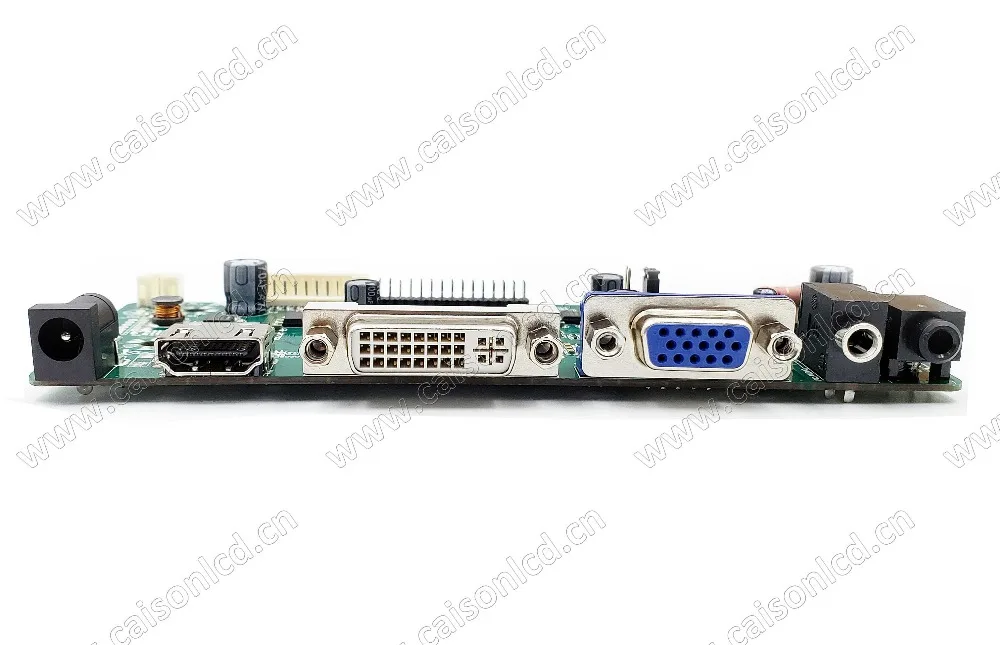

Side View:

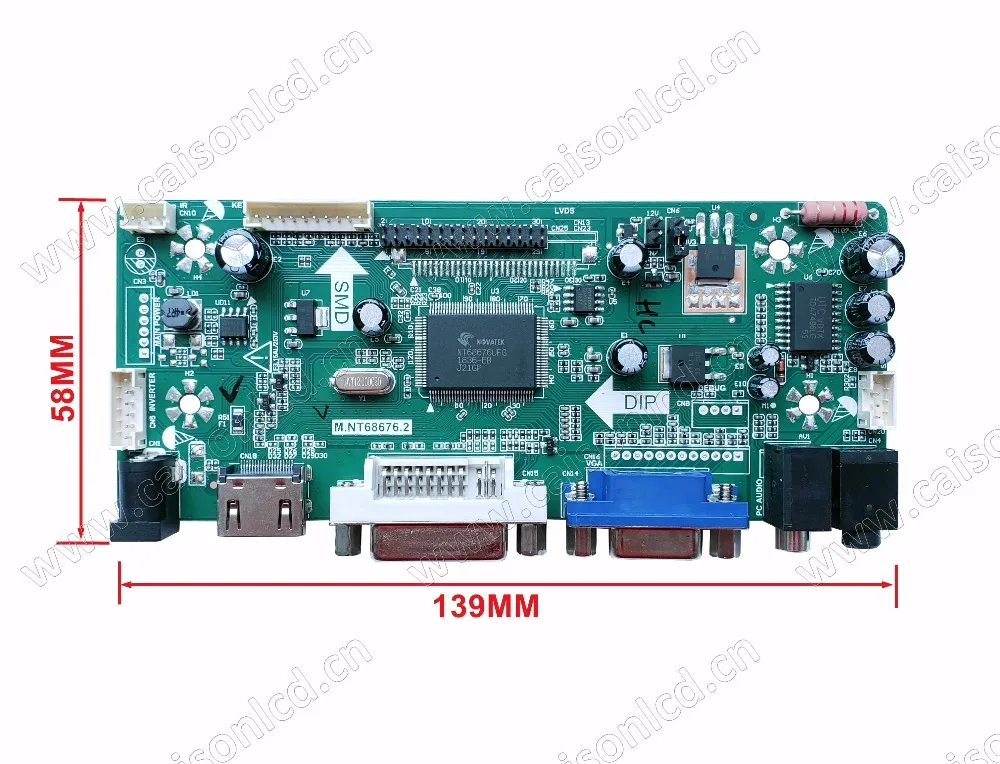

4. PCB DIMENSIONS
The size of M.NT68676.2A is 139mm(L)*58mm(W)*17mm(H).

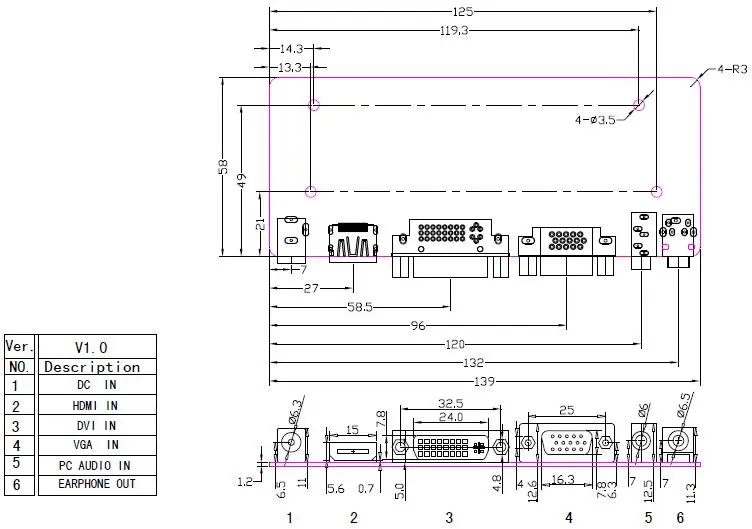

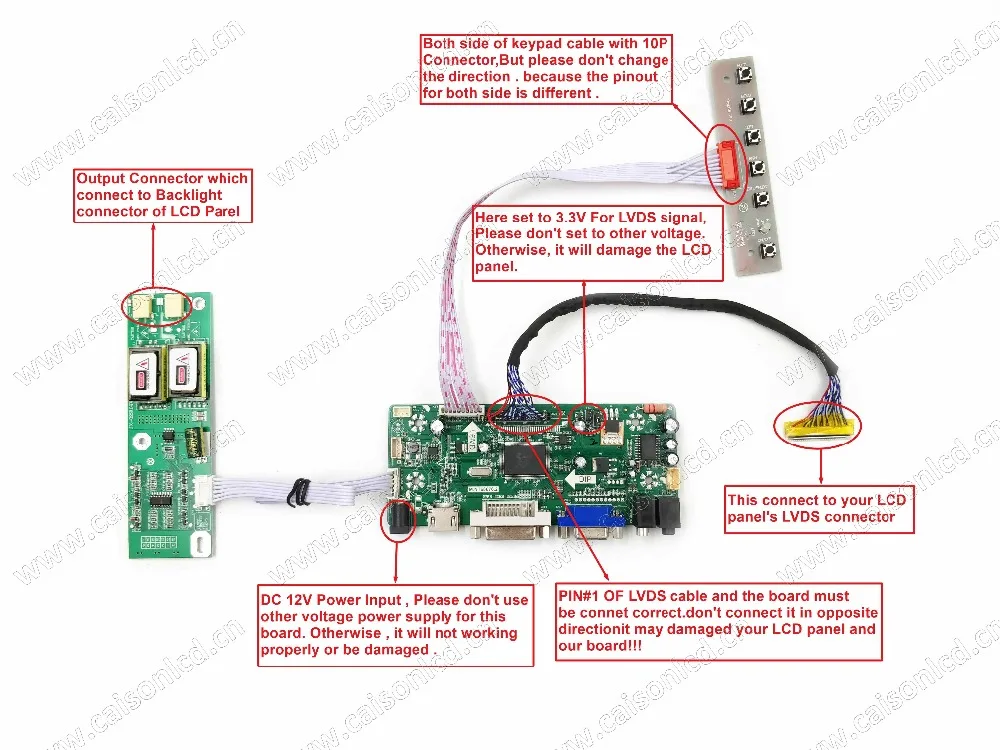

5.Detail Diagram Display

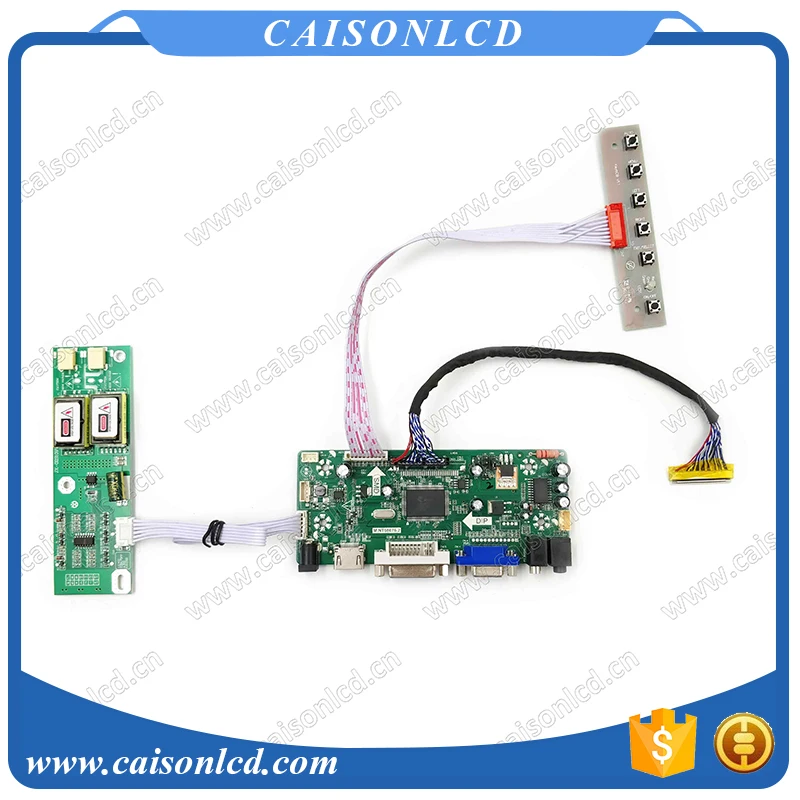

6.PACKING LIST:

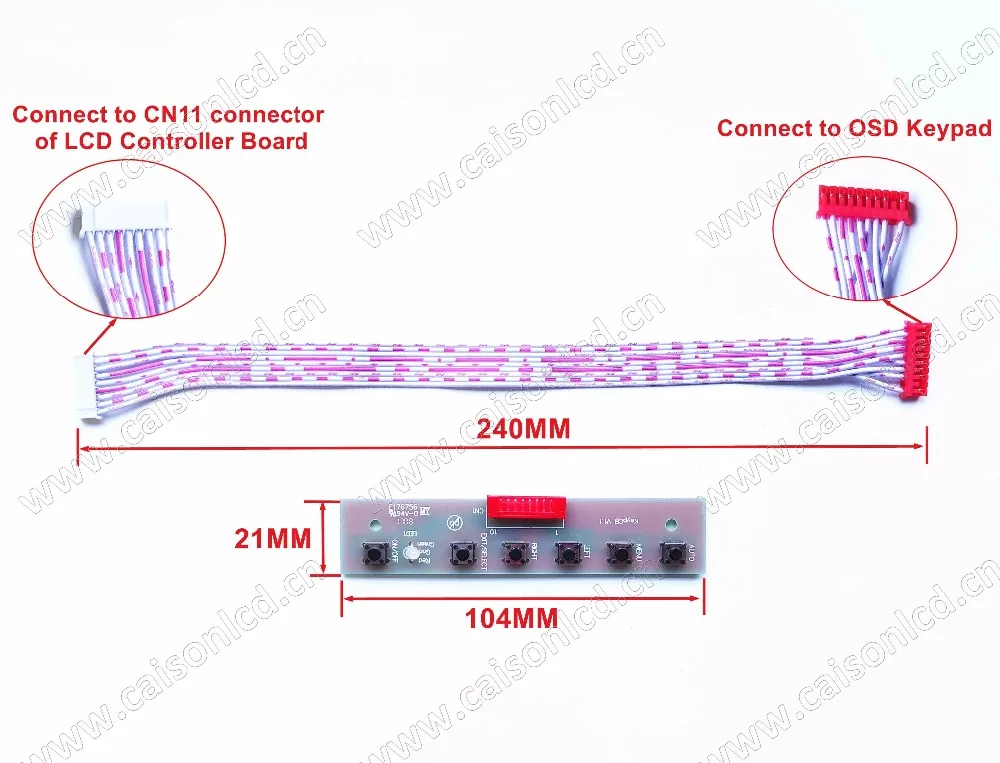

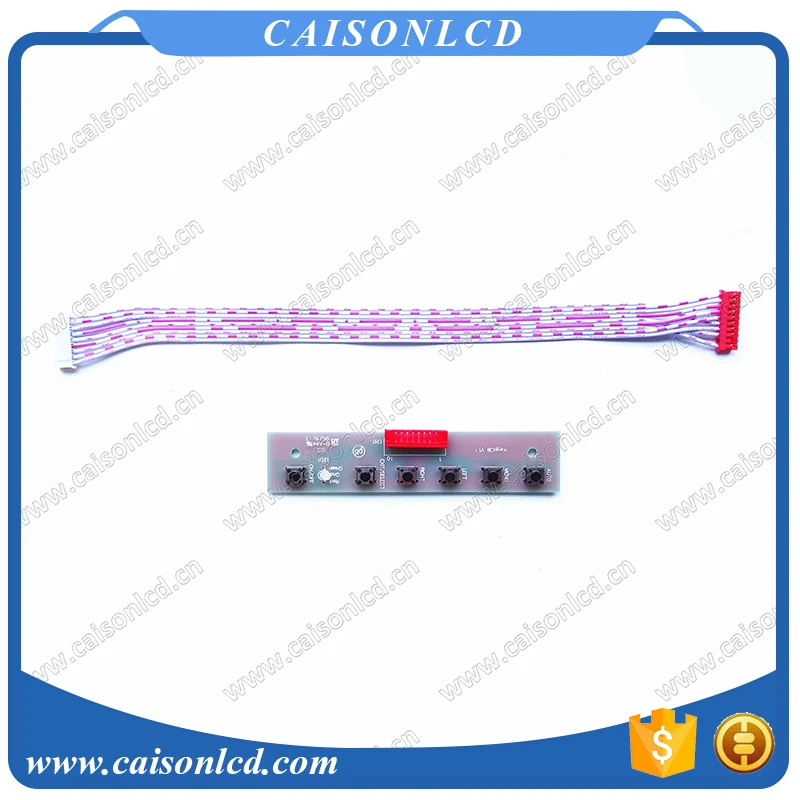

1. OSD keypad X 1Pcs;
2. LCD Controller Board X 1Pcs;
3. Keypad cable X 1Pcs;

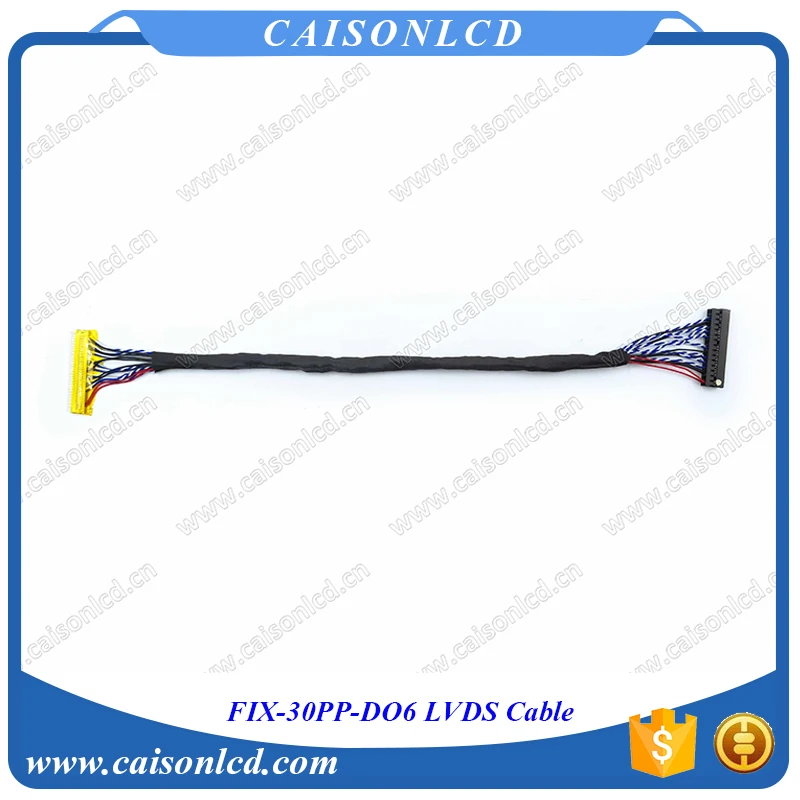

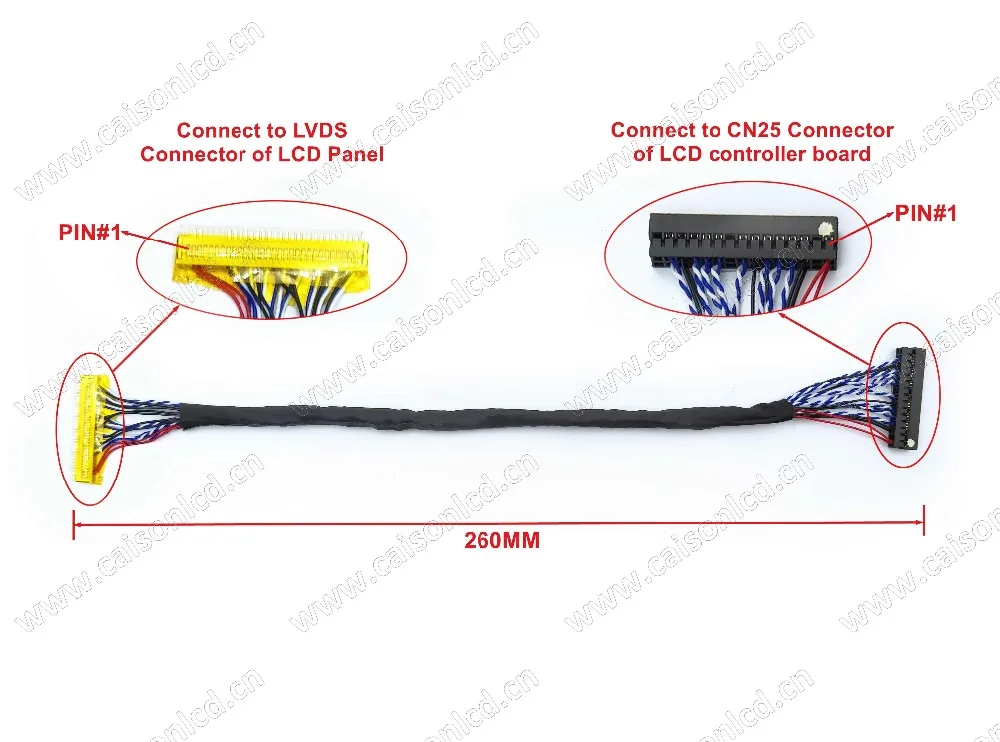

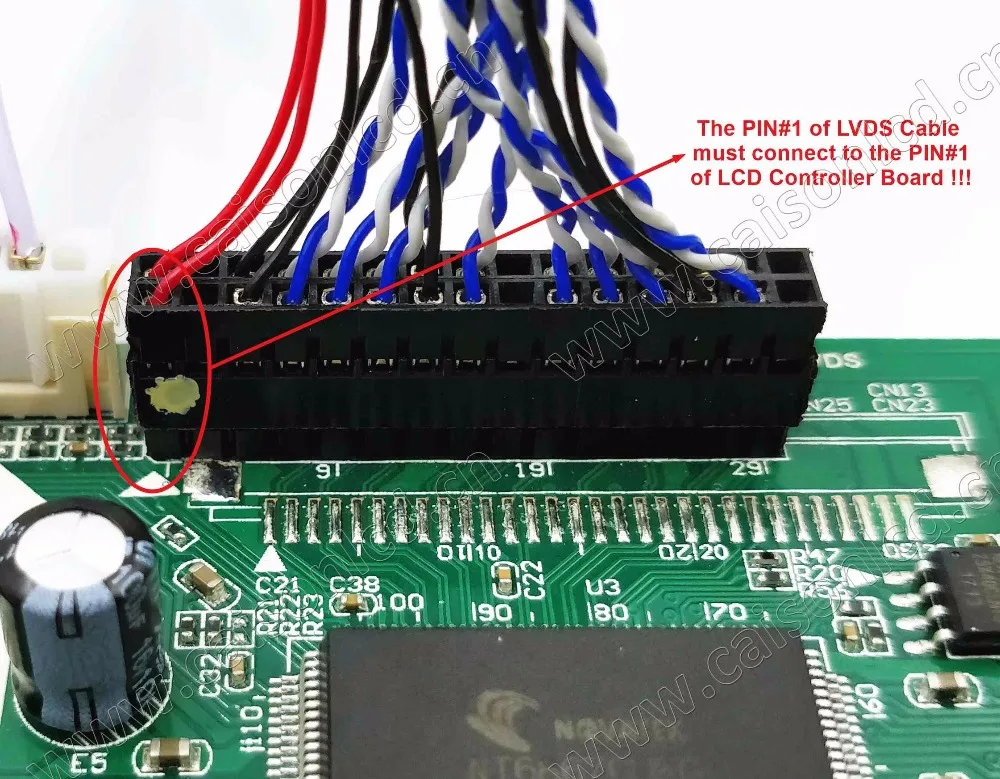

4. LVDS Cable X 1Pcs;

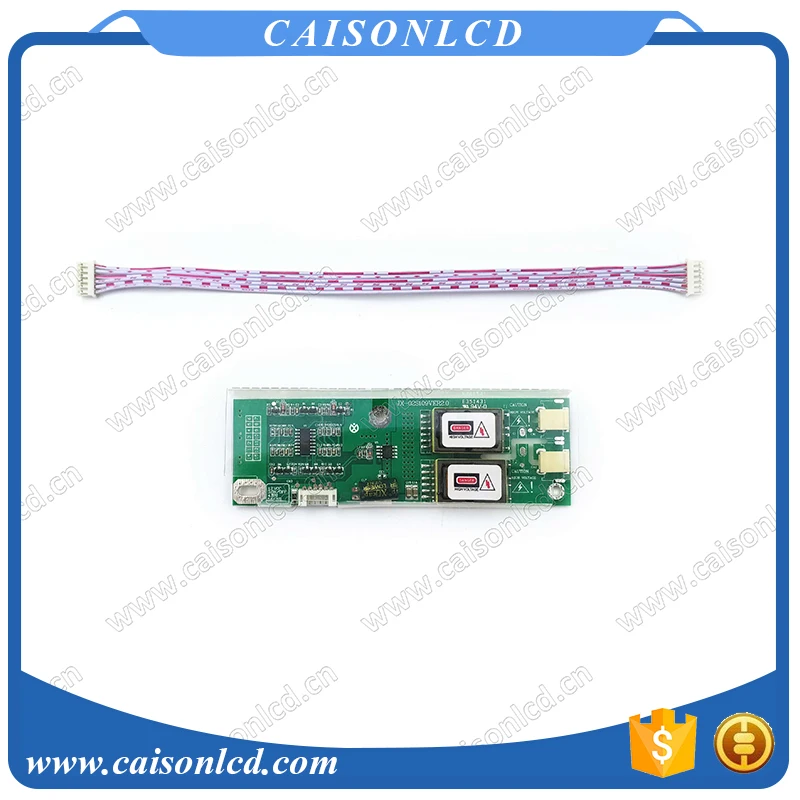

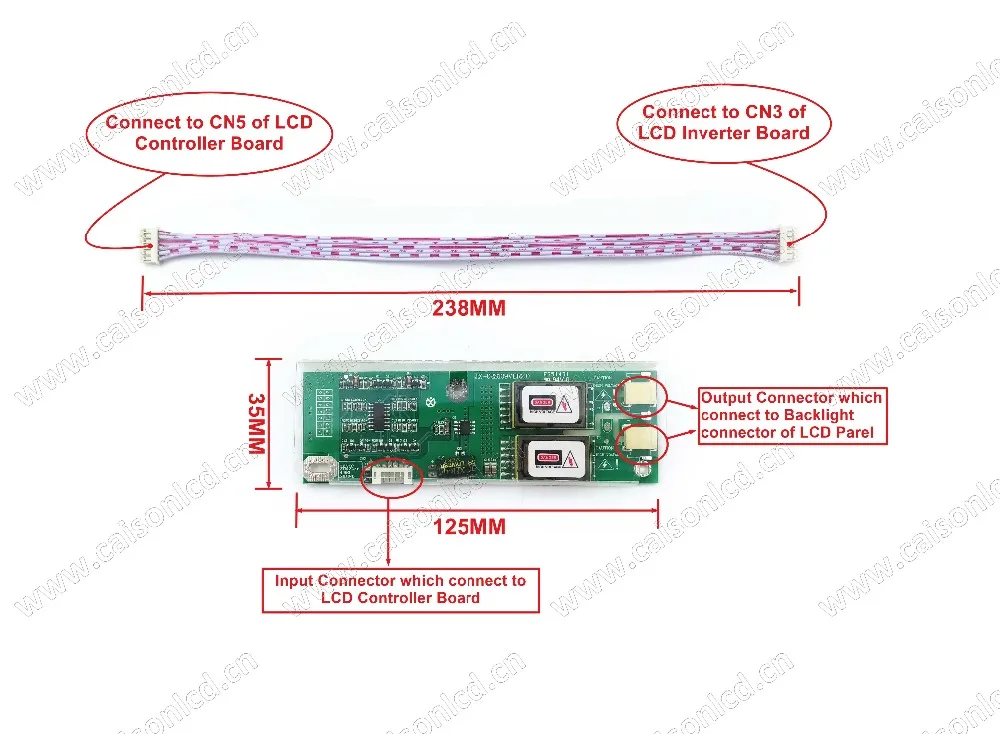

5. Backlight Cable X 1Pcs;

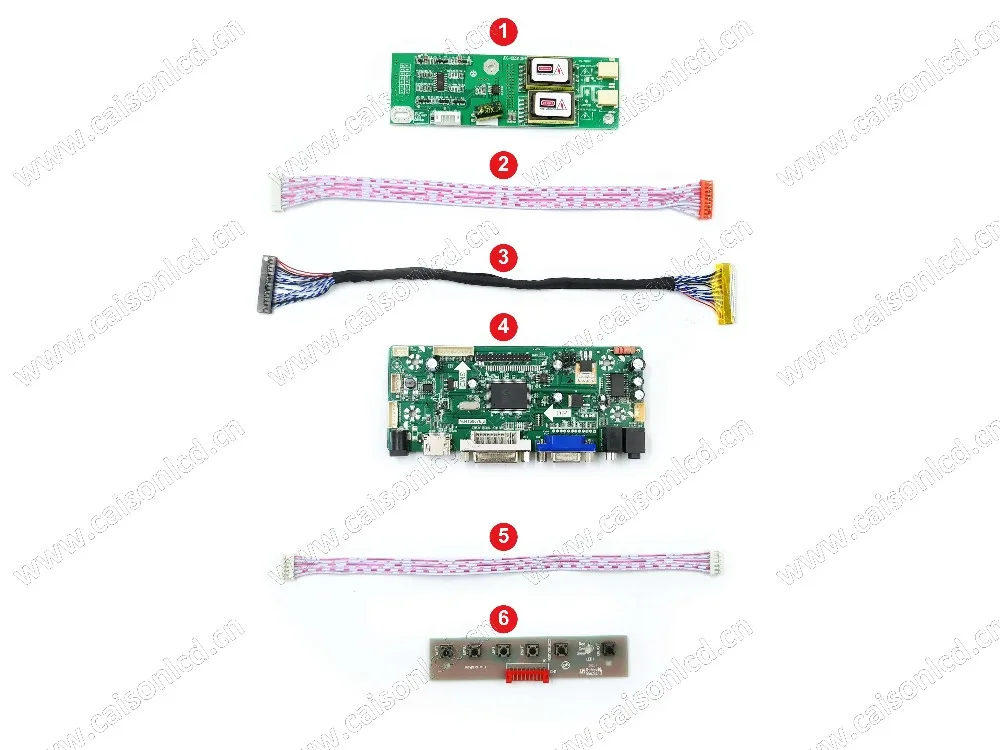

Note: You can find details in below picture :
About the Packing
