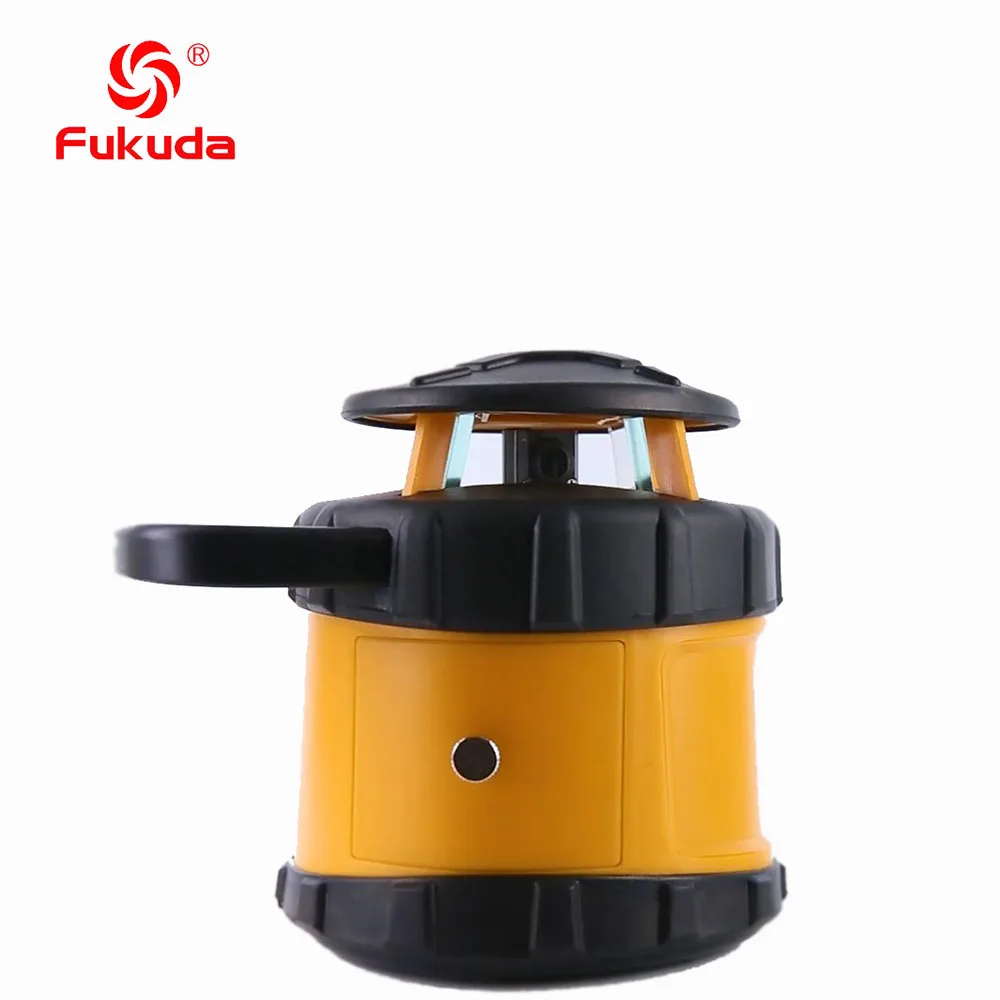

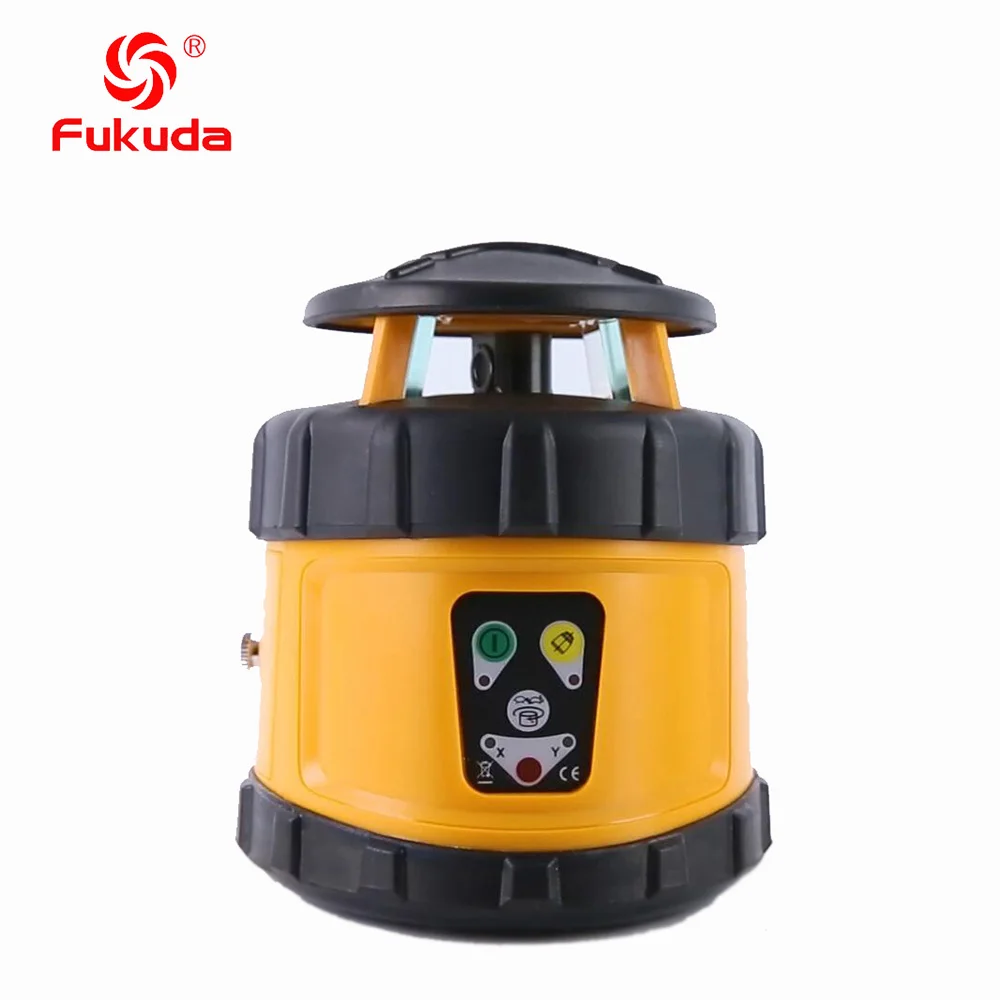

Лазерный нивелир с наработки ротационный лазерный уровень лазером FRE 205

---

    PRODUCT HIGHLIGHTS   The Fukuda FRE-205 horizontal leveling laser level has been designed specifically for exterior Groundworks, at a very affordable price. It is constructed with a robust & rugged housing, an automatic drift system and the facility of Dual Grade; making this the laser of choice for Groundworks Contractors working to a budget. Combined in one kit with an EK-112R crossline laser for indoor use; where the fine, bright red laser lines make fast work of alignment and setting out.

ABOUT LASER LEVEL

The FRE-205 (auto) self-levels horizontally, is accurate to +/-3mm over 30m & has a 500 metre range using the supplied laser detector.   For site Groundworks use, this laser has a dual grade facility too. Switch off the auto leveling by pressing the Manual button on the remote control. This enables the User to accurately and easily set slopes (grades) in both X and Y axis, as required.   The kit includes a Remote Control - to enable you to adjust the rotating speed (for indoor work) and outdoors - to set Grades (slopes), as described above. A very useful feature, which allows control from distance without the laser level being disturbed. Note: Outdoors, set the rotating speed to maximum (600rpm) to give the best operating distance with the supplied detector.   A rechargeable battery system is built-in and as back-up, the FRE-205 will operate on normal alkaline batteries too. We always keep spare rechargeable batteries in stock as part of our Spares, Repairs & full Calibration service.   FEATURES Horizontal use only Anti drift protection system. (a built-in bump sensor) Dual grading X / Y axis facility. Automatic /Manual mode - allows the instrument to be placed in any position. Variable speed rotation for maximum visibility in any lighting condition. Wide electronic self-leveling range (ie. It will level on surfaces up to +/-5 deg.) Low battery indicator - so you don't run out of power at the wrong time! Heavy duty glass enclosed beacon and durable sealed housing is dust and water-proof (to IP54), to ensure years of reliable operation.

FRE-205 Technical Specifications

Laser Diode: Class II, 635nm  Horizontal accuracy ±3mm @ 30m Working range: Up to 500m diameter with the supplied Detector Leveling type: Electronic Self-leveling Rotational speed: Variable from zero to 60, 120, 300 & max 600rpm Grade facility: Dual axis X and Y axis: +/- 5 deg. IR Remote control: Range approx. 20 metres Operating temp: -20 to +50 deg C. Environment: Dust & water-proof to IP64 Power: Ni-MH rechargeable batteries with mains charger (supplied), or 4 x size AA alkaline batteries can be used (not supplied). Running time: 25 hours continuous approx. Dimensions: 190L x 145W x 166H (mm)     PACKAGE CONTENT 1.FRE-205 Rotary laser level 2.Mains charger  3.Detector (Receiver) with mounting bracket 4.Remote control 5.Carry case 6.red glasses 7.belt ​8.manual
