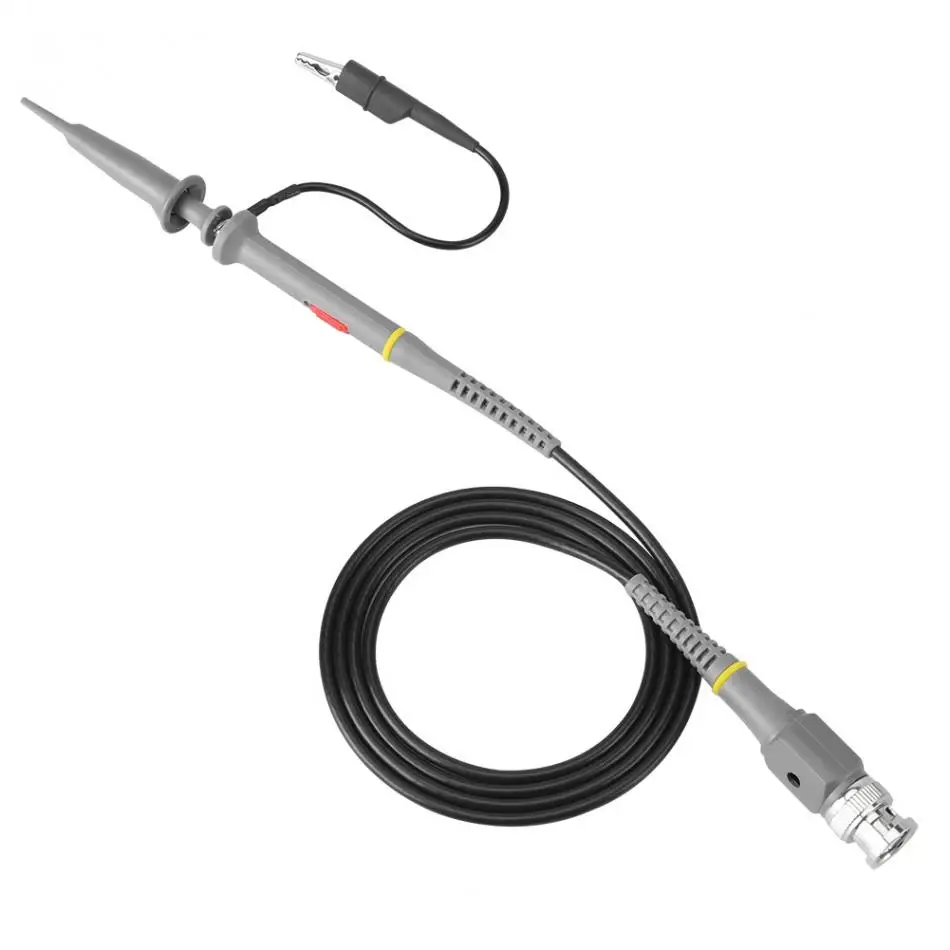

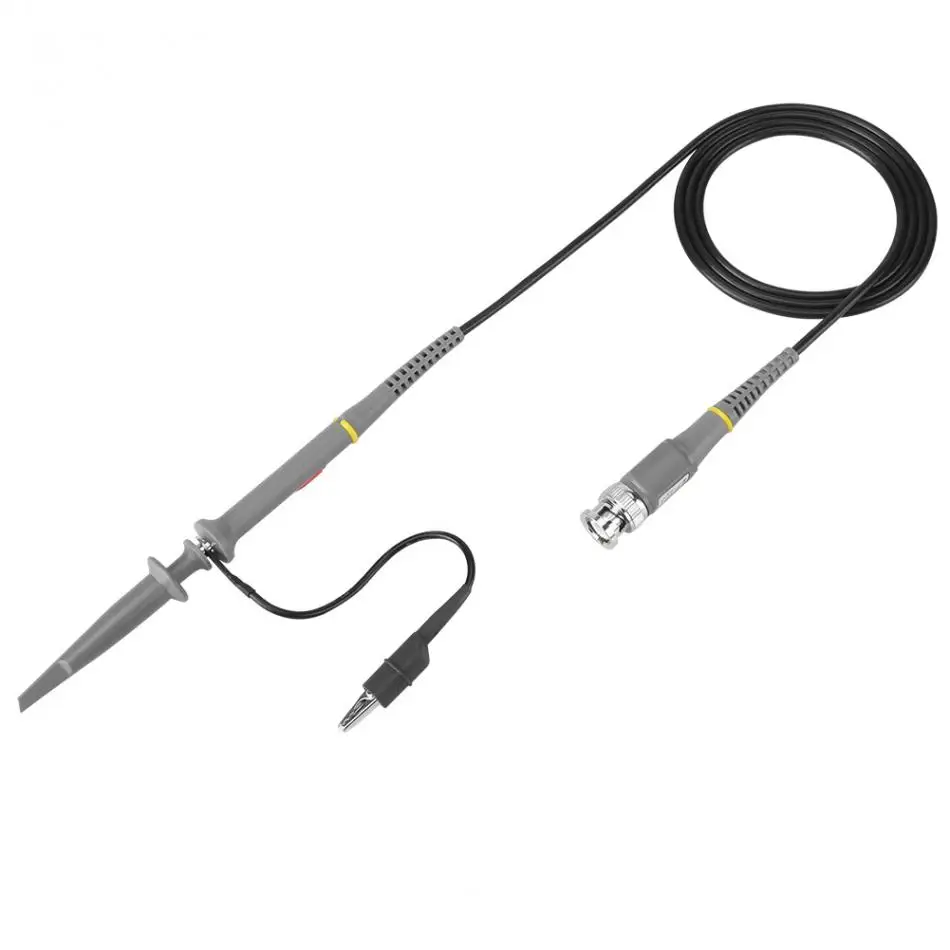

2шт P6100 напряжение осциллограф зонд набор 100 МГц Область клип Тестовые провода

2pcs Precision BNC Oscilloscope Probe Kit 100Mhz Scope Clip 1X / 10X Switchable Test Cable

Descriptions:

This probe is good oscilloscope accessories, compact size, several functions combined in one, this probe is convenient to use.This probe is 100MHz ,with a switch for either 1x or 10x attenuation, stable performance. And providing several accessories designed to make probing and measurements a simple task.

Features:

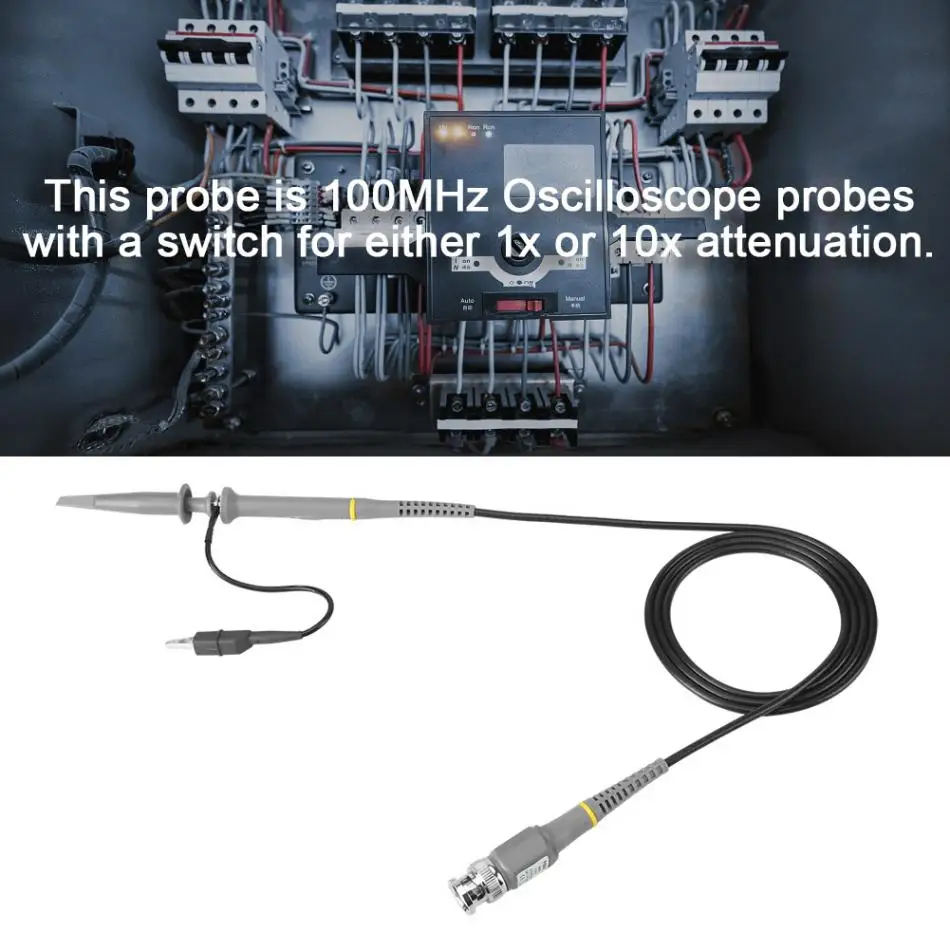

• This probe is 100MHz Oscilloscope probes with a switch for either 1x or 10x attenuation.

• Compact size, several functions combined in one, this probe is convenient to use.

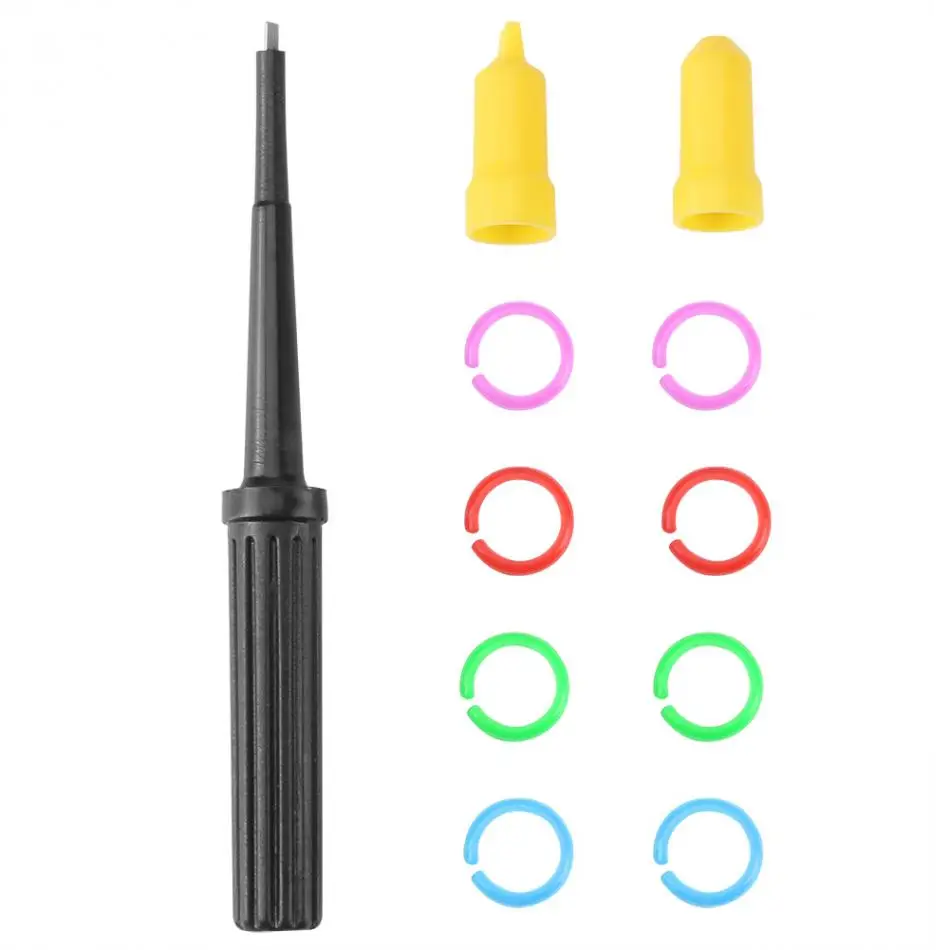

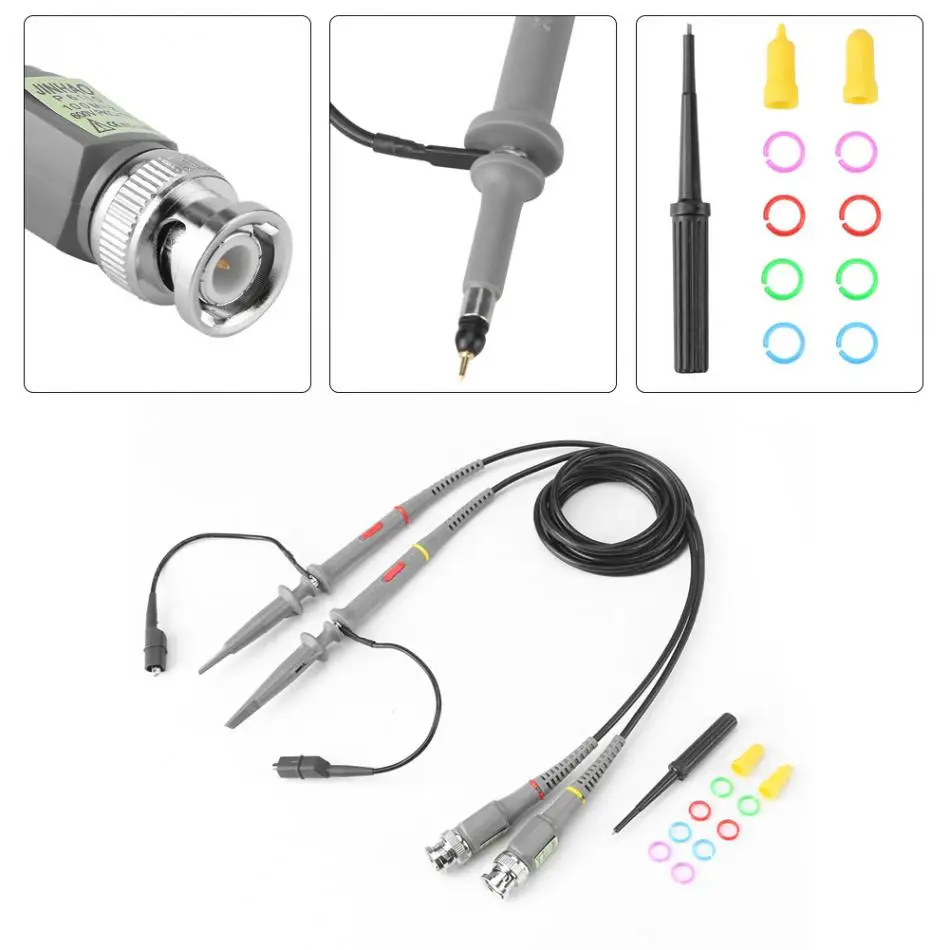

• Detachable hook tip, the hook is well protected by the plastic case.
• Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
• Marker rings in different colors help to identify different channels.
• Features stainless steel interface, stable performance,with CE certification, IEC1010 standard ,great choice for oscilloscope probe.

Specifications:

Model: P6100

Attenuation ratio: 1X/10X

Input resistance: 1 M &; / 10M&;

Input capacitance: 1X:85pF~120pF,10X:18.5pF~22.5pF

Compensation range: 10pF~30pF

System bandwidth: 1X: DC-6Mhz, 10X: DC-100Mhz

Input voltage: 1X: < 300VDC + AC Vp-p,10X: < 600VDC+ AC Vp-p

Operating temperature range: 15 ℃ ~ + 75 ℃

Not working temperature range: - 20 ℃ ~ + 60 ℃

Process: injection molding integration

Color:grey

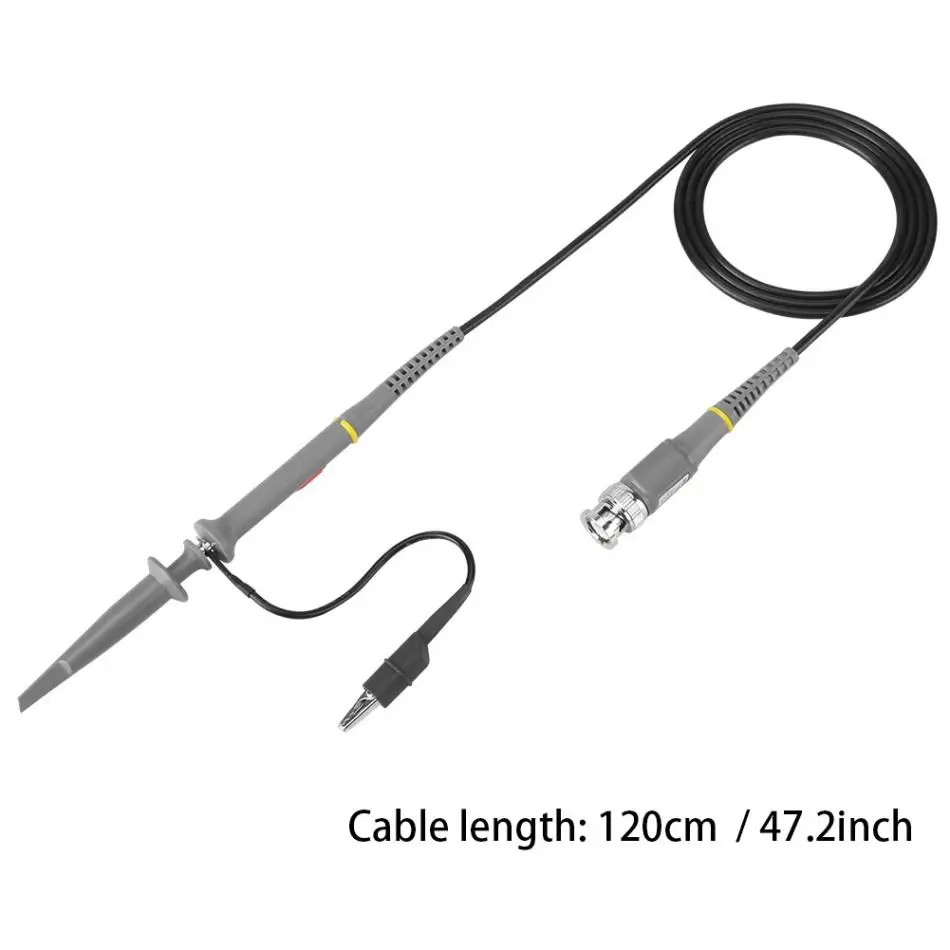

Cable length: 120cm/47.2inch

Humidity: less than 85% (relative humidity)

Weight:126g

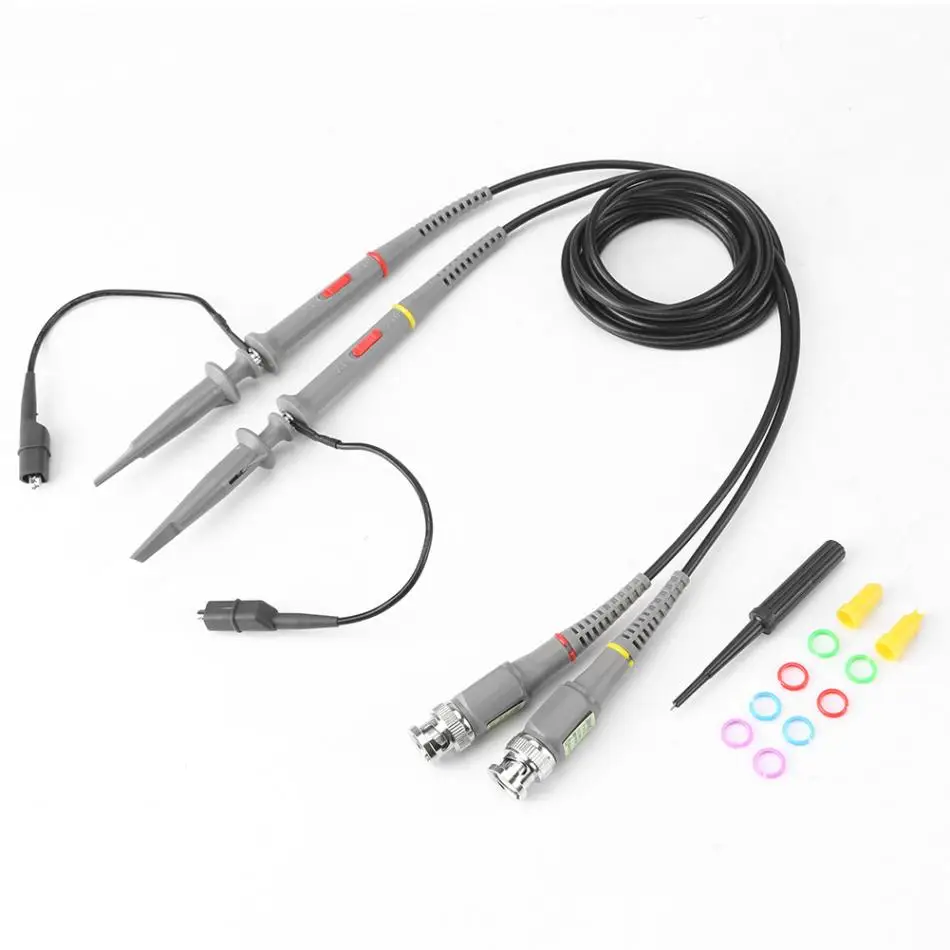

Package Included:

2 x  Oscilloscope Probes
