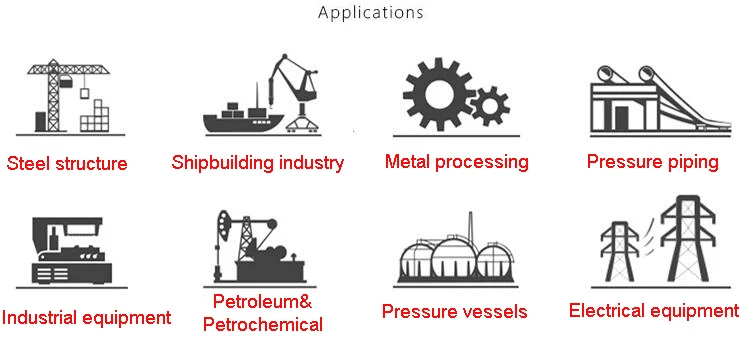

Application:

Steel structure, shipbuilding industry, metal processing, pressure piping, industrial equipment, petroleum and petrochemical, pressure vessels, electrical equipment.ect

Working principle:

The object of the ferromagnetic material to be tested is placed in a strong magnetic field or magnetized by a strong current. If there are cracks (cracks, folds, inclusions, etc.) on the surface or near the surface of the object, magnetic lines of force may cause magnetic flux leakage near the defect. When a magnetically permeable magnetic powder (usually magnetic iron oxide powder) is applied to an object, the leakage magnetic field near the defect attracts the magnetic powder, and the visible magnetic powder traces are formed to form visible magnetic traces under appropriate illumination. Shows the location, size, shape and severity of continuity without showing the defects

Feature:

1. Using thyristor as a non-contact switch, low noise, long life, stable operation and good reliability
2. The whole machine is small in size, light in weight and easy to carry.
3. Different shapes of probes can flexibly detect the workpiece and visually display the defects of the workpiece being probed.

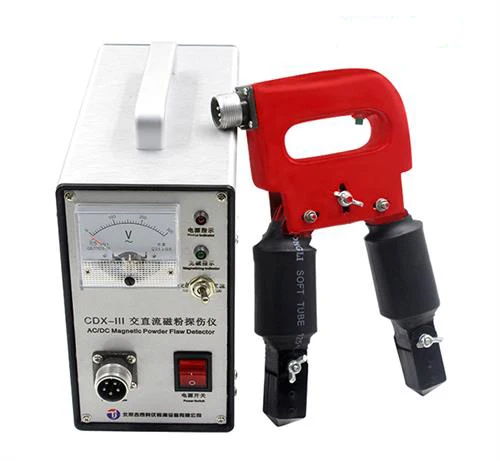

Host parameters:

1. Input voltage: AC220V
2. Output voltage: AC36V
3. Dimensions: 280*140*190mm
4. Host weight: 6.5kg
5. Comprehensive sensitivity: Clear display of manual grooves on 30/100 (Type A) standard test strips

Probe Description:

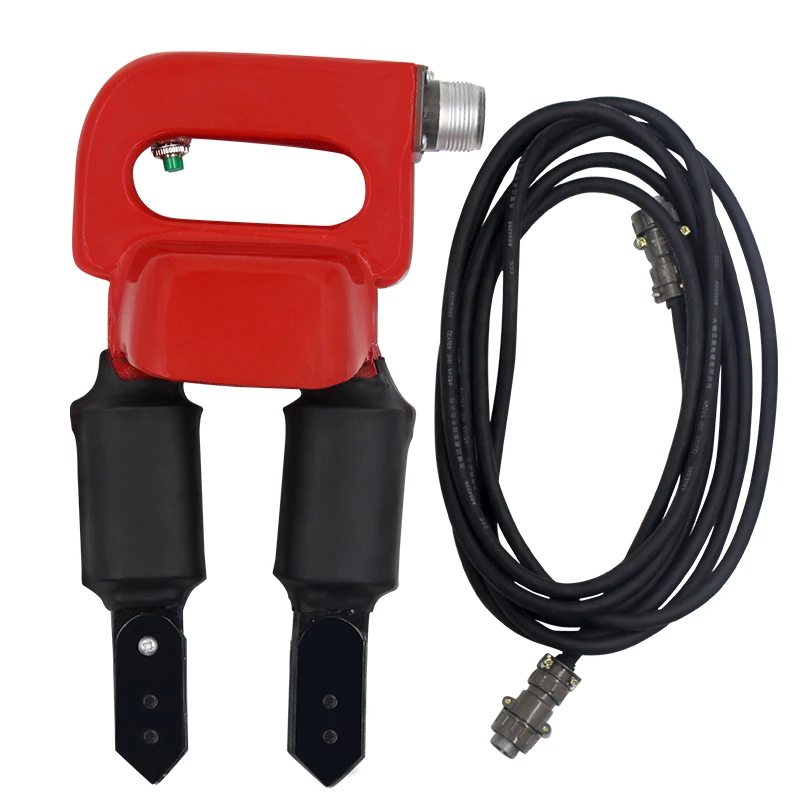

A Type:

1. Probe name: Horseshoe yoke probe or fillet weld probe
2. Function: The magnetic head is placed on the oblique side of the movable joint and equipped with work lights; it is especially suitable for the flaw detection of shaped surfaces and complex shapes.
3. Pole distance: 20-160mm
4. AC lifting force: ≥4.5kg
5. DC lifting force: ≥18kg
6. Weight: 1.8kg

E Type:

1. Probe name: horse cross yoke probe or rotary yoke probe
2. Function: It can realize all-round composite magnetic flaw detection. The walking roller and work lamp can improve the detection efficiency. The rotating magnetic field flaw detector equipped with this type of probe has high detection quality and fast speed.
3. Pole distance: 110mm
4. AC lifting force: ≥12kg
5. DC lifting force: none
6. Weight: 3kg

D Type:

1. Probe Name: Electromagnetic Yoke Probe
2. Function: equipped with a variety of moving joints, with high magnetic permeability, large magnetization and other characteristics
3. Pole distance: 60-220mm
4. AC lifting force: ≥5kg
5. DC lifting force: ≥18kg
6. Weight: 2.5kg

O Type:

1. Probe Name: Ring Probe
2. Function: It is designed according to the principle of generating strong magnetic field when the coil is energized. It is suitable for the component inspection or demagnetization of complex workpieces such as shaft rods, pipes and blades.
3. Inner diameter: 150mm
4. Central magnetic field: ≥1800e
5. DC lifting force: None
6. Weight: 2.5kg

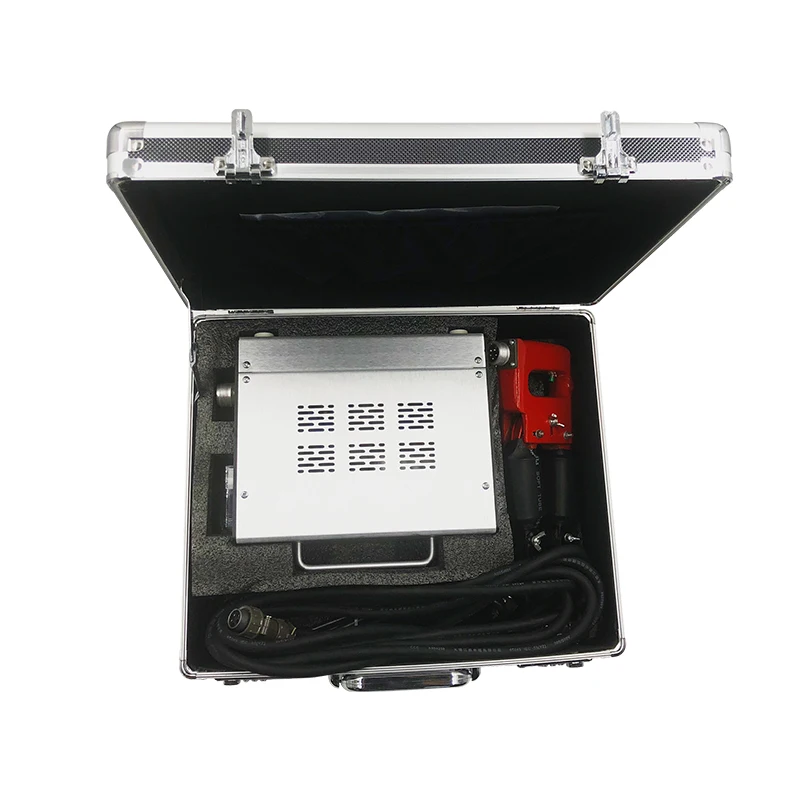

Include:

1 x Set of Host with Probe(as your choose)
