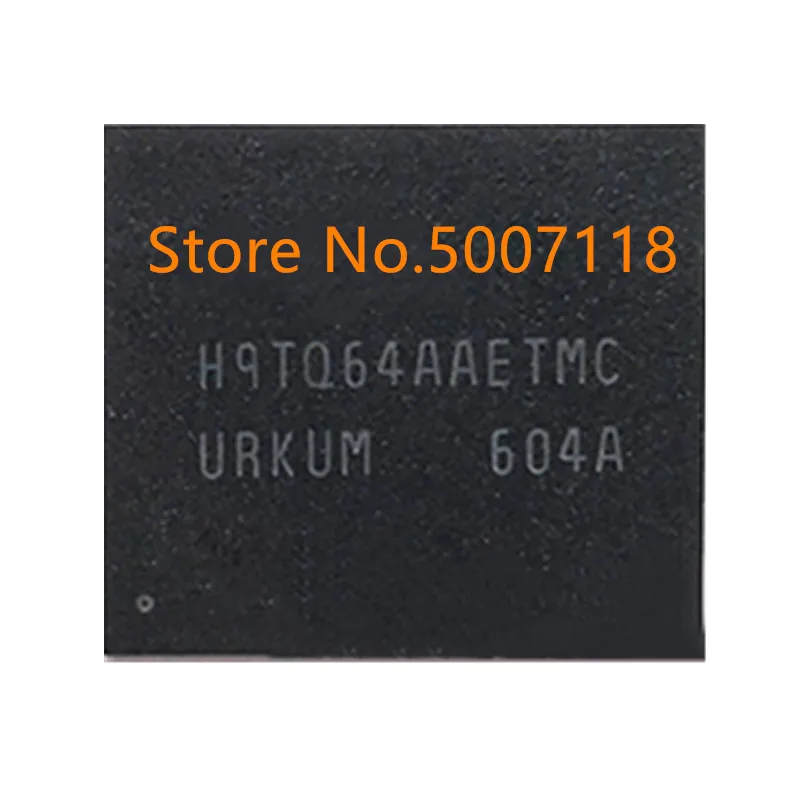

H9TQ64AAETMC 100% New origina H9TQ64AAETMCUR-KUM | Электроника
US $11.88
5 шт./лот K9K8G08U0D-SIB0 K9K8G08UOD-SIBO K9K8G08U0D K9K8G08UOD | Электроника
1 294,11 руб. / набор
DHL/EMS 100pcs Connector BNC male nut bulkhead solder cup Panel mount Straight Plastic -A3 | Электроника
10 шт./лот AP131-18Y SOT-89 100% Новый оригинальный | Электроника
169,79 руб. / набор
20pcs/lot New AON6978 AO6978 6978 QFN-8 Chipset | Электроника
871,92 руб.
Характеристики
High Voltage DC-DC Boost Converter 8V-32V to ±5V-390V Adjustable ZVS Capacitor Charging Power Supply Module | Электроника
История изменения цены
*Текущая стоимость 215,69 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-23-2026 | 273.62 руб. | 278.84 руб. | 275.5 руб. |
| Jan-23-2026 | 221.76 руб. | 225.27 руб. | 223 руб. |
| Dec-23-2025 | 269.18 руб. | 274.42 руб. | 271.5 руб. |
| Nov-23-2025 | 267.81 руб. | 272.91 руб. | 269.5 руб. |
| Oct-23-2025 | 213.38 руб. | 217.9 руб. | 215 руб. |
| Sep-23-2025 | 262.87 руб. | 267.62 руб. | 264.5 руб. |
| Aug-23-2025 | 260.90 руб. | 265.31 руб. | 262.5 руб. |
| Jul-23-2025 | 258.34 руб. | 263.65 руб. | 260.5 руб. |
Описание товара

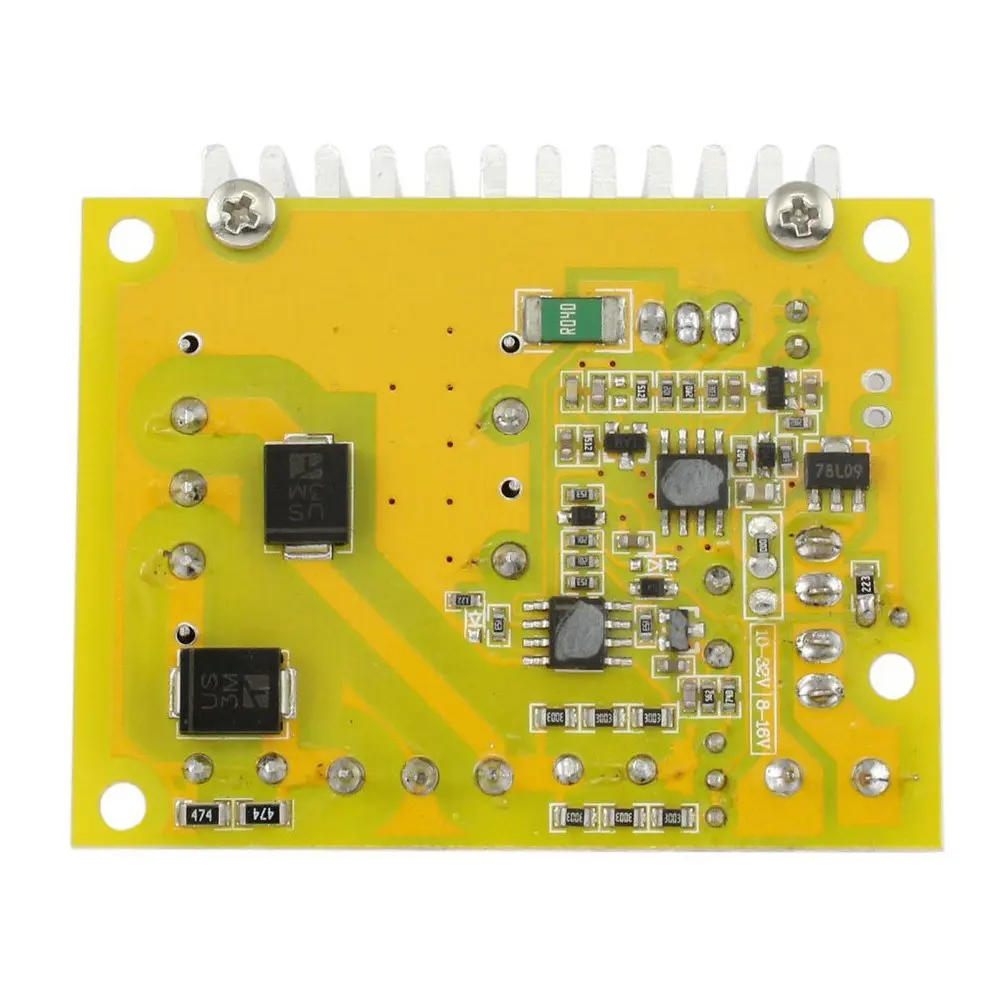

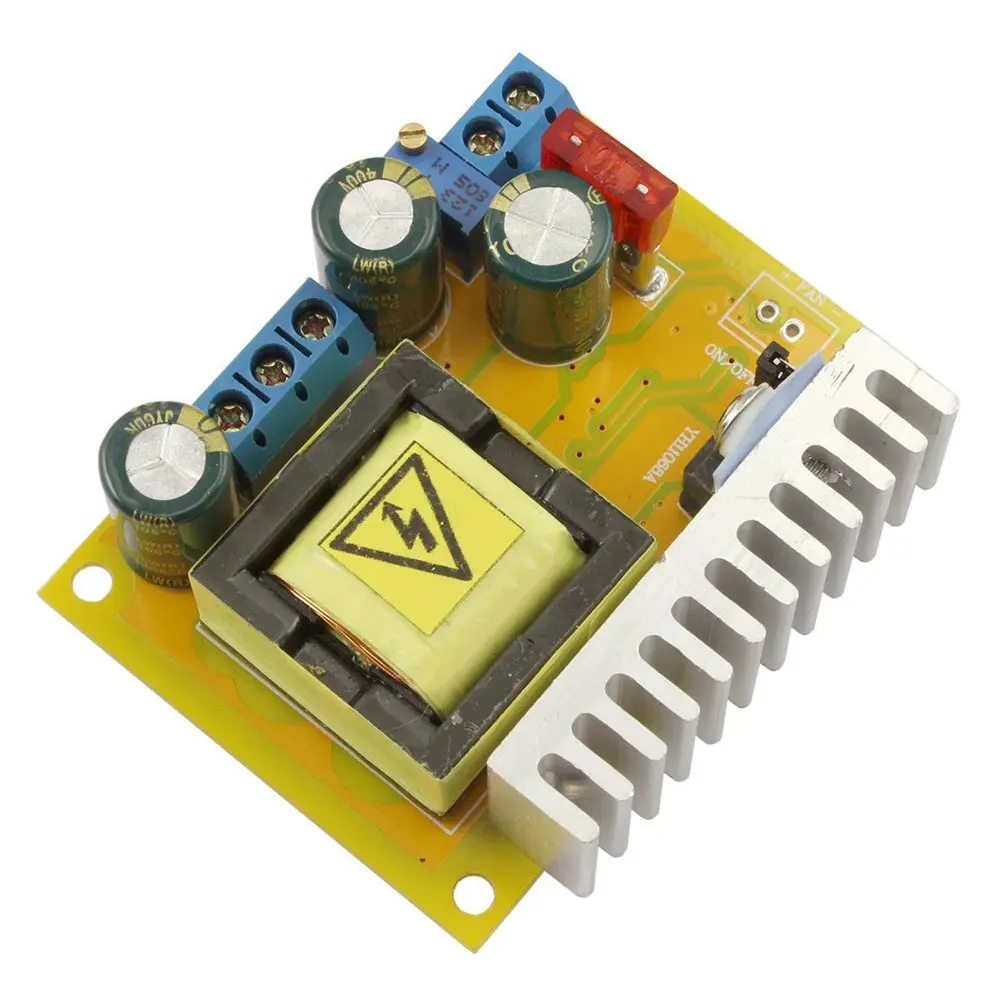

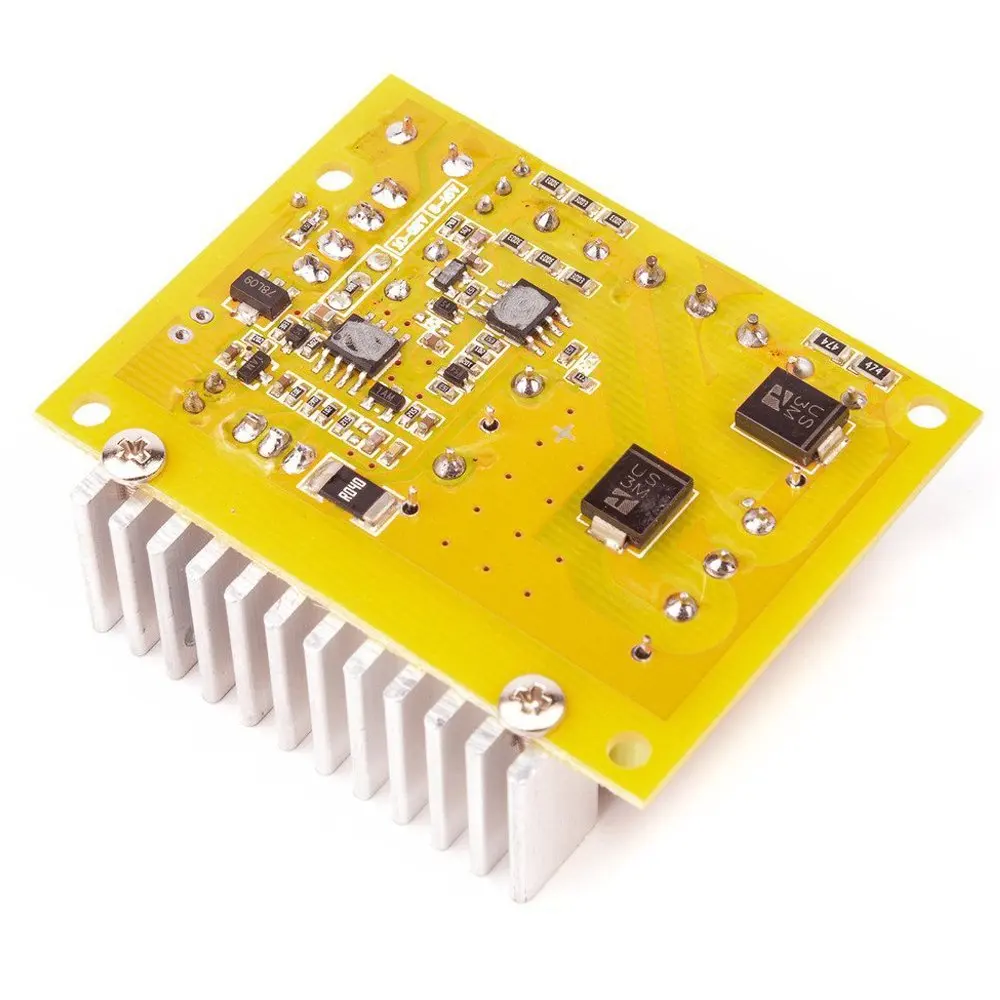

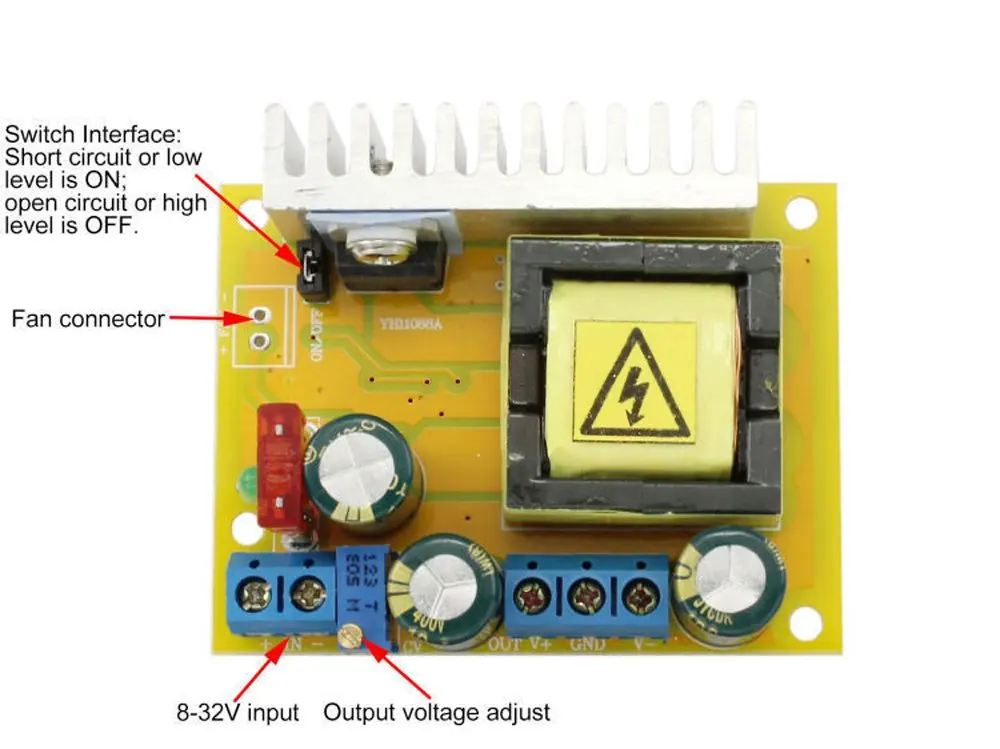

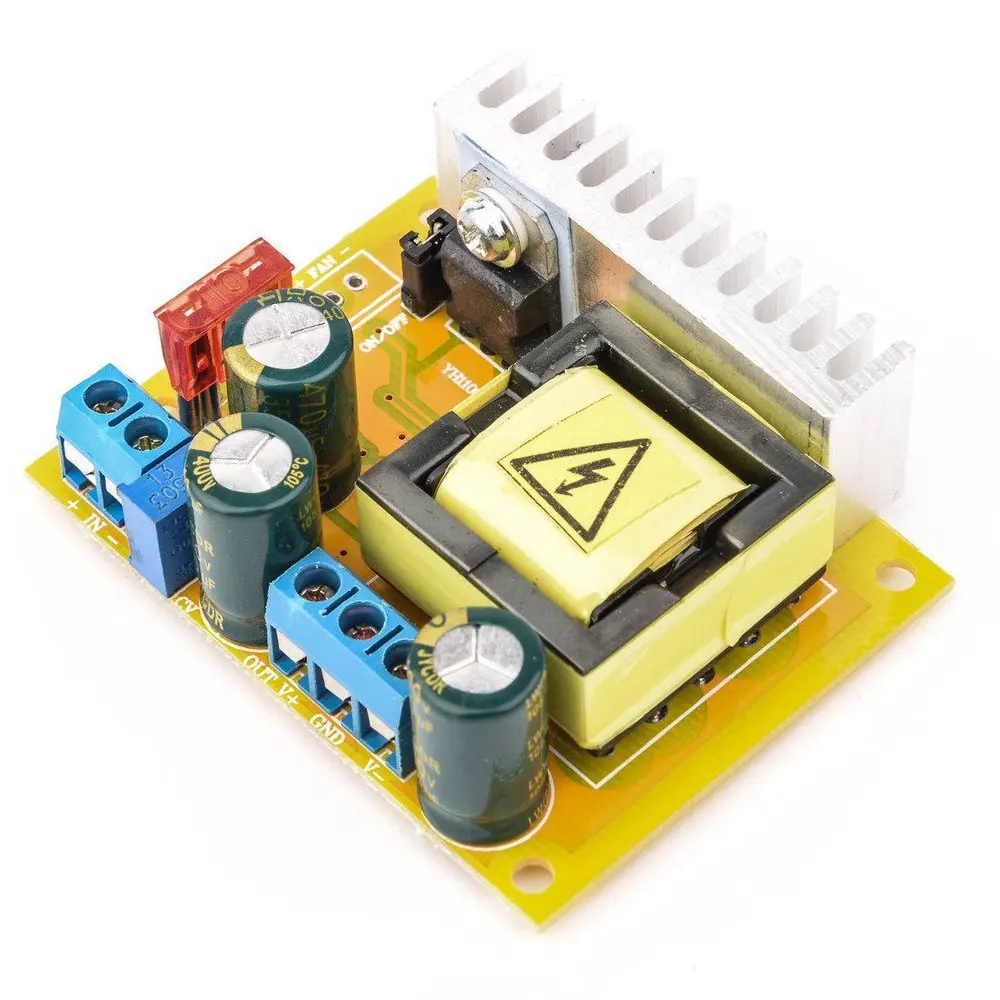

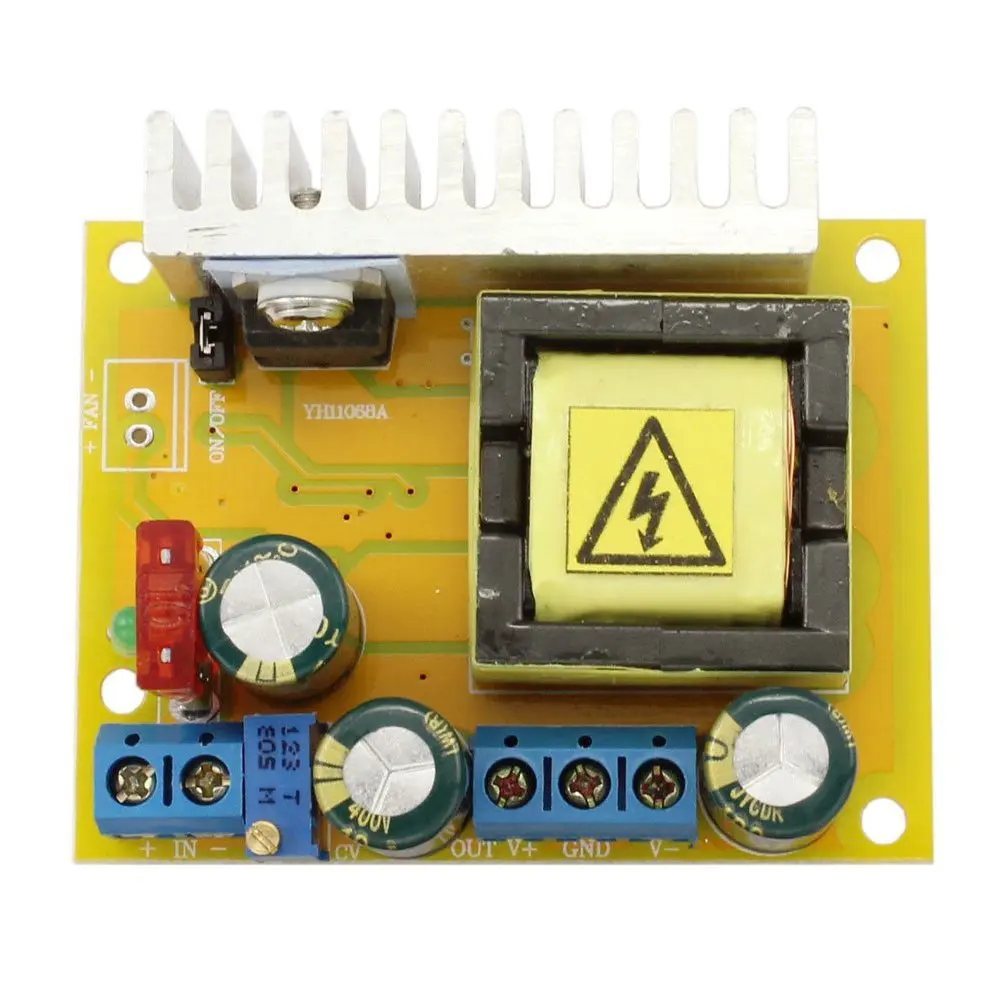

High Voltage DC-DC Boost Converter 8V-32V to ±45V-390V Adjustable ZVS Capacitor Charging Power Supply Module
Product description Name: High Voltage boost converter module Properties: non-isolated step-up module Input voltage: two input voltage range selectable, (jumper selectable through the back of the PCB, default setting 10-32V input) 1, 8V-16V input 2, 10V-32V input Input Current: 5A (MAX) Quiescent current: 15mA (12V step up to 50V, the higher the output voltage will increase the quiescent current) Output voltage: ± 45-390V continuously adjustable (the default output ± 50V. This module has regulator function, after adjusted output voltage is stable and unchanging, not with changes in input voltage changes) Output Current: 0.2A MAX Output Power: 40W (peak 70W) Working temperature: -40℃ ~ + 85℃ Operating frequency: 75KHz Conversion efficiency: up to 88% Short circuit protection: Yes. (Input 10A fuse, at the output please do not short circuit arc, it may damage component, if you need please add power resistor in series for limiting) Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing the output voltage) Overvoltage protection: Yes (Output voltage exceeds 410V, lowering the output voltage) Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, you have better not reverse it.) Dimensions: 60(L)*50(W)*22(H)mm The capacitor charging time measured data: 470uF full charge to 390V time is 2 seconds 1000uF full charge to 390V time is 4 seconds 2200uF full charge to 390V time is 8 seconds 4700uF full charge to 390V time is 18 seconds Warning! The module output is high voltage, on people, animals have life-threatening, the course please pay attention to safety precautions. We are not responsible. Package list: 1 x DC Boost Converter ±45-390V Output
