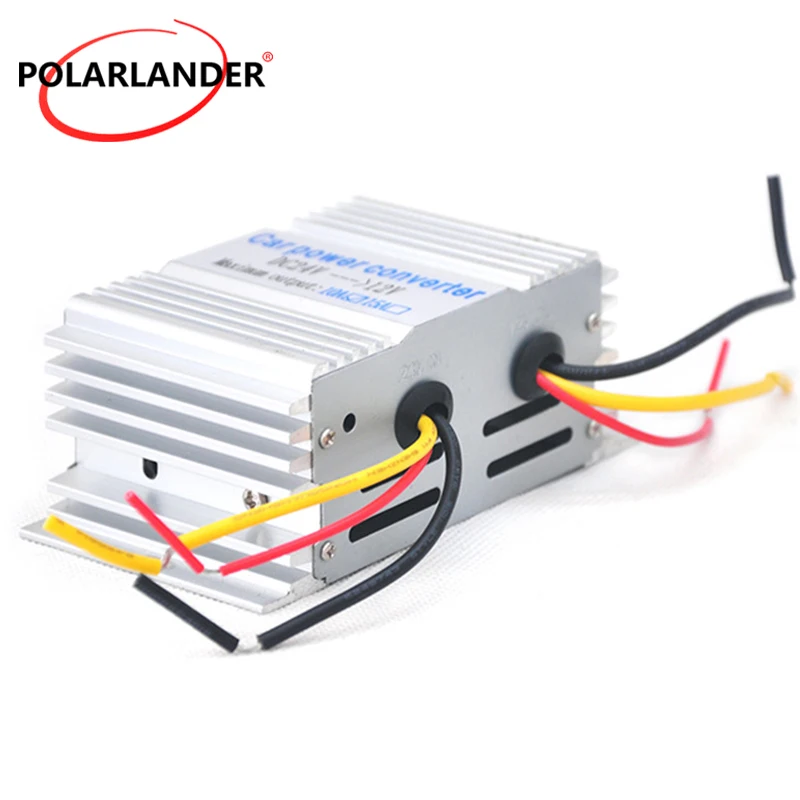

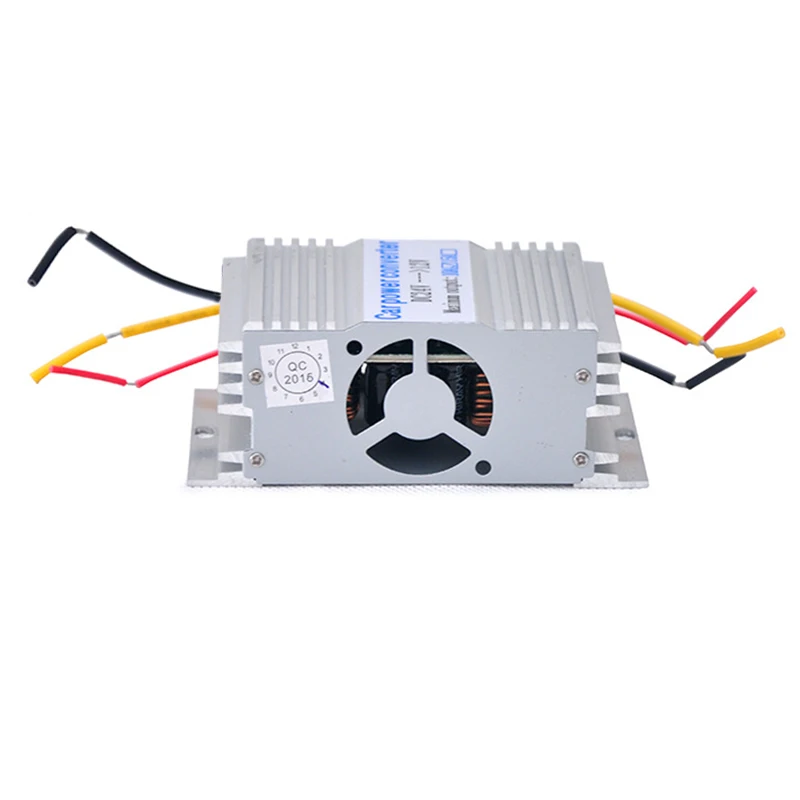

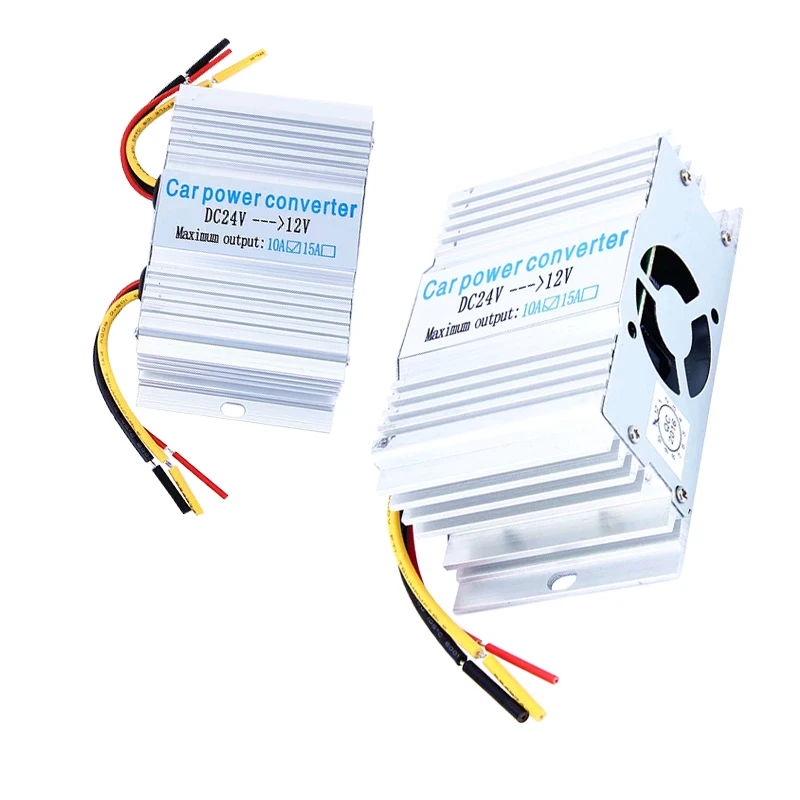

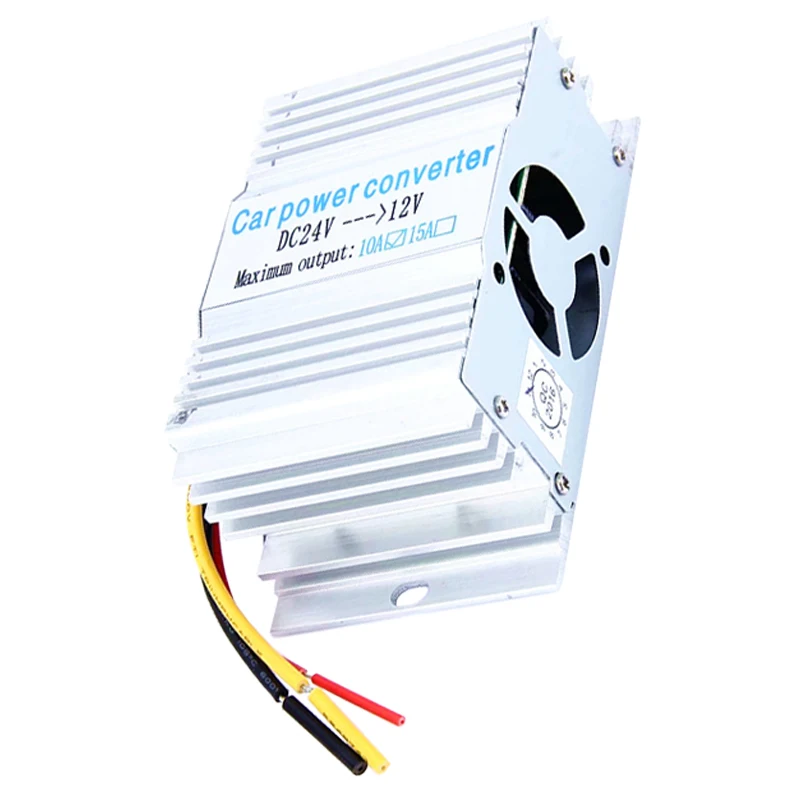

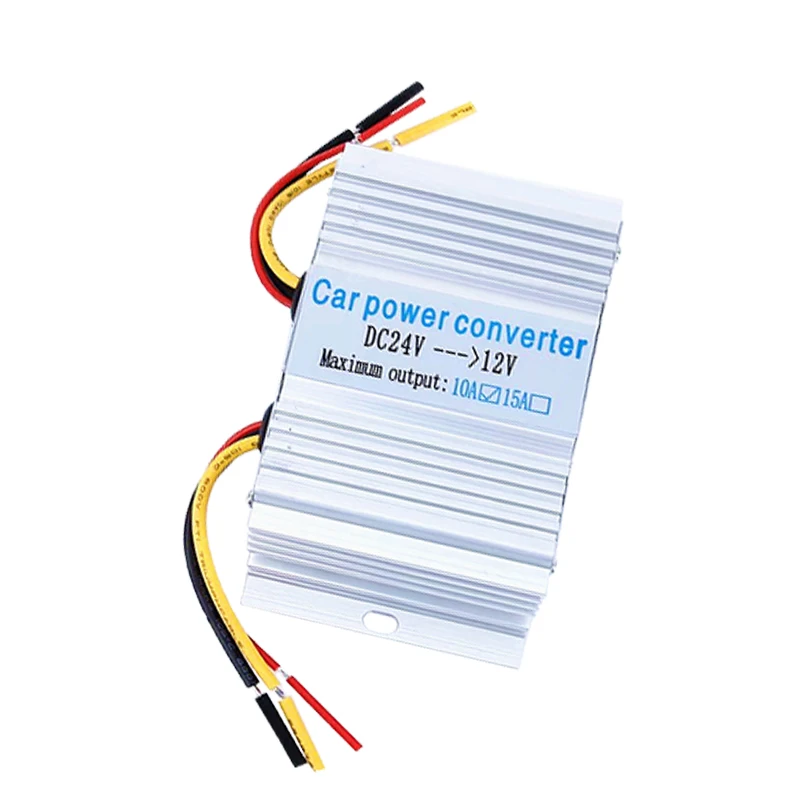

Car Transformer 24V to 12V Power Converter 10A Buck Power Supply

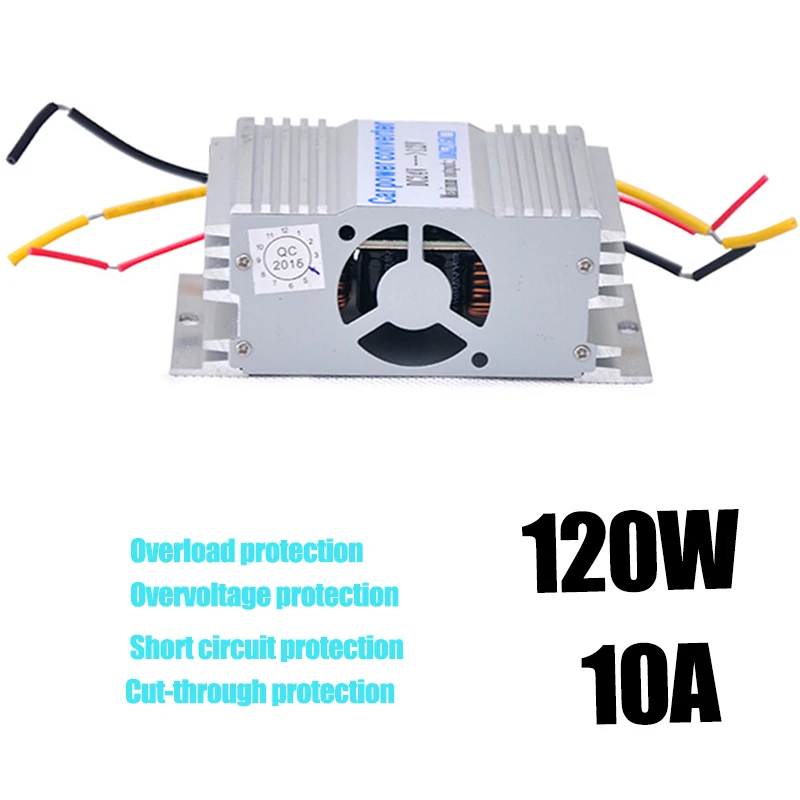

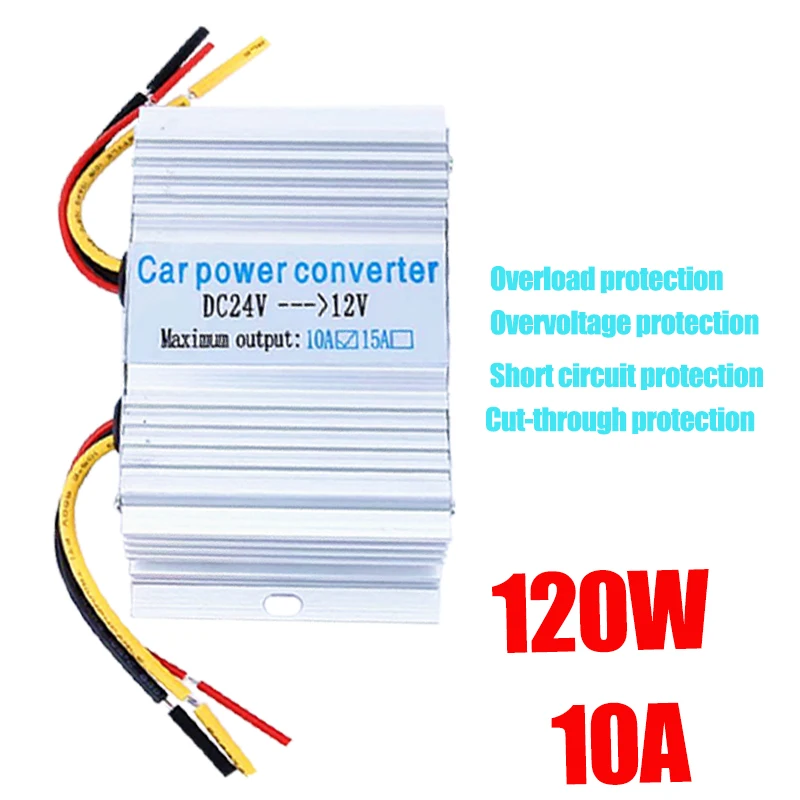

 Product Advantages

1: Full current, the standard current of ordinary converter is 10A, the actual current can only reach about 5A.

2: All-aluminum housing, good heat dissipation, light weight and more durable.

3. Overload protection

4. Overvoltage protection

5 short circuit protection

6.Thru protection

7.With memory function

8. The circuit works in a noiseless state

Product information:

Type: Car inverter

Model: 10A120w

Product name: DC 24v to 12v transformer 10A current

Output voltage waveform: sine wave

Can be used for car DVD / CD / card player, monitor, camera, subwoofer, fire equipment, walkie-talkie, etc.

Input maximum load current: 10A

Color: silver white

Input voltage: 13V ～ 40V

Input voltage: ＜ 40V

Input current: ＞ 10A

Working temperature: -20 ℃ ～ + 70 ℃

Output voltage: 12V

Output current: 10A

Main performance:

 It has automatic protection functions such as over temperature, over current, short circuit, etc., and works normally after the conditions are restored.

Product volume: 10.4X6X4CM

Product weight: 0.2 kg

Material: aluminum alloy

 Package Included

1 x DC-DC converter step-down buck

 Product use:

Suitable for buses, minibuses, medium and large trucks, for car audio, LCD TV, walkie-talkie

 and monitoring systems and other vehicles using 24V power. It converts DC 24V to DC 12V,

and supplies power for car audio, subwoofer, navigator, driving recorder and other vehicle electrical appliances.

In use, it can effectively protect electrical appliances and automobile circuits. When the output

current exceeds the rated output, it can quickly cut off the output circuit to effectively protect the safety of electrical equipment.

installation and use:

1. Place the pressure reducer in a ventilated and dry environment and properly fix it.

2. Connect the 24V input to the power connector. The red wire is connected to the positive pole, the yellow wire is connected to the key switch wire (ignition switch wire), and the black wire is connected to the negative pole.

3. Connect the 12V output to the 12V consumer. Connect the red wire to the positive terminal. The yellow wire is connected to the ACC (REM) wire of the appliance. The black wire is connected to the negative pole.

The long-term working current of the consumer should be less than the rated current of the voltage regulator. After wiring, please perform insulation treatment to prevent short circuit.

4. Turn on the power on the car to supply power to the voltage regulator, and the voltage indicator of the voltage regulator is on.

5. Turn on the power switch of the appliance and it will work normally.

24V input wiring instructions:

Red line: main power line, connected to battery positive.

Yellow line: ACC line, control line, car key switch.

Black wire: Connect the battery negative pole or the ground wire on the car.

12V output wiring instructions:

Red line: Connect the main power line of the appliance.

Yellow line: ACC line, control line, and control line for electrical appliances.

Black wire: Connect the battery negative pole or the ground wire on the car.

Product use precautions:

1. Please do not use it for more than the rated current for a long time, so as not to cause malfunction.

2. Please do not use this product for a long time when the engine of the car is turned off, otherwise the car will not start easily because the battery voltage is too low.

3. Please strictly observe the precautions of the electrical appliances before using this product.

4. Do not use this product in hot, humid and dusty places.

5. Please do not disassemble or modify this product.

How to choose a car power converter suitable for you:

1: If your car stereo is a 12V MP3 player, you can choose a 24 to 12V step-down regulator with 10A.

2: If your car stereo is a 12V CD or DVD host, you can choose a 24 to 12V step-down converter with 20A ~ 30.

3: If your car stereo is a 12V CD or DVD host, plus a subwoofer, it is recommended to choose a 24 to 12V step-down converter with 30 ~ 45A.

4: If your car stereo is a 12V CD or DVD host, add a subwoofer, plus navigation screens and other appliances. It is recommended to choose a 45A 24 to 12V step-down.
