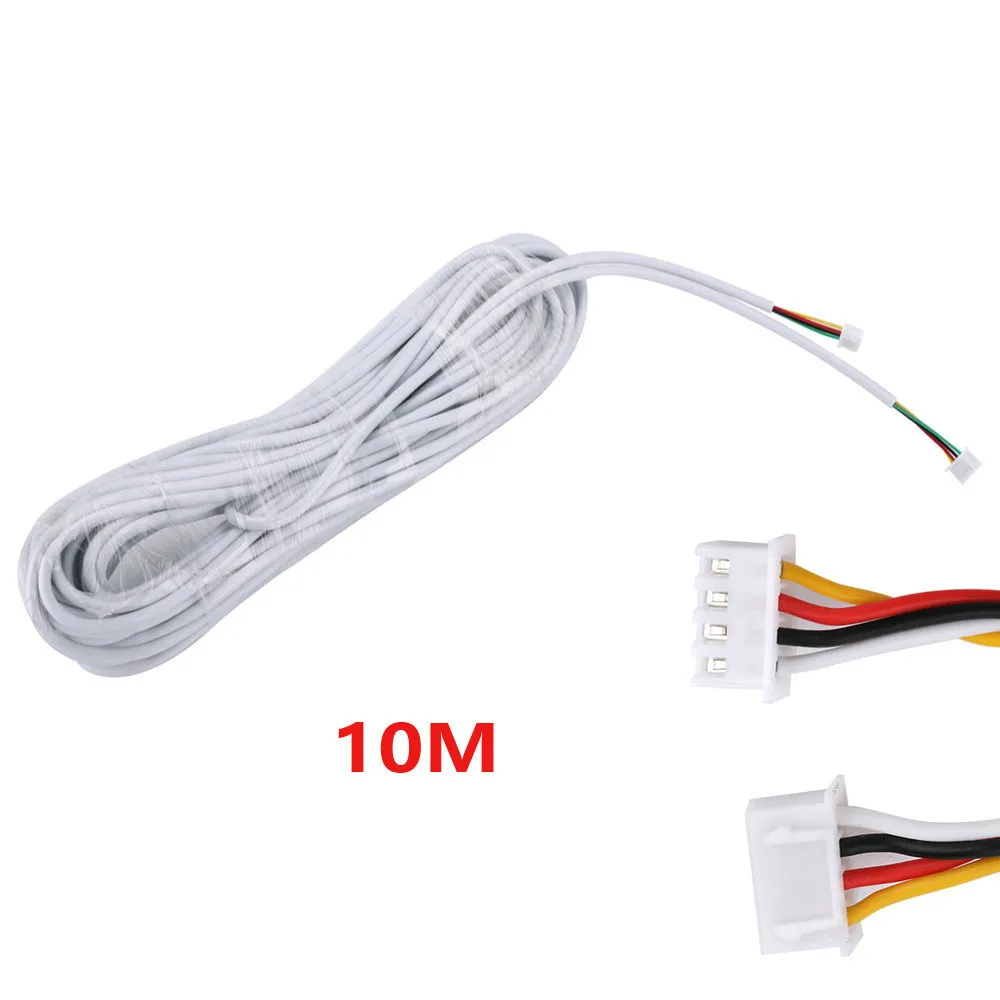

10 м 2 54*4P 4 жильный кабель для видео домофон Цвет видео-телефон двери проводной
670,42 руб.
5 предметов в партии Новое поступление High-end шт. желтое окно Предупреждение
204,20 руб.
Маленькая Южная Африка Индия непальская вилка к универсальному адаптеру для
131,74 руб.
SMA Штекерный на два Гнездовой тройной T RF разъем адаптера 3 Way сплиттер LW SZUS |
87,10 руб.
Многоязычная 100% оригинальный новый DVP740 волоконно-оптическая дуговая сварочная
Водонепроницаемый POE-разветвитель для IP-Камеры DC12 в 2 5 А | Безопасность и защита
532,09 руб.
ZYsecurity Factory Store
Магазина ZYsecurity Factory Store работает с 31.03.2021. его рейтинг составлет 91.3 баллов из 100. В избранное добавили 54 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 68 наименований товаров, успешно доставлено 28 заказов. 23 покупателей оставили отзывы о продавце.
Характеристики
10/100 м PoE сплиттер с IEEE 802.3af/at стандарт и 12V 2A выход 42 5-57V 0.65A 30W Входная мощность через
История изменения цены
*Текущая стоимость 627,97 - 824,85 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-21-2026 | 796.27 руб. | 812.22 руб. | 804 руб. |
| Jan-21-2026 | 646.46 руб. | 659.49 руб. | 652.5 руб. |
| Dec-21-2025 | 784.80 руб. | 800.18 руб. | 792 руб. |
| Nov-21-2025 | 777.98 руб. | 793.48 руб. | 785 руб. |
| Oct-21-2025 | 621.60 руб. | 633.54 руб. | 627 руб. |
| Sep-21-2025 | 765.44 руб. | 780.5 руб. | 772.5 руб. |
| Aug-21-2025 | 759.1 руб. | 774.36 руб. | 766.5 руб. |
| Jul-21-2025 | 752.70 руб. | 767.64 руб. | 759.5 руб. |
Описание товара

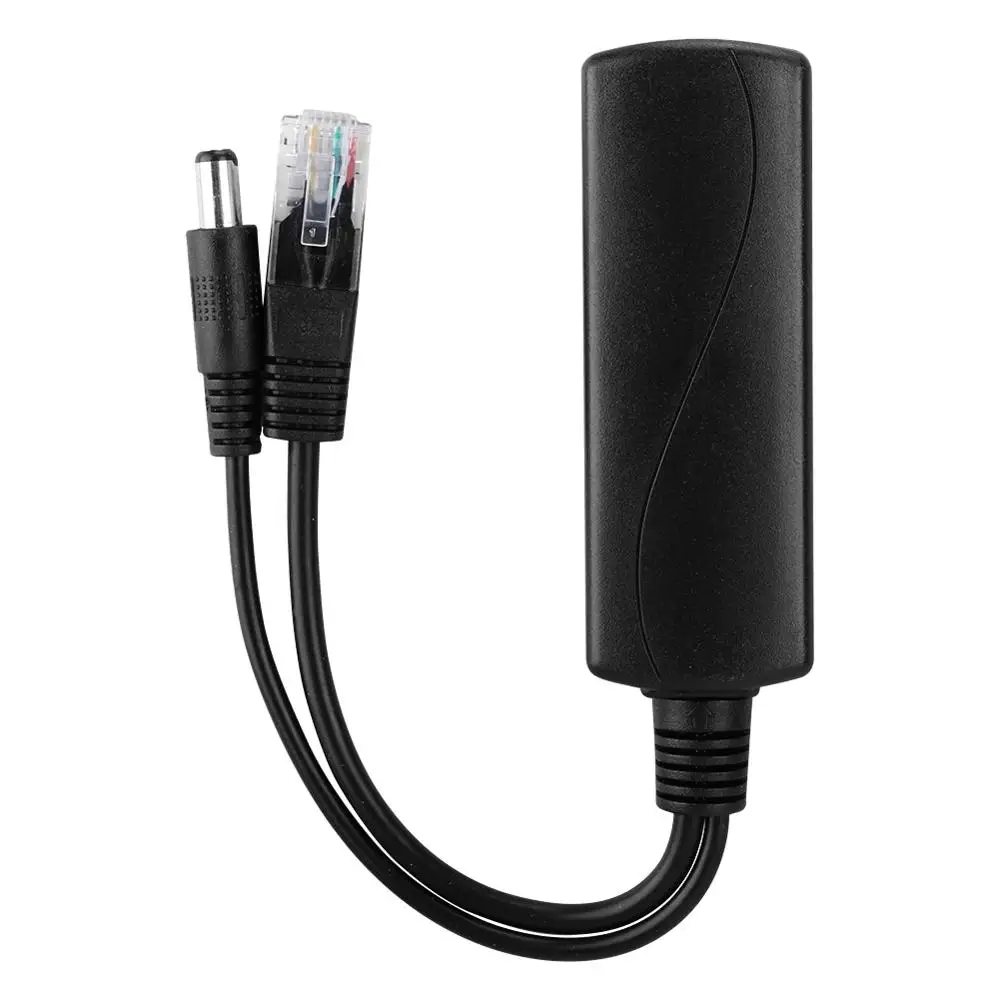

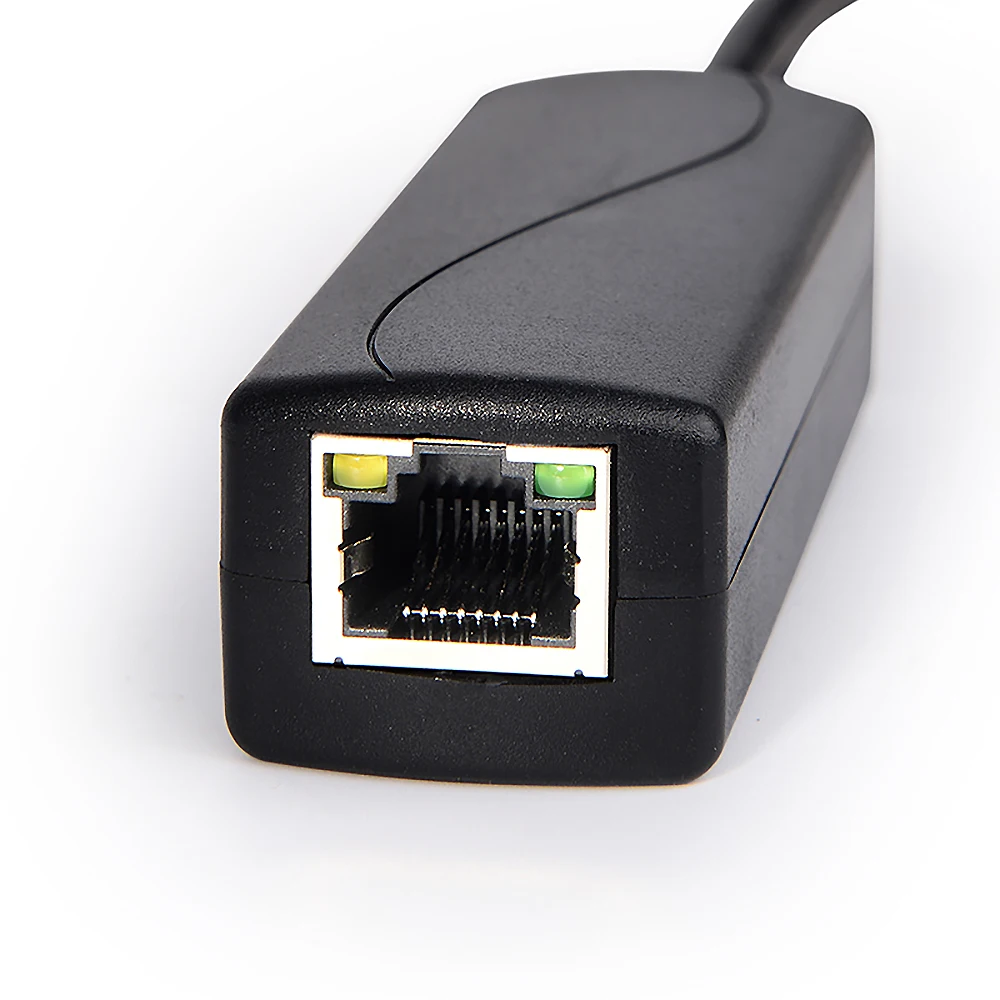

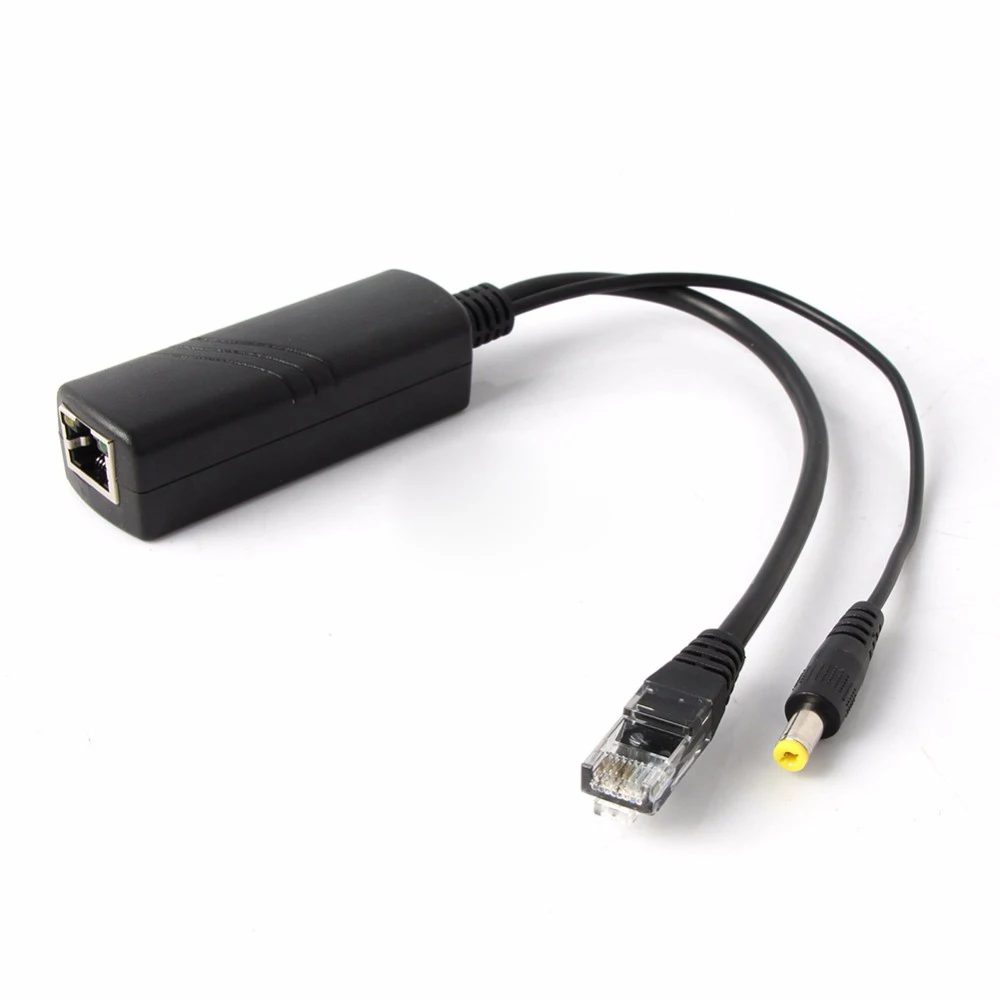

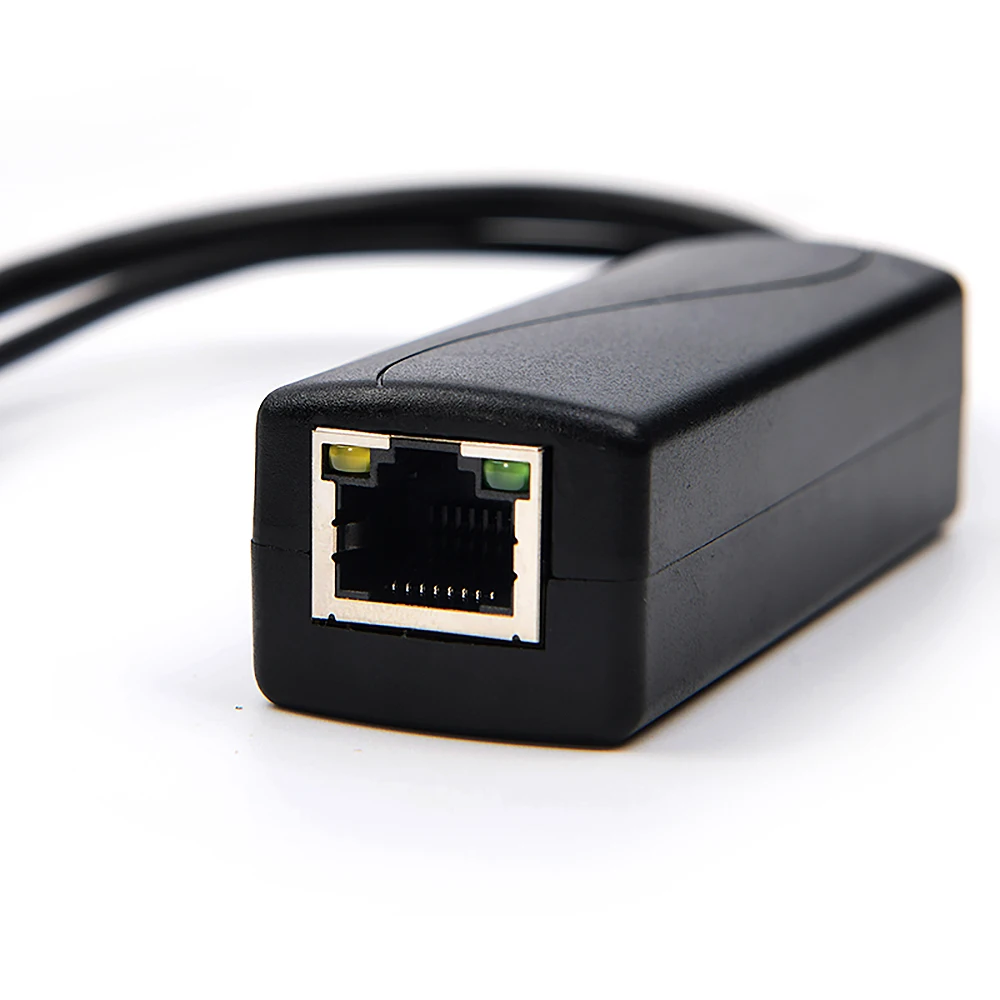

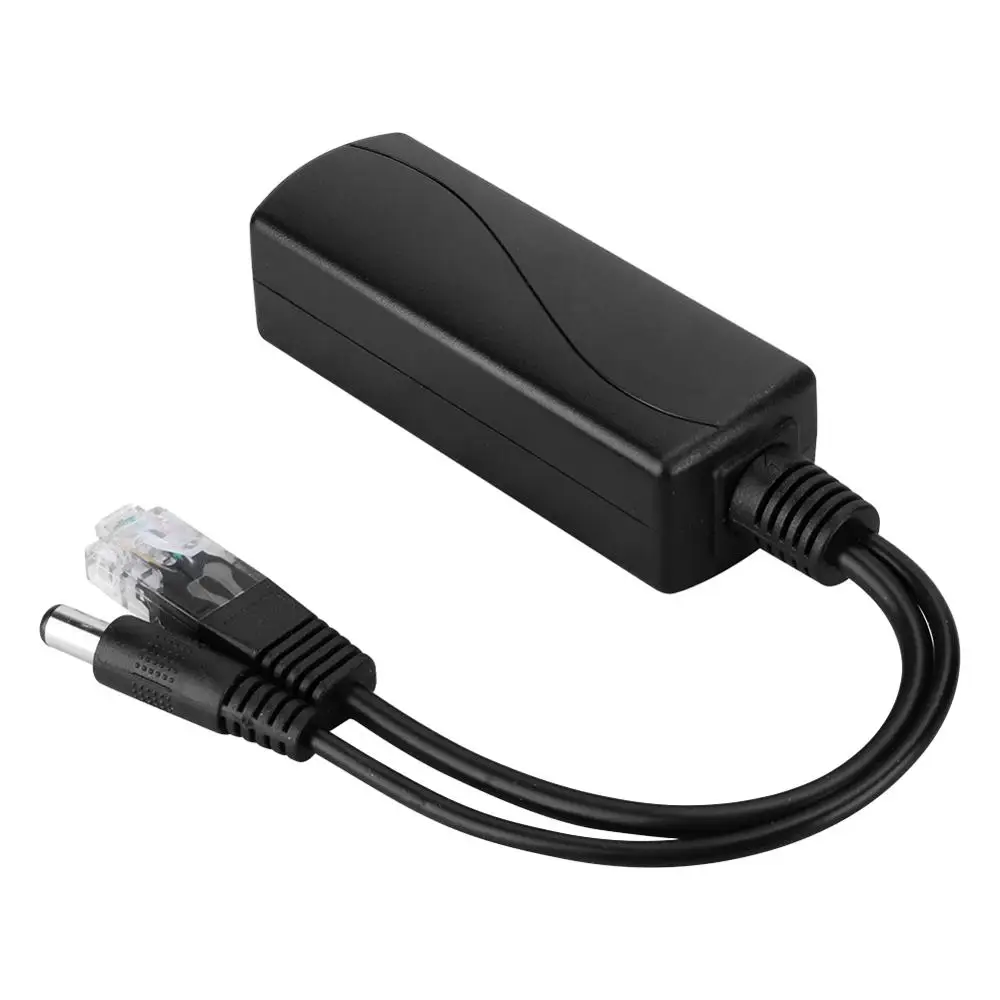

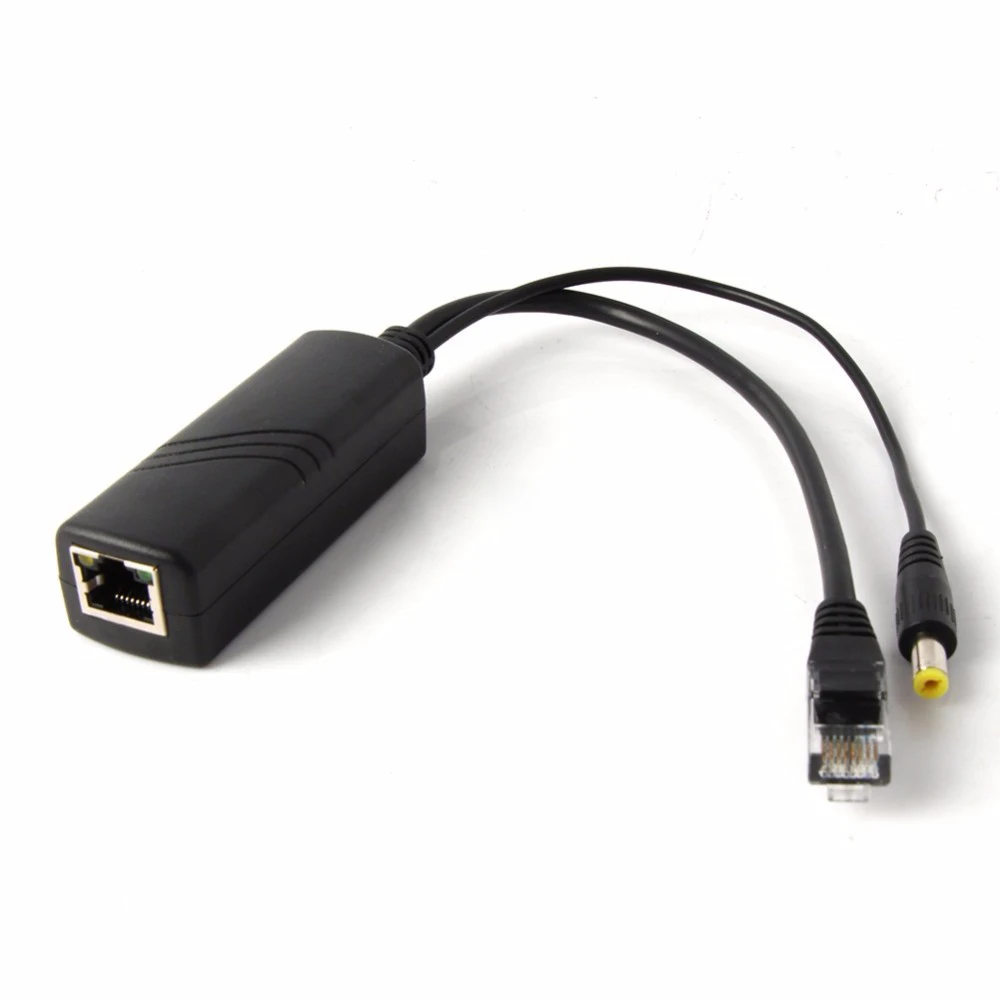

1.5KV Anti-interference Power Over Ethernet 10/100M PoE Splitter With IEEE 802.3af/at Standard & 12V 2A Output & DC44-57V 0.65A 30W Input Power Over Ethernet Receiver
PoE splitter, is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard.

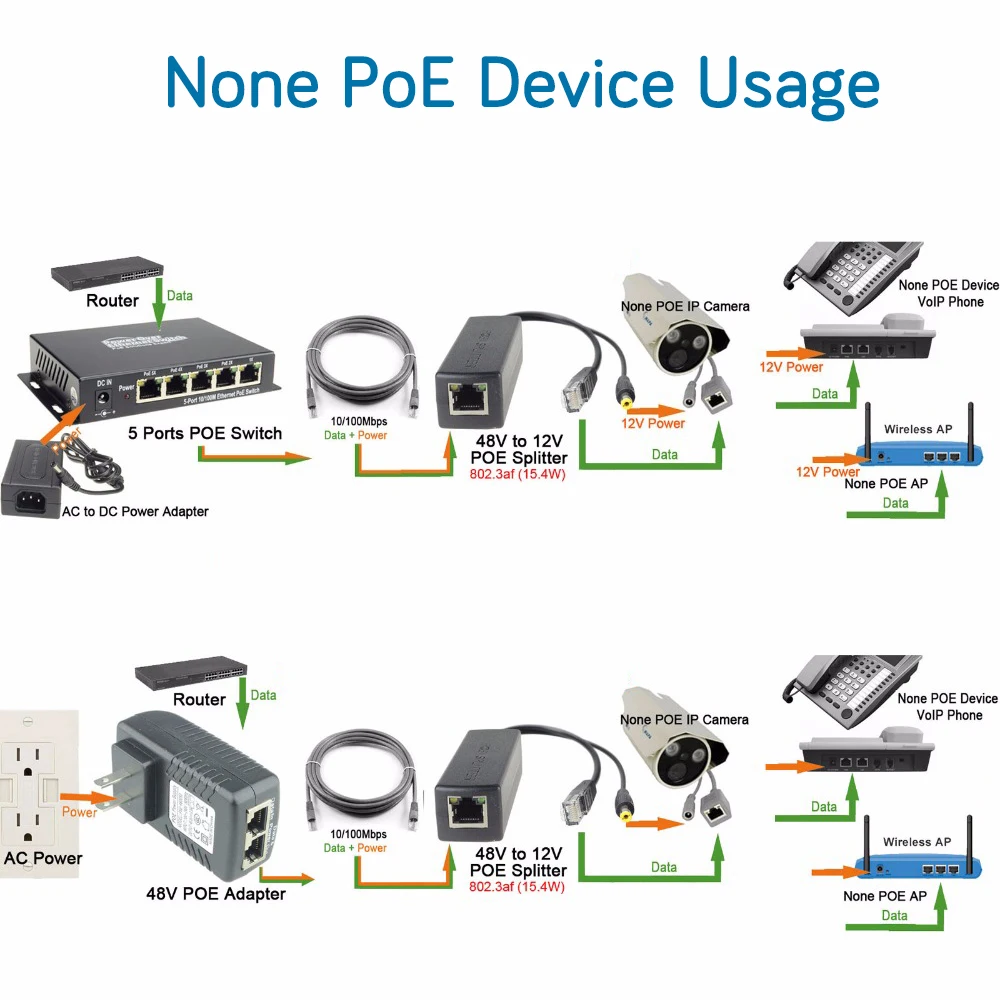

It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.

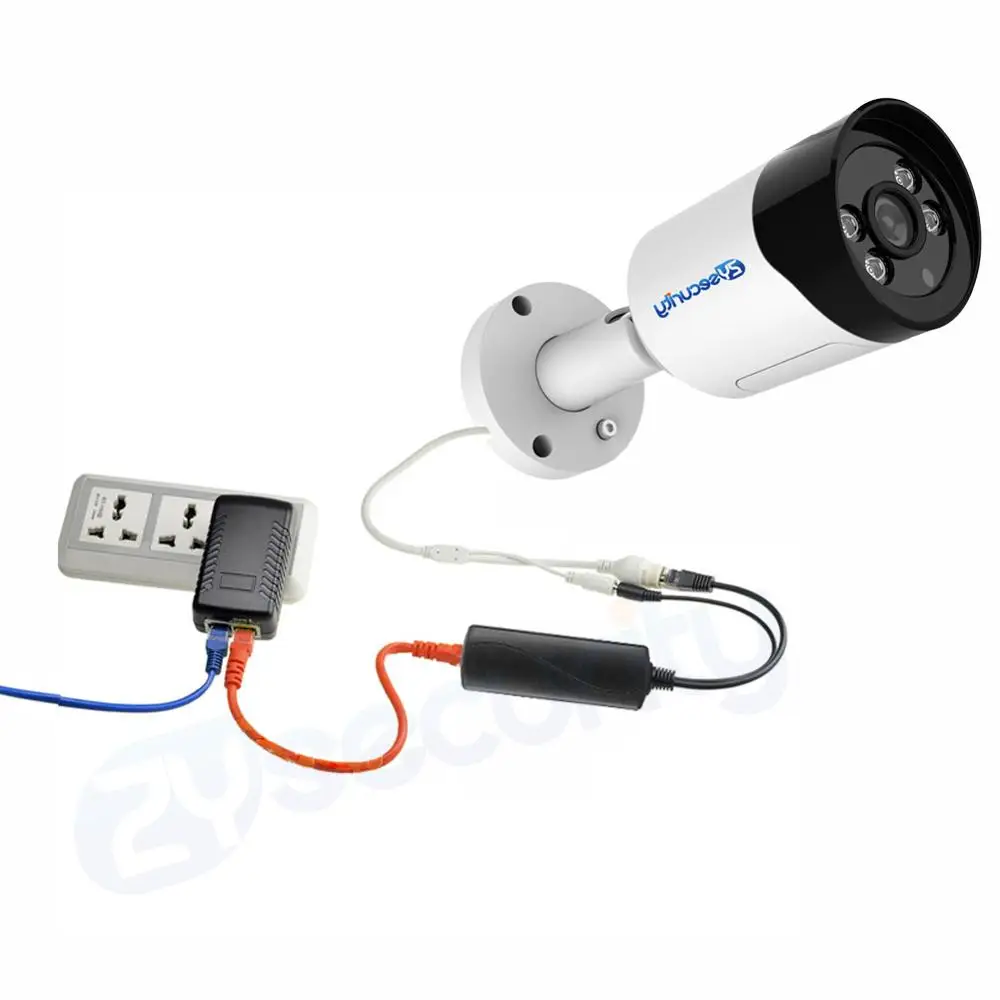

PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

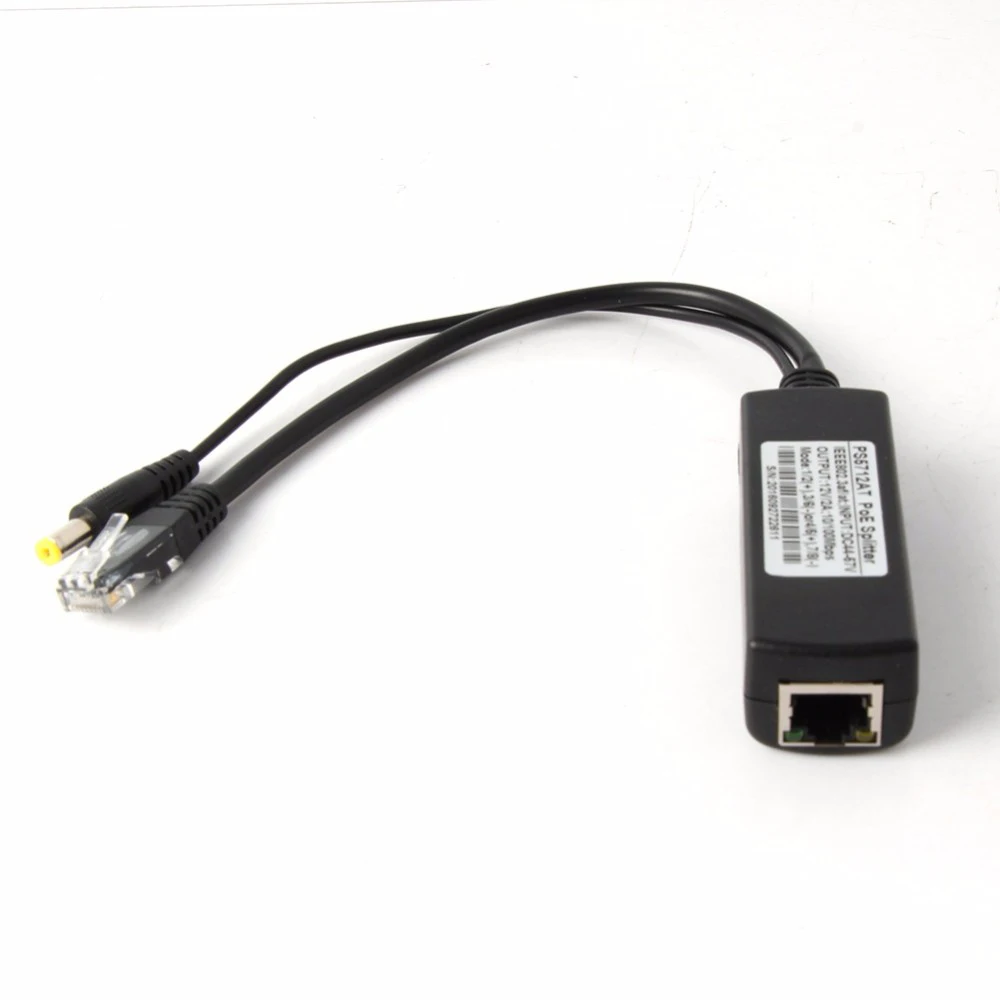

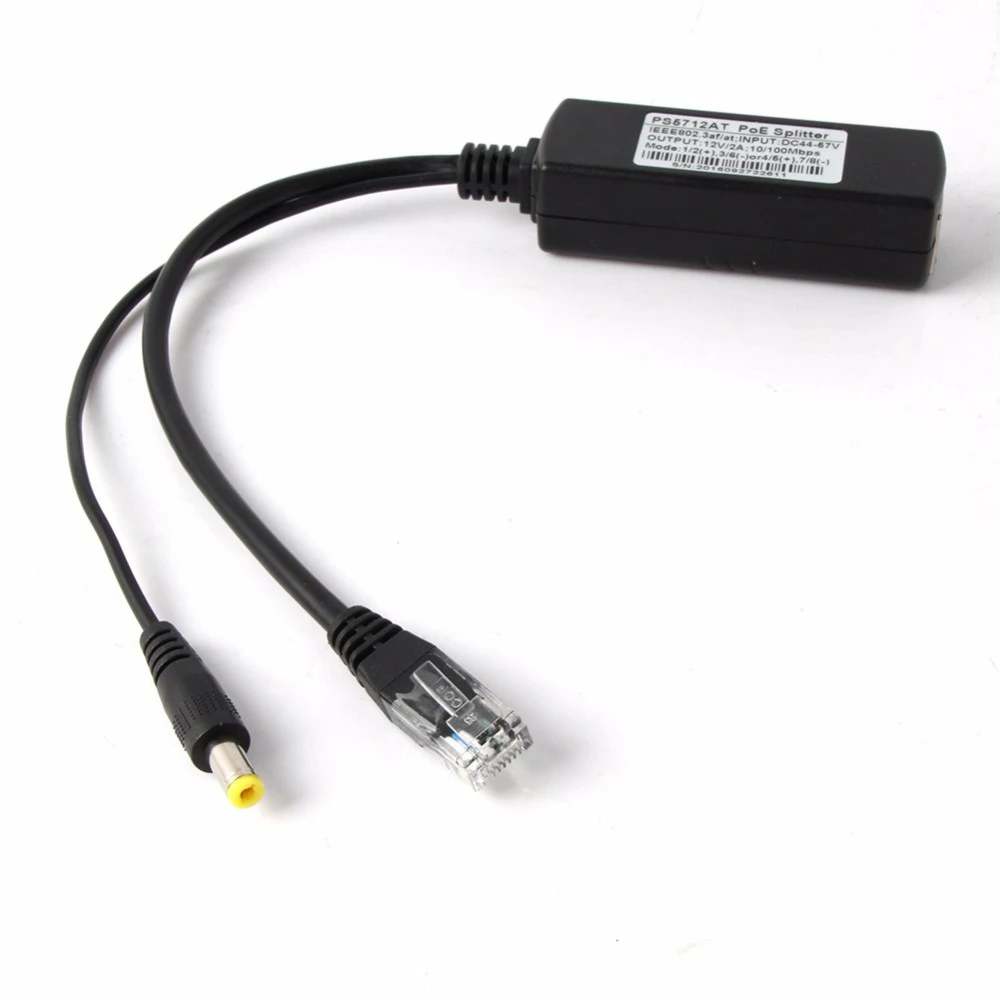

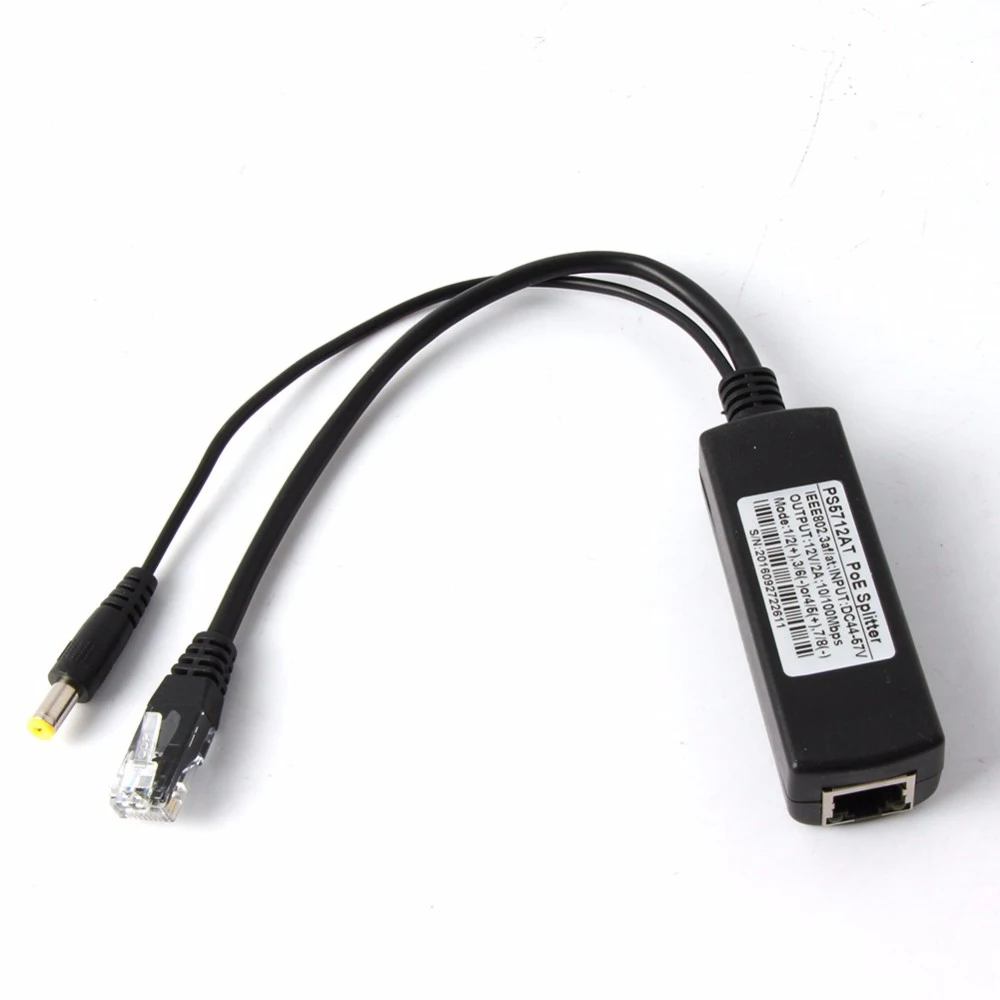

Model PS5712AT 12V2A(30W) Specification:
Standard IEEE802.3at 10/100Mbps Fast Ethernet PoE Splitter Input DC44-57V 0.65A Output DC12V 2A DC Plug5.5*2.1mm Main Features: 1) Support IEEE 802.3at Ethernet power standard and Support 10/100 Mbps data transmission 2) 44V-57V wide power voltage input makes it very conveniently to use direct current DC48V power from generator room or PoE power supply equipment, standard or non standard PoE injector, PoE switch, etc. 3) Supply DC12V power, which is very suitable for small network equipment. 4) Lightning protection design, effectively protect PD from lightning and save loss, please put it close to ground! 5) High quality design ensure the equipment work stably and reliably. 6) Tips: lease keep the device from water, enough space for heat-dissipating, connect the ground line correctly, so that it could extend its lifespan for a longer time. Installation Steps: Step 1: Connect AC power cord to PoE injector, and “Power” & PoE LED will be on. Step 2: Connect “Data/in” port of injector to Non PoE switch via Cat5e/6/7 cable, and set the correct voltage(5V, 9V or 12V) by adjustable DIP switch on one side of the PoE splitter(Default setting 5V) Step 3: Connect “Power+Data” port of splitter and “P+D/Out” port of injector via Ethernet cable, and make sure “Power Led of Splitter is on. Step 4: Connect “Power Out” cable of splitter to power jack of network device, and connect “Data Out” Cable of splitter to to RJ45 port of network device. Step 5: Check whether the network device is on. If not, please make sure that power is on for injector and splitter, and all cables are connected correctly.Technical Parameters
|
Model |
PS5712AT |
|
Transfer Rate |
10/100M |
|
Power |
Input 42.5-57V/600mA , Output 12V/2A MAX |
|
Standard |
IEEE802.3 af/at(30W) |
|
TRNF |
1/2(+),3/6(-);4/5(+),7/8(-) |
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af ， IEEE802.3at |
|
LED |
Yellow PoE lamp |
|
Environment |
Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
|
Dimension |
81*28*24mm |
|
Weight |
0.06kg |

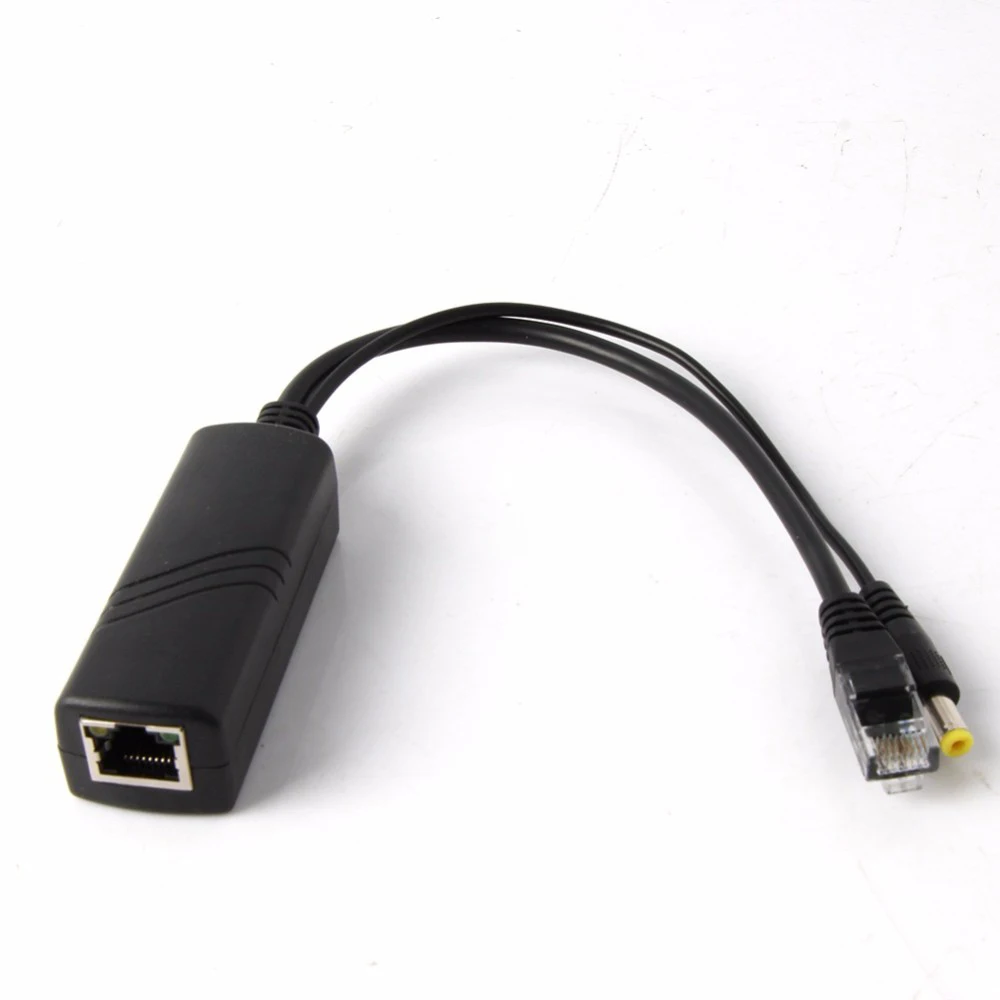

Model PS5712P 12V1A(15.4W) Specification:
Features
· Support international standard IEEE802.3 af(15.4W);
· Support 10/100Mdata transmission
· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
· 12V power output,easy to access Poe network for non-poe terminal
· Support the isolation circuit protection,can effectively protect electrical equipment.
· Support the short circuit,overvoltage protection
· 1500V high voltage isolation
Technical Parameters
|
Model |
PS5712P |
|
Transfer Rate |
10/100M |
|
Power |
Input 48V DC /0.35A, Output 12V/1A |
|
Standard |
IEEE802.3 af(15.4W) |
|
TRNF |
1/2(+),3/6(-);4/5(+),7/8(-) |
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
|
|
|
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
|
LED |
Yellow PoE lamp |
|
Environment |
Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
|
Dimension |
68L * 25W *25H |
|
Weight |
0.05kg |
The main parameters：
|
No. |
Parameter |
Symbol |
Min |
Typical values |
Max |
Unit |
|
1 |
Input Voltage |
Vin |
37
|
48
|
57
|
V |
|
2 |
output voltage |
+VDC |
11.8 |
12 |
12.3 |
V |
|
3 |
output Current |
PWR |
|
1 |
1.08
|
A |
|
4 |
Isolation Voltage |
ISO |
1.48 |
1.5 |
1.52 |
KV |
|
5 |
Storage Temperature |
Tj |
-40 |
25 |
105 |
℃ |
|
6 |
Operating Temperature |
Tstg |
-20 |
25 |
70 |
℃ |
Model PS0502 5V2.4A(12.95W) Specification:
Features
· Support international standard IEEE802.3 af(12.95W);
· Support 10/100Mdata transmission
· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
· 5V power output,easy to access Poe network for non-poe terminal
· Support the isolation circuit protection,can effectively protect electrical equipment.
· Support the short circuit,overvoltage protection
· 1500V high voltage isolation
Technical Parameters:
|
Model |
PS0502 |
|
Transfer Rate |
10/100M |
|
Power |
Input 48V DC /0.35A, Output 5V/2.4A |
|
Standard |
IEEE802.3 af(12.95W) |
|
TRNF |
1/2(+),3/6(-);4/5(+),7/8(-) |
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output（Micro USB） |
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
|
LED |
Yellow PoE lamp |
|
Environment |
Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
|
Dimension |
68L * 25W *25H |
