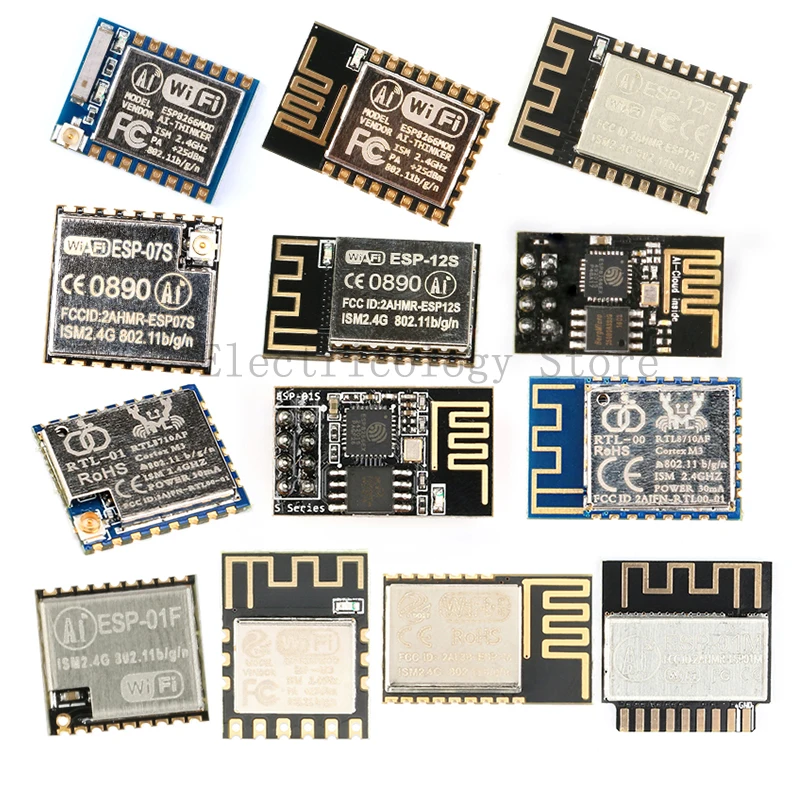

ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |
ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |
ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |
ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |
ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |
ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |
ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |

ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |


Сохраните в закладки:

Цена:US $0.67 - 2.93RUB
*Стоимость могла изменится

Количество:


Новое поступление

Профессиональный ремонтный полный набор инструментов отвертка для безопасности

Профессиональный ремонтный полный набор инструментов отвертка для безопасности

2 421,49 руб. / набор
ChengChengDianWan хромированная Лицевая панель сменная передняя оболочка корпус для GameBoy

ChengChengDianWan хромированная Лицевая панель сменная передняя оболочка корпус для GameBoy

757,56 руб. / набор
50 шт./лот MP3378E MP3378 tssop | Электроника

50 шт./лот MP3378E MP3378 tssop | Электроника

1 433,20 руб. / набор
[РАКЫ] CAT1027ZI-25-GT3 IC SUPERVISOR CPU 2 К EEPR 8 MSOP Интегральных Схем | Электроника

[РАКЫ] CAT1027ZI-25-GT3 IC SUPERVISOR CPU 2 К EEPR 8 MSOP Интегральных Схем | Электроника

1PCS M3516 M3516-ALCA M3516ALCA QFP 100% New&amporigina | Электроника

1PCS M3516 M3516-ALCA M3516ALCA QFP 100% New&origina | Электроника

961,98 руб.
Оптический UMD лазерный объектив для PSP 1000 восстановленные детали фотографий |

Оптический UMD лазерный объектив для PSP 1000 восстановленные детали фотографий |

514,06 руб.
Бесплатная доставка Логическая плата для ЖК-экрана телевизора. LC320WXN-SBA1 6870C-0238B LCD

Бесплатная доставка Логическая плата для ЖК-экрана телевизора. LC320WXN-SBA1 6870C-0238B LCD

771,09 руб.
Заменяет R1 R2 L2 триггеры Butto ns Thumbsticks Spring для контроллера Sony PS4 | Электроника

Заменяет R1 R2 L2 триггеры Butto ns Thumbsticks Spring для контроллера Sony PS4 | Электроника

Electricology Store

Electricology Store

Магазина Electricology Store работает с 08.03.2019. его рейтинг составлет 96.38 баллов из 100. В избранное добавили 1609 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 1741 наименований товаров, успешно доставлено 24735 заказов. 7269 покупателей оставили отзывы о продавце.

Характеристики

ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |

История изменения цены

*Текущая стоимость US $0.67 - 2.93 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Mar-21-2026 0.79 руб. 0.27 руб. 0 руб.
Feb-21-2026 0.4 руб. 0.19 руб. 0 руб.
Jan-21-2026 0.52 руб. 0.37 руб. 0 руб.
Dec-21-2025 0.18 руб. 0.93 руб. 0 руб.
Nov-21-2025 0.52 руб. 0.7 руб. 0 руб.
Oct-21-2025 0.84 руб. 0.7 руб. 0 руб.
Sep-21-2025 0.49 руб. 0.68 руб. 0 руб.
Aug-21-2025 0.64 руб. 0.65 руб. 0 руб.
Jul-21-2025 0.74 руб. 0.27 руб. 0 руб.

Описание товара

ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01 |

ESP8266 Wifi Wireless Module Adapter ESP-01 ESP-01S ESP-01M ESP-01F ESP-07 ESP-07S ESP-12E ESP-12F ESP-12S ESP-M2 ESP-M3 ESP01

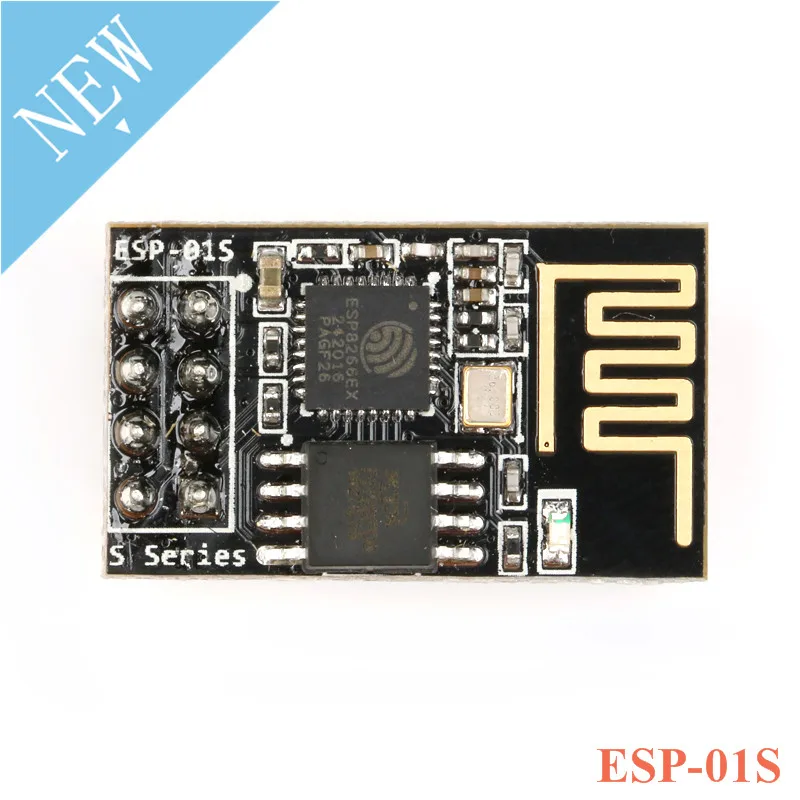

ESP-01   Advantages: low price, only to earn a small profit base, hope that this will bring more rapid development of the Internet of Things smallest, the size of a fingernail. Easily embedded into any product  Powerful internal ran LWIP agreement  supports three modes: AP, STA, AP + STA coexistence mode  perfect simple and efficient AT commands, allowing you to develop more simplely   ESP-01S   Parameters: Wireless standard: 802.11 b / g / n Frequency range: 2.4GHz~2.5GHz(2400M ~ 2483.5M) Data interface: UART / HSPI / I2C / I2S / IR Remote Contorl / GPIO / PWM Operating voltage: 3.0 ~ 3.6v (Suggest 3.3v) Working current: average 80mA Operating temperature: - 40 degrees to 125 degrees Storage temperature: room temperature Package size: 14.3mm * 24.8mm * 3mm External interface: N / A Wireless network mode: station / softAP / SoftAP + station Security mechanisms: WPA / WPA2 Encryption type: WEP / TKIP / AES Upgrade firmware: local serial port burn, cloud upgrade, host download burn Software development: support customer custom server, provide SDK to customer secondary development Network protocols: IPV4, TCP / UDP / HTTP / FTP User Configuration: AT + instruction set, cloud server, Android / IOS APP   ESP-01M   Description:

Tiny WiFi module uses ESP8285 chip, which has complete and self-contained WiFi network functionality. So it can be regarded as a standalone application, also be run as slave from other host MCU. This chip integrated enhanced 32-bit core processors of Tensilica’s L106, and it has on-chip SRAM. The advantage of ESP8285 is both hardware and software are mature enough, and it has 1M Byte Flash inside. The main frequency can above 160 MHz, and the series rate can be as high as 4Mbps. It has GPIO, IIC, UART, PWM, ADC and some more interfaces. Completely compatible with ESP8266, so we can use original code.
This module can be used on smart home, such as domestic appliance, intelligent socket/lamp, baby monitors. In addition, it also can be applied on electronic industrial, such as sensor network, industrial wireless control product parameter module structure diagram and so on.

Features:

Frequency up to 160MHz
Built-in 10 bit high precision ADC
Support UART / GPIO / IIC / PWM / ADC and other interfaces
Integrated Wi-Fi MAC / BB / RF / PA / LNA
Supports multiple hibernation modes with standby power as low as 1.0 mW
Embedded Lwip protocol stack
Support STA / AP / STA + AP working mode
Support Smart Config / AirKiss a key distribution network
Serial port speed up to 4Mbps
Universal AT command can get started quickly, you can brush Web configuration firmware
Support serial local upgrade and remote firmware upgrade (FOTA)



Details:
Size: 18*18*2.8 (±0.2)mm
SPI Flash: 1MB
The type of interface: UART/GPIO/ADC/PWM
The quantity of IO put: 11
Series rate: 300-4608000 bps, the default is 115200bps
RF range: 2412-2484MHz
The type of antenna: onboard PCB wire
Transmission power: 802.11b: 16±2 dB (@11Mbps) 802.11g: 14±2 dB (@54Mbps) 802.11n: 13±2 dB (@HT20, MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dB CCK, 11Mbps: -85dB 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power consumption: Continuous transmission→average value:71 mA, maximum value: 300 mA. Modem sleep: 20mA Light sleep: 2mA Deep sleep: 0.02mA
Security: WEP/WPA-PSK/WPA2-PSK
Supply voltage: 3.0V-3.6V
Supply current: >300mA
Working temperature: -20℃-85℃
Storage environment: -40℃-90℃，<90%RH

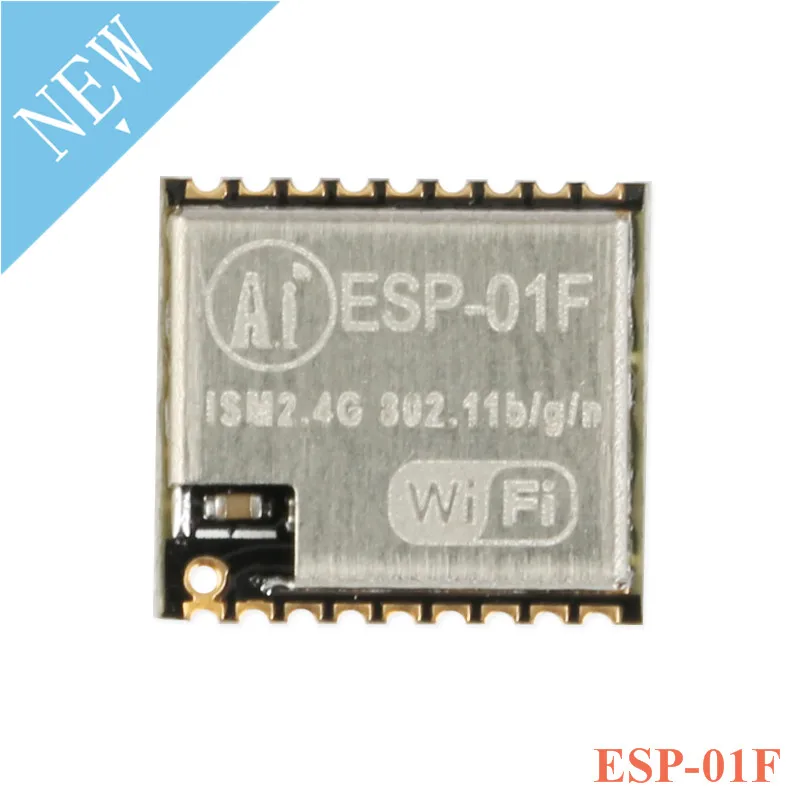

ESP-01F



Product Specifications
  • Package: SMD-18
  • SPI Flash: Built-in 8Mbit
  • Support interface: UART/GPIO/ADC/PWM
  • IO port: 9
  • Serial port rate: support 300-4608000bps, default 115200bps
  • Spectrum range: 2412-2484MHz
  • Power supply range: 3.0V- 3.6V
  • Supply current: >300mA
  • Working temperature: -20 ° C ~ 85 ° C
  • Storage environment: -40 ° C ~ 90 ° C, <90% RH
  • CCK, 1Mbps: -90dBm
  • CCK, 11Mbps: -85dBm
  • 6Mbps (2 BPSK): -88dBm
  • 54Mbps (3/4 64-QAM): -70dBm
  • HT20, MCS7 (65Mbps, 72.2Mbps): -67dBm
  Product Features
  • Smallest 802.11b/g/n Wi-Fi SOC module
  • Low-power 32-bit CPU for dual application processor
  • Main frequency up to 160MHz
  • Built-in 10bit high precision ADC
  • Supports interfaces such as UART/GPIO/ADC/PWM
  • SMD-18 package for easy soldering and testing
  • Support multiple sleep modes, deep sleep current resists 20uA
  • Embedded Lwip protocol stack
  • Support STA/AP/STA+AP working mode
  • General AT command can get started quickly
  • Support for serial local upgrade and remote firmware upgrade (FOTA)

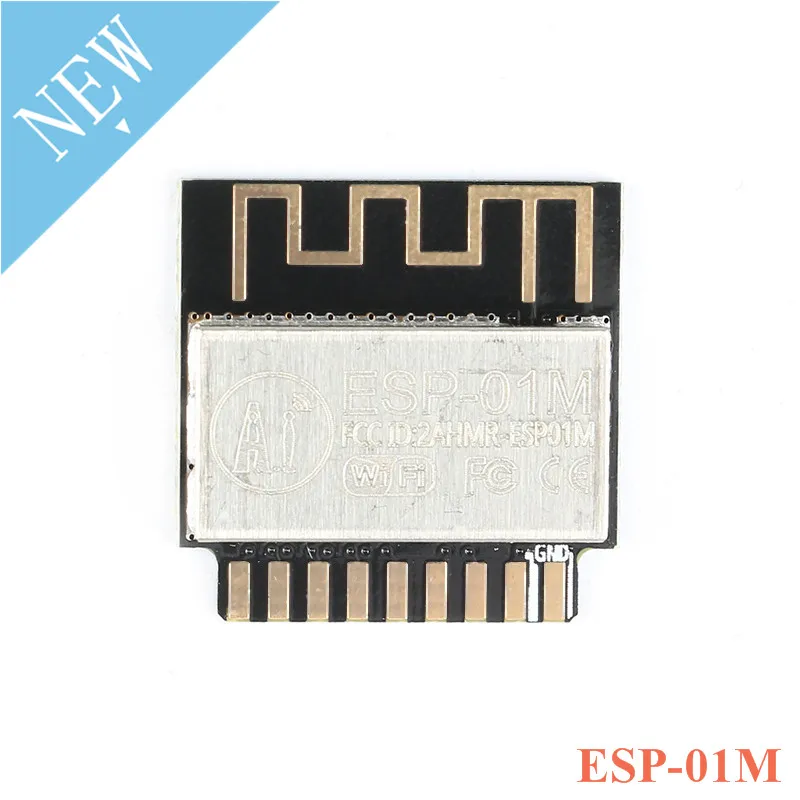

  • ESP-01M
  • Features:
  • Frequency up to 160MHz
  • Built-in 10 bit high precision ADC
  • Support UART / GPIO / IIC / PWM / ADC and other interfaces
  • Integrated Wi-Fi MAC / BB / RF / PA / LNA
  • Supports multiple hibernation modes with standby power as low as 1.0 mW
  • Embedded Lwip protocol stack
  • Support STA / AP / STA + AP working mode
  • Support Smart Config / AirKiss a key distribution network
  • Serial port speed up to 4Mbps
  • Universal AT command can get started quickly, you can brush Web configuration firmware
  • Support serial local upgrade and remote firmware upgrade (FOTA)

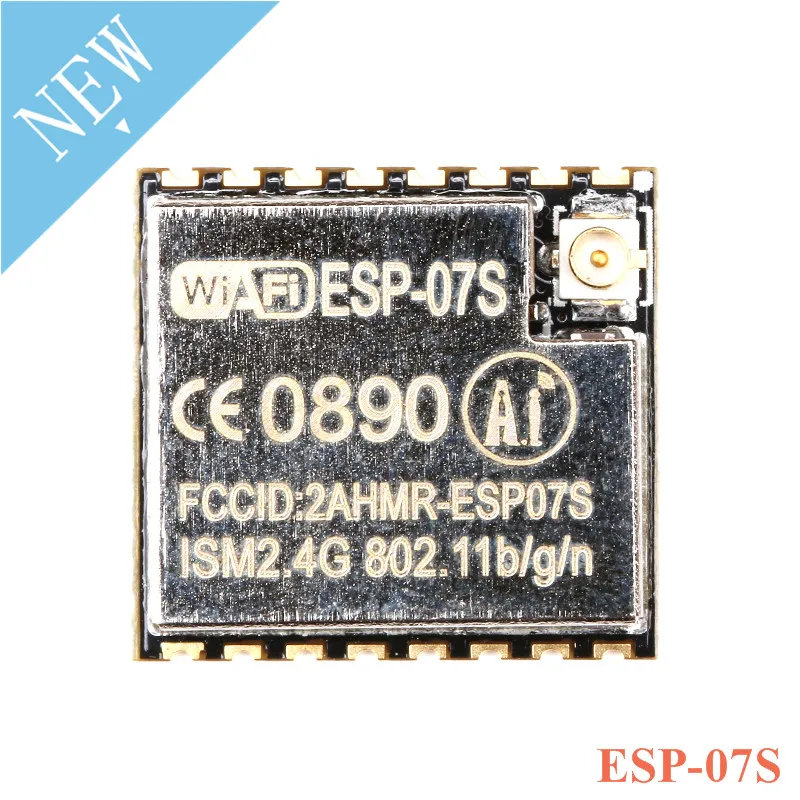

    ESP-07   Features: The smallest 802.11b/g/n Wi-Fi SOC module Low power 32-bit CPU, can also serve as the application processor Up to 160MHz clock speed Built-in 10 bit high precision ADC Supports UART/GPIO/IIC/PWM/ADC SMD-16 package for easy welding Integrated Wi-Fi MAC/BB/RF/PA/LNA Deep sleep current as low as 20uA Embedded lwIP protocol stack Supports STA/AP/STA + AP operation mode Support Smart Config/AirKiss technology UART baudrate up to 4Mbps General AT commands can be used quickly Supports remote firmware upgrade (FOTA)   ESP-07S   Features The smallest 802.11b/g/n Wi-Fi SOC module Low power 32-bit CPU, can also serve as the application processor Up to 160MHz clock speed Built-in 10 bit high precision ADC Supports UART/GPIO/IIC/PWM/ADC SMD-16 package for easy welding Integrated Wi-Fi MAC/BB/RF/PA/LNA Support multiple sleep patterns. Deep sleep current as low as 20uA UART baud rate up to 4Mbps Embedded LWIP protocol stack Supports STA/AP/STA + AP operation mode Support Smart Config/AirKiss technology Supports remote firmware upgrade (FOTA) General AT commands can be used quickly Support for the two development, integration of windows, Linux development environment   ESP-12S           The ESP-12S WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers.           The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems.    ESP-12F           The core processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit Lite mode, clocked at Supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi MAC/BB/RF/PA/LNA.          The ESP-12F WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers.          The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems   ESP-12E   ESP8266-12E is an enhanced version ESP8266-12, improve peripheral circuitry increases impedance matching, the signal output is better, whether it is stable or anti-jamming capability, have been greatly improved! For users before selecting the ESP-12, it does not matter even if the product has been made, enhanced version is fully compatible with previous firmware, the pin has added the ESP-12 on the basis of six IO ports, SPI mouth leads, develop more convenient, application more extensive!   Adapter Board   Parameter:  Model number : ESP8266   ISM : 2.4GHZ     PA  : +25 dbm  802.11 b/g/n   This module requires a 3.3 volt supply for VCC, and 3.3V logic.   It is not 5V tolant. Connect RX or TX on 5V for Arduino will destroy this module.   You must use a logic level converter, or a 3.3V for Arduino   The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module.   You must provide a separate, higher 3.3V supply(about 300mA or better)
