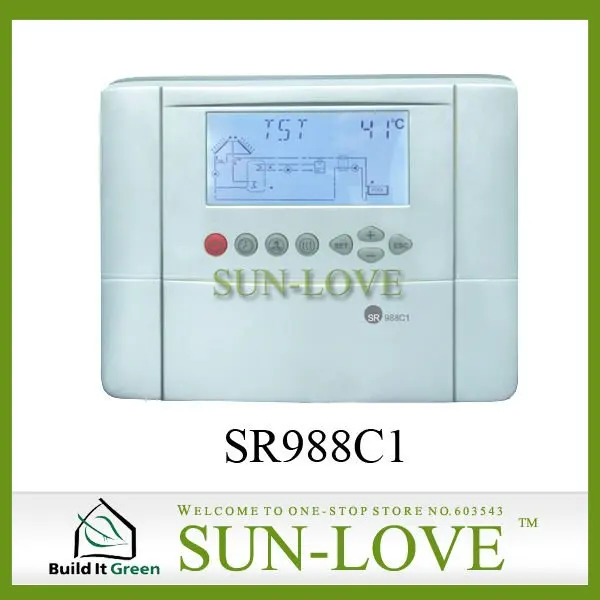

SR988C1 Solar Water Heater Controller Collector Pump Station LCD Display |

SR988C1 Solar Water Heater Controller Collector Pump Station LCD Display |

SR988C1 Solar Controller, Solar Water Heater Controller

SR988C1 Solar Collector Controller, Pump Station Controller
-Customize function
-LCD display, 110V/220V
-3 days delivery

1. Operating Regulations

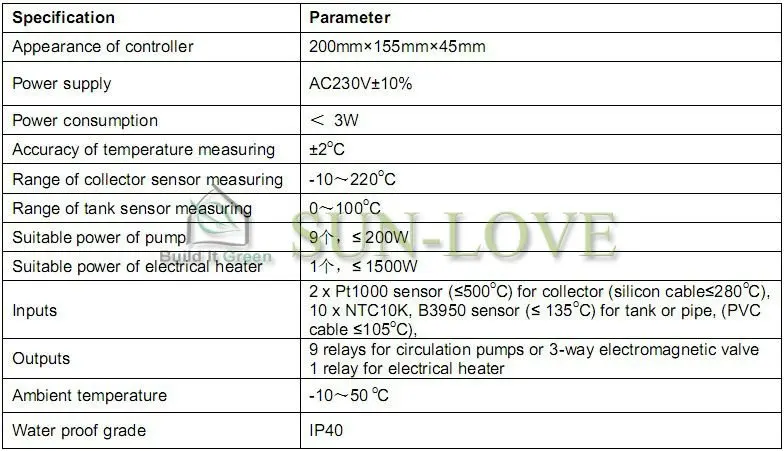

2. Main Technical Data

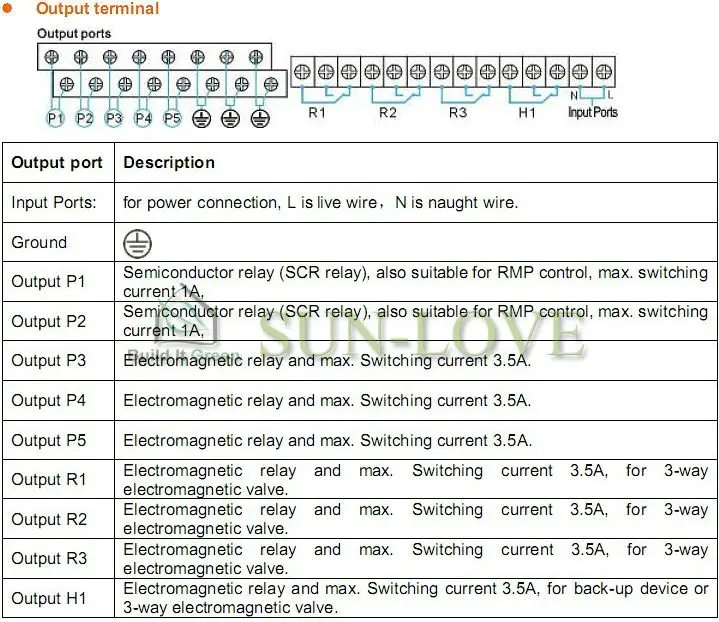

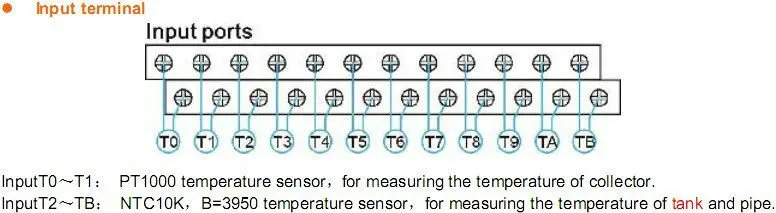

3. Wire Connection

4. Application Cases

1. Multi-Collector and tank system control

2. Multi-Solar heat collecting system control

3. Multi-Swimming pool system control

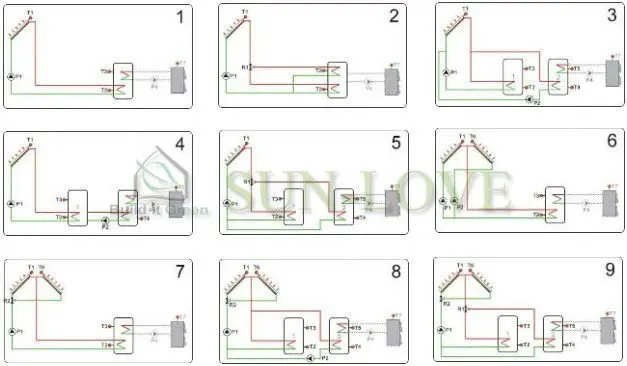

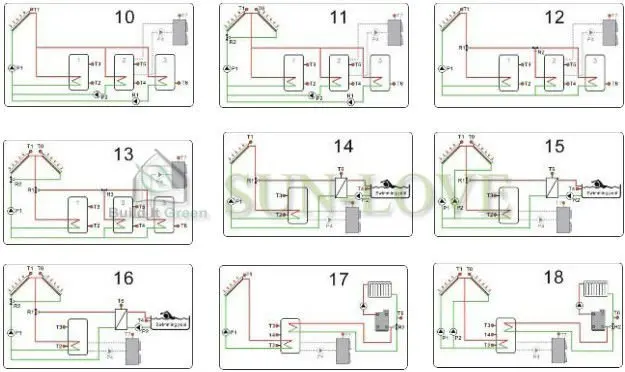

*SR988C1 fits for 39 solar water heating systems, 18 systems below for your reference. Due to the limited space here, for more details pls contact us, the E-manual is available before you order.

5. Main Functions

4.1 Access main menu
4.2 Access submenu
4.3 Main menu "THET" time setup on heating
4.4 "DT" Temperature difference adjusting function

4.5 "TEMP" Temperature main menu

4.5.1 "EM" Collector temperature setting (collector switch-off against emergency)
4.5.2 "CMX" Maximum limited collector temperature (collector cooling function)
4.5.3 "CMN" Collector low temperature protection
4.5.4 "CFR" Collector frost protection
4.5.5 "REC" Tank re-cooling function

4.5.6 "SMX1" Maximum temperature in tank 1
4.5.7 "SMX2" Maximum temperature in tank 2
4.5.8 "SMX3" Maximum temperature in tank 3
4.5.9 "MAX1" Maximum turnoff temperature (for solid fuel boiler, return heating, heat transferring between tanks)
4.5.10 "MIN1" Minimum turn-on temperature (for solid fuel boiler, return  heating, heat transferring between tanks)

4.6 FUN Auxiliary function
4.6.1 "CIRC" Hot water circulation pump temperature controlling
4.6.2 "nMIN" Circulation pump speed adjusting (RPM speed controlling)
4.6.3 "DTS" Standard temperature difference (for circulation pump speed adjusting)
4.6.4 "RIS" Increased rate (for circulation pump speed adjusting)
4.6.5 "OHQM" Thermal energy record

4.6.6 "FMAX" Flow rate
4.6.7 "MEDT" Type of heat transfer liquid
4.6.8 "MED" Concentration on antifreeze
4.6.9 "PRIO" Priority protection of tank
4.6.10 "TRUN" Loading-time of heater working

4.6.11 "TSTP" Interval-time of working heater
4.6.12 "DVWG" Bacteriostasis/Anti-germs function
4.6.13 "BYPR" High temperature by-pass function (tank temperature automatically adjusted)

4.7 "HND" Manual mode
4.8 "PASS" Password setting
4.9 "RSET" Restore to factory defaults
4.10 ON/OFF button

4.11 Holiday function
4.12 Manual heating
4.13 Temperature query function

5.Protection function

5.1 Memory Protection when power is cutoff
5.2 Anti-empty heating function
5.3 Screen protection
6.Troubleshooting
6.1 Trouble protection
6.2 Trouble checking

6. What's inside the box? | Packing List

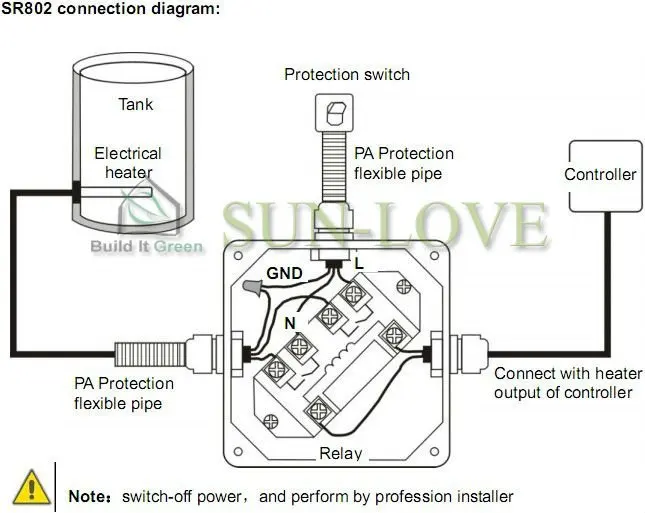

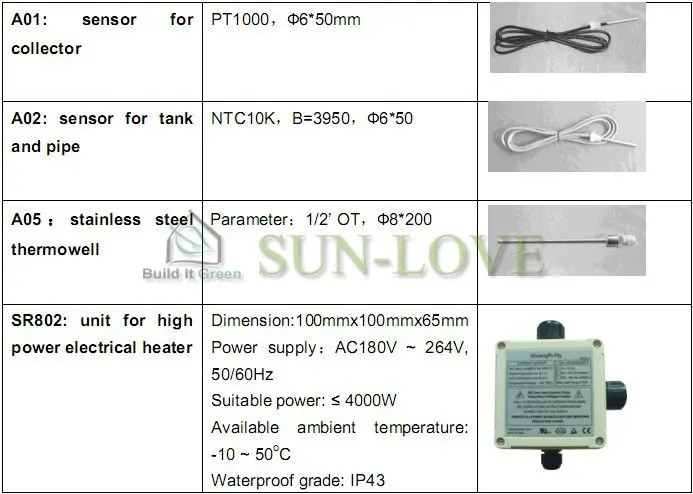

7. Accessories matched with this controller
