Описание товара

![]()
![]()
![]()
![]()
![]()
![]()

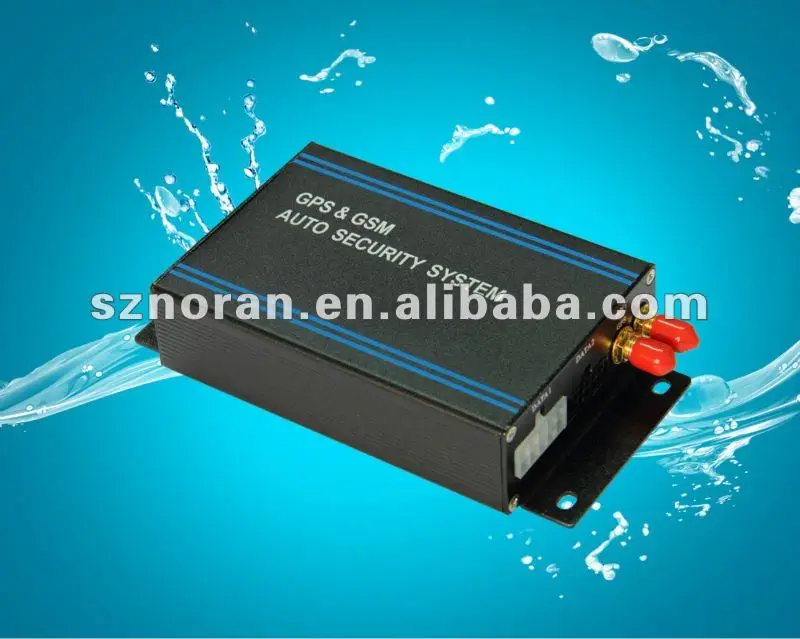

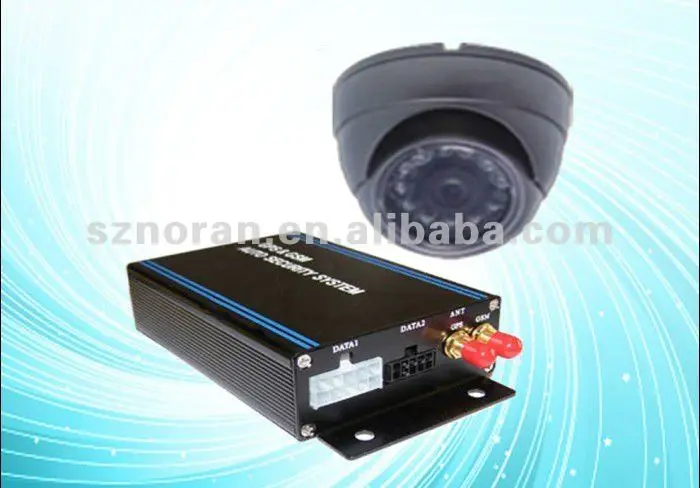

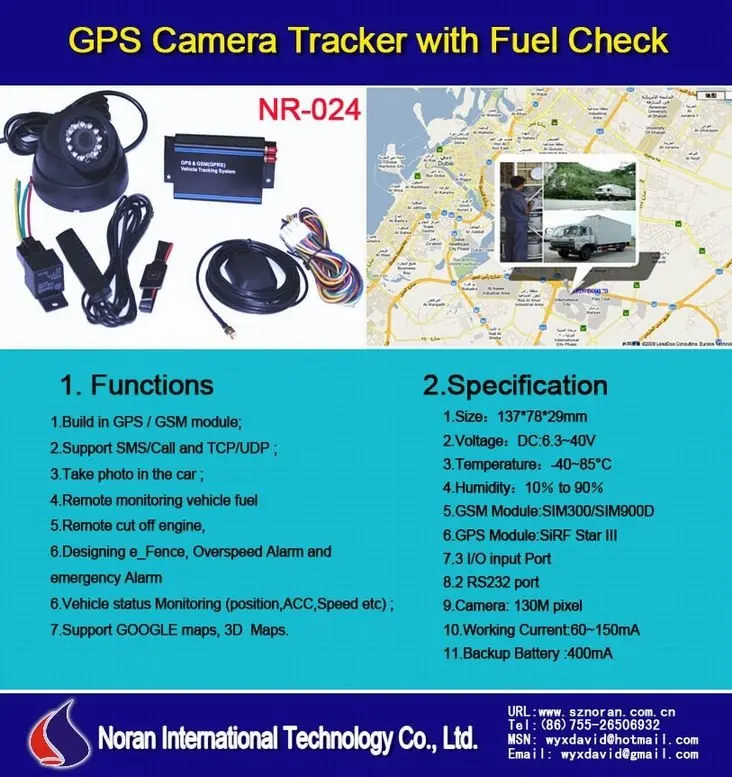

Free shipping!!! Real-time locating car GPS Tracker with digital camera for Vehicle Status Monitoring
Main Features:
1. Using GPS global satellite positioning technology;
2. Built-in GSM phone module, supports text messaging and Internet network communication;
3. Equipped with high-definition digital camera, can capture vehicle image at real-time ;
4. Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.);
5. Remote off oil, power, designing cross-border, speeding and emergency alarm functions;
6. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.);
7. Support Google maps, 3D Virtual Monitor;
8. LED advertising screens can be expanded, update the display content remote real-time;
Main functions:
1. Free tracking
2. Image transmit
3. Real-time locating
4. SOS button/Power-cut Alarm
5. Listen by telephone
6. E-fence/Over-speed Alarm
7. Control engine remotely
8. Check fuel
9. LED Advertising screen(optional)

Specification:
| Size | 137*78*29mm |
| Working Voltage | DC:6.3~40V |
| Input Fuse | 5A |
| Working Temperature | -40~85°C |
| Humidity | 10% to 90% |
| CPU | TI:MSP430F5419(100MHz) |
| GSM Module | Quad band:850/900/1800/1900MHz Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg |
| GPS Module
| GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
| Input I/O | 7 I/O input Port 1 port use to check the engine ( ACC check) 1 port use to SOS 1 A/D Input port( Fuel check) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software) |
| RS232 | Two One is connect to the camera (130M pixel) Other is extend ports, ,can connect to LED screen. |
| Microphone | 3.5mm single track |
| earphone | 3.5mm |
| Current | Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA |
| Battery | Lithium battery :400mA( working time is about 3.5 hours) |

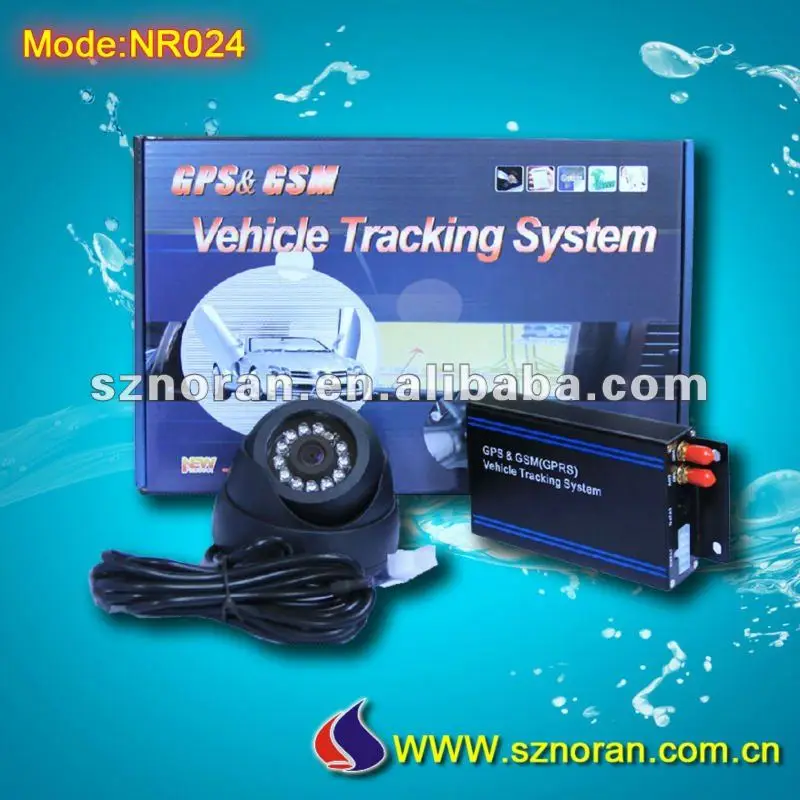

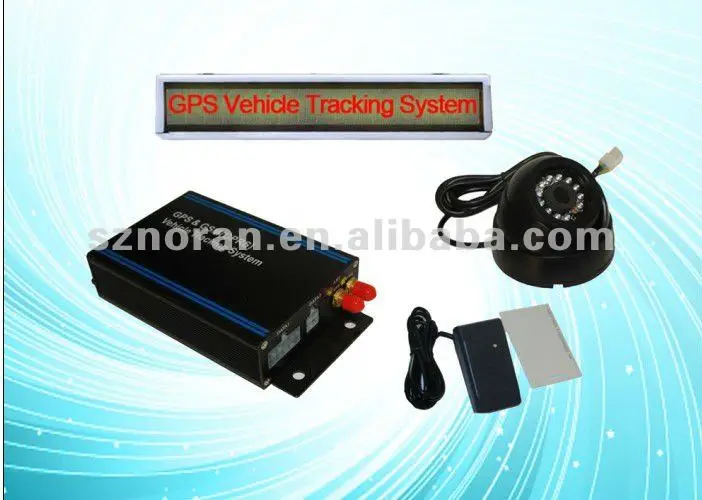

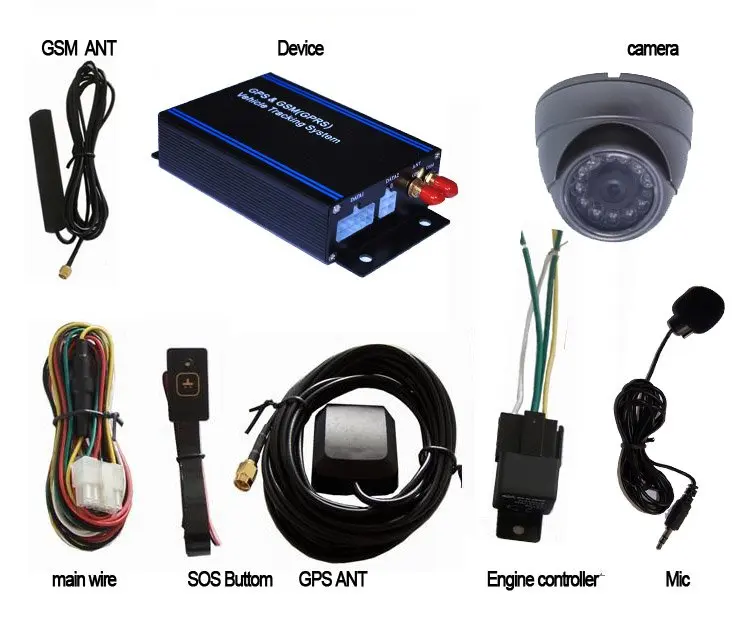

| Accessories | device, Connecting cable ,GPS antenna ,GSM antenna, Engine controller, SOS button, Microphone, Camera, LED advertising display(optional) |
We are committed to build the tracking platform(software) for our clients for free ,if their order is larger than 200pcs.

Our promise to you: If our system doesn't perform as promised - for any reason - simply return it in its original packing material within fifteen (15) days for a full refund. It's that simple.
