Free Shipping  THC15A DIN RAIL DIGITAL PROGRAMMABLE 220V AC 16A TIMER SWITCH

Narrative

1,35 mm standard rail mounting, Hugh plot compact, good looks, KG316T replacement products;

2, real-time control, seven days or 24 hours preset cycle timing control;

3, all the way to output, paragraph 17 on and off timer setting, 10 date combination mode;

4, the longest set for 168 hours, the shortest timing 1 minute;

5, LCD display, the reserve high capacity rechargeable battery, power outages usual go;

6,12 / 24 hours switch, default is 24 hours.

Model Description

Technical parameters


Rated control voltage: AC220V +- 10% 50Hz contact number: 1 set of conversion timing error:2 seconds / day (25 °C)
Switch Views: 17 on and 17 off Power Consumption: 4.5VA (max) when the control range: 168 hours
Latched time ≥ 15 days (48 hours constantly energized) minimum timing: 1 minute
Contact capacity: resistive load: 16A/250VAC (COSφ = 1);
Inductive load: 2.5A/250VAC (COSφ = 0. 6); controls lights: 1000W electrical life: 100,000 times (rated load)
Mechanical life: 1,000,000
Ambient temperature: 35 ~ 85% RH Ambient temperature: -10 ~ 55 °CWeight: about 125g
Fourth, the instructions

1, start using a timer connected to the rated control supply, and then press the reset button "RESET".

2, the first time to set the timer to work in 24-hour mode, if you want to switch to 12 hour mode, press and hold the button for 5 seconds, LCD displays "AM"; if you want to switch to 24-hour mode, press and hold " button for 5 seconds, and will return to the 24-hour mode.

3, programmed

The step key programming content
Press "P" to display the "1ON" 1 ", set the opening time of the first group;
* Press the "D +" to set the day of the week or a few days of opening;
3 "H + / M +" to set the hours and minutes of the opening of the time;
Press "P" to display the "1OFF" "", setting the first group off time
5 "P" set the week day or a few days off;
6 "H + / M +" to set off the hours and minutes;
7 Repeat steps 2 to 6
Set 2 to 8 timing turn-on and turn-off time;

8 ** "to complete the setup
Remarks:

Want to cancel a certain timing setting, please press the "MANUAL" key, LCD displays "- = -"; press the "MANUAL" key again will return to the set.

* 10 Date combination mode: (1.MO TU WE TH FR SA SU; 2.MO TU WE TH FR; 3.SA SU; 4.MO; 5.TU; 6.WE; 7.TH; 8.FR ; 9.SA; 10.SU).

** If you do not need to set up 8 timer, press "" to complete the setting and return to the real-time clock status.

4, the real-time clock settings

(1), at the same time "and the" D + "binary set, until the show this week;

(2), "and" H + "into the bit is set until the current hour is displayed;

(3), at the same time "and" M + "binary settings until the display of the current minute;

(4), press "MANAUL" display "ON AUTO" or "AUTO OFF"; (If automatic timer initial state, to be opened select "ON AUTO" select "AUTO OFF"; If automatic timer initial state, want to turn off) .

5, press "MANAUL" to change the switch status, "ON" long open, "OFF" for the long-off.

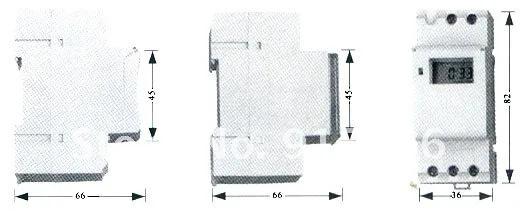

Dimensions

Note:

The timer on and off time set date in the same paragraph should be consistent;

Use of technical parameters specified requirements;

Internal rechargeable battery with high capacity, do not decompose into fire.
